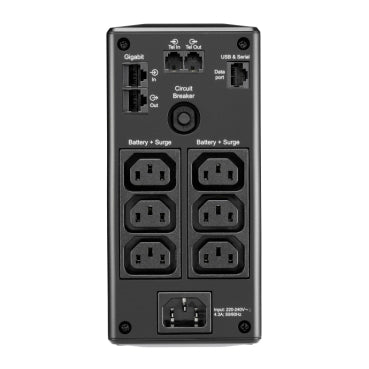

This APC Back-UPS Pro offers premium power protection for high performance computer systems, routers/modems, external storage devices, game consoles and other electronics in your home or business. The 900VA tower UPS has 6 total outlets, all of which are battery back up and surge protection. It has a surge energy rating of 557 Joules. Its runtime at 100 Watts is 42 minutes. Its dimensions are 19 x 9.1 x 31 cm and 7.1 kg. The Back-UPS Pro family offers guaranteed power protection for high-performance computer systems, routers, external storage devices, game consoles, and other home and business electronics. This UPS has a 2-year warranty and CE product certification. It is compatible with a dedicated user-replaceable battery, and the APC replacement battery cartridge helps restore UPS performance to the original specifications.
| Main | |
|---|---|
| Run time for load | 540 W |
| Min-max: 54-540 W | |
| 2min 29s | |
| Max. Capacity Used | 100 % |
| Main Input Voltage | 230 V |
| Main Output Voltage | 230 V |
| Rated power in W | 540 W |
| Rated power in VA | 900 VA |
| Product or component type | Uninterruptible power supply (UPS) |
| Input Connection Type | IEC 60320 C13 |
| Output Connection Type | 6 IEC 60320 C13 |
| Battery type | Lead-acid battery |
| Batteries & Runtime | |
| Run Time | View Runtime Graph |
| Efficiency | View Efficiency Graph |
| Number of battery filled slots | 0 |
| Number of battery free slots | 0 |
| Battery recharge time | 12 h |
| Number of battery replacement | 1 |
| Battery voltage | 12 V |
| Battery capacity | 9.4 Ah |
| Battery charger power | 11 W rated |
| Battery life | 3…5 year(s) |
| Replacement battery | APCRBC164 |
| Extended runtime | 0 |
| General | |
| Provided equipment | User manual |
| USB cable | |
| Number of power module free | 0 |
| slots | |
| Number of power module filled | 0 |
| slots | |
| Redundant | No |
| Physical | |
| Height | 19 cm |
| Width | 9.1 cm |
| Depth | 31 cm |
| Net weight | 7.1 kg |
| Mounting preference | No preference |
| Mounting mode | Not rack-mountable |
| Two post mountable | |
| USB compatible | No |
| Input | |
| Network frequency | 50/60 Hz +/- 3 Hz auto-sensing |
| Input voltage limits | 176...294 V |
| Maximum input current | 10 A |
| Switching current capacity | 10 A |
| Output | |
| Maximum configurable power in | 540 W |
| W | |
| Output frequency | 50/60 Hz +/- 1 Hz sync to mains |
| UPS type | Line interactive |
| Wave type | Stepped approximation to a sinewave |
| Maximum configurable power in | 900 VA |
| VA | |
| Transfer time | 10 ms typical : 12 ms maximum |
| Conformance | |
| Product certifications | A-Tick |
| C-Tick | |
| CE | |
| EAC | |
| RCM | |
| TISI | |
| Marking | GS Mark |
| Standards | EN/IEC 62040-1:2019/A11:2021 |
| EN/IEC 62040-2:2006/AC:2006 | |
| EN/IEC 62040-2:2018 | |
| Environmental | |
| Ambient air temperature for | 0…40 °C |
| operation | |
| Relative humidity | 0…95 % |
| Operating altitude | 0...10000 ft |
| Ambient air temperature for | -15…45 °C |
| storage | |
| Storage Relative Humidity | 0…95 % |
| Storage altitude | 0.00…15240.00 m |
| Acoustic level | 45 dBA |
| Heat dissipation | 16.4 Btu/h |
| Communications & Management | |
| Control panel | Multifunction LCD status and control console |
| Alarm | Alarm when on battery : distinctive low battery alarm : overload |
| continuous tone alarm | |
| Surge Protection and Filtering | Noise suppression |
| Full time multi-pole noise filtering : 10% of IEEE surge | |
| let-through : zero clamping response time: instantaneous | |
| Packing Units | |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 25.5 cm |
| Package 1 Width | 14.3 cm |
| Package 1 Length | 44 cm |
| Package 1 Weight | 8 kg |
| SCC14 | 10731304346941 |
| Contractual warranty | |
| Warranty | 2 years repair or replace, 3 years repair or replace for European |
| Union countries |
| Description | Downloads |
|---|---|
| BR900MI:Datasheet | Download |
| BR900MI:User Guide | Download |
