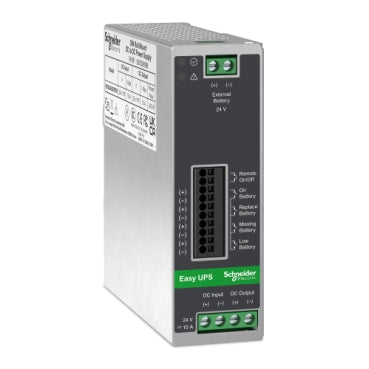

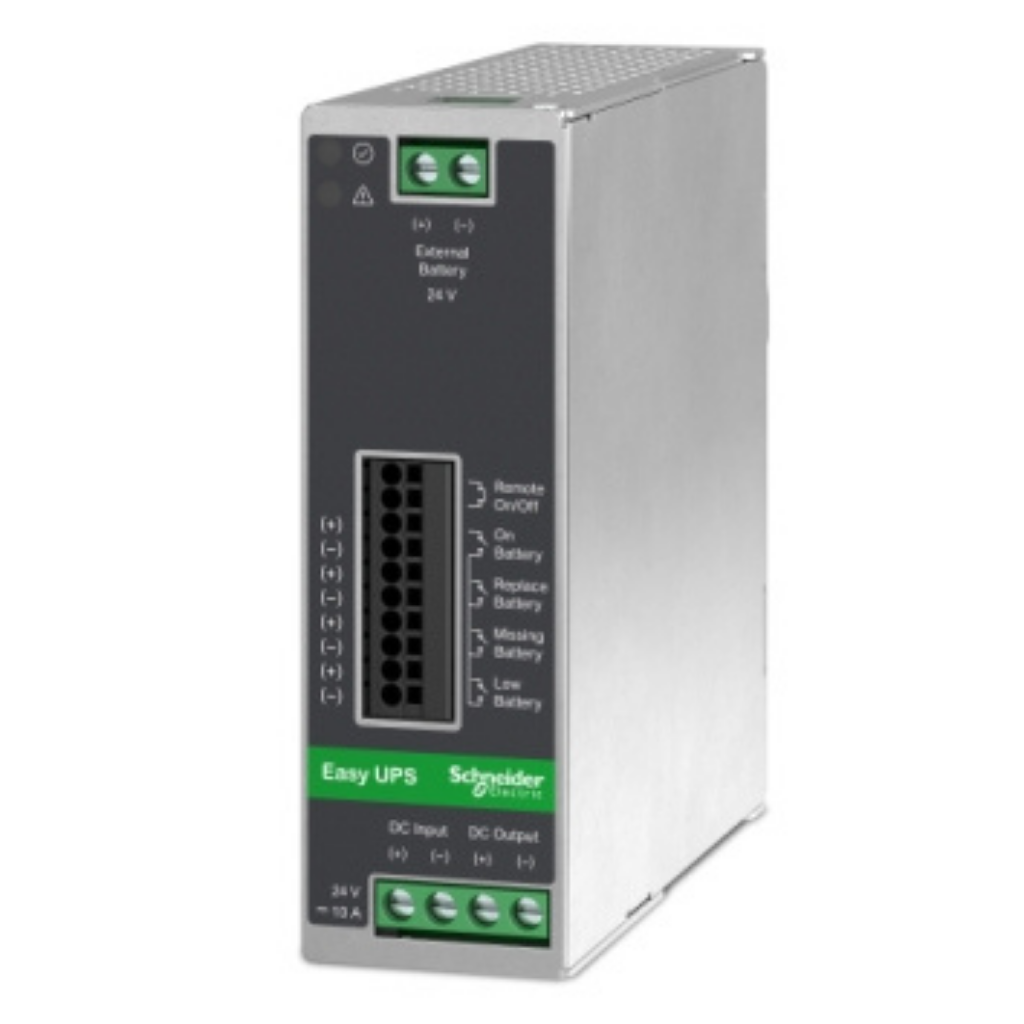

The Industrial UPS 24V DC DIN Rail is a part of the Schneider Electric's Easy UPS family. This model is a 480W UPS that offers DC input to DC output for industrial equipment support. It features 0-5V signaling relay contacts, up to 4 total external battery pack support, LED indicators and EPO switch for better control over the indutrial controls infrastructure. It comes with a 2-year standard warranty.
| Category | Description |
|---|---|
| Main | |
| Main Input Voltage | 24 V DC |
| Product or component type | Uninterruptible power supply (UPS) |
| Main Output Voltage | 24 V DC |
| Rated power in W | 480 W |
| Connections - terminals | 1 2 pins |
| Batteries & Runtime | |
| Battery type | External battery system |
| Battery voltage | 24 V |
| General | |
| Number of power module | 1 |
| Provided equipment | User manual |
| Physical | |
| Colour | Metal grey |
| Height | 129 mm |
| Width | 40 mm |
| Depth | 119 mm |
| Net weight | 0.5 kg |
| Mounting mode | DIN rail mount |
| Mounting position | Horizontal |
| Input | |
| Number of input connectors | 1 terminal block 2-wire |
| Input voltage limits | 21.6...28.8 V 24 V DC |
| Maximum input current | 20 A |
| Input protection type | Integrated fuse (not interchangeable) |
| Against reverse polarity | Protected against short-circuit |
| Output | |
| Wave type | DC |
| Output overload operation | 60 seconds at 130% and 30 seconds at 145% |
| Efficiency | 95 % |
| Maximum output current | 20 A |
| Conformance | |
| Product certifications | CE, TÜV |
| Standards | UL 60950-1, IEC 62368-1, CSA-C22.2 No 62368-1-14, IEC 61010-1 |
| Environmental | |
| Ambient air temperature for operation | -15…50 °C |
| Relative humidity | 0…95 % non-condensing |
| Operating altitude | 0...3000 m |
| Ambient air temperature for storage | -15…70 °C |
| Storage Relative Humidity | 0…95 % non-condensing |
| Storage altitude | 0…3000 m |
| Acoustic level | 40 dB |
| IP degree of protection | IP20 |
| Packing Units | |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 190 mm |
| Package 1 Width | 57 mm |
| Package 1 Length | 188 mm |
| Package 1 Weight | 0.7 kg |
| Logistical informations | |
| Country of origin | CN |
| Contractual warranty | 2 Years repair or replace |
| Description | Downloads |
|---|---|
| BVS480XDPDR:Datasheet | Download |
| BVS480XDPDR:User Guide | Download |
