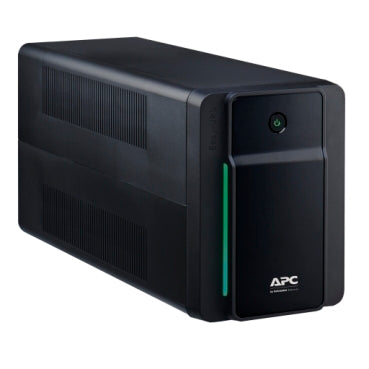

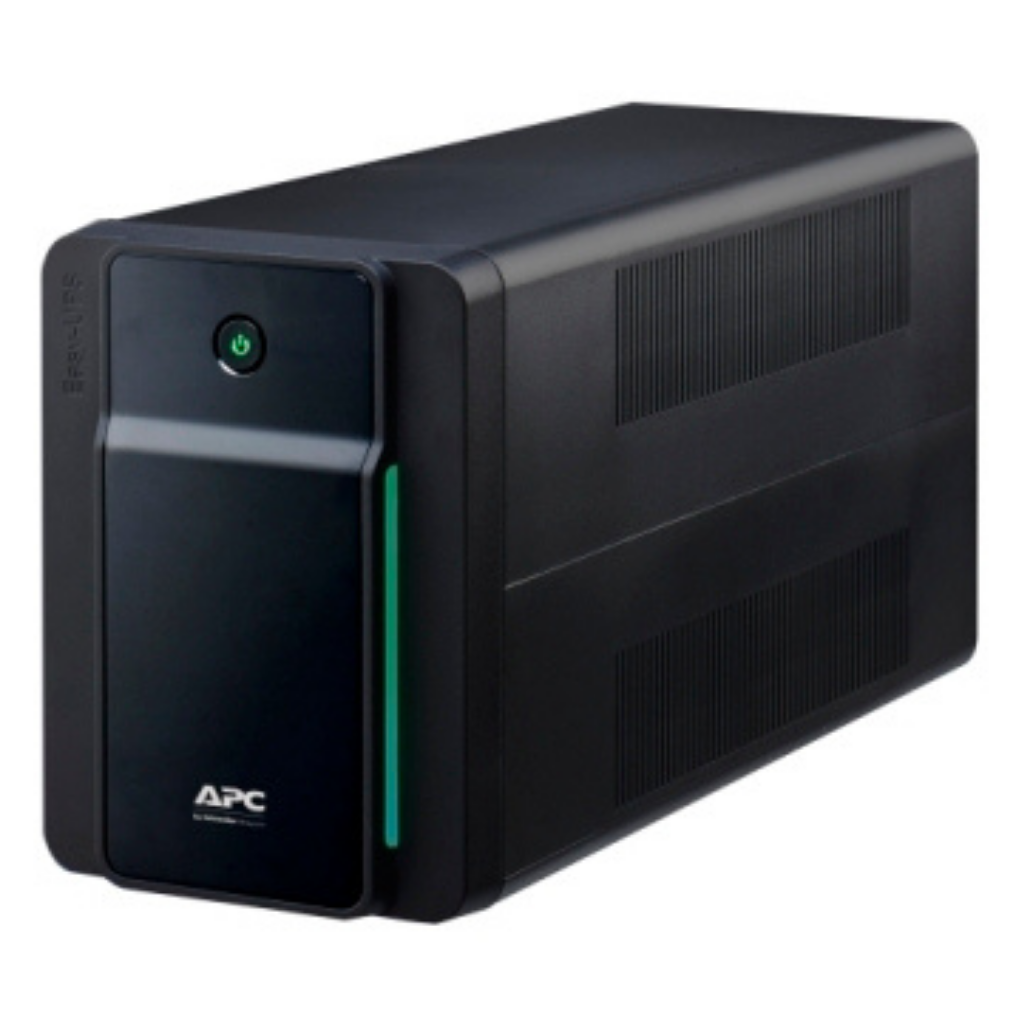

This APC Easy UPS provides power protection for unstable power conditions in homes and small offices, ensuring consistent and reliable connectivity at the most critical moments. The 2200VA tower UPS has 6 total outlets, 4 of which are battery back up and surge protection, and 2 that are surge protection only. It has a surge energy rating of 273 Joules. It features Automatic Voltage Regulation to correct voltage dips and surges to proper levels. This UPS has a 2-year warranty and CE product certification. It is compatible with a dedicated user-replaceable battery, and the APC replacement battery cartridge helps restore UPS performance to the original specifications.
| Category | Description |
|---|---|
| Main | |
| Run time for load | 1200 W |
| Min-max: 120-1200 W | |
| 1 min 22 sec | |
| Max. Capacity Used | 100% |
| Main Input Voltage | 230 V AC 1 phase |
| Main Output Voltage | 230 V AC 1 phase |
| Rated power in W | 1200 W |
| Rated power in VA | 2200 VA |
| Input Connection Type | IEC 60320 C20 |
| Output connection type | 6 IEC 320 C13 |
| Cable length | 1.22 m |
| Number of cables | 1 |
| Battery type | Lead-acid battery |
| Provided equipment | User manual |
| Batteries & Runtime | |
| Run Time | View Runtime Graph |
| Efficiency | View Efficiency Graph |
| Number of battery filled slots | 0 |
| Number of battery free slots | 0 |
| Battery recharge time | 8 h |
| Battery voltage | 24 V |
| Battery capacity | 9.0 Ah |
| Battery life | 2…3 year(s) |
| Replacement battery | APCRBC177 |
| Extended runtime | 0 |
| General | |
| Max runtime | 240 min |
| Number of power module free slots | 0 |
| Number of power module filled slots | 0 |
| Redundant | No |
| UPS size | WS |
| Physical | |
| Colour | Black |
| Height | 19 cm |
| Width | 14 cm |
| Depth | 39 cm |
| Net weight | 12.2 kg |
| Mounting support | Floor |
| Mounting preference | No preference |
| Mounting mode | Not rack-mountable |
| Two post mountable | |
| USB compatible | No |
| Input | |
| Network frequency | 50/60 Hz +/- 5 Hz auto-sensing |
| Input voltage limits | 140...300 V 230 V AC |
| Cos phi | 0.54 |
| Output | |
| Maximum configurable power in W | 1200 W |
| Output frequency | 50/60 Hz +/- 1 Hz sync to mains |
| UPS type | Line interactive |
| Wave type | Stepped approximation to a sinewave |
| Full load runtime | 00:01:00 1200 W |
| Graph display | 1 |
| Half load runtime | 00:08:30 600 W |
| Maximum configurable power in VA | 2200 VA |
| Transfer time | 6 ms typical : 10 ms maximum |
| Conformance | |
| Product certifications | CE |
| CB | |
| Standards | EN/IEC 62040-1:2019/A11:2021 |
| EN/IEC 62040-2:2006/AC:2006 | |
| EN/IEC 62040-2:2018 | |
| Equipment protection policy | Lifetime : 50000 euros |
| Environmental | |
| Ambient air temperature (operation) | 0…40 °C |
| Relative humidity | 0…95 % non-condensing |
| Operating altitude | 0...3000 m |
| Ambient air temperature (storage) | -15…40 °C |
| Storage Relative Humidity | 0…95 % non-condensing |
| Storage altitude | 0…3000 m |
| Acoustic level | 40 dBA |
| IP degree of protection | IP20 |
| Surge Protection and Filtering | |
| Surge energy rate | 273 J |
| Packing Units | |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 29.7 cm |
| Package 1 Width | 49.5 cm |
| Package 1 Length | 23.5 cm |
| Package 1 Weight | 13.2 kg |
| SCC14 | 10731304404528 |
| Contractual warranty | 2 years repair or replace |
| Description | Downloads |
|---|---|
| BVX2200LI:Datasheet | Download |
| BVX2200LI:User Guide | Download |
