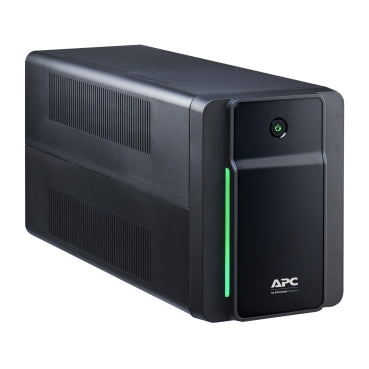

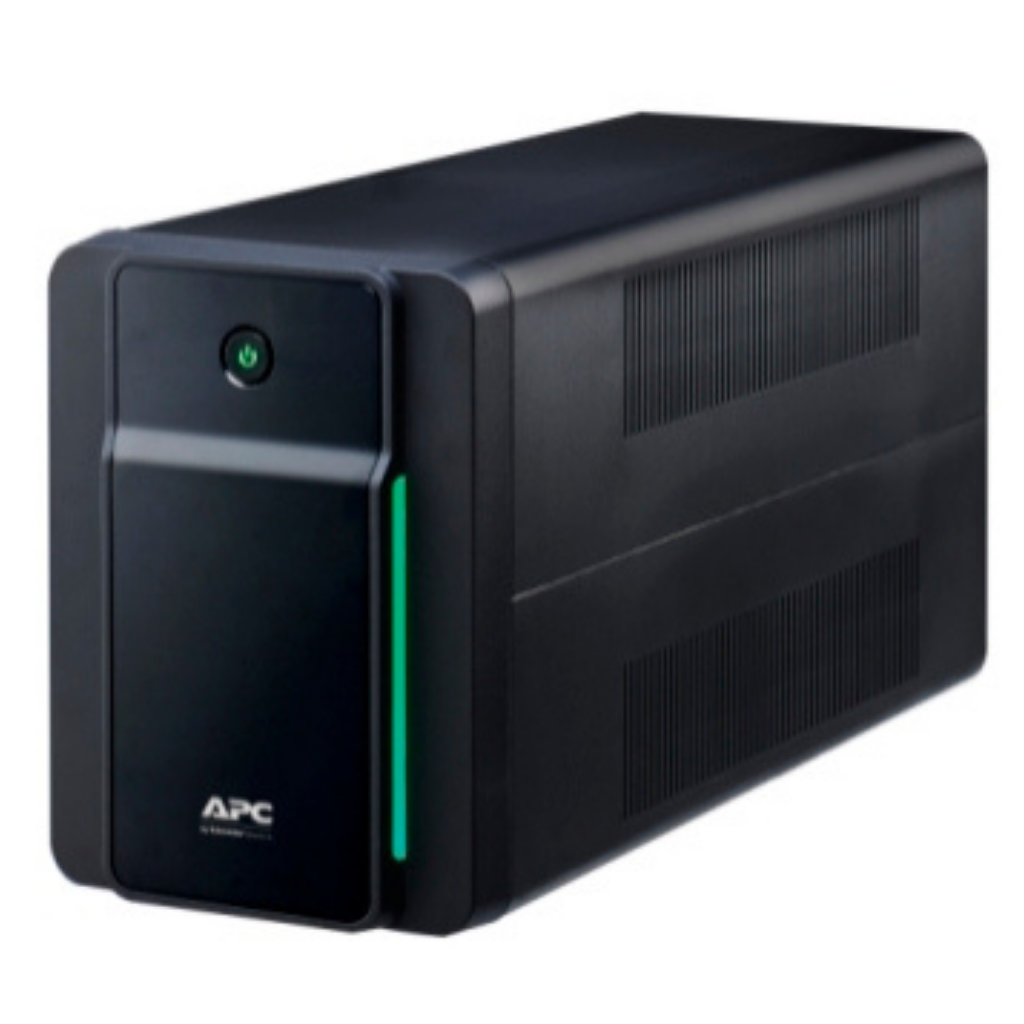

APC BX1600MI-GR Back-UPS, 1600VA, Tower, 230V, 4x CEE 7/7 Schuko Outlets
SKU: BX1600MI-GR
£163.57 (Excl. VAT)
- Description
- Specifications
- Downloads
-
APC BX1600MI-GR Back-UPS, 1600VA, Tower, 230V, 4x CEE 7/7 Schuko Outlets
This APC Back-UPS offers power and surge protection for wireless networks, computers, gaming consoles and other electronics in your home or business. The 1600VA tower UPS has 4 total outlets, all of which provide battery back up and surge protection. It has a surge energy rating of 273 Joules. It features Automatic Voltage Regulation to correct voltage dips and surges to proper levels. This UPS has a 2-year warranty and CE product certification.
-
Main Run time for load 900 W Min-max 90-900 W 1 min 6 s Max. Capacity Used 100 % Main Input Voltage 230 V Rated power in W 900 W Rated power in VA 1600 VA Input Connection Type Schuko CEE 7/7P Output Connection Type 4 Schuko Cable length 1.22 m Number of cables 1 Battery type Lead-acid battery Batteries & Runtime Run Time View Runtime Graph Efficiency View Efficiency Graph Number of battery filled slots 0 Number of battery free slots 0 Battery recharge time 8 h Battery voltage 24 V Battery capacity 7.0 Ah Battery life 3…5 year(s) Replacement battery APCRBC176 Battery graph comments Curve fit to measured runtime data. All measurements taken with new, fully charged batteries, at typical environmental conditions, with no electrical input and balanced resistive load (PF = 1.0) output. Extended runtime 0 General Provided equipment User manual Number of power module free slots 0 Number of power module filled slots 0 Redundant No Physical Colour Black Height 19 cm Width 14 cm Depth 39 cm Net weight 10.3 kg Mounting preference No preference Mounting mode Not rack-mountable Two post mountable USB compatible No Input Network frequency 50/60 Hz +/- 5 Hz auto-sensing Input voltage limits 140...300 V Input Power Factor at Full Load 0.56 Output Maximum configurable power in W 900 W Output frequency 50/60 Hz +/- 1 Hz sync to mains UPS type Line interactive Wave type Stepped approximation to a sinewave Full load runtime 00:01:00 900 W Half load runtime 00:06:30 450 W Maximum configurable power in VA 1600 VA Transfer time 6 ms typical : 10 ms maximum Conformance Product certifications CE CB EAC Standards EN/IEC 62040-1:2019/A11:2021 EN/IEC 62040-2:2006/AC:2006 EN/IEC 62040-2:2018 Equipment protection policy Lifetime : 50000 euros Environmental Ambient air temperature for operation 0…40 °C Relative humidity 0…95 % non-condensing Operating altitude 0...3000 m Ambient air temperature for storage -15…40 °C Storage Relative Humidity 0…95 % non-condensing Storage altitude 0…3000 m Acoustic level 40 dBA IP degree of protection IP20 Communications & Management Control panel LED Status display with on line : on battery Surge Protection and Filtering Surge energy rate 273 J Packing Units Unit Type of Package 1 PCE Number of Units in Package 1 1 Package 1 Height 29.7 cm Package 1 Width 49.5 cm Package 1 Length 23.5 cm Package 1 Weight 11.3 kg SCC14 10731304410871 Logistical informations Country of origin CN Contractual warranty Warranty 2 years repair or replace -
Description Downloads BX1600MI-GR:Datasheet Download BX1600MI-GR:User Guide Download
