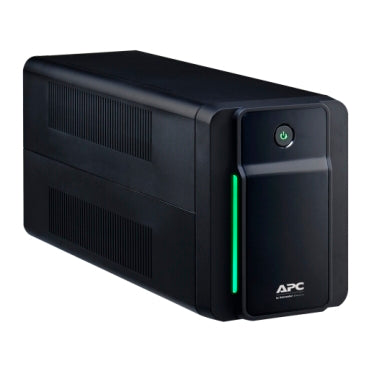

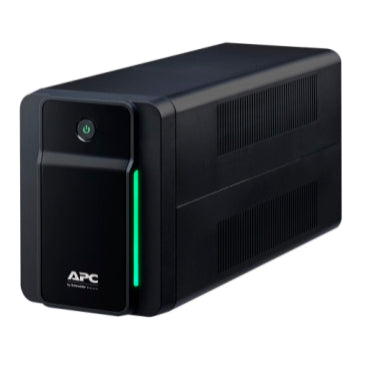

This APC Back-UPS offers power and surge protection for wireless networks, computers, gaming consoles and other electronics in your home or business. The 950VA tower UPS has 6 total outlets, 4 of which are battery back up and surge protection, and 2 that are surge protection only. It has a surge energy rating of 273 Joules. It features Automatic Voltage Regulation to correct voltage dips and surges to proper levels. This UPS has a 2-year warranty.
| Main | |
|---|---|
| Product or component type | Replacement battery cartridge |
| Run time for load | 520 W |
| Min-max | 52-520 W |
| Max. Capacity Used | 100 % |
| Main Input Voltage | 230 V |
| Rated power | 520 W |
| Rated power in VA | 950 VA |
| Input Connection Type | IEC 60320 C13 |

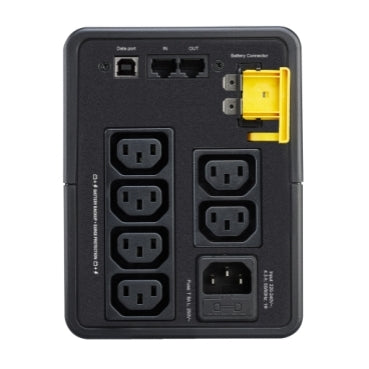

| Output Connection Type | 6 IEC 60320 C13 |
| Cable length | 1.22 m |
| Number of cables | 1 |
| Battery type | Lead-acid battery |
| Batteries & Runtime | |
| Number of battery filled slots | 0 |
| Number of battery free slots | 0 |
| Battery recharge time | 8 h |
| Battery voltage | 12 V |
| Battery capacity | 9.0 Ah |
| Battery life | 3-5 years |
| Replacement battery | RBC17 |
| Extended runtime | 0 |
| General | |
| Provided equipment | User manual |
| Number of power module free slots | 0 |
| Number of power module filled slots | 0 |
| Redundant | No |
| Physical | |
| Colour | Black |
| Height | 16 cm |
| Width | 12 cm |
| Depth | 35.5 cm |
| Net weight | 6.1 kg |
| Mounting preference | No preference |
| Mounting mode | Not rack-mountable |
| Two post mountable | 0 |
| USB compatible | No |
| Input | |
| Network frequency | 50/60 Hz +/- 5 Hz auto-sensing |
| Input voltage limits | 140-300 V |
| Input Power Factor at Full Load | 0.54 |
| Output | |
| Maximum configurable power in W | 520 W |
| Output frequency | 50/60 Hz +/- 1 Hz sync to mains |
| UPS type | Line interactive |
| Wave type | Stepped approximation to a sinewave |
| Full load runtime | 1 minute at 480 W |
| Half load runtime | 6 minutes 30 seconds at 240 W |
| Maximum configurable power in VA | 950 VA |
| Transfer time | 6 ms typical, 10 ms maximum |
| Conformance | |
| Product certifications | CE, CB, EAC |
| Standards | EN/IEC 62040-1:2019/A11:2021, EN/IEC 62040-2:2006/AC:2006, EN/IEC 62040-2:2018 |
| Equipment protection policy | Lifetime coverage up to 50000 euros |
| Environmental | |
| Ambient air temperature for operation | 0-40 °C |
| Relative humidity | 0-95 % non-condensing |
| Operating altitude | 0-3000 m |
| Ambient air temperature for storage | -15-40 °C |
| Storage Relative Humidity | 0-95 % non-condensing |
| Storage altitude | 0-3000 m |
| Acoustic level | 40 dBA |
| IP degree of protection | IP20 |
| Communications & Management | |
| Control panel | LED Status display with on line/on battery |
| Surge Protection and Filtering | |
| Surge energy rate | 273 J |
| Packing Units | |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 25 cm |
| Package 1 Width | 43 cm |
| Package 1 Length | 19.7 cm |
| Package 1 Weight | 6.6 kg |
| SCC14 | 10731304410802 |
| Contractual warranty | |
| Warranty | 2 years repair or replace |
| Description | Downloads |
|---|---|
| BX950MI:Datasheet | Download |
| BX950MI:User Guide | Download |
