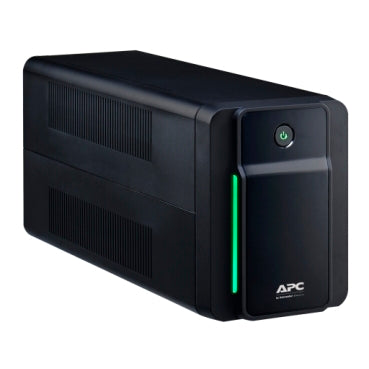

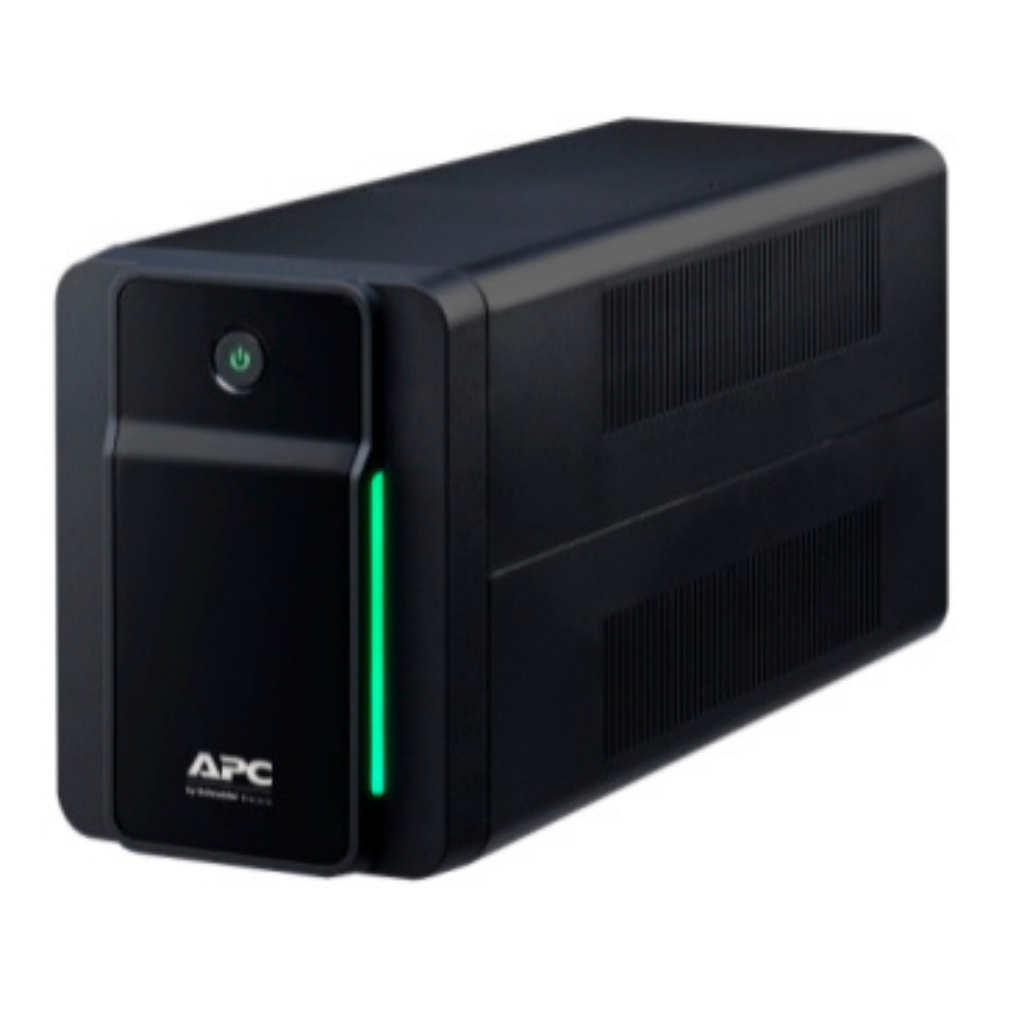

APC BX950MI-FR Back-UPS, 950VA, Tower, 230V, 4x CEE 7/5 French Schuko Outlets

SKU: BX950MI-FR
Part Number: BX950MI-FR
Condition: Brand New
Purchase Orders Accepted
Sold out

£85.87 (Excl. VAT)

Current price - £103.04 (Inc. VAT)
£85.87 - £85.87
Current price- - £103.04
Availability:
Out of stock

payment-icons

Bulk Price & Price Match Request

Contact our expert sales team on 020 8191 9223 for best price and dedicated assistance.

Educational & Public Sector Prices Available

For more details, please call us at 020 8191 9223 or email us at info@screenmoove.com

  • Description
  • Specifications
  • Downloads
  • APC BX950MI-FR Back-UPS, 950VA, Tower, 230V, 4x CEE 7/5 French Schuko Outlets

    This APC Back-UPS offers power and surge protection for wireless networks, computers, gaming consoles and other electronics in your home or business. The 950VA tower UPS has 4 total outlets, all of which provide battery back up and surge protection. It has a surge energy rating of 273 Joules. It features Automatic Voltage Regulation to correct voltage dips and surges to proper levels. This UPS has a 2-year warranty and CE product certification.

  • Main
    Run time for load 520 W
    Min-max: 52-520 W
    0min 29s
    Max. Capacity Used 100 %
    Main Input Voltage 230 V
    Rated power in W 520 W
    Rated power in VA 950 VA
    Input Connection Type French/Belgian
    Output Connection Type 4 French
    Cable length 1.22 m
    Number of cables 1
    Battery type Lead-acid battery
    Batteries & Runtime
    Run Time View Runtime Graph
    Efficiency View Efficiency Graph
    Number of battery filled slots 0
    Number of battery free slots 0
    Battery recharge time 8 h
    Battery voltage 12 V
    Battery capacity 9.0 Ah
    Battery life 3…5 year(s)
    Replacement battery RBC17
    Battery graph comments Curve fit to measured runtime data. All measurements taken with new, fully charged batteries, at typical environmental conditions, with no electrical input and balanced resistive load (PF = 1.0) output.
    Extended runtime 0
    General
    Provided equipment User manual
    Number of power module free slots 0
    Number of power module filled slots 0
    Redundant No
    Physical
    Colour Black
    Height 16 cm
    Width 12 cm
    Depth 35.5 cm
    Net weight 6.1 kg
    Mounting preference No preference
    Mounting mode Not rack-mountable
    Two post mountable: 0
    USB compatible No
    Input
    Network frequency 50/60 Hz +/- 5 Hz auto-sensing
    Plug standard French/Belgian
    Input voltage limits 140...300 V
    Input Power Factor at Full Load 0.54
    Output
    Maximum configurable power in W 520 W
    Output frequency 50/60 Hz +/- 1 Hz sync to mains
    UPS type Line interactive
    Wave type Stepped approximation to a sinewave
    Full load runtime 00:01:00 480 W
    Half load runtime 00:06:30 240 W
    Maximum configurable power in VA 950 VA
    Transfer time 6 ms typical : 10 ms maximum
    Conformance
    Product certifications CE, CB
    Standards EN/IEC 62040-1:2019/A11:2021, EN/IEC 62040-2:2006/AC:2006, EN/IEC 62040-2:2018
    Equipment protection policy Lifetime: 50000 euros
    Environmental
    Ambient air temperature for operation 0…40 °C
    Relative humidity 0…95 % non-condensing
    Operating altitude 0...3000 m
    Ambient air temperature for storage -15…40 °C
    Storage Relative Humidity 0…95 % non-condensing
    Storage altitude 0…3000 m
    Acoustic level 40 dBA
    IP degree of protection IP20
    Communications & Management
    Control panel LED Status display with on line : on battery
    Surge Protection and Filtering
    Surge energy rate 273 J
    Packing Units
    Unit Type of Package 1 PCE
    Number of Units in Package 1 1
    Package 1 Height 25 cm
    Package 1 Width 43 cm
    Package 1 Length 19.7 cm
    Package 1 Weight 7.303 kg
    Unit Type of Package 2 P12
    Number of Units in Package 2 12
    Package 2 Height 65 cm
    Package 2 Width 80 cm
    Package 2 Length 120 cm
    Package 2 Weight 12.088 kg
    SCC14 10731304413568
    Contractual warranty
    Warranty 2 years repair or replace
