Run time for load |
600 W |
|
Min-max: 60-600 W |
|
9min 22s |
Max. Capacity Used |
100 % |
Main Input Voltage |
230 V |
Other Input Voltage |
220 V |
|
240 V |
Main Output Voltage |
230 V |
Other Output Voltage |
220 V |
|
240 V |
Rated power in W |
600 W |
Rated power in VA |
1000 VA |
Product or component type |
Uninterruptible power supply (UPS) |
Input Connection Type |
IEC 320 C14 |

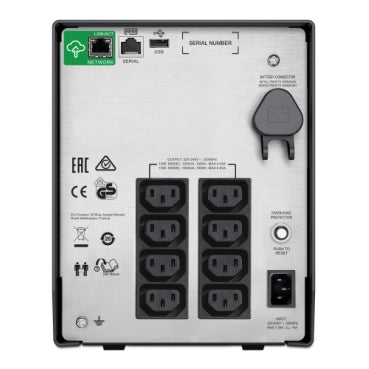

Output Connection Type |
8 IEC 60320 C13 |
Battery type |
Lead-acid battery |
Provided Equipment |
Power cord |
|
USB cable |
Complementary |
Software package |
|
SmartConnect software for remote power monitoring feature availability varies by terms of use |
Batteries & Runtime |
|
Run Time |
View Runtime Graph |
Efficiency |
View Efficiency Graph |
Battery voltage |
24 V |
Extended runtime |
0 |
Battery capacity |
9 Ah |
Number of battery filled slots |
0 |
Number of battery free slots |
0 |
Battery recharge time |
3 h |
Number of battery replacement quantity |
1 |
Battery life |
3…5 year(s) |
Replacement battery |
APCRBC142 |
Battery charger power |
56 W rated |
General |
|
Number of power module filled slots |
0 |
Number of power module free slots |
0 |
Product web sub-family |
Cloud-enabled monitoring |
Redundant |
No |
Physical |
|
Colour |
Black |
Height |
21.9 cm |
Width |
17.1 cm |
Depth |
43.9 cm |
Net weight |
17.27 kg |
Mounting location |
Front |
Mounting preference |
No preference |
Mounting mode |
Not rack-mountable |
|
Two post mountable |
USB compatible |
Yes |
Input |
|
Input voltage limits |
170...300 V adjustable |
|
180...287 V |
Network frequency |
50/60 Hz +/- 3 Hz auto-sensing |
Output |
|
Harmonic distortion |
Less than 5 % |
Maximum configurable power in VA |
1000 VA |
Maximum configurable power in W |
600 W |
Transfer time |
6 ms typical : 10 ms maximum |
UPS type |
Line interactive |
Wave type |
Sine wave |
Output frequency |
50/60 Hz +/- 3 Hz sync to mains |
Conformance |
|
Product certifications |
CE, GOST, VDE |
Standards |
EN/IEC 62040-1:2019/A11:2021, EN/IEC 62040-2:2006/AC:2006, EN/IEC 62040-2:2018 |
Environmental |
|
Acoustic level |
41 dBA |
Heat dissipation |
100 Btu/h |
Operating altitude |
0...10000 ft |
Ambient air temperature for operation |
0…40 °C |
Ambient air temperature for storage |
-15…45 °C |
Storage altitude |
0.00…15240.00 m |
Relative humidity |
0…95 % |
Storage Relative Humidity |
0…95 % |
Communications & Management |
|
Control panel |
Multifunction LCD status and control console |
Free slots |
0 |
Communication port support |
SmartConnect Ethernet port: for cloud monitoring feature availability varies by terms of use |
Alarm |
Alarm when on battery : distinctive low battery alarm : configurable delays |
Surge Protection and Filtering |
|
Surge energy rate |
455 J |
Noise suppression |
Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : meets UL 1449 |
Packing Units |
|
Unit Type of Package 1 |
PCE |
Number of Units in Package 1 |
1 |
Package 1 Height |
37.6 cm |
Package 1 Width |
59.5 cm |
Package 1 Length |
32.8 cm |
Package 1 Weight |
19.55 kg |
Logistical Information |
|
Country of origin |
PH |
Contractual Warranty |
|
Warranty |
2 years repair or replace |
