This APC Smart-UPS is designed for IT professionals or network administrators to maintain business uptime and continuity. The 1000VA line interactive tower UPS provides pure sine wave power to support critical electronics during power disruptions. It comes with IEC 320 C14 input, 8x IEC 320 C13 outlets, and 2x IEC jumper cables. It offers cloud-based remote power monitoring, UPS firmware upgrades, remote diagnostics and proactive email notifications with recommended actions. It has a SmartSlot for optional Network Management Card that enables graceful shutdown of physical servers, virtual machines & HCI Clusters via PowerChute Network Shutdown. The UPS can connect to EcoStruxure IT or third-party centralized management platforms. It provides surge protection against lightning strikes, power sags, brownouts and surges. The SMT UPS has a 3-year warranty, and built-in lead-acid battery has a 2-year warranty. It is compatible with a dedicated user-replaceable battery, and the APC replacement battery cartridge helps restore UPS performance to the original specifications.
| Main | |
|---|---|
| Run time for load | 700 W |
| Min-max: 70-700 W | |
| 5min 49s | |
| Max. Capacity Used | 100 % |
| Main Input Voltage | 230 V |
| Other Input Voltage | 220 V |
| 240 V | |
| Main Output Voltage | 230 V |
| Other Output Voltage | 220 V |
| 240 V | |
| Rated power in W | 700 W |
| Rated power in VA | 1000 VA |

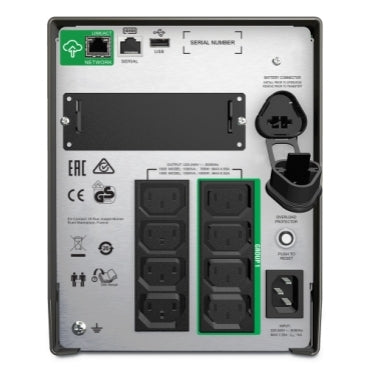

| Input Connection Type | IEC 320 C14 |
| Output connection type | 8 IEC 320 C13 |
| 2 IEC Jumpers | |
| Battery type | Lead-acid battery |
| Provided equipment | Cat 5 Ethernet cable |
| Installation guide | |
| USB cable | |
| Batteries & Runtime | |
| Number of battery filled slots | 0 |
| Number of battery free slots | 0 |
| Battery recharge time | 3 h |
| Number of battery replacement quantity | 1 |
| Battery life | 3…5 year(s) |
| Replacement battery | RBC6 |
| Battery charger power | 88 W rated |
| General | |
| Number of power module filled slots | 0 |
| Number of power module free slots | 0 |
| Redundant | No |
| Physical | |
| Colour | Black |
| Height | 21.9 cm |
| Width | 17.1 cm |
| Depth | 43.9 cm |
| Net weight | 19.4 kg |
| Mounting location | Front |
| Mounting mode | Not rack-mountable |
| Two post mountable | |
| USB compatible | No |
| Input | |
| Input voltage limits | 151...302 V adjustable |
| 160...286 V | |
| Network frequency | 50/60 Hz +/- 3 Hz auto-sensing |
| Output | |
| Harmonic distortion | Less than 5 % |
| Maximum configurable power in VA | 1000 VA |
| Maximum configurable power in W | 700 W |
| Transfer time | 6 ms typical : 10 ms maximum |
| UPS type | Line interactive |
| Wave type | Sine wave |
| Output frequency | 50/60 Hz +/- 3 Hz sync to mains |
| Conformance | |
| Product certifications | CE |
| EAC | |
| RCM | |
| VDE | |
| Standards | EN/IEC 62040-1:2019/A11:2021 |
| EN/IEC 62040-2:2006/AC:2006 | |
| EN/IEC 62040-2:2018 | |
| Environmental | |
| Acoustic level | 41 dBA |
| Heat dissipation | 100 Btu/h |
| Operating altitude | 0...10000 ft |
| Ambient air temperature for operation | 0…40 °C |
| Ambient air temperature for storage | -15…45 °C |
| Storage altitude | 0.00…15240.00 m |
| Relative humidity | 0…95 % non-condensing |
| Storage Relative Humidity | 0…95 % non-condensing |
| Communications & Management | |

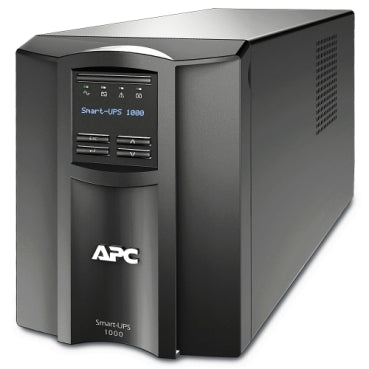

| Control panel | Multifunction LCD status and control console |
| Emergency power off | Optional |
| Free slots | 1 |
| Communication port support | SmartConnect Ethernet port: for cloud monitoring |
| Alarm | Alarm when on battery : distinctive low battery alarm |
| overload continuous tone alarm | |
| Surge Protection and Filtering | |
| Surge energy rate | 459 J |
| Noise suppression | Full time multi-pole noise filtering |
| 0.3% IEEE surge let-through | |
| zero clamping response time | |
| meets UL 1449 | |
| Packing Units | |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 37.6 cm |
| Package 1 Width | 59.5 cm |
| Package 1 Length | 32.8 cm |
| Package 1 Weight | 22.77 kg |
| Logistical informations | |
| Country of origin | PH |
| Contractual warranty | 3 years repair or replace (excluding battery) and |
| 2 years for battery |
| Description | Downloads |
|---|---|
| SMT1000IC:Datasheet | Download |
| SMT1000IC:User Guide | Download |
