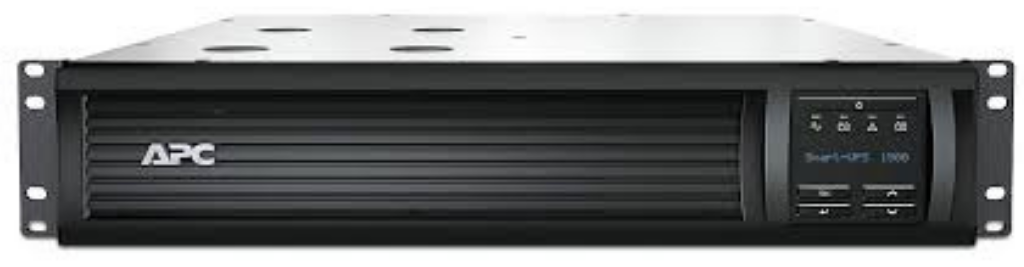

This APC Smart-UPS is designed for IT professionals or network administrators to maintain business uptime and continuity. The 1500VA line interactive 2U rackmount UPS provides pure sine wave power to support critical electronics during power disruptions. It comes with IEC 320 C14 input, 4x IEC 320 C13 outlets, and 2x IEC jumper cables. It has a preinstalled Network Management Card for UPS network-based monitoring and management. The UPS comes with PowerChute Network Shutdown that provides graceful shutdown of physical servers, virtual machines, and HCI clusters. The UPS can connect to EcoStruxure IT or third-party centralized management platforms. It provides surge protection against lightning strikes, power sags, brownouts and surges. The SMT UPS has a 3-year warranty, and the built-in lead-acid battery has a 2-year warranty. It is compatible with a dedicated user-replaceable battery, and the APC replacement battery cartridge helps restore UPS performance to the original specifications.
| Main | |
|---|---|
| Run time for load | 1000 W |
| Min-max: 100-1000 W | |
| 7min 9s | |
| Max. Capacity Used | 100 % |
| Main Input Voltage | 230 V |
| Other Input Voltage | 220 V |
| 240 V | |
| Main Output Voltage | 230 V |
| Other Output Voltage | 220 V |
| 240 V | |
| Rated power in W | 1000 W |
| Rated power in VA | 1500 VA |
| Input Connection Type | IEC 320 C14 |
| Output connection type | 4 IEC 320 C13 |
| 2 IEC Jumpers | |
| Number of rack unit | 2U |
| Battery type | Lead-acid battery |
| Provided equipment | CD with software |
| Documentation CD | |
| Installation guide | |
| Rack mounting support rails | |
| Smart UPS signalling RS-232 cable | |
| Temperature probe | |
| USB cable | |
| Batteries & Runtime | |
| Run Time | |
| View Runtime Graph | |
| Efficiency | |
| View Efficiency Graph | |
| Additional information | Configurable for 220 : 230 or 240 |
| nominal output voltage | |
| Extended runtime | 0 |
| Number of battery filled slots | 0 |
| Number of battery free slots | 0 |
| Battery recharge time | 3 h |
| Number of battery replacement quantity | 1 |
| Battery life | 3…5 year(s) |
| Replacement battery | APCRBC159 |
| Battery charger power | 144 W rated |
| General | |
| Number of power module filled slots | |
| 0 | |
| Number of power module free slots | |
| 0 | |
| Redundant | No |
| Physical | |
| Colour | |
| Black | |
| Height | |
| 8.9 cm | |
| Width | |
| 43.2 cm | |
| Depth | |
| 45.7 cm | |
| Net weight | |
| 28.58 kg | |
| Mounting location | |
| Front | |
| Mounting preference | |
| No preference | |
| Mounting mode | |
| Rack-mounted | |
| Two post mountable | |
| 1 | |
| USB compatible | |
| Yes | |
| Input | |
| Input voltage limits | |
| 151...302 V adjustable | |
| 160...286 V | |
| Network frequency | |
| 50/60 Hz +/- 3 Hz auto-sensing | |
| Output | |
| Harmonic distortion | |
| Less than 5 % | |
| Maximum configurable power in VA | |
| 1500 VA | |
| Maximum configurable power in W | |
| 1000 W | |
| Transfer time | |
| 2 ms typical | |
| UPS type | |
| Line interactive | |
| Wave type | |
| Sine wave | |
| Output frequency | |
| 50/60 Hz +/- 3 Hz sync to mains | |
| Conformance | |
| Product certifications | |
| CE | |
| EAC | |
| RCM | |
| VDE | |
| Standards | |
| EN/IEC 62040-1:2019/A11:2021 | |
| EN/IEC 62040-2:2006/AC:2006 | |
| EN/IEC 62040-2:2018 | |
| Environmental | |
| Acoustic level | |
| 46 dBA | |
| Heat dissipation | |
| 90 Btu/h | |
| Operating altitude | |
| 0...10000 ft | |
| Ambient air temperature for operation | |
| 0…40 °C | |
| Ambient air temperature for storage | |
| -15…45 °C | |
| Storage altitude | |
| 0.00…15240.00 m | |
| Relative humidity | |
| 0…95 % | |
| Storage Relative Humidity | |
| 0…95 % | |
| Communications & Management | |
| Control panel | |
| Multifunction LCD status and control | |
| console | |
| Emergency power off | |
| Optional | |
| Preinstalled device | |
| Network management card 3 with | |
| environmental monitoring | |
| Control panel | |
| LED status display with on line : on | |
| battery : replace battery and overload | |
| indicators | |
| Alarm | |
| Alarm when on battery : distinctive | |
| low battery alarm : configurable | |
| delays | |
| Surge Protection and Filtering | |
| Surge energy rate | |
| 459 J | |
| Packing Units | |
| Unit Type of Package 1 | |
| PCE | |
| Number of Units in Package 1 | |
| 1 | |
| Package 1 Height | |
| 25.1 cm | |
| Package 1 Width | |
| 60.3 cm | |
| Package 1 Length | |
| 59.4 cm | |
| Package 1 Weight | |
| 31.84 kg | |
| Logistical informations | |
| Country of origin | |
| PH | |
| Contractual warranty | |
| Warranty | |
| 3 years repair or replace (excluding | |
| battery) and 2 years for battery |
| Description | Downloads |
|---|---|
| SMT1500RMI2UNC:Datasheet | Download |
| SMT1500RMI2UNC:User Guide | Download |
