This APC Smart-UPS is designed for IT professionals or network administrators to maintain business uptime and continuity. The 2200VA line interactive 2U rackmount UPS provides pure sine wave power to support critical electronics during power disruptions. It comes with NEMA L5-20P input, 6x NEMA 5-15R and 2x NEMA 5-20R outlets. It has a SmartSlot for optional Network Management Card that enables graceful shutdown of physical servers, virtual machines & HCI Clusters via PowerChute Network Shutdown. It has a SmartSlot for optional Network Management Card that enables graceful shutdown of physical servers, virtual machines & HCI Clusters via PowerChute Network Shutdown. The UPS can connect to EcoStruxure IT or third-party centralized management platforms. It provides surge protection against lightning strikes, power sags, brownouts and surges. The SMT UPS has a 3-year warranty, and the built-in lead-acid battery has a 2-year warranty. It is compatible with a dedicated user-replaceable battery, and the APC replacement battery cartridge helps restore UPS performance to the original specifications.
| Category | Details |
|---|---|
| Main | |
| Run time for load | 1980 W |
| Min-max: 198-1980 W | |
| 8min 42s | |
| Max. Capacity Used | 100 % |
| Main Input Voltage | 230 V |
| Other Input Voltage | 220 V |
| 240 V | |
| Main Output Voltage | 230 V |
| Other Output Voltage | 220 V |
| 240 V | |
| Rated power in W | 1980 W |
| Rated power in VA | 2200 VA |
| Input Connection Type | IEC 320 C20 |
| Schuko CEE 7 / EU1-16P | |
| BS1363A British | |

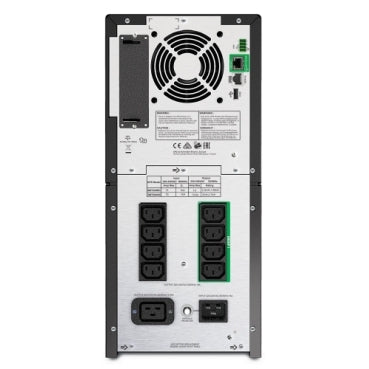

| Output connection type | 8 IEC 320 C13 |
| 2 IEC Jumpers | |
| 1 IEC 320 C19 | |
| Number of rack unit | 0U |
| Number of cables | 1 |
| Batteries & Runtime | |
| Battery type | Lead-acid battery |
| Provided equipment | USB cable |
| Complementary | Software package |
| SmartConnect software for remote power monitoring feature availability varies by terms of use | |
| Run Time | View Runtime Graph |
| Efficiency | View Efficiency Graph |
| Additional information | Configurable for 220 : 230 or 240 nominal output voltage |
| Extended runtime | |
| Number of battery filled slots: 0 | |
| Number of battery free slots: 0 | |
| Battery recharge time: 3 h | |
| Number of battery replacement quantity: 1 | |
| Battery life: 3…5 year(s) | |
| Replacement battery: RBC55 | |
| Battery charger power: 260 W rated | |
| General | Number of power module filled slots: 0 |
| Number of power module free slots: 0 | |
| product web sub-family: Cloud-enabled monitoring | |
| Redundant: No | |
| Physical | |
| Color | Black |
| Height | 43.5 cm |
| Width | 19.7 cm |
| Depth | 54.4 cm |
| Net weight | 50.2 kg |
| Mounting location | Front |
| Mounting preference | No preference |
| Mounting mode | Not rack-mountable |
| Two post mountable: 0 | |
| USB compatible | Yes |
| Input | |
| Input voltage limits | 151...302 V adjustable |
| 160...286 V | |
| Network frequency | 50/60 Hz +/- 3 Hz auto-sensing |
| Output | |
| Harmonic distortion | Less than 5 % |
| Maximum configurable power in VA | 2200 VA |
| Maximum configurable power in W | 1980 W |
| Transfer time | 6 ms typical : 10 ms maximum |
| UPS type | Line interactive |
| Wave type | Sine wave |
| Output frequency | 50/60 Hz +/- 3 Hz sync to mains |
| Conformance | |
| Product certifications | CE |
| EAC | |
| RCM | |
| VDE | |
| Standards | EN/IEC 62040-1:2019/A11:2021 |
| EN/IEC 62040-2:2006/AC:2006 | |
| EN/IEC 62040-2:2018 | |
| Environmental | |
| Acoustic level | 45 dBA |
| heat dissipation | 275 Btu/h |
| Operating altitude | 0...10000 ft |
| Ambient air temperature for operation | 0…40 °C |
| Ambient air temperature for storage | -15…45 °C |
| Storage altitude | 0.00…15240.00 m |
| Relative humidity | 0…95 % |
| Storage Relative Humidity | 0…95 % |
| Communications & Management | |
| Control panel | Multifunction LCD status and control console |
| Emergency power off | Yes |
| Free slots | 1 |
| Communication port support | SmartConnect Ethernet port: for cloud monitoring feature availability varies by terms of use |
| Alarm | Alarm when on battery : distinctive low battery alarm : configurable delays |
| Surge Protection and Filtering | |
| Surge energy rate | 365 J |
| Noise suppression | Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : meets UL 1449 |
| Packing Units | |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 69.9 cm |
| Package 1 Width | 76.2 cm |
| Package 1 Length | 38.1 cm |
| Package 1 Weight | 61.9 kg |
| Logistical informations | |
| Country of origin | PH |
| Contractual warranty | 3 years repair or replace (excluding battery) and 2 years for battery, optional on-site warranties available, optional extended warranties available |
| Description | Downloads |
|---|---|
| SMT2200IC:Datasheet | Download |
| SMT2200IC:User Guide | Download |
