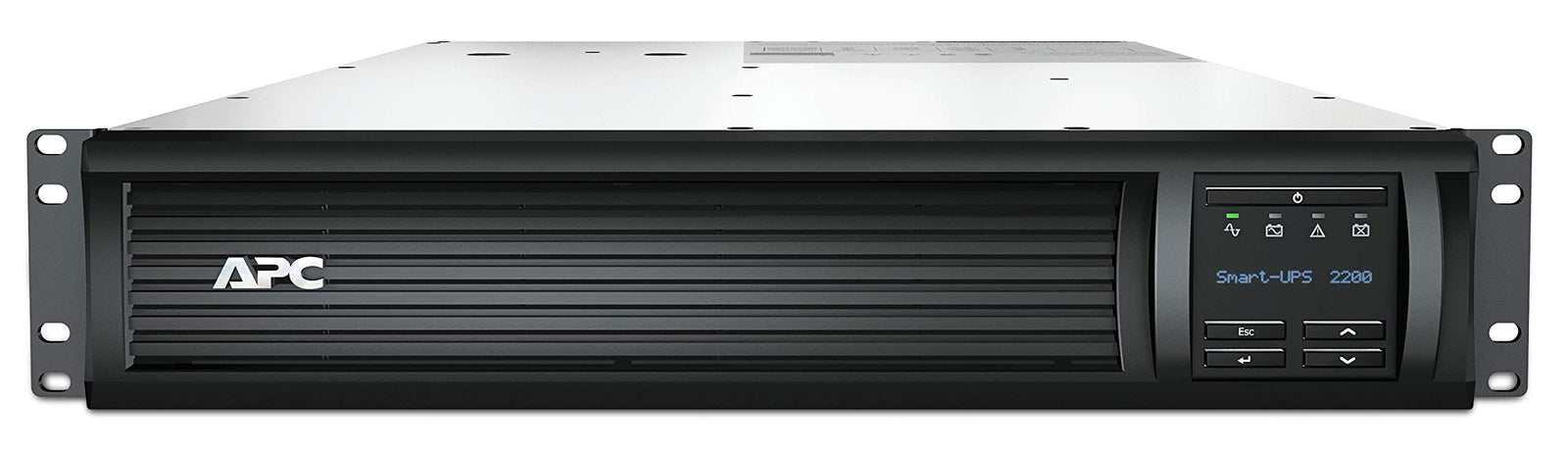

This APC Smart-UPS is designed for IT professionals or network administrators to maintain business uptime and continuity. The 2200VA line interactive 2U rackmount UPS provides pure sine wave power to support critical electronics during power disruptions. It comes with IEC 320 C20 input, BS1363A British and Schuko CEE 7/EU1-16P input cables, 8x IEC 320 C13 and 1x IEC 320 C19 outlets, and 3x IEC jumper cables. It has a preinstalled Network Management Card for UPS network-based monitoring and management. The UPS comes with PowerChute Network Shutdown that provides graceful shutdown of physical servers, virtual machines, and HCI clusters. The UPS can connect to EcoStruxure IT or third-party centralized management platforms. It provides surge protection against lightning strikes, power sags, brownouts and surges. The SMT UPS has a 3-year warranty, and the built-in lead-acid battery has a 2-year warranty. It is compatible with a dedicated user-replaceable battery, and the APC replacement battery cartridge helps restore UPS performance to the original specifications.
| Main | |
|---|---|
| Run time for load | 5min 27s |
| Max. Capacity Used | 100% |
| Main Input Voltage | 230 V |
| Other Input Voltage | 220 V, 240 V |
| Main Output Voltage | 230 V |
| Other Output Voltage | 220 V, 240 V |
| Rated power in W | 1980 W |
| Rated power in VA | 2200 VA |
| Input Connection Type | BS1363A British, IEC 320 C20, Schuko CEE 7 / EU1-16P |
| Output Connection Type | 8 IEC 320 C13, 3 IEC Jumpers, 1 IEC 320 C19 |
| Number of rack unit | 2U |
| Cable length | 2.00 m |
| Number of cables | 1 |
| Battery type | Lead-acid battery |
| Provided equipment | CD with software, Documentation CD, Installation guide, Rack mounting hardware, Rack mounting support rails, Smart UPS signalling RS-232 cable, Temperature probe, USB cable |
| Batteries & Runtime | |
| Run Time | View Runtime Graph |
| Efficiency | View Efficiency Graph |
| Additional information | Configurable for 220 : 230 or 240 nominal output voltage, Extended runtime, Battery recharge time: 3 h |
| Number of battery filled slots | 0 |
| Number of battery free slots | 0 |
| Number of battery replacement quantity | 1 |
| Battery life | 3…5 year(s) |
| Replacement battery | RBC43 |
| Battery charger power | 169 W rated |
| General | |
| Number of power module filled slots | 0 |
| Number of power module free slots | 0 |
| product web sub-family | Network card pre-installed |
| Redundant | No |
| Physical | |
| Height | 8.6 cm |
| Width | 48 cm |
| Depth | 68.3 cm |
| Net weight | 42.22 kg |
| Mounting location | Front |
| Mounting preference | Lower |
| Mounting mode | Rack-mounted |
| Two post mountable | 0 |
| USB compatible | No |
| Input | |
| Input voltage limits | 151...302 V adjustable |
| Network frequency | 50/60 Hz +/- 3 Hz auto-sensing |
| Output | |
| Maximum configurable power in VA | 2200 VA |
| Maximum configurable power in W | 1980 W |
| Transfer time | 4 ms typical : 8 ms maximum |
| UPS type | Line interactive |
| Wave type | Sine wave |
| Output frequency | 50/60 Hz +/- 3 Hz sync to mains |
| Conformance | |
| product certifications | CE, EAC, IRAM, RCM, VDE |
| Marking | GS Mark |
| Standards | EN/IEC 62040-1:2019/A11:2021, EN/IEC 62040-2:2006/AC:2006, EN/IEC 62040-2:2018 |
| Environmental | |
| Acoustic level | 55 dBA |
| heat dissipation | 215 Btu/h |
| Operating altitude | 0...10000 ft |
| Ambient air temperature for operation | 0…40 °C |
| Ambient air temperature for storage | -15…45 °C |
| Storage altitude | 0.00…15240.00 m |
| Relative humidity | 0…95 % |
| Storage Relative Humidity | 0…95 % |
| Communications & Management | |
| control panel | Multifunction LCD status and control console |
| Emergency power off | Optional |
| Preinstalled device | Network management card 3 with environmental monitoring |
| Control panel | LED status display with on line : on battery : replace battery and overload indicators |
| Alarm | Alarm when on battery : distinctive low battery alarm : configurable delays |
| Surge Protection and Filtering | |
| Surge energy rate | 375 J |
| Packing Units | |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 25.4 cm |
| Package 1 Width | 98 cm |
| Package 1 Length | 60 cm |
| Package 1 Weight | 49.63 kg |
| Logistical informations | |
| Country of origin | PH |
| Contractual warranty | 3 years repair or replace (excluding battery) and 2 years for battery |
| Description | Downloads |
|---|---|
| SMT2200RMI2UNC:Datasheet | Download |
| SMT2200RMI2UNC:User Guide | Download |
