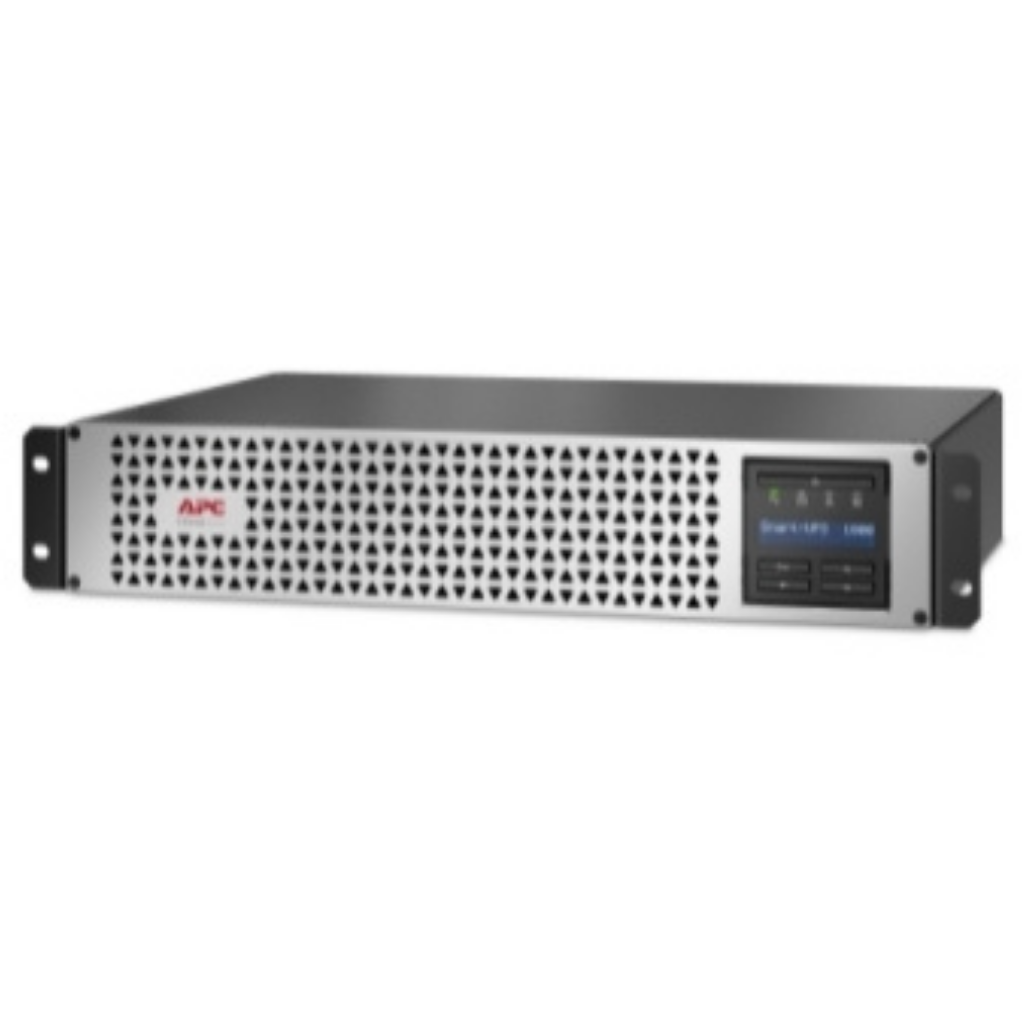

This APC Smart-UPS is designed for IT professionals or network administrators to maintain business uptime and continuity. The 1000VA line interactive 2U short depth rackmount UPS provides pure sine wave power to support critical electronics during power disruptions. It comes with IEC 320 C14 input and 6x IEC 320 C13 outlets. This rackmount UPS is tower convertible with the mounting stabilizing feet (SMTL2USF sold separately). It offers cloud-based remote power monitoring, UPS firmware upgrades, remote diagnostics and proactive email notifications with recommended actions. It has a SmartSlot for optional Network Management Card that enables graceful shutdown of physical servers, virtual machines & HCI Clusters via PowerChute Network Shutdown. The UPS can connect to EcoStruxure IT or third-party centralized management platforms. It provides surge protection against lightning strikes, power sags, brownouts and surges. The SMTL UPS has a 5-year warranty on the UPS and Lithium-ion battery.
| Category | Description |
|---|---|
| Main | |
| Run time for load | 800 W |
| Min-max: | 80-800 W |
| Max. Capacity Used | 100 % |
| Main Input Voltage | 230 V |
| Other Input Voltage | 220 V, 240 V |
| Main Output Voltage | 230 V |
| Other Output Voltage | 220 V, 240 V |
| Rated power in W | 800 W |
| Rated power in VA | 1000 VA |
| Input Connection Type | IEC 60320 C14 |
| Output Connection Type | 6 IEC 60320 C13 |
| Number of rack unit | 2U |
| Battery type | Li-Ion (Lithium-Ion) |
| Provided equipment | Installation guide, Rack mounting support rails, USB cable |
| Complementary | Software package: SmartConnect software for remote power monitoring feature availability varies by terms of use |
| Batteries & Runtime | |
| Run Time | View Runtime Graph |
| Efficiency | View Efficiency Graph |
| Battery graph comments | Actual runtimes may vary from the values of this graph. Actual runtimes are dependent on several factors. |
| Extended runtime | 0 |
| Battery recharge time | 3 h |
| Battery design life | 8…10 year(s) |
| Battery charger power | 79 W rated |
| General | |
| Product web sub-family | Cloud-enabled monitoring |
| Redundant | No |
| Physical | |
| Colour | Black with silver front bezel |
| Height | 8.6 cm |
| Width | 43.8 cm |
| Depth | 31.8 cm |
| Net weight | 16.3 kg |
| Mounting preference | Lower |
| Mounting mode | Rack-mounted |
| USB compatible | Yes |
| Input | |
| Input protection type | Circuit breaker |
| Input voltage limits | 151...302 V adjustable, 160...280 V |
| Network frequency | 50/60 Hz +/- 3 Hz auto-sensing |
| Output | |
| Crest factor | 3 : 1 |
| Harmonic distortion | Less than 5 % |
| Maximum configurable power in VA | 1000 VA |
| Maximum configurable power in W | 800 W |
| Transfer time | 6 ms typical : 10 ms maximum |
| UPS type | Line interactive |
| Wave type | Sine wave |
| Output frequency | 50/60 Hz +/- 3 Hz sync to mains |
| Conformance | |
| Product certifications | C-Tick, CE, EAC, RCM |
| Standards | EN/IEC 62040-2:2006/AC:2006, EN/IEC 62040-2:2018 |
| Environmental | |
| Acoustic level | 41 dBA |
| Heat dissipation | 70 Btu/h |
| Operating altitude | 0...10000 ft |
| Ambient air temperature for operation | 0…40 °C |
| Ambient air temperature for storage | -15…45 °C |
| Storage altitude | 0.00…7620.00 m |
| IP degree of protection | IP20 |
| Relative humidity | 0…95 % non-condensing |
| Storage Relative Humidity | 0…95 % non-condensing |
| Communications & Management | |
| Alarm | Audible and visible alarms |
| Control panel | Multifunction LCD status and control console |
| Free slots | 1 |
| Communication port support | SmartConnect Ethernet port: for cloud monitoring feature availability varies by terms of use |
| Surge Protection and Filtering | |
| Surge energy rate | 680 J |
| Noise suppression | Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : meets UL 1449 |
| Packing Units | |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 22.9 cm |
| Package 1 Width | 47.2 cm |
| Package 1 Length | 58.4 cm |
| Package 1 Weight | 18.6 kg |
| Logistical information | |
| Country of origin | PH |
| Contractual warranty | |
| Warranty | 5 year repair or replace |
| Description | Downloads |
|---|---|
| SMTL1000RMI2UC:Datasheet | Download |
| SMTL1000RMI2UC:User Guide | Download |
