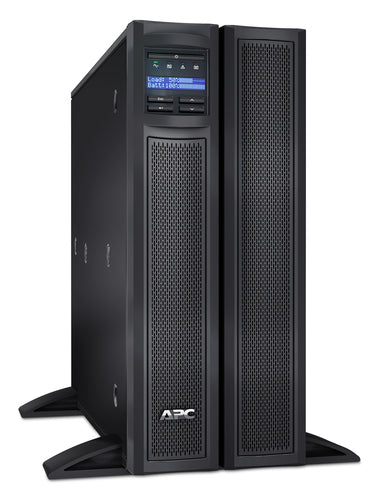

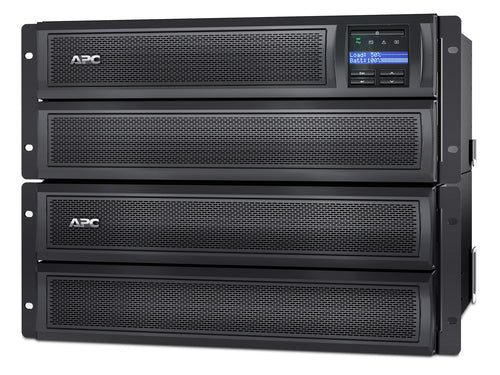

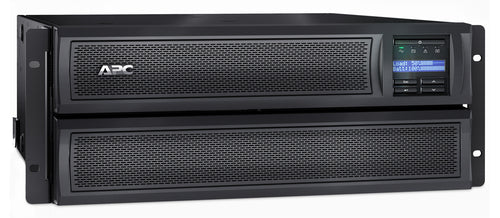

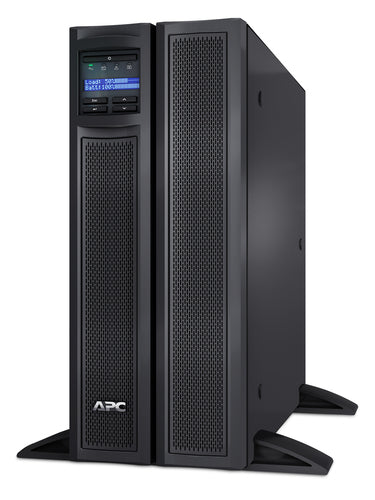

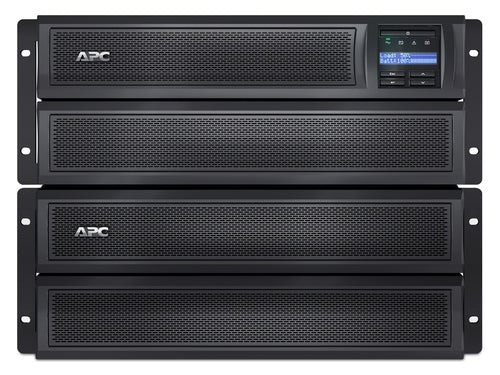

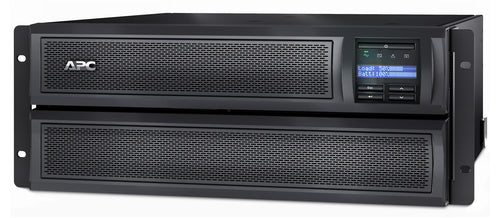

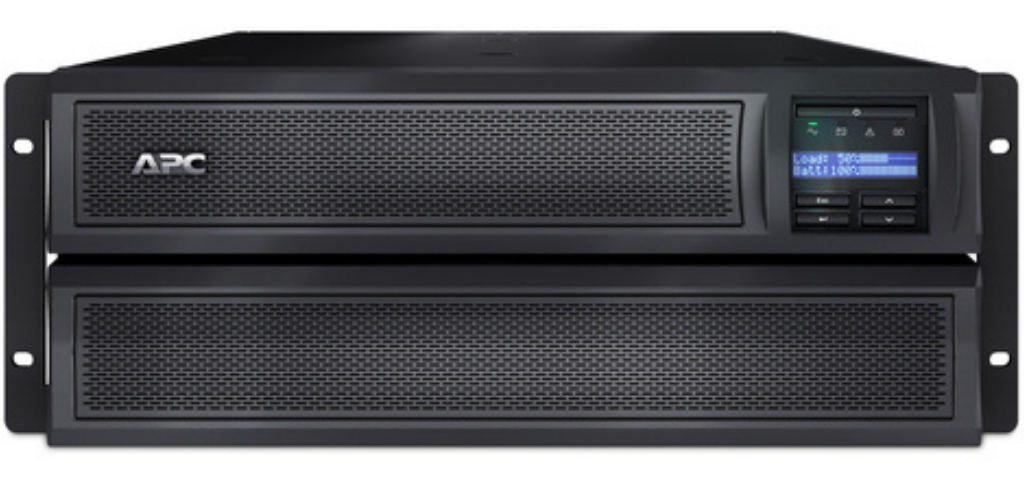

This APC Smart-UPS is designed for IT managers or network administrators to maintain business uptime, data transfer and continuity during prolonged power outages. The 3kVA line interactive 4U rack/tower UPS provides pure sine wave power to support critical electronics during power disruptions. The SMX comes with IEC 320 C20 input (includes BS1363A, IEC 320 C20 and Schuko CEE 7/EU1-16P power cords), 8x IEC 320 C13 and 2x IEC 320 C19 outlets. The UPS has a SmartSlot for optional Network Management Card that enables graceful shutdown of physical servers, virtual machines & HCI Clusters via PowerChute Network Shutdown. It comes with BS1363A British, IEC 320 C20, Schuko CEE 7/EU1-16P input, 8x IEC 320 C13 and 2x IEC 320 C19 outlets, and 2x IEC jumper cables. The UPS has a 3-year warranty, and the built-in lead-acid battery has a 2-year warranty. This uninterrupted power supply can connect to EcoStruxure IT or third-party centralized management platforms. The SMX UPS has a 3-year warranty, and the built-in lead-acid battery has a 2-year warranty. This is compatible with dedicated user-replaceable battery, and the APC replacement battery cartridge helps restore UPS performance to the original specifications. The Smart-UPS comes with a pair of tower-mounting stabilizing feet and rack-mounting brackets. The 3 switchable outlet groups allow more granular management of the power supplied to your devices. The Emergency Power Off feature enables the UPS to remotely shutdown during emergencies.
| Main | |
|---|---|
| Run time for load | 2700 W |
| Max. Capacity Used | 100 % |
| Main Input Voltage | 208 V |
| 230 V | |
| Other Input Voltage | 220 V |
| 240 V | |
| Main Output Voltage | 230 V |
| Other Output Voltage | 208 V |
| 220 V | |
| 240 V | |
| Rated power in W | 2700 W |
| Rated power in VA | 3000 VA |
| Input Connection Type | IEC 320 C20 |
| Schuko CEE 7 / EU1-16P | |
| BS1363A British | |
| Output Connection Type | 8 IEC 320 C13 |
| 2 IEC Jumpers | |
| 2 IEC 320 C19 | |
| Number of rack unit | 4U |
| Cable length | 1.83 m |
| Number of cables | 1 |
| Battery type | Lead-acid battery |
| Provided equipment | CD with software |
| Documentation CD | |
| Smart UPS signalling RS-232 cable | |
| User manual | |
| USB cable | |
| Rack mounting brackets | |
| Batteries & Runtime | |
| Run Time | View Runtime Graph |
| Efficiency | View Efficiency Graph |
| Extended runtime | 1 |
| Number of battery filled slots | 0 |
| Number of battery free slots | 0 |
| Battery recharge time | 3 h |
| Number of battery replacement qty | 1 |
| Battery life | 3…5 year(s) |
| Replacement battery | APCRBC143 |
| Battery charger power | 245 W rated |
| General | |
| Number of power module | 2400 |
| Physical | |
| Colour | Black |
| Height | 43.2 cm |
| Width | 17.8 cm |
| Depth | 48.3 cm |
| Net weight | 38.64 kg |
| Mounting location | Front |
| Mounting preference | Lower |
| Mounting mode | Rack-mounted |
| Two post mountable | |
| USB compatible | Yes |
| Input | |
| Input voltage limits | 140...280 V |
| Network frequency | 50/60 Hz +/- 3 Hz auto-sensing |
| Output | |
| Maximum configurable power in VA | 3000 VA |
| Maximum configurable power in W | 2700 W |
| Transfer time | 6 ms typical : 10 ms maximum |
| UPS type | Line interactive |
| Wave type | Sine wave |
| Output frequency | 50/60 Hz +/- 3 Hz sync to mains |
| Conformance | |
| Product certifications | CE |
| EAC | |
| IRAM | |
| RCM | |
| TISI | |
| VDE | |
| Standards | EN/IEC 62040-1:2019/A11:2021 |
| EN/IEC 62040-2:2006/AC:2006 | |
| EN/IEC 62040-2:2018 | |
| Environmental | |
| Acoustic level | 55 dBA |
| Heat dissipation | 184 Btu/h |
| Operating altitude | 0...10000 ft |
| Ambient air temperature for operation | 0…40 °C |
| Ambient air temperature for storage | -15…45 °C |
| Storage altitude | 0.00…15240.00 m |
| Relative humidity | 0…95 % |
| Storage Relative Humidity | 0…95 % |
| Communications & Management | |
| Control panel | Multifunction LCD status and control console |
| Emergency power off | Yes |
| Free slots | 1 |
| Control panel | LED status display with on line : on battery: replace battery and overload indicators |
| Surge Protection and Filtering | |
| Surge energy rate | 645 J |
| Noise suppression | Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : meets UL 1449 |
| Packing Units | |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 33 cm |
| Package 1 Width | 63.3 cm |
| Package 1 Length | 58.6 cm |
| Package 1 Weight | 47.73 kg |
| Pallet | |
| Pallet unit layers | 2 |
| Pallet layers | 4 |
| Contractual warranty | |
| Warranty | 3 years repair or replace (excluding battery) and 2 years for battery, optional on-site warranties available, optional extended warranties available |
| Description | Downloads |
|---|---|
| SMX3000HV:Datasheet | Download |
| SMX3000HV:User Guide | Download |
