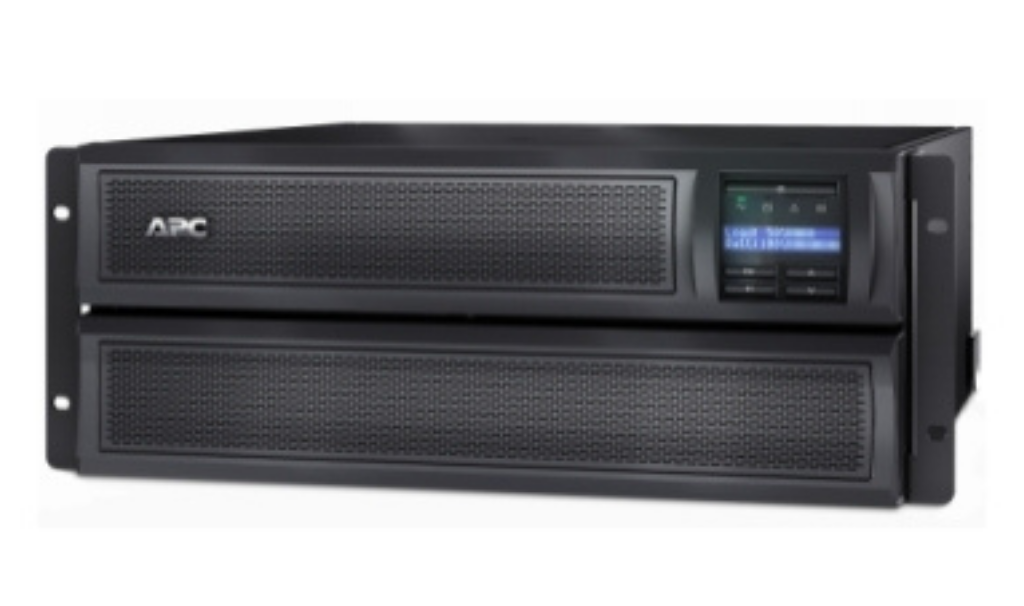

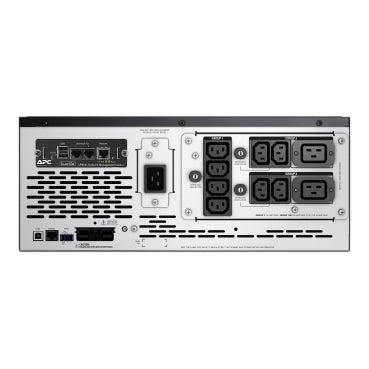

This APC Smart-UPS is designed for IT managers or network administrators to maintain business uptime, data transfer and continuity during prolonged power outages. The 3kVA line interactive 4U rack/tower UPS provides pure sine wave power to support critical electronics during power disruptions. The SMX comes with IEC 320 C20 input (includes BS1363A, IEC 320 C20 and Schuko CEE 7/EU1-16P power cords), 8x IEC 320 C13 and 2x IEC 320 C19 outlets. The UPS has a preinstalled Network Management Card for UPS network-based monitoring and management. The Smart-UPS comes with PowerChute Network Shutdown that provides graceful shutdown of physical servers, virtual machines, and HCI clusters. Use the intuitive LCD interface and PowerChute software to configure settings and monitor usage. This uninterrupted power supply can connect to EcoStruxure IT or third-party centralized management platforms. The SMX3000HVNC converts from a tower or stand-alone UPS to a rack mount UPS, offering flexibility in various installations. The SMX UPS has a 3-year warranty, and the built-in lead-acid battery has a 2-year warranty. This is compatible with dedicated user-replaceable battery, and the APC replacement battery cartridge helps restore UPS performance to the original specifications. The Smart-UPS comes with a pair of tower-mounting stabilizing feet and rack-mounting brackets. It comes with APC temperature sensor AP9335T for monitoring temperature. The 3 switchable outlet groups allow more granular management of the power supplied to your devices. The Emergency Power Off feature enables the UPS to remotely shutdown during emergencies.
| Category | Description |
|---|---|
| Main | |
| Run time for load | 6min 15s |
| Main Input Voltage | 208 V, 230 V |
| Other Input Voltage | 220 V, 240 V |
| Main Output Voltage | 230 V |
| Other Output Voltage | 208 V, 220 V, 240 V |
| Rated power in W | 2700 W |
| Rated power in VA | 3000 VA |
| Input Connection Type | BS1363A British, IEC 320 C20, Schuko CEE 7 / EU1-16P |
| Output Connection Type | 8 IEC 320 C13, 2 IEC Jumpers, 2 IEC 320 C19 |
| Number of rack unit | 4U |
| Cable length | 2.44 m |
| Batteries & Runtime | |
| Battery type | Lead-acid battery |
| Extended runtime | 1 |
| Battery recharge time | 3 h |
| Battery life | 3…5 year(s) |
| Replacement battery | APCRBC143 |
| Battery charger power | 245 W rated |
| Physical | |
| Colour | Black |
| Height | 43.2 cm |
| Width | 17.8 cm |
| Depth | 48.3 cm |
| Net weight | 38.64 kg |
| Mounting location | Front |
| Mounting preference | Lower |
| Mounting mode | Rack-mounted, Two post mountable |
| USB compatible | Yes |
| Input | |
| Input voltage limits | 140...280 V |
| Network frequency | 50/60 Hz +/- 3 Hz auto-sensing |
| Output | |
| Harmonic distortion | Less than 5 % |
| Transfer time | 6 ms typical : 10 ms maximum |
| UPS type | Line interactive |
| Wave type | Sine wave |
| Output frequency | 50/60 Hz +/- 3 Hz sync to mains |
| Conformance | |
| Product certifications | C-Tick, CE, CSA, EAC, GOST, IRAM, VDE |
| Environmental | |
| Operating altitude | 0...10000 ft |
| Ambient air temp (oper) | 0…40 °C |
| Ambient air temp (stor) | -15…45 °C |
| Storage altitude | 0.00…15240.00 m |
| Relative humidity | 0…95 % |
| Storage Relative Humidity | 0…95 % |
| Communications & Management | |
| Control panel | Multifunction LCD status and control console |
| Emergency power off | Yes |
| Preinstalled device | Network management card 3 with environmental monitoring |
| Control panel | LED status display with on line : on battery : replace battery and overload indicators |
| Alarm | Alarm when on battery : distinctive low battery alarm : configurable delays |
| Surge Protection and Filtering | |
| Surge energy rate | 645 J |
| Noise suppression | Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : meets UL 1449 |
| Logistical informations | |
| Country of origin | PH |
| Contractual warranty | |
| Warranty | 3 years repair or replace (excluding battery) and 2 years for battery, optional extended warranties available, optional on-site warranties available |
| Description | Downloads |
|---|---|
| SMX3000HVNC:Datasheet | Download |
| SMX3000HVNC:User Guide | Download |
