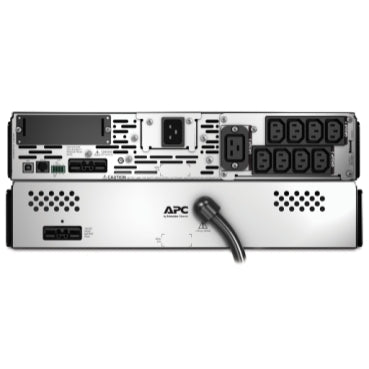

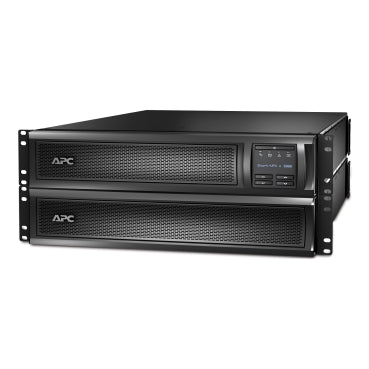

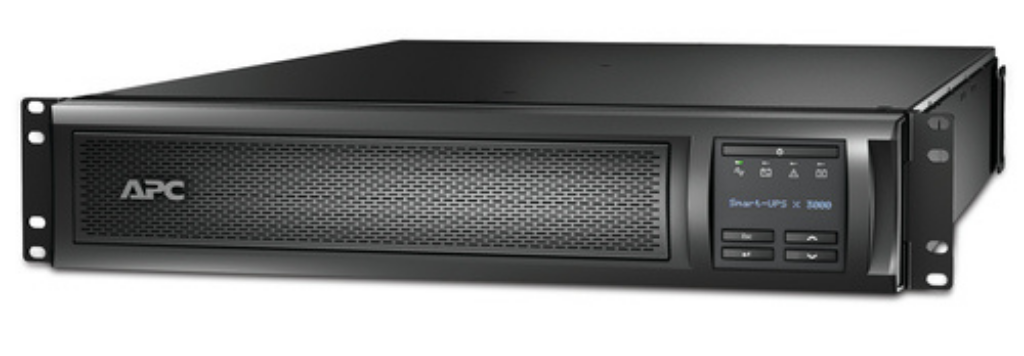

This APC Smart-UPS is designed for IT managers or network administrators to maintain business uptime, data transfer and continuity during prolonged power outages. The 3kVA line interactive 2U rack/tower UPS provides pure sine wave power to support critical electronics during power disruptions. The SMX comes with IEC 320 C20 input (includes BS1363A, IEC 320 C20 and Schuko CEE 7/EU1-16P power cords), 8x IEC 320 C13 and 1x IEC 320 C19 outlets. The UPS has a SmartSlot for optional Network Management Card that enables graceful shutdown of physical servers, virtual machines & HCI Clusters via PowerChute Network Shutdown. Connect to 10 of the SMX120RMBP2U external battery packs to increase the amount of time the UPS can provide battery power to devices (battery packs sold separately). A SmartSlot in the back of the UPS offers the option to add a network management card to remotely manage the UPS over the network (network cards sold separately). This uninterrupted power supply can connect to EcoStruxure IT or third-party centralized management platforms. The SMX3000RMHV2U converts from a tower or stand-alone UPS to a rack mount UPS, offering flexibility in various installations. The SMX UPS has a 3-year warranty, and the built-in lead-acid battery has a 2-year warranty. This is compatible with dedicated user-replaceable battery, and the APC replacement battery cartridge helps restore UPS performance to the original specifications. The Smart-UPS comes with a pair of tower-mounting stabilizing feet and rack-mounting brackets. The 3 switchable outlet groups allow more granular management of the power supplied to your devices. The Emergency Power Off feature enables the UPS to remotely shutdown during emergencies.
| Category | Details |
|---|---|
| Main | |
| Run time for load | 6min 15s |
| Max. Capacity Used | 100 % |
| Main Input Voltage | 208 V, 230 V |
| Other Input Voltage | 220 V, 240 V |
| Main Output Voltage | 230 V |
| Other Output Voltage | 208 V, 220 V, 240 V |
| Rated power in W | 2700 W |
| Rated power in VA | 3000 VA |
| Input Connection Type | IEC 320 C20, Schuko CEE 7 / EU1-16P, BS1363A British |
| Output Connection Type | 8 IEC 320 C13, 2 IEC Jumpers, 1 IEC 320 C19 |
| Number of rack unit | 2U |
| Cable length | 1.83 m |
| Number of cables | 1 |
| Battery type | Lead-acid battery |
| Provided equipment | CD with software, Documentation CD, Smart UPS signalling RS-232 cable, User manual, USB cable, Rack mounting brackets |
| Batteries & Runtime | |
| Extended runtime | 1 |
| Number of battery filled slots | 0 |
| Number of battery free slots | 0 |
| Battery recharge time | 3 h |
| Number of battery replacement quantity | 1 |
| Battery life | 3…5 year(s) |
| Replacement battery | APCRBC117 |
| Battery charger power | 245 W rated |
| General | |
| Number of power module | 2400 |
| Number of power module filled slots | 0 |
| Number of power module free slots | 0 |
| Product web sub-family | Extended run |
| Redundant | No |
| Physical | |
| Colour | Black |
| Height | 8.5 cm |
| Width | 43.2 cm |
| Depth | 66.7 cm |
| Net weight | 37.32 kg |
| Mounting location | Front |
| Mounting preference | Lower |
| Mounting mode | Rack-mounted, Two post mountable |
| USB compatible | Yes |
| Input | |
| Input voltage limits | 140...280 V |
| Network frequency | 50/60 Hz +/- 3 Hz auto-sensing |
| Output | |
| Crest factor | 3 : 1 |
| Harmonic distortion | Less than 5 % |
| Maximum configurable power in VA | 3000 VA |
| Maximum configurable power in W | 2700 W |
| Transfer time | 2-4 ms |
| 6 ms typical : 10 ms maximum | |
| UPS type | Line interactive |
| Wave type | Sine wave |
| Output frequency | 50/60 Hz +/- 3 Hz sync to mains |
| Conformance | |
| Product certifications | CE, CSA, EAC, IRAM, RCM, VDE |
| Standards | EN/IEC 62040-1:2019/A11:2021, EN/IEC 62040-2:2006/AC:2006, EN/IEC 62040-2:2018 |
| Environmental | |
| Acoustic level | 55 dBA |
| Heat dissipation | 184 Btu/h |
| Operating altitude | 0...10000 ft |
| Ambient air temperature for operation | 0…40 °C |
| Ambient air temperature for storage | -15…45 °C |
| Storage altitude | 0.00…15240.00 m |
| Relative humidity | 0…95 % |
| Storage Relative Humidity | 0…95 % |
| Communications & Management | |
| Control panel | Multifunction LCD status and control console |
| Emergency power off | Yes |
| Free slots | 1 |
| Control panel | LED status display with on line : on battery : replace battery and overload indicators |
| Surge Protection and Filtering | |
| Surge energy rate | 645 J |
| Noise suppression | Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : meets UL 1449 |
| Packing Units | |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 24.3 cm |
| Package 1 Width | 59.6 cm |
| Package 1 Length | 86.9 cm |
| Package 1 Weight | 45.36 kg |
| Unit Type of Package 2 | PAL |
| Number of Units in Package 2 | 8 |
| Package 2 Height | 113 cm |
| Package 2 Width | 100 cm |
| Package 2 Length | 120 cm |
| Package 2 Weight | 362.88 kg |
| Pallet unit layers | 2 |
| Pallet layers | 4 |
| Contractual Warranty | |
| Warranty | 3 years repair or replace (excluding battery) and 2 years for battery, optional on-site warranties available, optional extended warranties available |
| Description | Downloads |
|---|---|
| SMX3000RMHV2U:Datasheet | Download |
| SMX3000RMHV2U:User Guide | Download |
