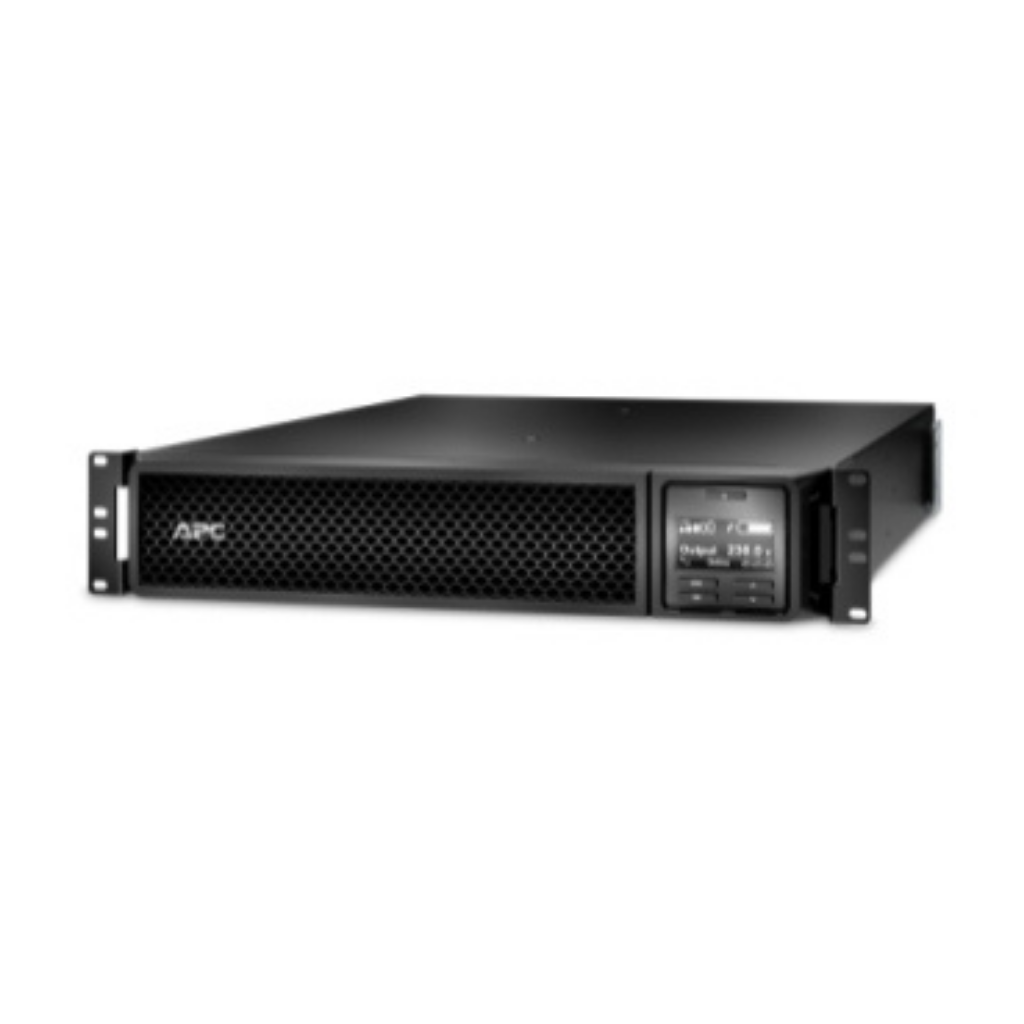

APC SRT1000RMXLI Smart-UPS On-Line, 1000VA/1000W, Rackmount 2U, 230V, 6x C13 IEC Outlets

This APC Smart-UPS is designed for IT professionals or network administrators to maintain business uptime and continuity. This 1000VA on-line 2U rackmount UPS provides pure sine wave power and extended runtime to support critical electronics during power disruptions. It comes with IEC 320 C14, BS1363A British and Schuko CEE 7/EU1-16P inputs, and 6x IEC 320 C13 outlets. The UPS has a preinstalled Network Management Card for UPS network-based monitoring and management. It comes with BS1363A British, IEC 60320 C20, and Schuko CEE 7/EU1-16P inputs, 6x IEC 320 C13/60320 C13 outlets. The UPS has a 3-year warranty, and the built-in lead-acid battery has a 2-year warranty. The UPS can connect to EcoStruxure IT or third-party centralized management platforms. The UPS has a 3-year warranty, and the built-in lead-acid battery has a 2-year warranty. It conforms to CE and EAC. Designed for IT professionals or network administrators providing wide input voltage window, tight output voltage regulation, frequency regulation, internal bypass, and input power factor correction.

Category	Details
Max. Capacity Used	100 %
Main Input Voltage	230 V
Main Output Voltage	230 V
Other Output Voltage	220 V, 240 V
Rated power in W	1000 W
Rated power in VA	1000 VA
Input Connection Type	BS1363A British, IEC 60320 C14, Schuko CEE 7 / EU1-16P
Output Connection Type	6 IEC 60320 C13
Number of rack unit	2U
Cable length	1.83 m
Number of cables	1
Provided equipment	CD with software, Communication cable, Country-specific detachable power cord, Documentation CD, Installation guide, Network management card, Rack mounting hardware, Rack mounting brackets, Rack mounting support rails, Temperature probe, USB cable, Warranty card
Batteries & Runtime
Run Time	View Runtime Graph
Battery type	Lead-acid battery
Number of battery filled slots	1
Number of battery free slots	0
Battery recharge time	3 h
Number of battery replacement quantity	1
Battery voltage	48 V
Battery charger power	97 W rated
Battery life	3…5 year(s)
Replacement battery	APCRBC155
Extended runtime	1
General
UPS type	Double conversion online
Product web sub-family	High density
Number of power module free slots	0
Number of power module filled slots	0
Redundant	No
Physical
Colour	Black
Height	8.5 cm
Width	43.2 cm
Depth	50.5 cm
Net weight	21 kg
Mounting preference	No preference
Mounting mode	Rack-mounted
	Two post mountable
USB compatible	Yes
Mounting position	Vertical
Input
Network frequency	40...70 Hz auto-sensing
Input voltage limits	176...275 V full load, 100...275 V
Output
Maximum configurable power in VA	1000 VA
Maximum configurable power in W	1000 W
Output frequency	50/60 Hz +/- 3 Hz sync to mains
Wave type	Sine wave
Harmonic distortion	Less than 2 %
Crest factor	3 : 1
Bypass type	Built-in bypass
Conformance
Product certifications	CE, EAC
Standards	EN/IEC 62040-1:2019/A11:2021, EN/IEC 62040-2:2006/AC:2006, EN/IEC 62040-2:2018
Environmental
Ambient air temperature for operation	0…40 °C
Relative humidity	0…95 % non-condensing
Operating altitude	0...10000 ft
Ambient air temperature for storage	-20…50 °C
Storage Relative Humidity	0…95 % non-condensing
Storage altitude	0.00…15240.00 m
Acoustic level	50 dBA
Heat dissipation	317 Btu/h
IP degree of protection	IP20
Communications & Management
Free slots	0
Preinstalled device	Network management card 3 with environmental monitoring
Alarm	Audible and visible alarms: prioritized by severity
Emergency power off	Yes
Surge Protection and Filtering
Surge energy rate	432 J
Packing Units
Unit Type of Package 1	PCE
Number of Units in Package 1	1
Package 1 Height	24.6 cm
Package 1 Width	74.9 cm
Package 1 Length	59.4 cm
Package 1 Weight	29.6 kg
Logistical informations
Country of origin	PH
Contractual warranty	3 years repair or replace (excluding battery) and 2 years for battery

Description Downloads

SRT1000RMXLI:Datasheet Download

SRT1000RMXLI:User Guide Download
