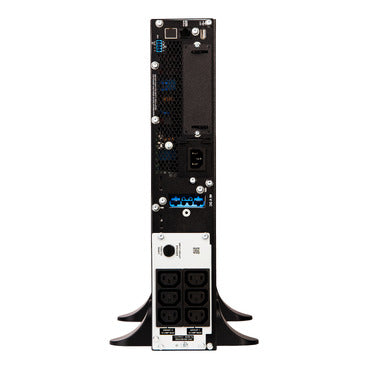

This APC Smart-UPS is designed for IT professionals or network administrators to maintain business uptime and continuity. This 1000VA on-line tower UPS provides pure sine wave power and extended runtime to support critical electronics during power disruptions. It comes with 1x IEC 320 C14 input and 6x IEC 320 C13 outlets. It has a SmartSlot for optional Network Management Card that enables graceful shutdown of physical servers, virtual machines & HCI Clusters via PowerChute Network Shutdown. The UPS can connect to EcoStruxure IT or third-party centralized management platforms. The UPS has a 3-year warranty, and the built-in lead-acid battery has a 2-year warranty. The UPS is compatible with SRTRK4 (4-post) and SRTRK3 (2-post) rail kits sold separately.
| Overview | |
|---|---|
| Presentation | High density, double-conversion on-line power protection with scalable runtime. |
| Lead time | Usually in Stock |
| Main | |
|---|---|
| Run time for load | 8min 27s |
| Max. Capacity Used | 100% |
| Main Input Voltage | 230 V |
| Other Input Voltage | 220 V, 240 V |
| Main Output Voltage | 230 V |
| Other Output Voltage | 220 V, 240 V |
| Rated power in W | 1000 W |
| Rated power in VA | 1000 VA |
| Input Connection Type | IEC 60320 C14 |
| Output Connection Type | 6 IEC 60320 C13 |
| Cable Length | 1.83 m |
| Number of Cables | 1 |
| Batteries & Runtime | |
|---|---|
| Run Time | View Runtime Graph |
| Battery Type | Lead-acid battery |
| Number of Battery Filled Slots | 1 |
| Number of Battery Free Slots | 0 |
| Battery Recharge Time | 3 h |
| Number of Battery Replacement Quantity | 1 |
| Battery Voltage | 48 V |
| Battery Charger Power | 97 W rated |
| Battery Life | 3–5 year(s) |
| Replacement Battery | APCRBC155 |
| Extended Runtime | 1 |
| Physical | |
|---|---|
| Colour | Black |
| Height | 43.2 cm |
| Width | 8.5 cm |
| Depth | 50.5 cm |
| Net Weight | 20.5 kg |
| Mounting Preference | No preference |
| Mounting Mode | Rack-mounted with kit |
| Two Post Mountable | 0 |
| USB Compatible | Yes |
| Mounting Position | Vertical |
| Input | |
|---|---|
| Network Frequency | 40–70 Hz auto-sensing |
| Input Voltage Limits | 100–275 V (40% load), 176–275 V |
| Output | |
|---|---|
| Maximum Configurable Power in VA | 1000 VA |
| Maximum Configurable Power in W | 1000 W |
| Output Frequency | 50/60 Hz +/- 3 Hz sync to mains |
| Wave Type | Sine wave |
| Harmonic Distortion | Less than 2 % |
| Crest Factor | 3 : 1 |
| Bypass Type | Built-in bypass |
| Conformance | |
|---|---|
| Product Certifications | CE, EAC |
| Standards | EN/IEC 62040-1:2019/A11:2021, EN/IEC 62040-2:2006/AC:2006, EN/IEC 62040-2:2018 |
| Environmental | |
|---|---|
| Ambient Air Temperature for Operation | 0–40 °C |
| Relative Humidity | 0–95 % non-condensing |
| Operating Altitude | 0–10000 ft |
| Ambient Air Temperature for Storage | -20–50 °C |
| Storage Relative Humidity | 0–95 % non-condensing |
| Storage Altitude | 0.00–15240.00 m |
| Communications & Management | |
|---|---|
| Free Slots | 1 |
| Alarm | Audible and visible alarms: prioritized by severity |
| Emergency Power Off | Yes |
| Surge Protection and Filtering | |
|---|---|
| Surge Energy Rate | 432 J |
| Packing Units | |
|---|---|
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 24.6 cm |
| Package 1 Width | 74.9 cm |
| Package 1 Length | 59.4 cm |
| Package 1 Weight | 29.6 kg |
| Contractual Warranty | |
|---|---|
| Warranty | 3 years repair or replace (excluding battery) and 2 years for battery |
| Description | Downloads |
|---|---|
| SRT1000XLI:Datasheet | Download |
| SRT1000XLI:User Guide | Download |
