Max. Capacity Used |
100 % |
Main Input Voltage |
230 V |
|
400 V 3 phases |
Other Input Voltage |
220 V, 240 V, 380 V, 415 V |
Main Output Voltage |
230 V |
Other Output Voltage |
220 V, 240 V |
Rated power in W |
10000 W |
Rated power in VA |
10000 VA |

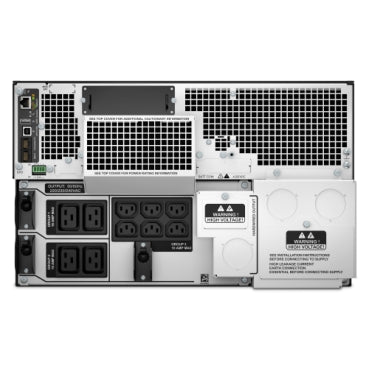

Output Connection Type |
6 IEC 60320 C13 |
|
3 IEC Jumpers |
|
4 IEC 60320 C19 |
Output connector type |
Hard wire 3-wire (H N + E) 1 |
Number of rack unit |
6U |
Provided equipment |
CD with software, Documentation CD, Installation guide, Rack mounting hardware, Rack mounting brackets, Rack mounting support rails, Temperature probe, USB cable, Warranty card, Web/SNMP management card |
Batteries & Runtime |
|
Run Time |
View Runtime Graph |
Efficiency |
View Efficiency Graph |
Battery type |
Lead-acid battery |
Number of battery filled slots |
0 |
Battery recharge time |
1.5 h |
Number of battery replacement quantity |
2 |
Battery voltage |
+/- 192 V (split battery referenced to neutral) |
Battery charger power |
876 W rated |
Battery life |
3…5 year(s) |
Replacement battery |
APCRBC140 |
Extended runtime |
1 |
General |
|
UPS type |
Double conversion online |
Product web sub-family |
High density |
Number of power module free slots |
0 |
Number of power module filled slots |
0 |
Redundant |
No |
Physical |
|
Colour |
Black |
Height |
26.3 cm |
Width |
43.2 cm |
Depth |
71.5 cm |
Net weight |
111.82 kg |
Mounting location |
Front |
Mounting preference |
No preference |
Mounting mode |
Rack-mounted |
|
Two post mountable |
USB compatible |
Yes |
Input |
|
Network frequency |
40...70 Hz auto-sensing |
Number of input connectors |
1 hard wire 3-wire (1P + N + E), 1 hard wire 5-wire (3P + N + E) |
Input voltage limits |
100...275 V adjustable (half load), 173...476 V adjustable (half load) |
Output |
|
Maximum configurable power in VA |
10000 VA |
Maximum configurable power in W |
10000 W |
Output frequency |
50/60 Hz +/- 3 Hz sync to mains |
Wave type |
Sine wave |
Harmonic distortion |
Less than 2 % |
Crest factor |
3 : 1 |
Bypass type |
Internal bypass (automatic and manual) |
Conformance |
|
Product certifications |
CE, EAC, IRAM, RCM, VDE |
Marking |
CE Mark |
Standards |
EN/IEC 62040-1:2019/A11:2021, EN/IEC 62040-2:2006/AC:2006, EN/IEC 62040-2:2018 |
Environmental |
|
Ambient air temperature for operation |
0…40 °C |
Relative humidity |
0…95 % non-condensing |
Operating altitude |
0...10000 ft |
Ambient air temperature for storage |
-15…45 °C |
Storage Relative Humidity |
0…95 % non-condensing |
Storage altitude |
0.00…15240.00 m |
Acoustic level |
55 dBA |
Heat dissipation |
1947 Btu/h |
IP degree of protection |
IP20 |
Communications & Management |
|
Free slots |
1 |
Preinstalled device |
Network management card 3 with environmental monitoring |
Alarm |
Audible and visible alarms: prioritized by severity |
Emergency power off |
Yes |
Surge Protection and Filtering |
|
Surge energy rate |
480 J |
Packing Units |
|
Unit Type of Package 1 |
PCE |
Number of Units in Package 1 |
1 |
Package 1 Height |
46.1 cm |
Package 1 Width |
60 cm |
Package 1 Length |
100 cm |
Package 1 Weight |
129.727 kg |
Logistical informations |
|
Country of origin |
PH |
Contractual warranty |
3 years repair or replace (excluding battery) and 2 years for battery |
