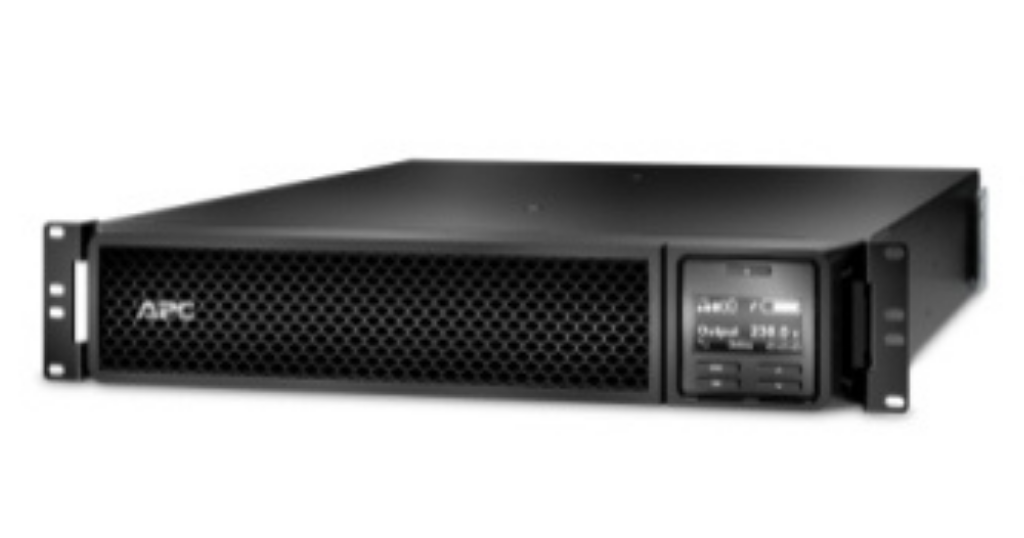

This APC Smart-UPS is designed for IT professionals or network administrators to maintain business uptime and continuity. This 1500VA on-line 2U rackmount UPS provides pure sine wave power and extended runtime to support critical electronics during power disruptions. It comes with IEC 320 C14 input and 6x IEC 320 C13 outlets. It has a SmartSlot for optional Network Management Card that enables graceful shutdown of physical servers, virtual machines & HCI Clusters via PowerChute Network Shutdown. It comes with IEC 60320 C14 input, 6x IEC 320 C13 and 6x IEC 320 C13 outlets. The UPS has a 3-year warranty, and the built-in lead-acid battery has a 2-year warranty. The UPS can connect to EcoStruxure IT or third-party centralized management platforms. The UPS has a 3-year warranty, and the built-in lead-acid battery has a 2-year warranty. It conforms to CE and EAC. Designed for IT professionals or network administrators providing wide input voltage window, tight output voltage regulation, frequency regulation, internal bypass, and input power factor correction.
| Category | Specification |
|---|---|
| Overview | |
| Presentation | High density, double-conversion on-line power protection with scalable runtime. |
| Lead time | Usually in Stock |
| Main | |
| Run time for load | 1500 W Min-max: 150-1500 W 5min 9s |
| Max. Capacity Used | 100 % |
| Main Input Voltage | 230 V Other Input Voltage: 220 V, 240 V |
| Main Output Voltage | 230 V Other Output Voltage: 220 V, 240 V |
| Rated power | 1500 W |
| Rated power in VA | 1500 VA |
| Input Connection Type | IEC 60320 C14 |
| Output Connection Type | 6 IEC 60320 C13 |
| Number of rack unit | 2U |
| Cable length | 1.83 m |
| Number of cables | 1 |
| Provided equipment | CD with software Communication cable Documentation CD Installation guide Rack mounting hardware Rack mounting brackets Rack mounting support rails USB cable Warranty card |
| Batteries & Runtime | |
| Battery type | Lead-acid battery |
| Number of battery filled slots | 1 |
| Number of battery free slots | 0 |
| Battery recharge time | 3 h |
| Number of battery replacement quantity | 1 |
| Battery charger power | 108 W rated |
| Battery life | 3…5 year(s) |
| Replacement battery | APCRBC155 |
| Extended runtime | 1 |
| General | |
| UPS type | Double conversion online |
| Product web sub-family | High density |
| Redundant | No |
| Physical | |
| Colour | Black |
| Height | 8.5 cm |
| Width | 43.2 cm |
| Depth | 50.5 cm |
| Net weight | 21 kg |
| Mounting mode | Rack-mounted |
| USB compatible | Yes |
| Mounting position | Horizontal |
| Input | |
| Network frequency | 40...70 Hz auto-sensing |
| Input voltage limits | 100...275 V (40% load), 176...275 V (full load) |
| Output | |
| Maximum configurable power in VA | 1500 VA |
| Maximum configurable power in W | 1500 W |
| Output frequency | 50/60 Hz +/- 3 Hz sync to mains |
| Wave type | Sine wave |
| Harmonic distortion | Less than 2 % |
| Crest factor | 3 : 1 |
| Bypass type | Built-in bypass |
| Conformance | |
| Product certifications | CE, EAC |
| Standards | EN/IEC 62040-1:2019/A11:2021, EN/IEC 62040-2:2006/AC:2006, EN/IEC 62040-2:2018 |
| Environmental | |
| Ambient air temperature for operation | 0…40 °C |
| Relative humidity | 0…95 % non-condensing |
| Operating altitude | 0...10000 ft |
| Ambient air temperature for storage | -20…50 °C |
| Storage altitude | 0.00…15240.00 m |
| Storage Relative Humidity | 0…95 % non-condensing |
| Communications & Management | |
| Free slots | 1 |
| Alarm | Audible and visible alarms : prioritized by severity |
| Emergency power off | Yes |
| Surge Protection and Filtering | |
| Surge energy rate | 432 J |
| Packing Units | |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 24.6 cm |
| Package 1 Width | 74.9 cm |
| Package 1 Length | 59.4 cm |
| Package 1 Weight | 29.6 kg |
| Contractual warranty | |
| Warranty | 3 years repair or replace (excluding battery) and 2 years for battery |
| Description | Downloads |
|---|---|
| SRT1500RMXLI:Datasheet | Download |
| SRT1500RMXLI:User Guide | Download |
