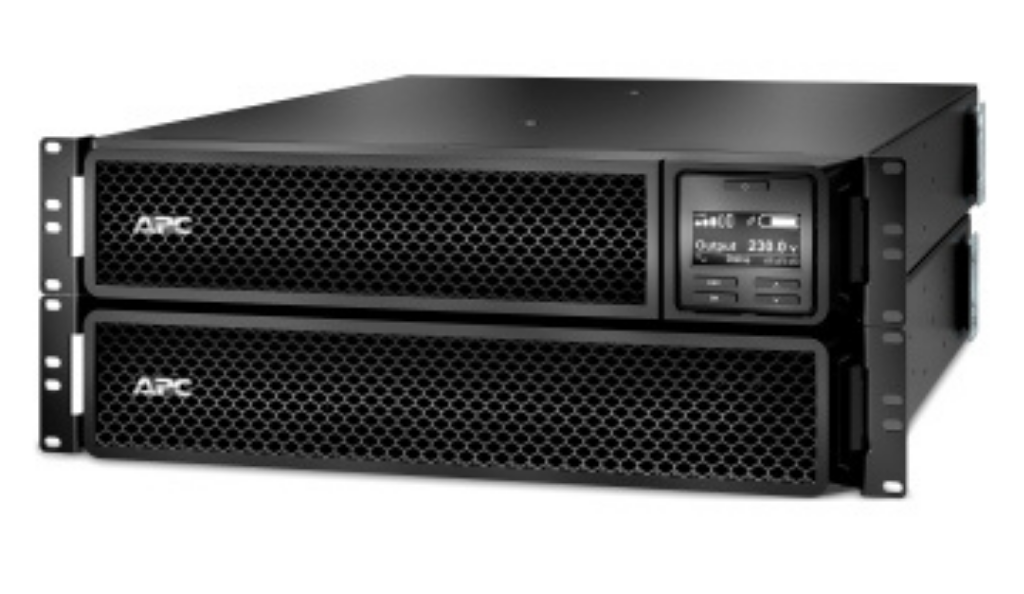

APC SRT2200RMXLI-NC Smart-UPS On-Line, 2200VA, Rackmount 2U, 230V, 8x C13+2x C19 IEC Outlets
This APC Smart-UPS is designed for IT professionals or network administrators to maintain business uptime and continuity. This 2200VA on-line 2U rackmount UPS provides pure sine wave power and extended runtime to support critical electronics during power disruptions. It comes with BS1363A British, IEC 320 C20, and Schuko CEE 7/EU1-16P inputs, 8x IEC 320 C13 and 2x IEC 320 C19 outlets. The UPS has a preinstalled Network Management Card for UPS network-based monitoring and management. It comes with BS1363A British, IEC 60320 C20, and Schuko CEE 7/EU1-16P inputs, 8x IEC 320 C13 and 2x IEC 60320 C19 outlets. The UPS has a 3-year warranty, and the built-in lead-acid battery has a 2-year warranty. The UPS can connect to EcoStruxure IT or third-party centralized management platforms. The UPS has a 3-year warranty, and the built-in lead-acid battery has a 2-year warranty. It conforms to CE, CE Mark, EAC, EN/IEC 62040-1, EN/IEC 62040-2, RCM, and VDE. Designed for IT professionals or network administrators providing wide input voltage window, tight output voltage regulation, frequency regulation, internal bypass, and input power factor correction.
-
Main |
|
Run time for load |
1980 W |
Min-max |
198-1980 W |
3 min 53 s |
|
Max. Capacity Used |
100 % |
Main Input Voltage |
230 V |
Other Input Voltage |
220 V |
|
240 V |
Main Output Voltage |
230 V |
Other Output Voltage |
220 V |
|
240 V |
Rated power in W |
1980 W |
Rated power in VA |
2200 VA |
Input Connection Type |
BS1363A British |
|
IEC 60320 C20 |
|
Schuko CEE 7 / EU1-16P |
Output Connection Type |
8 IEC 60320 C13 |
|
2 IEC Jumpers |
|
2 IEC 60320 C19 |
Number of rack unit |
2U |
Cable length |
2.44 m |
Number of cables |
1 |
Provided equipment |
CD with software |
|
Country-specific detachable power cord |
|
Documentation CD |
|
Installation guide |
|
Network management card |
|
Rack mounting hardware |
|
Rack mounting brackets |
|
Rack mounting support rails |
|
USB cable |
|
Warranty card |
Batteries & Runtime |
|
Run Time |
View Runtime Graph |
Efficiency |
View Efficiency Graph |
Battery type |
Lead-acid battery |
Number of battery filled slots |
1 |
Number of battery free slots |
0 |
Battery recharge time |
3 h |
Number of battery replacement quantity |
1 |
Battery voltage |
72 V |
Battery charger power |
122 W rated |
Battery life |
3…5 year(s) |
Replacement battery |
APCRBC141 |
Extended runtime |
1 |
General |
|
UPS type |
Double conversion online |
Product web sub-family |
High density |
Number of power module |
1400 |
Number of power module free slots |
0 |
Number of power module filled slots |
0 |
Redundant |
No |
Physical |
|
Colour |
Black |
Height |
8.5 cm |
Width |
43.2 cm |
Depth |
58.4 cm |
Net weight |
25 kg |
Mounting location |
Front |
Mounting preference |
Lower |
Mounting mode |
Rack-mounted |
|
Two post mountable |
USB compatible |
Yes |
Mounting position |
Horizontal |
Input |
|
Network frequency |
40...70 Hz auto-sensing |
Input voltage limits |
100...275 V adjustable (half load) |
Output |
|
Maximum configurable power in VA |
2200 VA |
Maximum configurable power in W |
1980 W |
Output frequency |
50/60 Hz +/- 3 Hz sync to mains |
Wave type |
Sine wave |
Harmonic distortion |
Less than 2 % |
Crest factor |
3 : 1 |
Bypass type |
Built-in bypass |
Conformance |
|
Product certifications |
CE |
|
EAC |
|
RCM |
|
VDE |
Marking |
CE Mark |
Standards |
EN/IEC 62040-1:2019/A11:2021 |
|
EN/IEC 62040-2:2006/AC:2006 |
|
EN/IEC 62040-2:2018 |
Environmental |
|
Ambient air temperature for operation |
0…40 °C |
Relative humidity |
0…95 % non-condensing |
Operating altitude |
0...10000 ft |
Ambient air temperature for storage |
-20…50 °C |
Storage Relative Humidity |
0…95 % non-condensing |
Storage altitude |
0.00…15240.00 m |
Acoustic level |
55 dBA |
Heat dissipation |
535 Btu/h |
IP degree of protection |
IP20 |
Communications & Management |
|
Free slots |
1 |
Preinstalled device |
Network management card 3 with environmental monitoring |
Alarm |
Audible and visible alarms : prioritized by severity |
Emergency power off |
Yes |
Surge Protection and Filtering |
|
Surge energy rate |
340 J |
Packing Units |
|
Unit Type of Package 1 |
PCE |
Number of Units in Package 1 |
1 |
Package 1 Height |
24.6 cm |
Package 1 Width |
81 cm |
Package 1 Length |
59.9 cm |
Package 1 Weight |
34.02 kg |
Logistical informations |
|
Country of origin |
PH |
Contractual warranty |
|
Warranty |
3 years repair or replace (excluding battery) and 2 years for battery |
-
