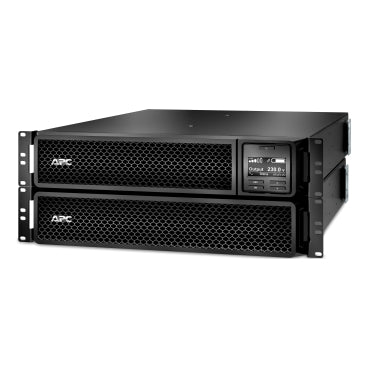

APC SRT3000RMXLI Smart-UPS On-Line, 3kVA, Rackmount 2U, 230V, 8x C13+2x C19
SKU: SRT3000RMXLI
£2,665.31 (Excl. VAT)
- Description
- Specifications
- Downloads
-
APC SRT3000RMXLI Smart-UPS On-Line, 3kVA, Rackmount 2U, 230V, 8x C13+2x C19
This APC Smart-UPS is designed for IT professionals or network administrators to maintain business uptime and continuity. This 3kVA on-line 2U rackmount UPS provides pure sine wave power and extended runtime to support critical electronics during power disruptions. It comes with BS1363A British, IEC 320 C20, and Schuko CEE 7/EU1-16P inputs, 8x IEC 320 C13, 2x IEC 320 C19 outlets, and 2x IEC jumpers. It has a SmartSlot for optional Network Management Card that enables graceful shutdown of physical servers, virtual machines & HCI Clusters via PowerChute Network Shutdown. It comes with BS1363A British, IEC 60320 C20, and Schuko CEE 7/EU1-16P inputs, 8x IEC 320 C13/60320 C13, 2x IEC 320 C19/60320 C19 outlets, and 2x IEC jumpers. The UPS has a 3-year warranty, and the built-in lead-acid battery has a 2-year warranty. The UPS can connect to EcoStruxure IT or third-party centralized management platforms. The UPS has a 3-year warranty, and the built-in lead-acid battery has a 2-year warranty. It conforms to CE, CE Mark, EAC, EN/IEC 62040-1, EN/IEC 62040-2, RCM, and VDE. Designed for IT professionals or network administrators providing wide input voltage window, tight output voltage regulation, frequency regulation, internal bypass, and input power factor correction.
-
Main Run time for load 2700 W Min-max: 270-2700 W 3min 58s Max. Capacity Used 100 % Main Input Voltage 230 V Other Input Voltage 220 V 240 V Main Output Voltage 230 V Other Output Voltage 220 V 240 V Rated power in W 2700 W Rated power in VA 3000 VA Input Connection Type BS1363A British IEC 60320 C20 Schuko CEE 7 / EU1-16P Output connection type 8 IEC 60320 C13 2 IEC Jumpers 2 IEC 60320 C19 Number of rack unit 2U Cable length 2.44 m Number of cables 1 Provided equipment CD with software Documentation CD Installation guide Rack mounting brackets Rack mounting support rails USB cable Warranty card Batteries & Runtime Battery type Lead-acid battery Number of battery filled slots 1 Battery recharge time 3 h Number of battery replacement 1 quantity Battery voltage 96 V Battery charger power 168 W rated Battery life 3…5 year(s) Replacement battery APCRBC152 Extended runtime 1 General UPS type Double conversion online Product web sub-family High density Number of power module free 0 slots Number of power module filled 0 slots Redundant No Physical Color Black Height 8.5 cm Width 43.2 cm Depth 63.5 cm Net weight 31.3 kg Mounting location Front Mounting preference Lower Mounting mode Rack-mounted Two post mountable USB compatible Yes Mounting position Horizontal Input Network frequency 40...70 Hz auto-sensing Input voltage limits 100...275 V adjustable (half load) Output Maximum configurable power in 3000 VA VA Maximum configurable power in 2700 W W Output frequency 50/60 Hz +/- 3 Hz sync to mains Wave type Sine wave Harmonic distortion Less than 2 % Crest factor 3 : 1 Bypass type Internal bypass (automatic and manual) Additional information Configurable for 220 : 230 or 240 nominal output voltage Conformance Product certifications CE EAC RCM VDE Marking CE Mark Standards EN/IEC 62040-1:2019/A11:2021 EN/IEC 62040-2:2006/AC:2006 EN/IEC 62040-2:2018 Environmental Ambient air temperature for 0…40 °C operation Relative humidity 0…95 % non-condensing Operating altitude 0...10000 ft Ambient air temperature for -15…45 °C storage Storage Relative Humidity 0…95 % non-condensing Storage altitude 0.00…15240.00 m Acoustic level 55 dBA Heat dissipation 703 Btu/h IP degree of protection IP20 Communications & Management Free slots 1 Alarm Audible and visible alarms : prioritized by severity Emergency power off Yes **Surge Protection and Filtering** Surge energy rate 340 J Packing Units Unit Type of Package 1 PCE Number of Units in Package 1 1 Package 1 Height 24.6 cm Package 1 Width 59.9 cm Package 1 Length 87.1 cm Package 1 Weight 39.92 kg Contractual warranty Warranty 3 years repair or replace (excluding battery) and 2 years for battery -
Description Downloads SRT3000RMXLI:Datasheet Download SRT3000RMXLI:User Guide Download
