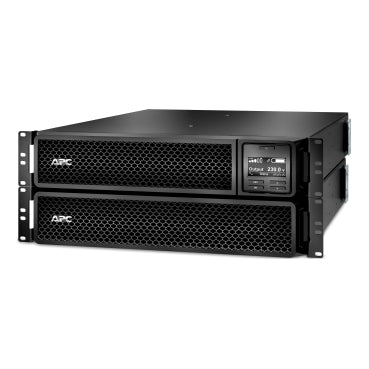

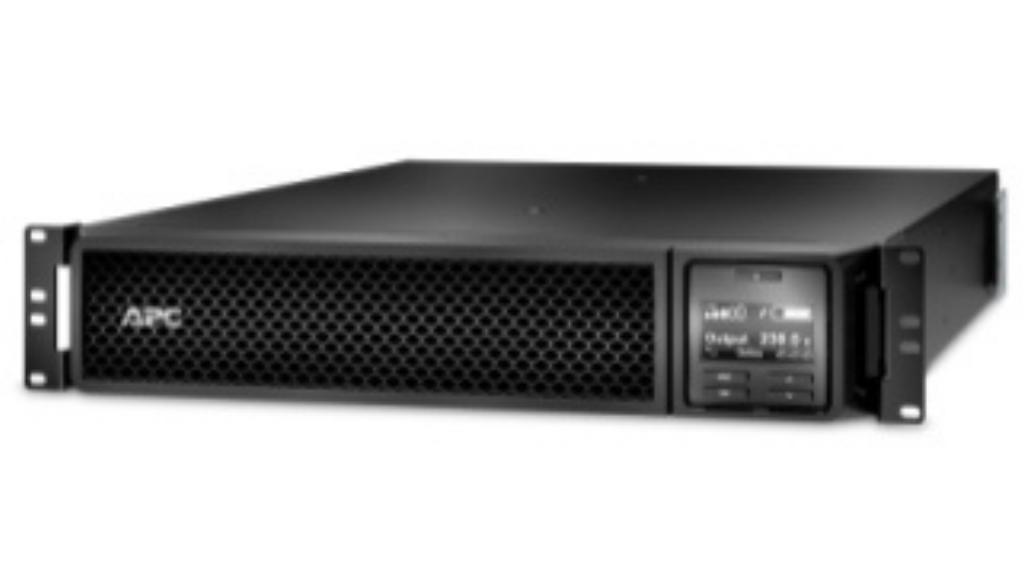

APC SRT3000RMXLW-IEC Smart-UPS On-Line, 3kVA, Rackmount 2U, 208V/230V, 6x C13+2x C19 IEC Outlets
This APC Smart-UPS is designed for IT professionals or network administrators to maintain business uptime and continuity. This 3kVA on-line 2U rackmount UPS provides pure sine wave power and extended runtime to support critical electronics during power disruptions. It comes with BS1363A British, IEC 60320 C20, and Schuko CEE 7/EU1-16P inputs, 6x IEC 60320 C13, 2x IEC 60320 C19 outlets, and 2x IEC jumpers. It has a SmartSlot for optional Network Management Card that enables graceful shutdown of physical servers, virtual machines & HCI Clusters via PowerChute Network Shutdown. It comes with BS1363A British, IEC 60320 C20, and Schuko CEE 7/EU1-16P inputs, 6x IEC 60320 C13, 2x IEC 60320 C19 outlets, and 2x IEC jumpers. The UPS has a 3-year warranty, and the built-in lead-acid battery has a 2-year warranty. The UPS can connect to EcoStruxure IT or third-party centralized management platforms. The UPS has a 3-year warranty, and the built-in lead-acid battery has a 2-year warranty. It conforms to CE, CE Mark, CSA C22.2 No 107.3-05, EAC, EN/IEC 62040-1, EN/IEC 62040-2, ENERGY STAR V2.0 (USA), FCC part 15 class A, OSHPD, RCM, UL 1778, and VDE. Designed for IT professionals or network administrators providing wide input voltage window, tight output voltage regulation, frequency regulation, internal bypass, and input power factor correction.
-
| Main |
|
| Run time for load |
2700 W |
|
Min-max: 270-2700 W |
|
3min 58s |
| Max. Capacity Used |
100% |
| Main Input Voltage |
208 V |
|
230 V |
| Other Input Voltage |
220 V |
|
240 V |
| Main Output Voltage |
208 V |
|
230 V |
| Other Output Voltage |
220 V |
|
240 V |
| Rated power in W |
2700 W |
| Rated power in VA |
3000 VA |
| Input Connection Type |
BS1363A British |
|
IEC 60320 C20 |
|
Schuko CEE 7 / EU1-16P |
| Output Connection Type |
6 IEC 60320 C13 |
|
2 IEC Jumpers |
|
2 IEC 60320 C19 |
| Number of rack unit |
2U |
| Cable length |
2.44 m |
| Number of cables |
1 |
| Provided equipment |
CD with software |
|
Documentation CD |
|
Installation guide |
|
Rack mounting brackets |
|
Rack mounting support rails |
|
USB cable |
|
Warranty card |
| Batteries & Runtime |
|
| Run Time |
View Runtime Graph |
| Efficiency |
View Efficiency Graph |
| Battery type |
Lead-acid battery |
| Number of battery filled slots |
1 |
| Battery recharge time |
3 h |
| Number of battery replacement qty |
1 |
| Battery voltage |
96 V |
| Battery charger power |
168 W rated |
| Battery life |
3…5 year(s) |
| Replacement battery |
APCRBC152 |
| Extended runtime |
1 |
| General |
|
| UPS type |
Double conversion online |
| Product web sub-family |
High density |
| Number of power module free slots |
0 |
| Number of power module filled slots |
0 |
| Redundant |
No |
| Physical |
|
| Color |
Black |
| Height |
8.5 cm |
| Width |
43.2 cm |
| Depth |
63.5 cm |
| Net weight |
31.3 kg |
| Mounting location |
Front |
| Mounting preference |
Lower |
| Mounting mode |
Rack-mounted |
|
Two post mountable |
| USB compatible |
Yes |
| Mounting position |
Horizontal |
| Input |
|
| Network frequency |
40...70 Hz auto-sensing |
| Input voltage limits |
100...275 V adjustable (half load) |
| Output |
|
| Maximum configurable power in VA |
3000 VA |
| Maximum configurable power in W |
2700 W |
| Output frequency |
50/60 Hz +/- 3 Hz sync to mains |
| Wave type |
Sine wave |
| Harmonic distortion |
Less than 2 % |
| Crest factor |
3 : 1 |
| Bypass type |
Internal bypass (automatic and manual) |
| Additional information |
Configurable for 220 : 230 or 240 nominal output voltage |
| Conformance |
|
| Product certifications |
CE |
|
EAC |
|
ENERGY STAR V2.0 (USA) |
|
RCM |
|
VDE |
| Marking |
CE Mark |
| Standards |
EN/IEC 62040-1:2019/A11:2021 |
|
EN/IEC 62040-2:2006/AC:2006 |
|
EN/IEC 62040-2:2018 |
| Environmental |
|
| Ambient air temperature for operation |
0…40 °C |
| Relative humidity |
0…95 % non-condensing |
| Operating altitude |
0...10000 ft |
| Ambient air temperature for storage |
-15…45 °C |
| Storage Relative Humidity |
0…95 % non-condensing |
| Storage altitude |
0.00…15240.00 m |
| Communications & Management |
|
| Free slots |
1 |
| Alarm |
Audible and visible alarms: prioritized by severity |
| Emergency power off |
Yes |
| Surge Protection and Filtering |
|
| Surge energy rate |
340 J |
| Packing Units |
|
| Unit Type of Package 1 |
PCE |
| Number of Units in Package 1 |
1 |
| Package 1 Height |
24.6 cm |
| Package 1 Width |
87.1 cm |
| Package 1 Length |
59.9 cm |
| Package 1 Weight |
39.92 kg |
| Contractual warranty |
|
| Warranty |
3 years repair or replace (excluding battery) and 2 years for battery |
-
