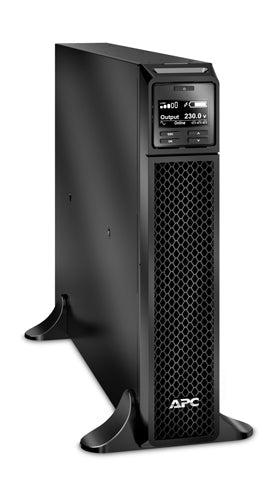

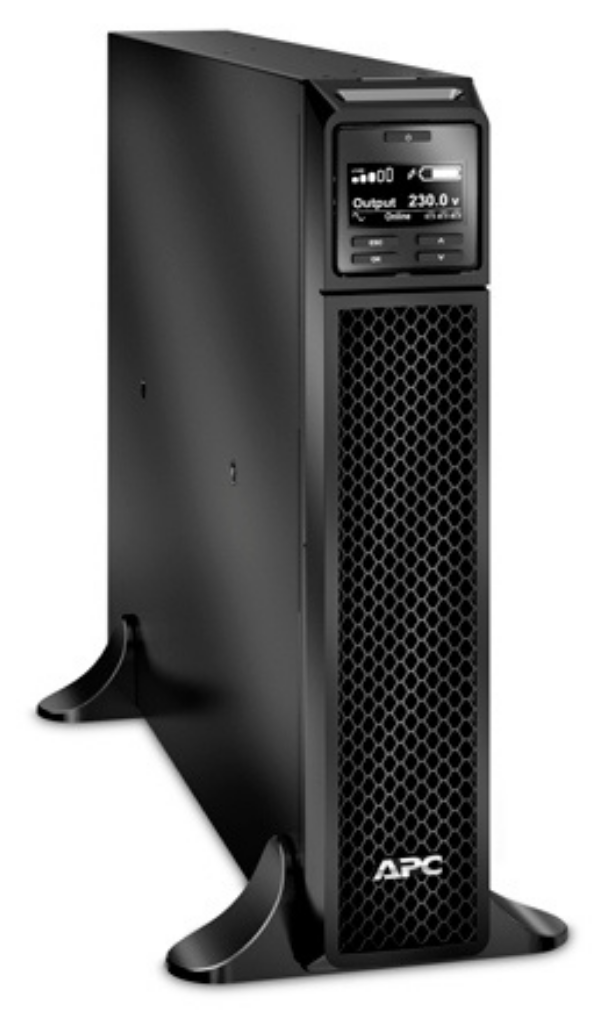

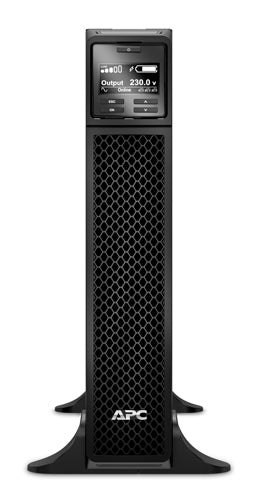

APC SRT3000XLI Smart-UPS On-Line, 3kVA, Tower, 230V, 8x C13+2x C19 IEC Outlets
This APC Smart-UPS is designed for IT professionals or network administrators to maintain business uptime and continuity. This 3kVA on-line tower UPS provides pure sine wave power and extended runtime to support critical electronics during power disruptions. It comes with BS1363A British, IEC 320 C20, and Schuko CEE 7/EU1-16P inputs, 8x IEC 320 C13 and 2x IEC 320 C19 outlets, 2x IEC jumper cables. It has a SmartSlot for optional Network Management Card that enables graceful shutdown of physical servers, virtual machines & HCI Clusters via PowerChute Network Shutdown. It comes with BS1363A British, IEC 60320 C20, and Schuko CEE 7/EU1-16P inputs, 8x IEC 320 C13/60320 C13 and 2x IEC 320 C19/60320 C19 outlets, and 2x IEC jumpers. The UPS has a 3-year warranty, and the built-in lead-acid battery has a 2-year warranty. The UPS can connect to EcoStruxure IT or third-party centralized management platforms. The UPS has a 3-year warranty, and the built-in lead-acid battery has a 2-year warranty. The UPS is compatible with SRTRK4 (4-post) and SRTRK3 (2-post) rail kits sold separately. Designed for IT professionals or network administrators providing wide input voltage window, tight output voltage regulation, frequency regulation, internal bypass, and input power factor correction.
-
Main |
|
Run time for load |
2700 W |
|
Min-max: 270-2700 W |
|
3min 58s |
Max. Capacity Used |
100% |
Main Input Voltage |
230 V |
|
Other Input Voltage |
|
220 V |
|
240 V |
Main Output Voltage |
230 V |
|
Other Output Voltage |
|
220 V |
|
240 V |
Rated power in W |
2700 W |
Rated power in VA |
3000 VA |
Input Connection Type |
BS1363A British |
|
IEC 60320 C20 |
|
Schuko CEE 7 / EU1-16P |
Output connection type |
8 IEC 60320 C13 |
|
2 IEC Jumpers |
|
2 IEC 60320 C19 |
Cable length |
2.44 m |
Number of cables |
3 |
Provided equipment |
CD with software |
|
Country-specific detachable power cord |
|
Documentation CD |
|
Installation guide |
|
Removable support feet |
|
USB cable |
|
Warranty card |
Batteries & Runtime |
|
Run Time |
View Runtime Graph |
Efficiency |
View Efficiency Graph |
Battery type |
Lead-acid battery |
Battery recharge time |
3 h |
Number of battery replacement quantity |
1 |
Battery voltage |
96 V |
Battery charger power |
168 W rated |
Battery life |
3…5 year(s) |
Replacement battery |
APCRBC152 |
Extended runtime |
1 |
General |
|
UPS type |
Double conversion online |
Product web sub-family |
High density |
Number of power module free slots |
0 |
Number of power module filled slots |
0 |
Redundant |
No |
Physical |
|
Colour |
Black |
Height |
43.2 cm |
Width |
8.5 cm |
Depth |
63.5 cm |
Net weight |
31.3 kg |
Mounting location |
Front |
Mounting preference |
Lower |
Mounting mode |
Rack-mounted with kit |
|
Two post mountable |
USB compatible |
Yes |
Mounting position |
Vertical |
Input |
|
Network frequency |
40...70 Hz auto-sensing |
Input voltage limits |
100...275 V adjustable (half load) |
Output |
|
Maximum configurable power in VA |
3000 VA |
|
Maximum configurable power in W |
Output frequency |
50/60 Hz +/- 3 Hz sync to mains |
Wave type |
Sine wave |
Harmonic distortion |
Less than 2 % |
Crest factor |
3 : 1 |
Bypass type |
Internal bypass (automatic and manual) |
Conformance |
|
Product certifications |
CE |
|
EAC |
|
RCM |
|
VDE |
Marking |
CE Mark |
Standards |
EN/IEC 62040-1:2019/A11:2021 |
|
EN/IEC 62040-2:2006/AC:2006 |
|
EN/IEC 62040-2:2018 |
Environmental |
|
Ambient air temperature for operation |
0…40 °C |
Relative humidity |
0…95 % non-condensing |
Operating altitude |
0...10000 ft |
Ambient air temperature for storage |
-15…45 °C |
Storage Relative Humidity |
0…95 % non-condensing |
Storage altitude |
0.00…15240.00 m |
Acoustic level |
55 dBA |
Heat dissipation |
703 Btu/h |
IP degree of protection |
IP20 |
Communications & Management |
|
Free slots |
1 |
Alarm |
Audible and visible alarms : prioritized by severity |
Emergency power off |
Yes |
Surge Protection and Filtering |
|
Surge energy rate |
340 J |
Packing Units |
|
Unit Type of Package 1 |
PCE |
Number of Units in Package 1 |
1 |
Package 1 Height |
40.000 cm |
Package 1 Width |
80.000 cm |
Package 1 Length |
120.000 cm |
Package 1 Weight |
48.639 kg |
-
