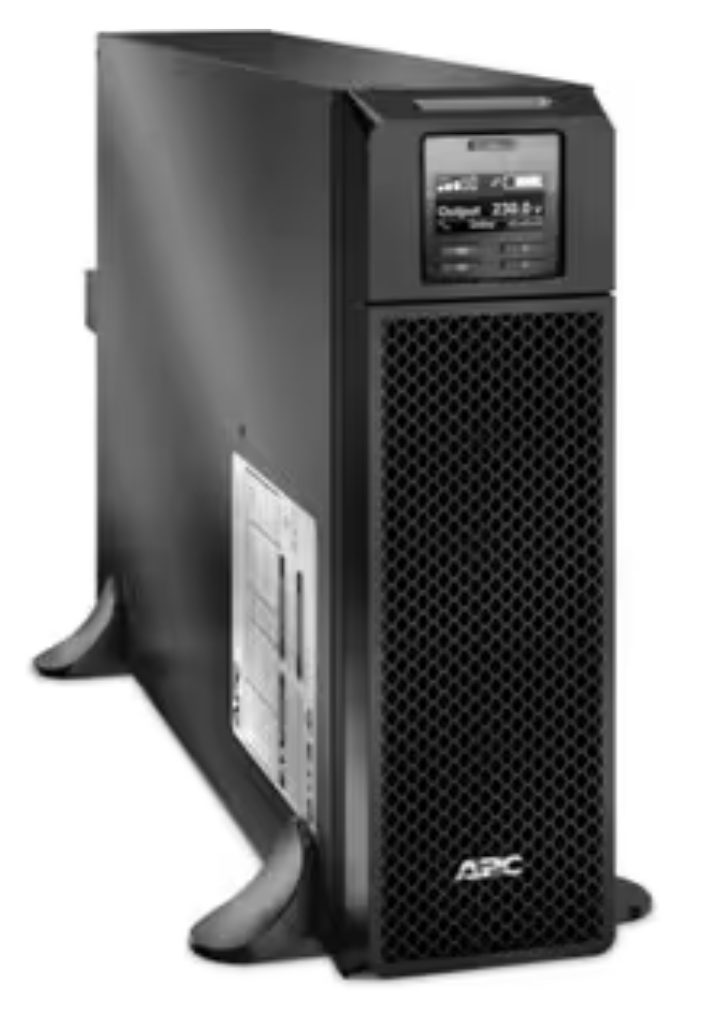

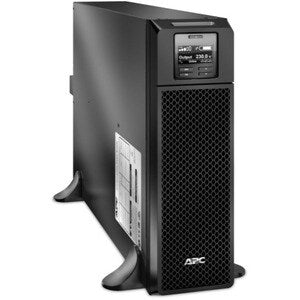

This APC Smart-UPS is designed for IT professionals or network administrators to maintain business uptime and continuity. This 5kVA on-line tower UPS provides pure sine wave power and extended runtime to support critical electronics during power disruptions. It comes with hard wire 3-wire (1P+N+E) input, 6x IEC 320 C13 and 4x IEC 320 C19 outlets, and 2x IEC jumper cables. The UPS has an embedded Network Management Card for UPS network-based monitoring and management. The UPS comes with PowerChute Network Shutdown that provides graceful shutdown of physical servers, virtual machines, and HCI clusters. It has an additional SmartSlot for optional accessory card such as Dry Contact I/O card. The UPS can connect to EcoStruxure IT or third-party centralized management platforms. The UPS has a 3-year warranty, and the built-in lead-acid battery has a 2-year warranty. The UPS is compatible with SRTRK2 (4-post) and SRTRK3 (2-post) rail kits sold separately. Designed for IT professionals or network administrators providing wide input voltage window, tight output voltage regulation, frequency regulation, internal bypass, and input power factor correction.
| Category | Details |
|---|---|
| Main | |
| Run time for load | 3min 59s |
| Max. Capacity Used | 100 % |
| Main Input Voltage | 230 V |
| Other Input Voltage | 220 V, 240 V |
| Main Output Voltage | 230 V |
| Other Output Voltage | 220 V, 240 V |
| Rated power in W | 4500 W |
| Rated power in VA | 5000 VA |
| Output Connection Type | 6 IEC 60320 C13, 2 IEC Jumpers, 4 IEC 60320 C19 |
| Provided equipment | CD with software, Communication cable, Documentation CD, Installation guide, Removable support feet, Temperature probe, USB cable, Warranty card, Web/SNMP management card |
| Batteries & Runtime | |
| Battery type | Lead-acid battery |
| Number of battery filled slots | 2 |
| Number of battery free slots | 0 |
| Battery recharge time | 1.5 h |
| Number of battery replacement quantity | 1 |
| Battery voltage | 192 V |
| Battery charger power | 560 W rated |
| Battery life | 3…5 year(s) |
| Replacement battery | APCRBC140 |
| Extended runtime | 1 |
| General | |
| UPS type | Double conversion online |
| Product web sub-family | High density |
| Number of power module free slots | 0 |
| Number of power module filled slots | 0 |
| Redundant | No |
| Physical | |
| Colour | Black |
| Height | 43.2 cm |
| Width | 13 cm |
| Depth | 71.94 cm |
| Net weight | 54.43 kg |
| Mounting location | Front |
| Mounting mode | Rack-mounted with kit, Two post mountable |
| USB compatible | Yes |
| Input | |
| Network frequency | 40...70 Hz auto-sensing |
| Number of input connectors | 1 hard wire 3-wire (1P + N + E) |
| Input voltage limits | 100...275 V adjustable (half load) |
| Output | |
| Maximum configurable power in VA | 5000 VA |
| Maximum configurable power in W | 4500 W |
| Output frequency | 50/60 Hz +/- 3 Hz sync to mains |
| Wave type | Sine wave |
| Harmonic distortion | Less than 2 % |
| Crest factor | 3 : 1 |
| Bypass type | Internal bypass (automatic and manual) |
| Conformance | |
| Product certifications | CE, EAC, IRAM, RCM, VDE |
| Marking | CE Mark |
| Standards | EN/IEC 62040-1:2019/A11:2021, EN/IEC 62040-2:2006/AC:2006, EN/IEC 62040-2:2018 |
| Environmental | |
| Ambient air temperature for operation | 0…40 °C |
| Relative humidity | 0…95 % non-condensing |
| Operating altitude | 0...10000 ft |
| Ambient air temperature for storage | -15…45 °C |
| Storage Relative Humidity | 0…95 % non-condensing |
| Storage altitude | 0.00…15240.00 m |
| Acoustic level | 55 dBA |
| Heat dissipation | 931 Btu/h |
| IP degree of protection | IP20 |
| Communications & Management | |
| Free slots | 1 |
| Preinstalled device | Network management card 3 with environmental monitoring |
| Alarm | Audible and visible alarms: prioritized by severity |
| Emergency power off | Yes |
| Surge Protection and Filtering | |
| Surge energy rate | 480 J |
| Packing Units | |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 33 cm |
| Package 1 Width | 61 cm |
| Package 1 Length | 96 cm |
| Package 1 Weight | 63.6 kg |
| Logistical informations | |
| Country of origin | PH |
| Contractual Warranty | |
| Warranty | 3 years repair or replace (excluding battery) and 2 years for battery |
| Description | Downloads |
|---|---|
| SRT5KXLI:Datasheet | Download |
| SRT5KXLI:User Guide | Download |
