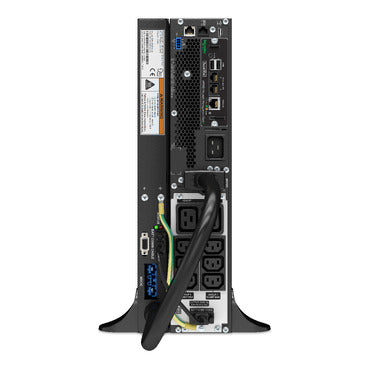

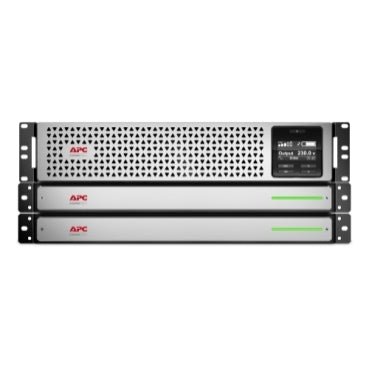

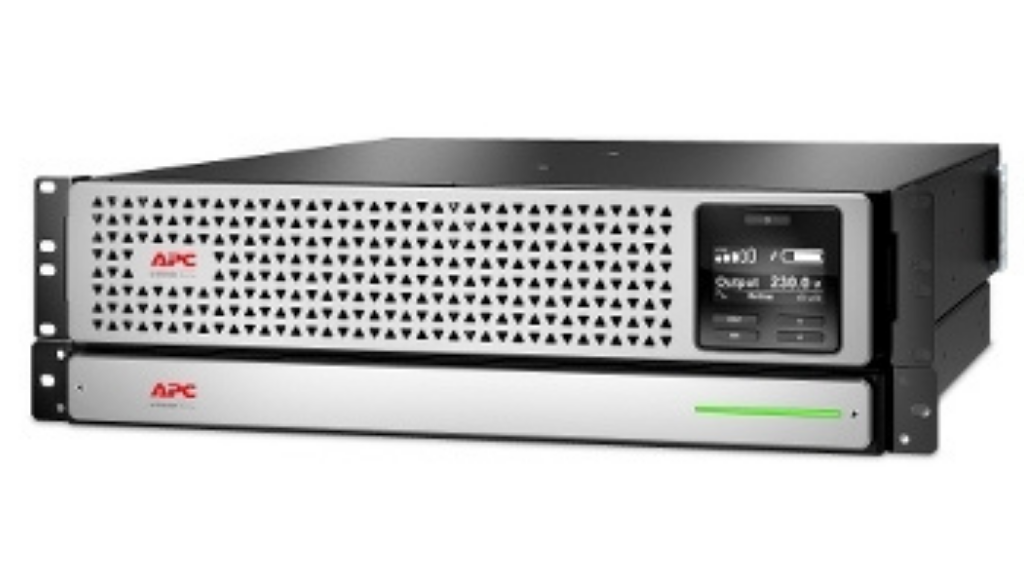

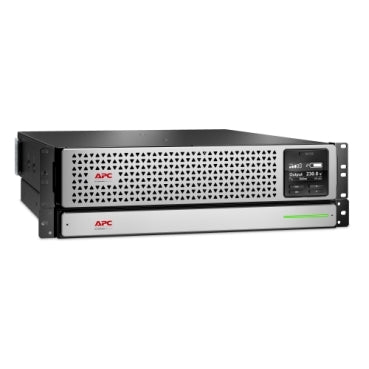

This APC Smart-UPS is designed for IT professionals or network administrators to maintain business uptime and continuity. This 3kVA on-line 3U rackmount UPS provides pure sine wave power and extended runtime to support critical electronics during power disruptions. It comes with IEC 320 C20 input, 6x IEC 320 C13, and 2x IEC 320 C19 outlets. The UPS has a preinstalled Network Management Card for UPS network-based monitoring and management. The UPS comes with PowerChute Network Shutdown that provides graceful shutdown of physical servers, virtual machines, and HCI clusters. The UPS has built-in lithium-ion battery and is covered by a 5-year warranty. The UPS can connect to EcoStruxure IT or third-party centralized management platforms. The UPS has a 5-year warranty on the UPS and Lithium-ion battery. It conforms to CE and EAC. Designed for IT professionals or network administrators providing wide input voltage window, tight output voltage regulation, frequency regulation, internal bypass, and input power factor correction.
| Category | Details |
|---|---|
| Main | |
| Run time for load | 2700 W |
| Min-max: 270-2700 W | |
| 10 min 7 s | |
| Max. Capacity Used | 100 % |
| Main Input Voltage | 230 V |
| Other Input Voltage | 220 V, 240 V |
| Main Output Voltage | 230 V |
| Other Output Voltage | 220 V, 240 V |
| Rated power in W | 2700 W |
| Rated power in VA | 3000 VA |
| Input Connection Type | IEC 60320 C20 |
| Output Connection Type | 6 IEC 60320 C13 |
| 2 IEC 60320 C19 | |
| Number of rack unit | 3U |
| Cable length | 1.83 m |
| Number of cables | 1 |
| Provided equipment | CD with software, Communication cable, Documentation CD, Installation guide, Removable support feet, USB cable, Warranty card |
| Batteries & Runtime | |
| Run Time | View Runtime Graph |
| Battery type | Li-Ion (Lithium-Ion) |
| Number of battery filled slots | 0 |
| Number of battery free slots | 0 |
| Battery recharge time | 4 h |
| Battery voltage | 48 V |
| Battery charger power | 158 W rated |
| Battery life | 5…10 year(s) |
| Extended runtime | 1 |
| General | |
| UPS type | Double conversion online |
| Product web sub-family | Lithium-Ion |
| Number of power module free slots | 0 |
| Number of power module filled slots | 0 |
| Redundant | No |
| Physical | |
| Colour | Black with silver front bezel |
| Height | 12.8 cm |
| Width | 43.2 cm |
| Depth | 63.9 cm |
| Net weight | 30.5 kg |
| Mounting preference | No preference |
| Mounting mode | Rack-mounted with kit |
| Two post mountable | |
| USB compatible | Yes |
| Mounting position | Horizontal, Vertical |
| Input | |
| Network frequency | 40...70 Hz auto-sensing |
| Input voltage limits | 160...275 V |
| Output | |
| Maximum configurable power in VA | 3000 VA |
| Maximum configurable power in W | 2700 W |
| Output frequency | 50/60 Hz +/- 3 Hz sync to mains |
| Wave type | Sine wave |
| Harmonic distortion | Less than 2 % |
| Crest factor | 3 : 1 |
| Bypass type | Built-in bypass |
| Conformance | |
| Product certifications | CE, EAC |
| Marking | CE Mark |
| Standards | EN/IEC 62040-1:2019/A11:2021, EN/IEC 62040-2:2006/AC:2006, EN/IEC 62040-2:2018 |
| Environmental | |
| Ambient air temperature for operation | 0…40 °C |
| Relative humidity | 0…95 % non-condensing |
| Operating altitude | 0...10000 ft |
| Ambient air temperature for storage | -20…50 °C |
| Storage Relative Humidity | 0…95 % non-condensing |
| Storage altitude | 0.00…15240.00 m |
| Acoustic level | 50 dBA |
| Heat dissipation | 317 Btu/h |
| IP degree of protection | IP20 |
| Communications & Management | |
| Free slots | 0 |
| Preinstalled device | Network management card 3 with environmental monitoring |
| Alarm | Audible and visible alarms: prioritized by severity |
| Emergency power off | Yes |
| Surge Protection and Filtering | |
| Surge energy rate | 432 J |
| Packing Units | |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 24.5 cm |
| Package 1 Width | 87 cm |
| Package 1 Length | 60 cm |
| Package 1 Weight | 41.4 kg |
| Logistical informations | |
| Country of origin | PH |
| Contractual warranty | 5 year repair or replace |
| Description | Downloads |
|---|---|
| SRTL3000RMXLI-NC:Datasheet | Download |
| SRTL3000RMXLI-NC:User Guide | Download |
