| Category | Details |
|---|---|
| Main | |
| Run time for load | 5min 34s |
| Max. Capacity Used | 100% |
| Main Input Voltage | 230 V |
| Other Input Voltage | 220 V, 240 V |
| Main Output Voltage | 230 V |
| Other Output Voltage | 220 V, 240 V |
| Rated power in W | 5000 W |
| Rated power in VA | 5000 VA |
| Output connector type | Hard wire 3-wire (1P + N + E) 1 |
| Number of rack unit | 4U |
| Provided equipment | 1 USB cable |
| 1 RS-232 configuration cable | |
| 2 rack mounting brackets | |

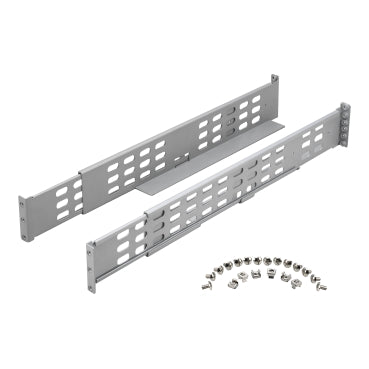

| 2 rack mounting support rails | |
| 1 external battery pack | |
| 1 battery cable | |
| Batteries & Runtime | |
| Battery type | Lead-acid battery |
| Battery voltage | 192 V |
| Number of battery filled slots | 0 |
| Number of battery free slots | 0 |
| Battery recharge time | 4 h |
| Battery life | 3–5 year(s) |
| Battery charger power | 235 W rated |
| General | |
| Number of power module filled slots | 0 |
| Number of power module free slots | 0 |
| Redundant | No |
| Physical | |
| Colour | Black (RAL 7010) |
| Height | 17.3 cm |
| Width | 43.8 cm |
| Depth | 71.0 cm |
| Net weight | 61 kg |
| Mounting location | Front |
| Mounting preference | Lower |
| Mounting mode | Rack-mounted |
| USB compatible | Yes |
| Mounting position | Horizontal |
| Input | |
| Input voltage limits | 110...300 V 60% load |
| 176...300 V full load | |
| Network frequency | 40...70 Hz auto sensing |
| Output | |
| Maximum configurable power in VA | 5000 VA |
| Maximum configurable power in W | 5000 W |
| Output frequency | 50/60 Hz +/- 3 Hz sync to mains |
| Harmonic distortion | 1% |
| UPS type | Double conversion online |
| Wave type | Sine wave |
| Efficiency | 94% (full load) |
| Additional information | Configurable for 220: 230 or 240 nominal output voltage |
| Bypass type | Internal bypass (automatic and manual) |
| Crest factor | 3:1 |
| Conformance | |
| Product certifications | CE, UKCA, EAC |
| Standards | EN/IEC 62040-1:2019/A11:2021 |
| EN/IEC 62040-2:2006/AC:2006 | |
| EN/IEC 62040-2:2018 | |
| Environmental | |
| Ambient air temperature for operation | 0…40 °C |
| Relative humidity | 0…95% non-condensing |
| Operating altitude | 0...3000 m |
| Ambient air temperature for storage | -15…60 °C |
| Storage Relative Humidity | 0…95% non-condensing |
| Storage altitude | 0…15000 m |
| Communications & Management | |
| Alarm | Alarm when on battery: distinctive low battery alarm |
| Overload continuous tone alarm | |
| Emergency power off | Yes |
| Free slots | 1 |
| Control panel | Multifunction LCD status and control console |
| Surge Protection and Filtering | |
| Surge energy rate | 600 J |
| Packing Units | |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 485 mm |
| Package 1 Width | 836 mm |
| Package 1 Length | 600 mm |
| Package 1 Weight | 71 kg |
| Logistical Information | |
| Country of origin | CN |
| Contractual warranty | Warranty: 2 years repair or replace |
| Description | Downloads |
|---|---|
| SRV5KRIRK:Datasheet | Download |
| SRV5KRIRK:User Guide | Download |
