Run time for load |
4min 53s |
|
Min-max: 1600-16000 W |
Max. Capacity Used |
100 % |
Main Input Voltage |
230 V |
|
400 V 3 phases |
Product or component type |
Uninterruptible power supply (UPS) |
Other Input Voltage |
220 V |
|
240 V |
Main Output Voltage |
230 V |
Other Output Voltage |
220 V |
|
240 V |
Rated power in W |
16000 W |
Rated power in VA |
20000 VA |

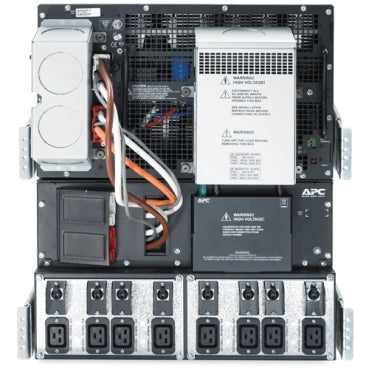

Output connection type |
2 IEC Jumpers |
|
8 IEC 60320 C19 |
Output connector type |
Hard wire 3-wire (H N + E) 1 |
|
Hard wire 5-wire (3P + N + E) 1 |
Number of rack unit |
12U |
Provided equipment |
CD with software |
|
Rack mounting support rails |
|
Smart UPS signalling RS-232 cable |
|
User manual |
|
Web/SNMP management card |
Batteries & Runtime |
|
Run Time |
View Runtime Graph |
Efficiency |
View Efficiency Graph |

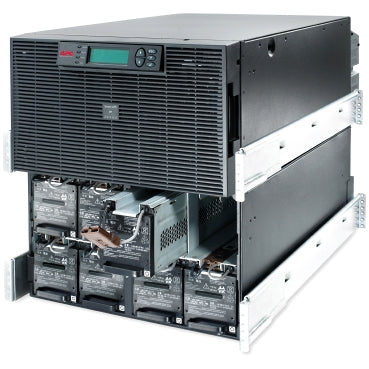

Battery type |
Lead-acid battery |
Number of battery filled slots |
4 |
Number of battery free slots |
0 |
Battery recharge time |
2.5 h |
Number of battery replacement quantity |
4 |
Battery voltage |
+/- 192 V (split battery referenced to neutral) |
Discharge battery voltage |
+/- 154 V |
Battery charger power |
1530 W rated |
Battery life |
3…5 year(s) |
Replacement battery |
APCRBC140 |
Extended runtime |
1 |
General |
|
UPS type |
Double conversion online |
Number of power module free slots |
0 |
Number of power module filled slots |
0 |
Redundant |
No |
Physical |
|
Color |
Black |
Height |
53.3 cm |
Width |
43.2 cm |
Depth |
77.3 cm |
Net weight |
247.73 kg |
Mounting location |
Front |
Mounting preference |
Lower |
Mounting mode |
Rack-mounted |
|
Two post mountable |
USB compatible |
No |
Input |
|
Network frequency |
40...70 Hz auto-sensing |
Number of input connectors |
1 hard wire 3-wire (1P + N + E) |
|
1 hard wire 5-wire (3P + N + E) |
Input voltage limits |
160...280 V |
Maximum input current |
115 A |
Switching current capacity |
125 A |
Input harmonic distortion |
Less than 5 % for full load |
Input current |
115 A (1 phase) |
|
38.3 A per phase (3 phases) |
Input Power Factor at Full Load |
0.98 |
Output |
|
Maximum configurable power in VA |
20000 VA |
Maximum configurable power in W |
16000 W |
Output frequency |
50/60 Hz +/- 3 Hz user adjustable +/- 0.1 Hz sync to mains |
Wave type |
Sine wave |
Output overload operation |
60 seconds at 125% and 30 seconds at 150% |
Efficiency |
93 % (in battery operation) |
Harmonic distortion |
Less than 5 % |
Crest factor |
3 : 1 |
Bypass type |
Built-in static bypass |
|
Internal bypass (automatic and manual) |
|
Optional external bypass |
Additional information |
Configurable for 400 or 415 V 3 Phase nominal output voltage |
Conformance |
|
Product certifications |
BSMI |
|
VDE |
Standards |
EN/IEC 62040-1:2019/A11:2021 |
|
EN/IEC 62040-2:2006/AC:2006 |
|
EN/IEC 62040-2:2018 |
Environmental |
|
Ambient air temperature for operation |
0…40 °C |
Relative humidity |
0…95 % non-condensing |
Operating altitude |
0...10000 ft |
Ambient air temperature for storage |
-15…45 °C |
Storage Relative Humidity |
0…95 % non-condensing |
Storage altitude |
0.00…15240.00 m |
Acoustic level |
59 dBA |
Heat dissipation |
3770 Btu/h |
IP degree of protection |
IP20 |
Communications & Management |
|
Free slots |
0 |
Preinstalled device |
Network management card 2 with environmental monitoring |
Emergency power off |
Yes |
Surge Protection and Filtering |
|
Noise suppression |
Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : meets UL 1449 |
Packing Units |
|
Unit Type of Package 1 |
PCE |
Number of Units in Package 1 |
1 |
Package 1 Height |
99 cm |
Package 1 Width |
61 cm |
Package 1 Length |
100.3 cm |
Package 1 Weight |
314.09 kg |
Unit Type of Package 2 |
PAL |
Number of Units in Package 2 |
2 |
Package 2 Height |
111 cm |
Package 2 Width |
100 cm |
Package 2 Length |
120 cm |
Package 2 Weight |
626.864 kg |
Contractual warranty |
|
Warranty |
2 years repair or replace |
