AVer CAM550 4K 12X Zoom Dual Lens PTZ Conferencing Camera View Clearly and Capture Widely
CAM550
4K Dual Lens PTZ Conferencing Camera
View Clearly and Capture Widely
4K Dual Lens PTZ Conferencing Camera
The CAM550 is equipped with an AI lens for automated PTZ functionality, which delivers a full view of meeting attendees and detects newcomers. The Smart Gallery feature puts up clear views of every participant on the remote side. Enable gesture control camera operation to enjoy a fluent, safe meeting experience. 4K dual-lens technology captures the room in its entirety, providing a premium conferencing experience for mid-to-large scale rooms.
4K Dual Lens Offers Wide-angle Clarity for Mid-to-Large Scale Rooms
Capture a complete view of the room with wide-angle clarity. The CAM550 equips two 4K lenses. The first is a PTZ camera with 12X optical zoom (24X total zoom) to clearly frame meeting participants. The second is an AI lens with 95°FOV to provide a panoramic view of the room.
Dynamic Framing Enhances Meeting Efficiency
The CAM550 quickly and precisely focuses on participants and newcomers. When newcomers walk in, the secondary AI lens springs to action to detect them, then the PTZ camera automatically re-frames. Through fully automatic operation, this dynamic framing optimizes meetings and protects the safety of participants.
AI Gesture Recognition Delivers Contactless Control
Take advantage of intuitive gesture control to operate the camera. Built-in AI gesture recognition eliminates touchpoints. Camera controls have never been easier or safer.
Highlight Participants with Smart Gallery
Clearly capture attendees with Smart Gallery, which enables AI face and body detection technology to crop participant’s faces and make sure everyone is looking great. You can choose between headshot and half body mode to adapt to any situation without compromise.
Get rid of USB cable connections by using the AVer Virtual Stream function
Get rid of USB cable connections by using the AVer Virtual Stream function AVer Virtual Streaming technology makes the CAM550 available as a camera video source for virtual meetings via a single Ethernet connection. Also, a PoE+ port simplifies set up and reduces installation costs.
* PoE+ configuration is only supported by Windows OS.
Enable Third-Party Audio Tracking Integration with Preset Link
Preset Link is an all new function of the included PTZApp 2 that integrates AVer USB cameras with Shure® and Sennheiser® microphones. The camera automatically identifies speakers and adjusts its field of view instantly by voice tracking, according to your preset area settings. Upgrade your smart conference meeting experience with Preset Link.
Product Overview

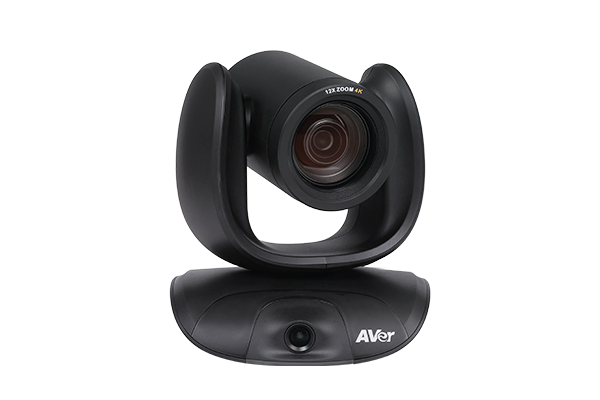

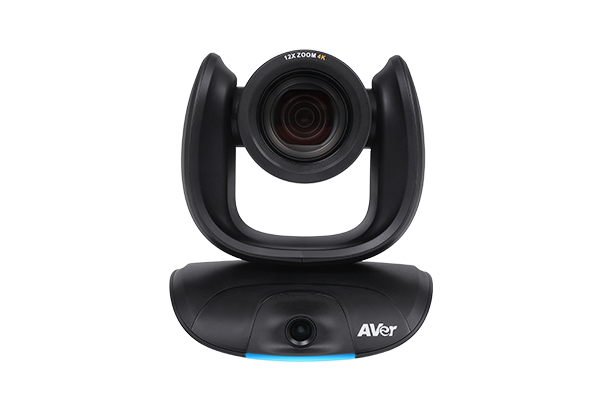

Camera Front

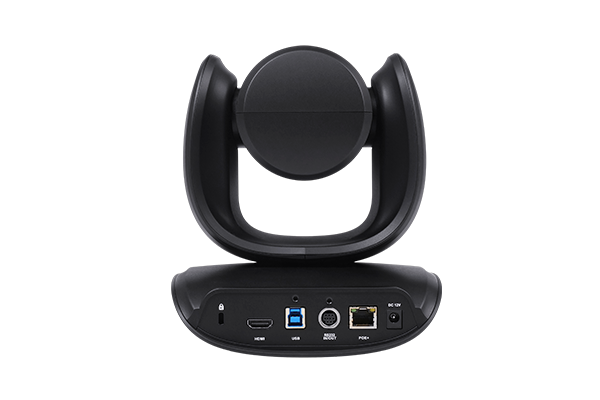

Camera Back
| Specifications | Details |
|---|---|
| Dual Camera | |
| PTZ Optical Zoom Lens | |
| Image Sensor | Sony 4K EXMOR |
| Frame Rates | 4K 30fps; 1080p, 720p, 640x480, 320x240 at 60, 30, 15fps |
| 24X Zoom* | 12X optical; 2X digital zoom |
| Wide Field of View | DFOV 85°; HFOV 76°; VFOV 46° |
| Lens Focal Length | 3.9mm (wide) ~ 47.3mm (tele) |
| AE, White Balance | Auto, manual override via PTZApp 2 |
| Motorized Pan & Tilt | Pan: ±170°; Tilt: +90° (up) -30° (down) |
| Preset Number | 10 via IR remote, 128 via RS232 |
| Secondary Fixed Lens (AI Lens) | |
| Image Sensor | Sony 4K EXMOR |
| Frame Rates | Set according to PTZ lens settings |
| Wide Field of View | DFOV 95°; HFOV 78°; VFOV 50° |
| Innovative Features | |
| Dynamic Auto Framing | Secondary AI lens detects all participants, triggering PTZ lens to dynamically frame them |
| Preset Framing | Tracks both preset area and speaker* |
| Simultaneous 3-Way Output | USB, HDMI, and IP connections |
| Gesture Control | Provides intuitive camera controls |
| HDMI PIP Function | HDMI Picture in Picture function |
| Smart Gallery** | Offers great visibility for individual participant in the meeting room |
| Connectivity | |
| USB Type-B 3.1 Connector | Backward compatible with USB 2.0 |
| 12V/2A DC Jack Power Adapter | |
| Mini DIN9 for RS232 | In & out connection (VISCA control panel and camera daisy-chain) |
| IP (RJ45) | |
| HDMI | |
| HDMI & PoE | HDMI 1.3: 1080p 30fps/ 60fps; PoE+: 802.3at |
| Video Format | |
| YUV, YUY2, MJPEG | Network Video Compression Format: H.264, H.265; Network Protocol: RTSP, RTMP |
| USB | 3.1 Gen 1, backward compatible with USB 2.0; UVC 1.1 (USB video), UVC1.5* |
| Control | |
| IR Remote Control | VISCA/pelco P/pelco D via RS232 (128 preset points via VISCA command) |
| Remote Side | VISCA over IP, IP (RJ45); UVC Plug and Play; PTZApp 2 |
| Power Supply | |
| AC 100V–240V, 50/60 Hz | Consumption: 12V, 2A; PoE+: 802.3 at |
| Free Applications | (For Windows® and Mac® Computers) |
| EZManager 2 | PTZApp 2: Smart gallery/ Virtual USB streaming/ Preset Link |
| EZLive | Broadcasting Software |
| Environment Data | |
| Operation Temperature | 0 to 40°C |
| Operation Humidity | 20% to 80% |
| Storage Temperature | -20 to 60°C |
| Storage Humidity | 20% to 80% |
| Dimensions | |
| Package Dimensions | 253(L) * 253(W) * 271(H) mm |
| Package Weight | 4.8KG |
| Camera | 170.8(L) X 190.5(H) X 173(D) mm / 2.1kg |
| Remote Control | 200 x 50 x 21 mm / 90g |
| Description | Downloads |
|---|---|
| Quick Guide | Downloads |
| User Manual | Downloads |
