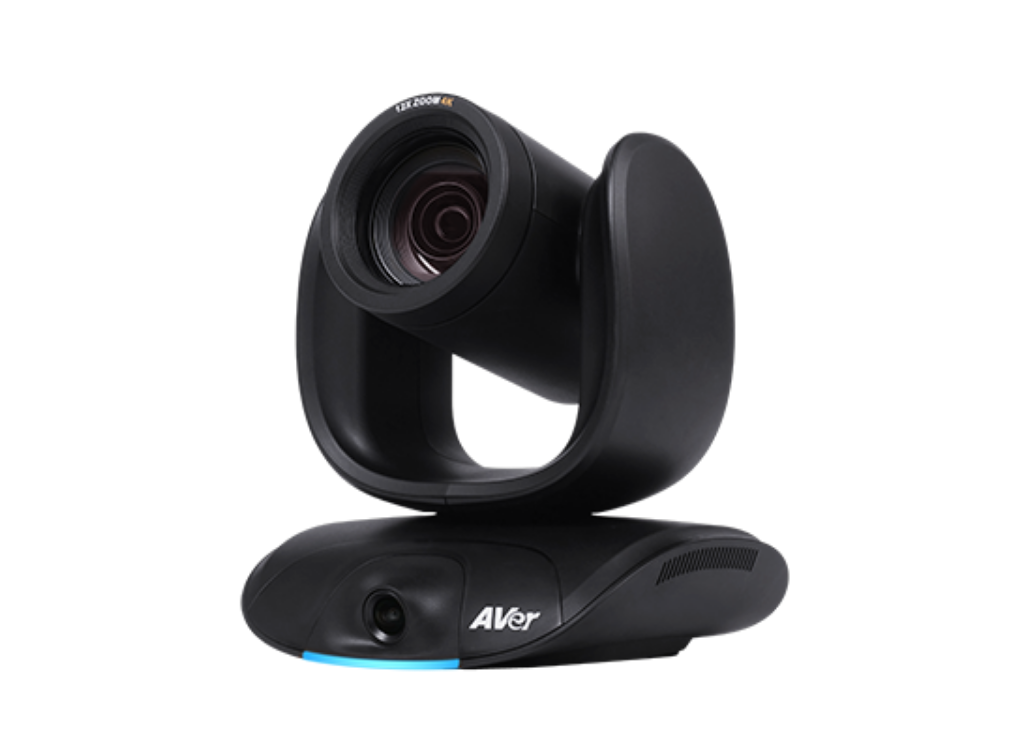

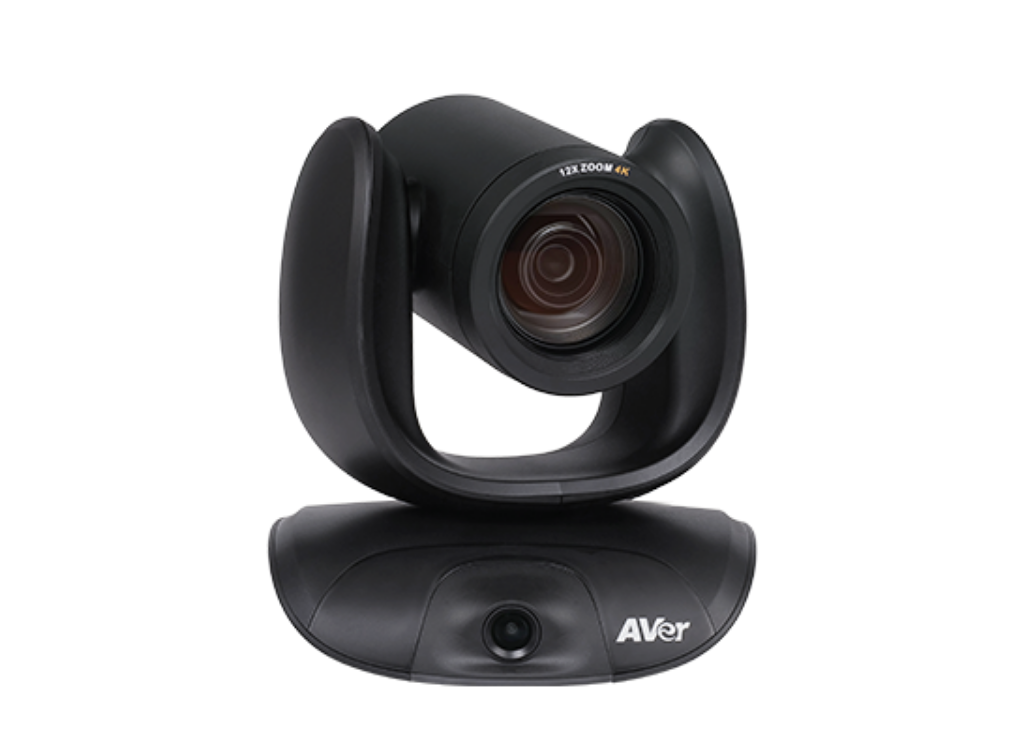

AVer CAM550 4K Dual Lens PTZ Conferencing Camera

SKU: CAM550
Part Number: CAM550
Condition: Brand New
Purchase Orders Accepted
Sold out

£1,036.00 (Excl. VAT)

Current price - £1,243.20 (Inc. VAT)
£1,036.00 - £1,036.00
Current price- - £1,243.20
Availability:
Out of stock

payment-icons

Bulk Price & Price Match Request

Contact our expert sales team on 020 8191 9223 for best price and dedicated assistance.

Educational & Public Sector Prices Available

For more details, please call us at 020 8191 9223 or email us at info@screenmoove.com

  • Description
  • Specifications
  • Downloads
  • AVer CAM550 4K Dual Lens PTZ Conferencing Camera

    4K Dual Lens PTZ Conferencing Camera
    The CAM550 is equipped with an AI lens for automated PTZ functionality, which delivers a full view of meeting attendees and detects newcomers. The Smart Gallery feature puts up clear views of every participant on the remote side. Enable gesture control camera operation to enjoy a fluent, safe meeting experience. 4K dual-lens technology captures the room in its entirety, providing a premium conferencing experience for mid-to-large scale rooms.


    4K Dual Lens Offers Wide-angle Clarity for Mid-to-Large Scale Rooms

    Capture a complete view of the room with wide-angle clarity. The CAM550 equips two 4K lenses. The first is a PTZ camera with 12X optical zoom (24X total zoom) to clearly frame meeting participants. The second is an AI lens with 95°FOV to provide a panoramic view of the room.

    Dynamic Framing Enhances Meeting Efficiency
    The CAM550 quickly and precisely focuses on participants and newcomers. When newcomers walk in, the secondary AI lens springs to action to detect them, then the PTZ camera automatically re-frames. Through fully automatic operation, this dynamic framing optimizes meetings and protects the safety of participants.


    AI Gesture Recognition Delivers Contactless Control

    Take advantage of intuitive gesture control to operate the camera. Built-in AI gesture recognition eliminates touchpoints. Camera controls have never been easier or safer.

    Highlight Participants with Smart Gallery
    Clearly capture attendees with Smart Gallery, which enables AI face and body detection technology to crop participant’s faces and make sure everyone is looking great. You can choose between headshot and half body mode to adapt to any situation without compromise.



    Get rid of USB cable connections by using the AVer Virtual Stream function

    Get rid of USB cable connections by using the AVer Virtual Stream function AVer Virtual Streaming technology makes the CAM550 available as a camera video source for virtual meetings via a single Ethernet connection. Also, a PoE+ port simplifies set up and reduces installation costs.


    Enable Third-Party Audio Tracking Integration with Preset Link

    Preset Link is an all new function of the included PTZApp 2 that integrates AVer USB cameras with Shure® and Sennheiser® microphones. The camera automatically identifies speakers and adjusts its field of view instantly by voice tracking, according to your preset area settings. Upgrade your smart conference meeting experience with Preset Link.

    Accurate Attendee Capture with AVer Smart Composition – No Installation Required
    The CAM550 is one of the first PTZ camera and audio systems on the market to offer a Smart Composition feature — technology usually only found in enterprise-grade devices. Smart Composition uses AI algorithms to automatically frame each participant's face or body perfectly. It's a click-to-play feature with no software setup needed. Seamlessly transition between headshots and half-body views, effortlessly switching from individual to group images. With the CAM550, you’ll enjoy high-definition views of participants and easy meeting setups for optimal productivity.


    AVer Camera & Speakerphone Collaboration with Voice Tracking

    The CAM550 and FONE700 work seamlessly as a team. FONE700 intelligently detects the active speaker's location, guiding CAM550 to automatically adjust its view and keep them in focus. No more manual adjustments! Enjoy smooth meeting flow, clear FONE700 audio, and focused visuals for a truly engaging meeting.

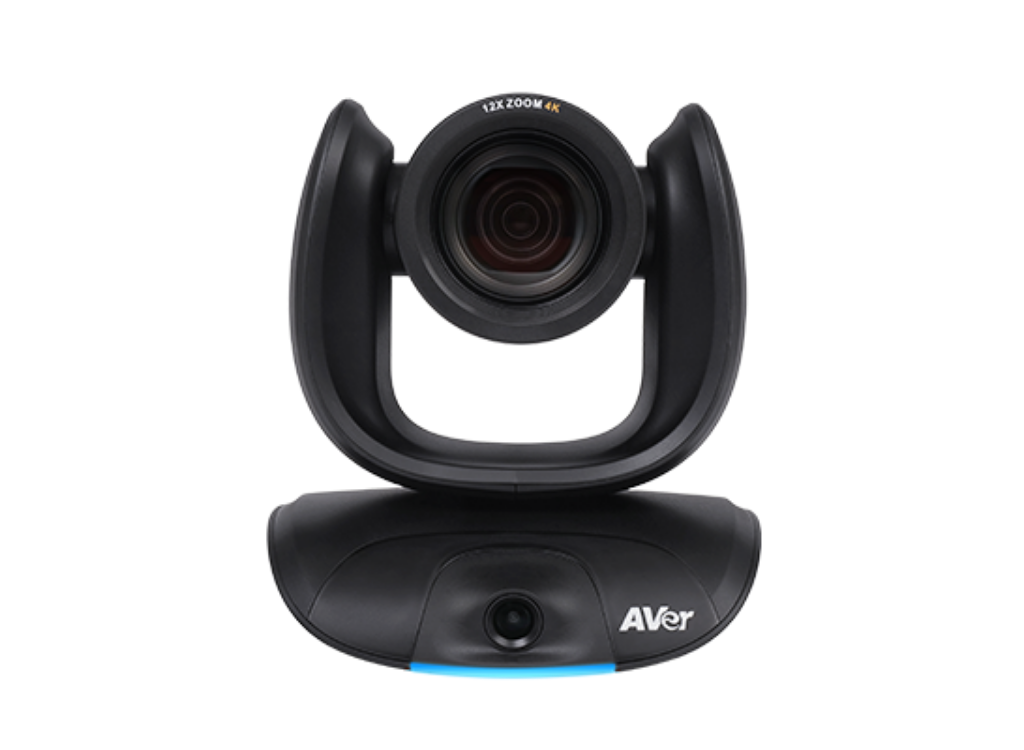

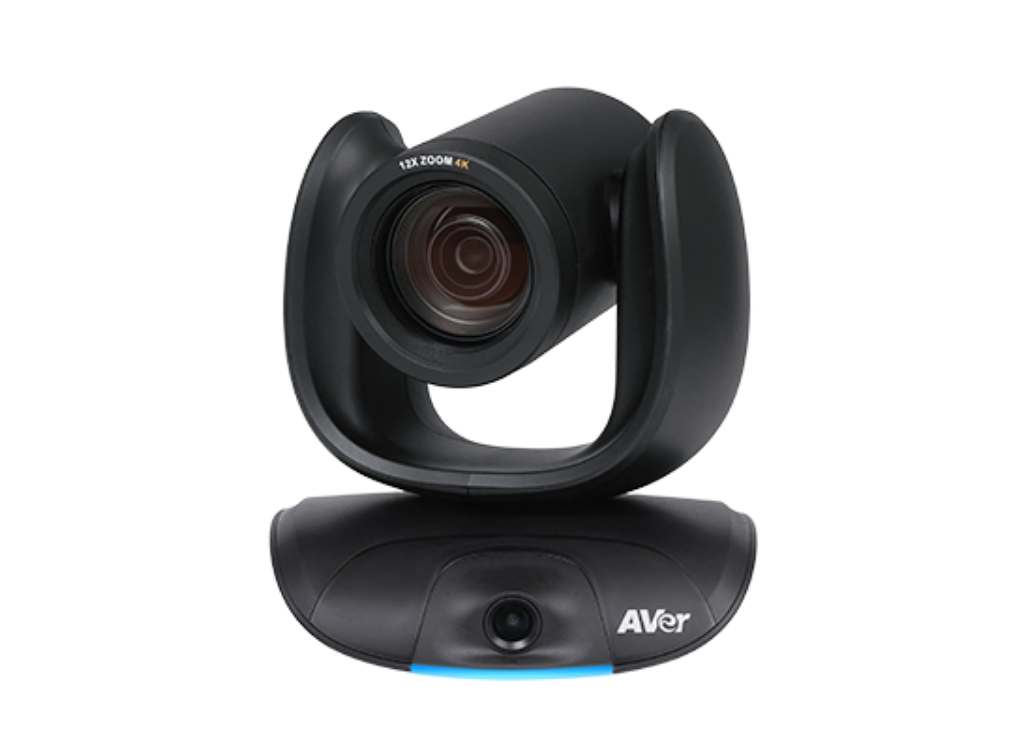

    Camera Front


    1. PTZ lens: 12X optical zoom
    2. IR sensor
    3. AI lens
    4. LED indicator

    Camera Back


    1. Kensington lock
    2. HDMI out
    3. USB 3.1 type-B
    4. RS232 in/out
    5. LAN for IP streaming and Power over Ethernet (PoE)
    6. DC 12V

  • Category Specification
    Dual Camera
    PTZ optical zoom lens
    Image sensor Sony 4K EXMOR, crystal clear in any lighting
    Frame rates (16:9) 4K 30fps; 1920 x 1080, 1600 x 900, 1280 x 720, 960 x 540, 848 x 480, 800 x 448, 640 x 360, at 60, 30, 15fps; (4:3) 1280 x 960, 800 x 600, 640 x 480 at 60, 30, 15fps
    Zoom 24X Zoom*: 12X optical; 2X digital zoom
    Field of view DFOV 85°; HFOV 76°; VFOV 46°
    Lens focal length 3.9mm (wide) ~ 47.3mm (tele)
    Lens F# 1.8 (wide) ~ 2.8 (tele)
    AE, white balance Auto, manual override via PTZApp 2
    Minimum focus distance 1.5m
    Motorized Pan & tilt Pan: ±170°; Tilt: +90° (up) -30° (down)
    Preset number 10 via IR remote, 128 via RS232
    Secondary fixed lens (AI lens)
    Image sensor Sony 4K EXMOR
    Frame rates and resolution Set according to PTZ lens settings
    Field of view DFOV 95°; HFOV 82°; VFOV 52°
    Innovative features
    Dynamic auto framing Detects all participants, new participants trigger PTZ lens to dynamically frame all participants
    Preset framing Tracks both preset area and speaker*
    Simultaneous 3-way output USB, HDMI and IP connections
    Gesture control Provides intuitive camera controls
    HDMI Picture in Picture (PIP) Function
    Smart gallery** Offers great visibility for individual participants
    Cableless access to meetings AVer virtual USB streaming technology*** (One RJ45 cable transfers IP streaming to USB)
    Audio tracking support Integration with AVer FONE700 & 3rd party ceiling microphone (Shure/Sennheiser) via AVer Preset Link***
    Connectivity
    USB type-B 3.1 connector Backward compatible with USB 2.0
    Power adapter 12V/2A DC jack
    RS232 in & out connection Mini DIN9 for (VISCA control panel and camera daisy-chain)
    IP (RJ45)
    HDMI HDMI & PoE
    HDMI version HDMI 1.3: 1080p 30fps/ 60fps
    PoE+ 802.3at
    Video Format
    Formats YUV, YUY2, MJPEG
    Network video compression H.264, H.265
    Network protocol RTSP, RTMP
    USB
    USB version 3.1 Gen 1, backward compatible with USB 2.0
    UVC UVC 1.1 (USB video), UVC1.5*
    Control
    Remote control IR remote control
    Protocols VISCA/pelco P/pelco D via RS232 (128 preset points via VISCA command)
    Remote side VISCA over IP, IP (RJ45)
    WebUI Browser IP access via Chrome. (Not support IE)
    OSD setting HDMI out to TV monitor
    PTZApp 2
    Power Supply
    AC 100V–240V, 50/60 Hz; Consumption: 12V, 2A
    PoE+ 802.3 at
    Free Applications
    EZManager 2 Camera Central Management Software
    PTZApp 2 Camera Settings Software
    EZLive Broadcasting Software
    Environment Data
    Operation temperature 0 to 40°C
    Operation humidity 20% to 80%
    Storage temperature -20 to 60°C
    Storage humidity 20% to 80%
    Dimensions
    Package dimensions 253(L)*253(W)*271(H) mm
    Package weight 4.8KG
    Camera dimensions 170.8 (L) X 190.5 (H) X 173 (D) mm/ 2.1kg
    Remote control dimensions 200 x 50 x 21 mm/90g
    Package Contents
    CAM550 unit, Power adapter (10 ft/3 m), USB 3.1 type-B to type-A cable (3m), Remote control, Mini DIN9 to mini DIN8 RS232 adapter cable, HDMI cable (3 m), Wall mount bracket and screws, QR code card, Tripod screw, Drill paper
    Optional Accessories
    Mini DIN8 to D-Sub9 cable, Ceiling mount*, Foldable TV mount, USB2.0 type-B to type-A cable (5 m), USB 3.1 Extension Cable (10 m/20 m/30 m), 1-Port POE+ Injector, AVer ceiling mount
    Security and Mount
    Security Kensington lock, 1/4' tripod mounting screw
    Mount Camera wall-mount bracket included, Optional foldable TV mount, Optional ceiling mount
    System Requirements
    Windows Windows 7/10/11
    Mac OS Mac OS X 10.14 or later
    Chromebox Chromebox 3 version 94.0.4606.114 or later
    Hardware Specs 3.2 GHz Intel® Core™ i5-4460 processor, 4 GB RAM or more, USB 3.1 port, backward compatible with USB 2.0
    Warranty
    Camera 3 years*
    Accessories 1 year
    Compatible Applications
    Applications Zoom, Microsoft® Teams, Skype, Skype for Business, Google Meet, RingCentral, BlueJeans, Intel® Unite™, Fuze, Adobe® Connect™, CyberLink U Meeting®, Cisco WebEx® GoToMeeting™, LiveOn, Microsoft® Lync™, TrueConf, V-Cube, Vidyo, vMix, WebRTC, Wirecast, XSplit
