AVer CAM570 4K 12X Optical Zoom Dual Lens Audio Tracking Camera for Medium and Large Rooms
SKU: AV-CAM570
£1,604.31 (Excl. VAT)
- Description
- Specifications
- Downloads
-
AVer CAM570 4K 12X Optical Zoom Dual Lens Audio Tracking Camera for Medium and Large Rooms
CAM570
4K Dual Lens Audio Tracking Camera for Medium and Large Rooms
Perfectly Track and Capture Attendees
4K Dual Lens Audio Tracking Camera for Medium and Large Rooms
AVer CAM570 is a 4K dual lens camera with a 36X Total zoom PTZ camera and a second AI lens with 95˚FOV. Equipped with built-in audio sensor, CAM570 detects human voices up to 10M and offers audio tracking function. AI technology such as Smart Gallery and gesture control can capture every attendees up-close with premium video quality.
Built-in Audio Sensor Enables Audio Tracking
Easily focus on active speaker with audio tracking mode and presentation mode. The camera will follow the speaker automatically or you can set up a preset point to focus on a specific area. The built-in sensor picks up human voices up to 10M without being disturbed by a local speakerphone.
Dynamic Detection Optimizes Meeting Experience
The dual-lens design detects real-time motion precisely while offering a complete view of the room simultaneously. When the second AI lens detects a newcomer walking in, it triggers the first PTZ camera to re-frame the participants, ensuring all meeting attendees are instantly captured again for a seamless collaboration in real-time.
Smart Gallery Delivers a Clearer View of Faces
Perfectly see everyone in the room. Thanks to AI technology, Smart Gallery crops meeting attendees and display them in equal individual feeds. Highlight participants’ facial and body expressions, leading to effective hybrid meetings.
Interact with CAM570 Using Touchless Gesture Control
With the application of AI to recognize gestures and interpret commands, you can turn on/off the tracking function and zoom in/out without any direct physical touch. Minimize the touch points and improve workplace hygiene.
Picture-in-Picture Displays Preferred Conference View
CAM570 includes a PTZ camera with 36X Total zoom and a second AI lens to provide a panoramic view. The dual-lens design offers a speaker view and wide-angle view simultaneously with various PIP layout options. Ideal for larger and more complex meeting spaces.

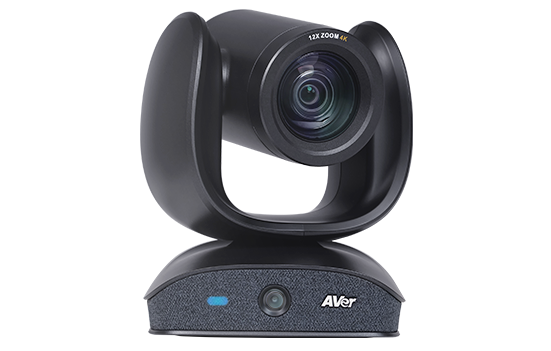

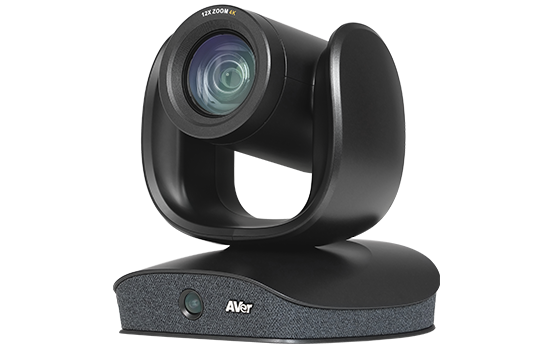

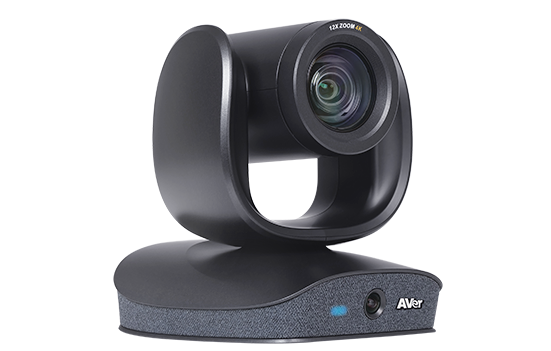

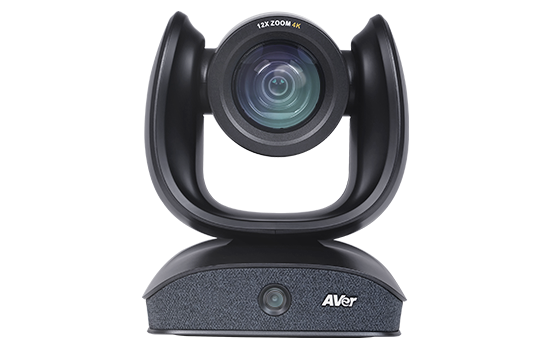

Camera Front
Camera Front

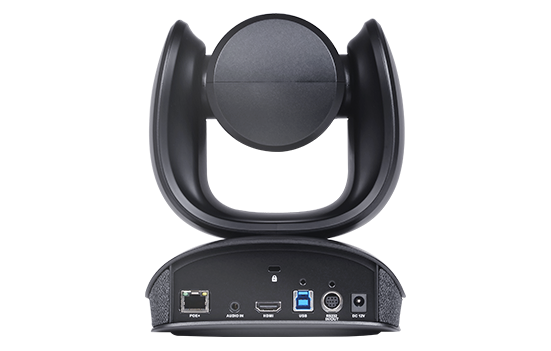

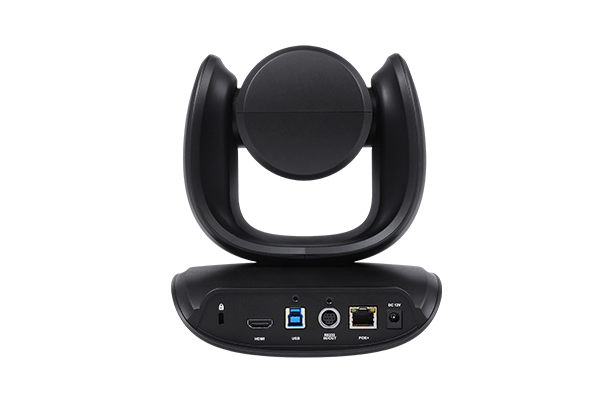

Camera Back
-
Specifications Details Dual Camera Yes PTZ Optical Zoom Lens Yes Image Sensor Sony 4K EXMOR Frame Rates 4K 30fps; Various resolutions at 60, 30, 15fps Zoom 36X Total (12X optical, 3X digital) Wide Field of View DFOV 90° / HFOV 82° / VFOV 52° Lens Focal Length 3.4mm (wide) ~ 40.3mm (tele) Wide Dynamic Range (WDR) Yes Motorized Pan & Tilt Pan: ±170°; Tilt: +90° (up) -30° (down) Preset Number 10 via IR remote, 128 via RS232 Image Flip and Image Mirror Yes Secondary Fixed Lens (AI Lens) Yes Connectivity USB, RS232, IP (RJ45), HDMI, Audio line-in HDMI & PoE HDMI 1.3 (1080p 30fps/60fps), PoE+ (802.3at) Video Format YUV, YUY2, MJPEG; H.264 Control IR remote, RS232 (VISCA/pelco P/pelco D), UVC plug and play, WebUI, PTZApp 2 Power Supply AC 100V–240V, 50/60 Hz; Consumption: 12V, 2A; PoE+ (802.3at) Environment Data Operating Temperature: 0 to 40°C; Operating Humidity: 20% to 80% Dimensions Camera: 170.8 x 190.5 x 173 mm; Remote control: 200 x 50 x 21 mm Optional Accessories FONE 540, Mini DIN 8 to D-Sub 9 RS232 Cable, Ceiling mount, Foldable TV mount, USB cables Security and Mount Kensington lock, 1/4' tripod mounting screw, Camera wall-mount bracket included System Requirements Windows 7/10/11, Mac OS X 10.14 or later, Chromebox 3 version 94.0.4606.114 or later Hardware Specs Intel Core i5-4460 processor (3.2 GHz), 4 GB RAM or more, USB 3.1 port Warranty Camera: 3 years; Accessories: 1 year Compatible Applications Various conferencing and collaboration software -
Description Downloads Quick Guide Downloads User Manual Downloads
