PTZ Camera Controller
The AVer CL01 is a professional PTZ camera controller with a robust communication interface, built-in VISCA and Pelco-D/P protocols. It supports RS-422 / RS-485 / RS-232 / IP control for compatibility with most PTZ cameras. Simple configuration makes it easy to operate the 7 camera shortcut channels, 3 infinite rotation knobs, and more.
Hardware Appearance

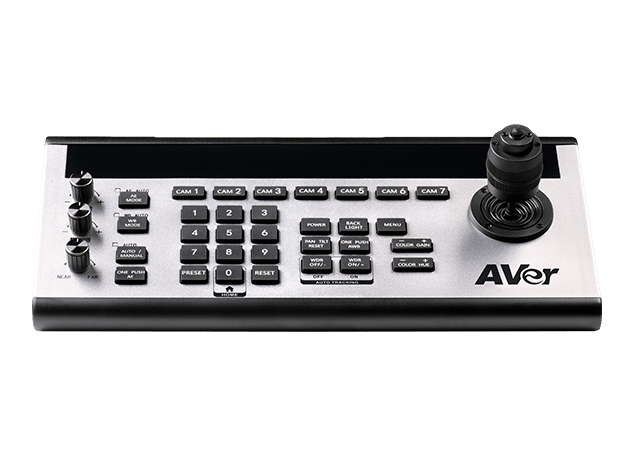

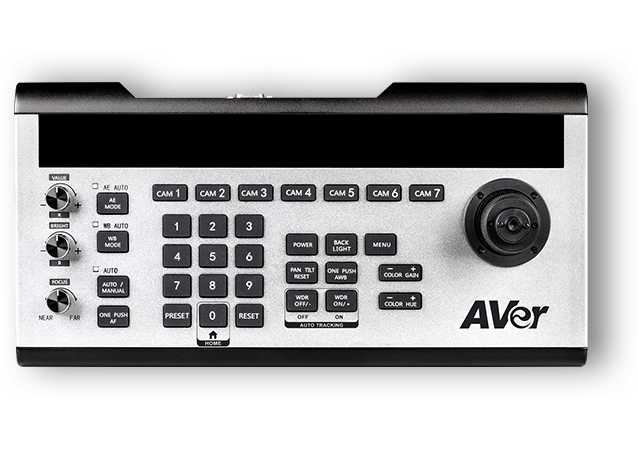

Front Panel

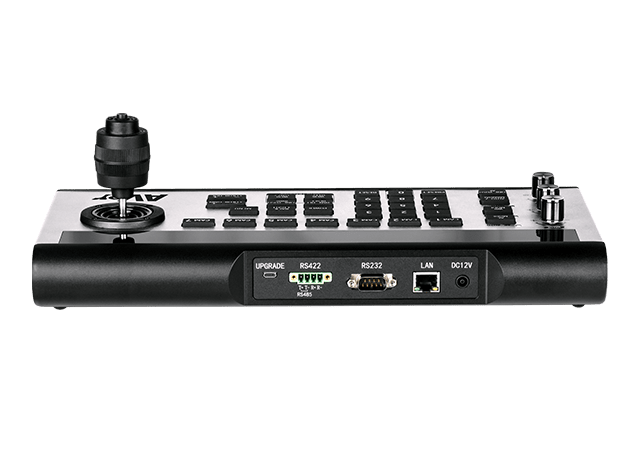

Back Panel
| Specs | |
|---|---|
| I/O Interface | |
| Communication | RS-485, RS-422, RS-232, IP, Micro USB for firmware upgrades |
| Baud Rate | 2400, 4800, 9600, 19200, 38400 bps |
| User Interface | |
| Display | OLED display screen |
| Camera Shortcut Channel | 7 |
| Rotation Button | 3 |
| Joystick | 1 |
| Camera Control | |
| IP Address | Default: 192.168.1.162/163/164/165/166/167/168 (from Cam 1 to Cam 7) |
| UDP Port | 08090 |
| Cam ID | 1 to 7 and more (255* max.) |
| Control Protocol | VISCA, SONY VISCA, Pelco D/P, UDP, IP (VISCA over IP) |
| System | |
| Operating Temperature | 0°C ~ 40°C (32°F ~ 104°F) |
| Dimensions | 173 mm (W) x 99 mm (H) x 350 mm (D) |
| Net Weight | 2.5 kg |
| Power Source | DC 12V/2A, AC 100 – 240V |
| Power Consumption | 24 W |
| Application | Indoor |
| Warranty | 3 years |
| Package Content | User manual, 4-pin RS485 terminal, power adapter |
| Description | Downloads |
|---|---|
| User Manual | Downloads |
