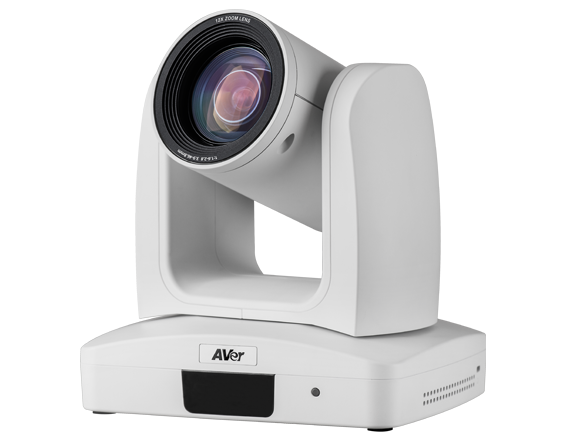

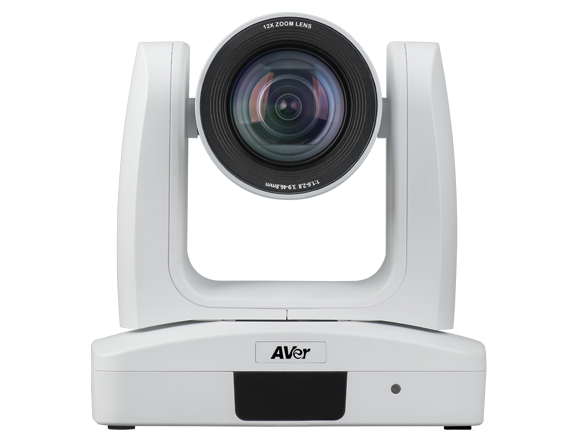

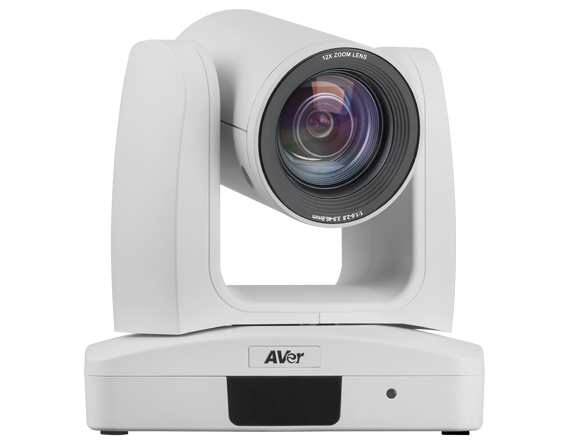

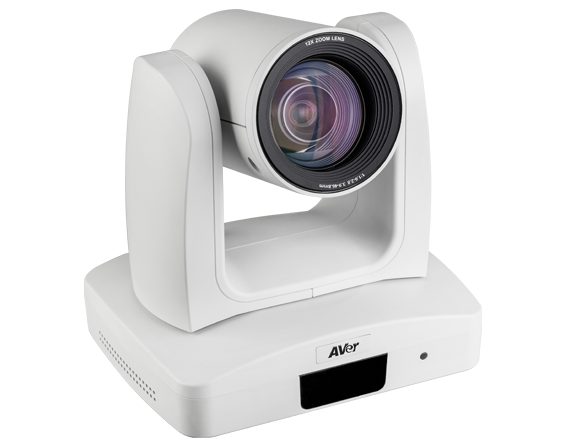

AVer PTZ310 1080P 12X Zoom Camera Capture Events in Lifelike Quality
Professional PTZ Camera
AVer PTZ310 is available in white or grey and equipped versatile functions to suite every classroom, hospital, or business. Creating the superior video quality, the PTZ310 makes you feel the action in a scene!
12X Optical Zoom
Resounding image quality and a 12X optical zoom enable you to capture crystal-clear footage in any classroom, hall, or activity center.
Full HD Resolution
The PTZ310 provides outstanding image quality in full HD 1080p at 60fps. It also offers the best auto focus, auto exposure, and auto white balance performance.
Up to 255 Preset Locations
Always be prepared to capture every angle and change the recording view at a moment’s notice with up to 255 preset locations through VISCA via RS232 and RS422 functionality, and 10 preset locations through IR remote control.
Stable Motion Control
Fully optimize your recording with customizable speed settings from 0.1°to 200° per second that maximize the agility and precision of pan/tilt rotation motion control.
Seamless Tracking Between Your Preset Zones
AVer SmartShoot optimizes your camera controls for automatic and seamless content capturing between your preset areas. With SmartShoot’s preset zone tracking you can create an uncompromising multi-camera feel with just one PTZ310 across all your preset zones. Save effortand time, while providing your video with a huge variety of shooting ranges.
Fit Your FOV in Seconds
AVer’s new SmartFrame provides you with one-touch face targeting technology to create stunning video content fast. SmartFrame instantly adjusts your FOV to fit everyone on screen at stunning speed so you can start recording presentations, lectures, and more with no hassle. Perfect for capturing multiple people, SmartFrame makes video content capturing easy and enjoyable.
| Specifications | Details |
|---|---|
| Camera | |
| Image sensor | 1/2.8" 1080p 60fps Exmor CMOS |
| Effective Picture Elements | Approx. 2.1 megapixels |
| Output Resolution | Auto, 1080p@60, 1080p@59.94, 1080p@50, ... |
| Minimum Illumination | 0.4 lux (IRE50, F1.6, 30fps) |
| S/N Ratio | > 50dB |
| Gain | Auto / Manual |
| TV Line | 800 (Center/Wide), 700 (Corner/Wide) |
| Shutter Speed | 1/1s – 1/32,000s |
| Exposure Control | Auto, Manual, Priority AE (Shutter, IRIS), BLC |
| White Balance | Auto / Indoor / Outdoor / One-push / Manual |
| Optical Zoom | 12X |
| Digital Zoom | 12X |
| Horizontal Viewing Angle | 72.5° (Wide) – 6.3° (Tele) |
| Focal length | f = 3.9 mm (Wide) – 46.8 mm (Tele) |
| Aperture (Iris) | F = 1.6 (Wide) – 2.8 (Tele) |
| Minimum Working Distance | 0.3 m (Wide), 1.5 m (Tele) |
| Pan/Tilt Angle | Pan: +- 170° ; Tilt: +90°/-30° |
| Pan/Tilt Speed (manual) | Pan: 0.1 – 100°/sec, Tilt: 0.1 – 100°/sec |
| Preset Speed | Pan: 200° /sec, Tilt: 200° /sec |
| Preset Position | 10 (IR), 255 (RS-232) |
| Camera Control - Interface | RS-232 (DIN9) / RS-422 (RJ45) |
| Camera Control - Protocol | VISCA (RS-232/RS-422/IP), CGI (IP), PELCO-D, PELCO-P |
| Image Processing | Noise Reduction (2/3D), Flip, Mirror |
| Power Frequency | Auto / 50Hz / 60Hz |
| Audio | |
| Channel | 2ch (Stereo) |
| Codec | AAC-LC (48/44.1/32/24K), G.711/PCM |
| Sample Rate | 48/44.1/32/24/16/8Khz |
| Interface | Video Output, Audio Output, Audio Input |
| General | |
| Power Requirement | AC100V-AC240V to DC12V/5A |
| PoE | POE+ (IEEE 802.3at), Class 4 |
| Operating Condition | Temperature: 0°C – +40°C ; Humidity: 20% – 80% |
| Storage Condition | Temperature: -20°C – +60°C ; Humidity: 20% – 95% |
| Dimensions | L=180 mm, W= 145 mm, H= 183.5 mm |
| Weight | 1.74 kg |
| Application | Indoor |
| Security | Kensington slot |
| Remote Control | Infrared |
| Accessories | Remote control, 12V/5A power adapter |
| IP Streaming | |
| Resolution | 1920x1080, 1280x720, 960x540, 640x480 |
| Network Video Compress Format | H.264 (High Profile), MJPEG |
| Maximum Frame Rate | H.264: 60fps (1920x1080), MJPEG: 30fps (1920x1080) |
| Bit-rate Control Mode | VBR/CBR (selectable) |
| Range of Bit-rate setting | 512Kbps – 32Mbps |
| Network Interface | 10/100/1000Base-T |
| Multi-stream Capability | 2 |
| Network Protocol | IPv4, TCP, UDP, ARP, ICMP, IGMP, ... |
| USB | |
| Connector | Micro-USB 2.0 |
| Video Format | YUV, MJPEG, H.264 |
| Maximum Video Resolution | Up to 1080p |
| USB Video Class | UVC1.1 |
| USB Audio Class | UAC1.0 |
| Web UI | Live Video Preview |
| Camera PTZ Control | Pan / Tilt / Zoom / Focus / Preset Control |
| Camera / Image Adjustment | Exposure / White Balance / Picture |
| Network Configuration | DHCP, IP Address, Gateway, Subnet Mask, DNS |
| Software Tools | Device IP Searching, Configuration Tool, Windows App |
| Warranty | Camera: 3 Years**, Accessories: 1 Year |
| Description | Downloads |
|---|---|
| Quick Guide | Downloads |
| User Manual | Downloads |
