AXIS C1211-E Network Ceiling Speaker | 02323-001

SKU: 02323-001
Part Number: 02323-001
Condition: Brand New
Purchase Orders Accepted
Save £245.41 Save £245.41

£370.18 (Excl. VAT)

Current price - £444.22 (Inc. VAT)
£370.18 - £370.18
Current price- - £444.22
Availability:
Only 1 left at this price!

payment-icons

Bulk Price & Price Match Request

Contact our expert sales team on 020 8191 9223 for best price and dedicated assistance.

Educational & Public Sector Prices Available

For more details, please call us at 020 8191 9223 or email us at info@screenmoove.com

  • Description
  • Specifications
  • Downloads
  • AXIS C1211-E Network Ceiling Speaker

    02323-001

    Smart and easy to integrate
    Based on open standards, AXIS C1211-E offers easy integration for instance with your video management software (VMS), with Voice over IP (VoIP) telephony (using SIP), and with analytics from Axis and our partners. Axis network speakers connect to your standard network and use one network cable for both power and connectivity (Power over Ethernet). With everything in one solution, installed on one network, there’s no need for additional audio equipment or cabling, and it’s easy to add or remove speakers. This enables more flexible, scalable, and cost-effective solutions. The bottom line? AXIS C1211-E offers a future-proof solution that follows your business needs and gives you the flexibility and possibility needed to quickly respond to future changes.


    02323-001


    Smart features at the edge
    This all-in-one ceiling speaker is packed with smart features to ensure great performance. With support for I/O, it enables various use cases when integrated with other systems and devices such as PIR sensors, buttons, strobe lights, and more. It features a preconfigured digital signal processor (DSP) to produce clear voice every time. And the built-in microphone supports two-way audio talk-back enabling conversations with people near the speaker. It also supports speaker-test functionality for remote health testing – so you can rest assured that your system is working. Plus, thanks to external microphone input, you can connect an additional microphone that can be used in situations where the speaker is installed far from the audience.


    02323-001


    Another smart feature is the built-in and clearly visible LED which adds visual status information ideal for many different use cases.
    In addition, our AXIS Audio Manager Edge application comes built-in to let you efficiently manage and control your audio system. It includes functionalities such as zone management and scheduling of content. And you can prioritize content so that live voice messages always take priority – ensuring that critical information like emergency announcements and paging is always delivered promptly. If you need to coordinate audio across different sites, a standard version of our multisite management software, AXIS Audio Manager Center, is available free of charge.


    02323-001


    Multipurpose speaker
    AXIS C1211-E makes audio announcements smart and easy. This speaker lets you mix live or prerecorded announcements to suit various needs. You can also play background music, helping to increase business efficiency and customer experience. And, thanks to embedded AXIS Audio Manager Edge, you can manage and control your audio system via any standard web browser either locally or remotely.
    You can use the same system to deliver warnings and crucial safety instructions helping to keep people safe, and to proactively warn off intruders from remote locations with live or prerecorded messages.


    02323-001

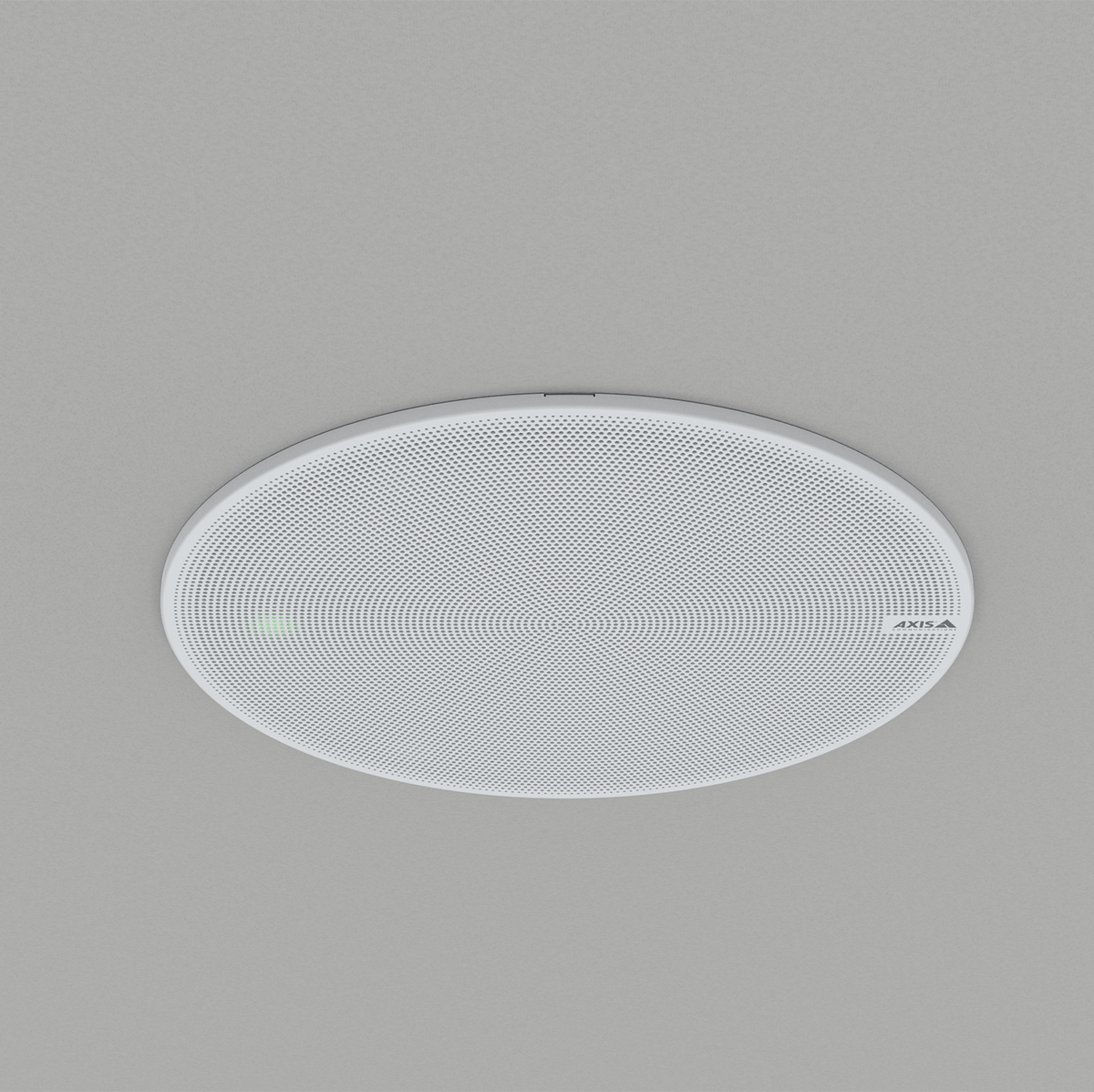

    Discreet ceiling installation

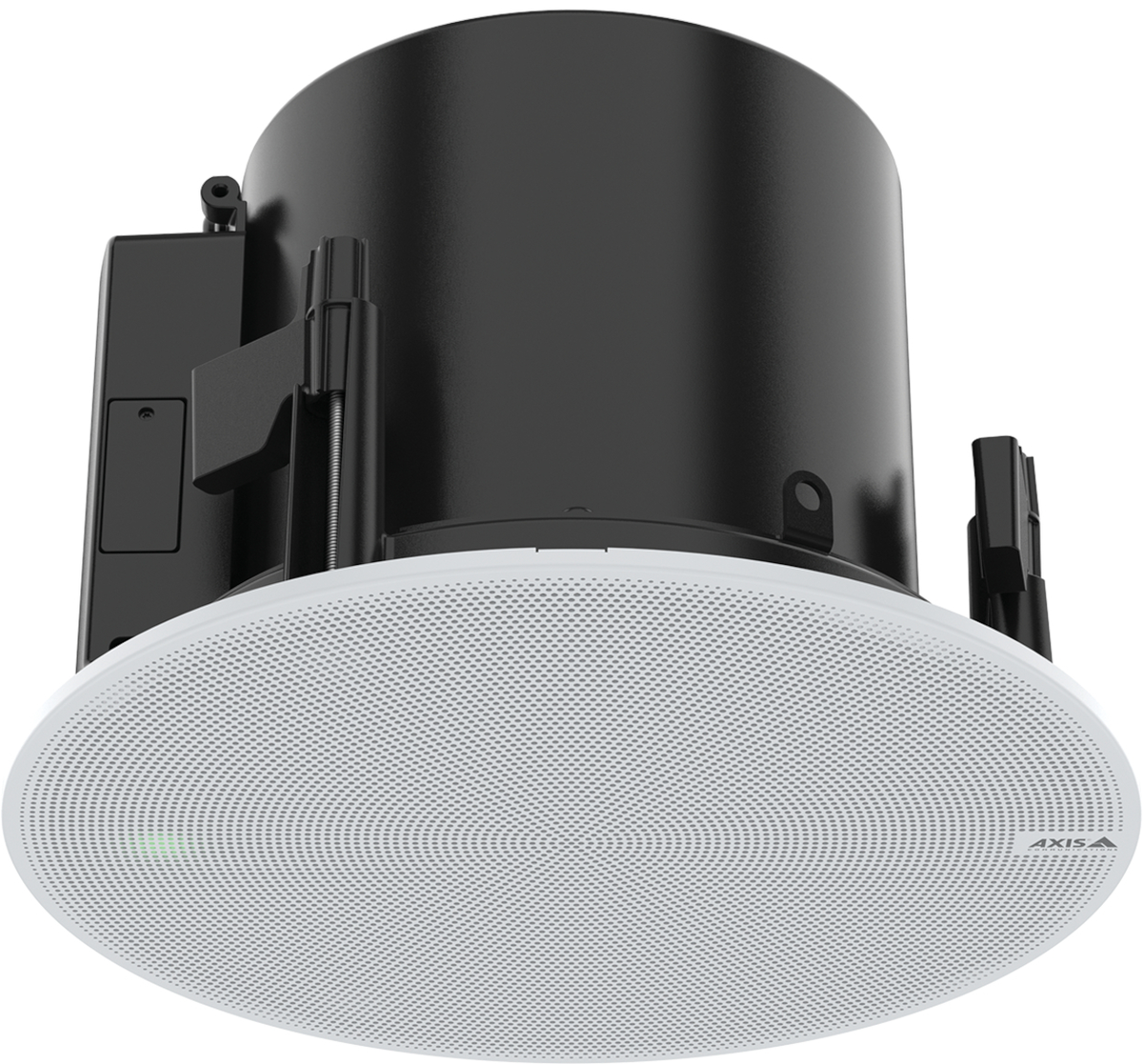

    Ideal for delivering voice announcements on your premises, AXIS C1211-E offers discreet recessed ceiling installation. Designed to blend seamlessly into any surroundings, it can be repainted in any color. This compact device features a backbox that meets plenum requirements allowing for secure installation and helping to limit unwanted noise spreading above the ceiling into other areas. AXIS C1211-E is ideal for indoor installation across various segments such as retail and offices. It can also be used in protected outdoor areas like under the eaves.

  • Specification Description
    Enclosure 4 inch broadband dynamic cone speaker in sealed enclosure
    Max Sound Pressure Level 93 dB
    Frequency Response 40 Hz - 16 kHz
    Coverage Pattern 130° coaxial
    Audio Input/Output Built-in microphone (can be disabled), External microphone, line in
    Built-in Microphone Specification 50 Hz - 20 kHz
    Amplifier Description Built-in 7 W Class D amplifier
    Digital Signal Processing Built-in and pre-configured
    AXIS Audio Manager Edge Zone management, content management, scheduling, content prioritization, health monitoring, user management
    AXIS Audio Manager Pro For larger and more advanced systems, sold separately
    AXIS Audio Manager Center Cloud service for remote access and management of multi-site systems
    Audio Streaming One-way/two-way with optional full duplex echo cancellation, mono
    Audio Encoding AAC LC 8/16/32/48 kHz, G.711 PCM 8 kHz, G.726 ADPCM 8 kHz, Axis µ-law 16 kHz, WAV, MP3
    API Open API for software integration, including VAPIX®, One-click cloud connection, AXIS Camera Application Platform (ACAP)
    Video Management Systems Compatible with AXIS Companion, AXIS Camera Station, and video management software from Axis’ Application Development Partners
    Mass Notification Singlewire InformaCast®, Intrado Revolution, Lynx, Alertus
    Unified Communication Verified compatibility with various SIP clients, PBX/SIP servers, and cloud service providers
    SIP Supports SIP features: Secondary SIP server, IPv6, SRTP, SIPS, SIP TLS, DTMF (RFC2976 and RFC2833), NAT (ICE, STUN, TURN)
    Event Conditions Audio, call, device status, edge storage, I/O, MQTT, scheduled and recurring
    Event Actions Audio: run automatic speaker test, play/stop audio clips, toggle I/O, flash status LED, run light profile, MQTT publish, send notifications, record audio
    Built-in Installation Aids Test tone verification and identification
    Functional Monitoring Auto Speaker Test via built-in microphone
    Approvals EMC, Australia/New Zealand: CISPR 24, CISPR 35, CISPR 32 Class B, USA: FCC Part 15 Subpart B Class B, Safety, Environment
    Network Protocols IPv4/v6, HTTP, HTTPS, SSL/TLS, QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, Bonjour, UPnPTM, SNMP v1/v2c/v3, DNS, DynDNS, NTP, RTSP, RTP, TCP, UDP, IGMPv1/v2/v3, RTCP, ICMP, DHCP, ARP, SOCKS, SSH, NTCIP, SIP
    Cybersecurity Software: Signed OS, brute force delay protection, digest authentication, OAuth 2.0 RFC6749 OpenID Authorization Code Flow, password protection, AES-XTS-Plain64 256bit SD card encryption
    Network Security IEEE 802.1X (EAP-TLS, PEAP-MSCHAPv2), IEEE 802.1AR, HTTPS/HSTS, TLS v1.2/v1.3, Network Time Security (NTS), X.509 Certificate PKI, host-based firewall
    System on Chip (SoC) NXP i.MX 6SoloX
    Memory 512 MB RAM, 512 MB Flash
    Casing IP44 (IP40 above ceiling), Baffle: plastic, Top cover: plastic, Mesh: surface-treated steel plate
    Power Power over Ethernet (PoE), IEEE 802.3af Type 1 Class 3 (max 12.95 W)
    Connectors RJ45 10BASE-T/100BASE-TX PoE, 4-pin 2.5 mm terminal block for 2x supervised configurable I/Os
    LED Indicators Status LED, front-facing LED
    Storage Supports microSD/microSDHC/microSDXC card, Max. size 1 TB
    Reliability Designed for 24/7 operation
    Operating Conditions Temperature: -30 °C to 50 °C, Humidity: 10–100 % RH (condensing)
    Storage Conditions Temperature: -40 °C to 65 °C, Humidity: 5–95 % RH (non-condensing)
    Dimensions Height: 150 mm, Ø 215 mm, Ceiling thickness for mounting: 0–60 mm, Dimensions for fixing hole: Ø 194 mm ± 2 mm
    Weight 2000 g
    Box Content Speaker, installation guide, Owner Authentication Key, mesh cover, block terminal
    Optional Accessories AXIS TC1603 Tile Bridge, AXIS TC1602 Conduit Adapter, AXIS TC1702 Back Cover, AXIS Safety Wire 3M
    Languages English, German, French, Spanish, Italian, Russian, Simplified Chinese, Japanese, Korean, Portuguese, Polish, Traditional Chinese, Dutch, Czech, Swedish, Finnish, Turkish, Thai, Vietnamese
    Warranty 5-year warranty
    Part Numbers Available at axis.com/products/axis-c1211-e#part-numbers
    Tools AXIS Site Designer, AXIS Device Manager
    Sustainability PVC free, RoHS, REACH, renewable carbon-based plastic content: 63%
    Environmental Responsibility Axis Communications is a signatory of the UN Global Compact
  • Description Downloads
    AXIS C1211-E Network Ceiling Speaker | 02323-001 DataSheet Downloads
