Axis C8210 Network Audio Amplifier | 01558-001

SKU: 01558-001
Part Number: 01558-001
Condition: Brand New
Purchase Orders Accepted
Save £238.12 Save £238.12

£359.20 (Excl. VAT)

Current price - £431.04 (Inc. VAT)
£359.20 - £359.20
Current price- - £431.04
Availability:
Only 2 left at this price!

payment-icons

Bulk Price & Price Match Request

Contact our expert sales team on 020 8191 9223 for best price and dedicated assistance.

Educational & Public Sector Prices Available

For more details, please call us at 020 8191 9223 or email us at info@screenmoove.com

  • Description
  • Specifications
  • Downloads
  • Axis C8210 Network Audio Amplifier | 01558-001

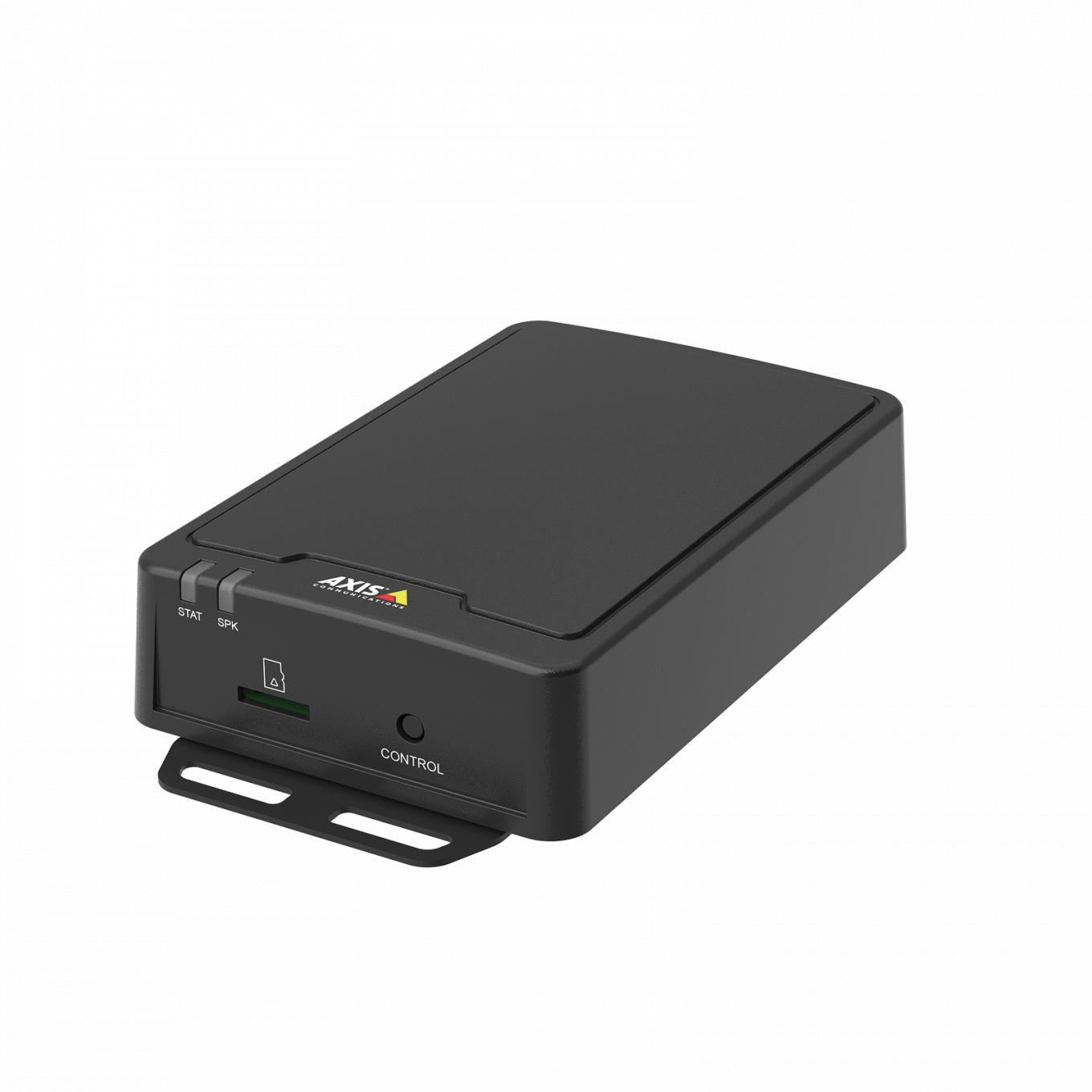

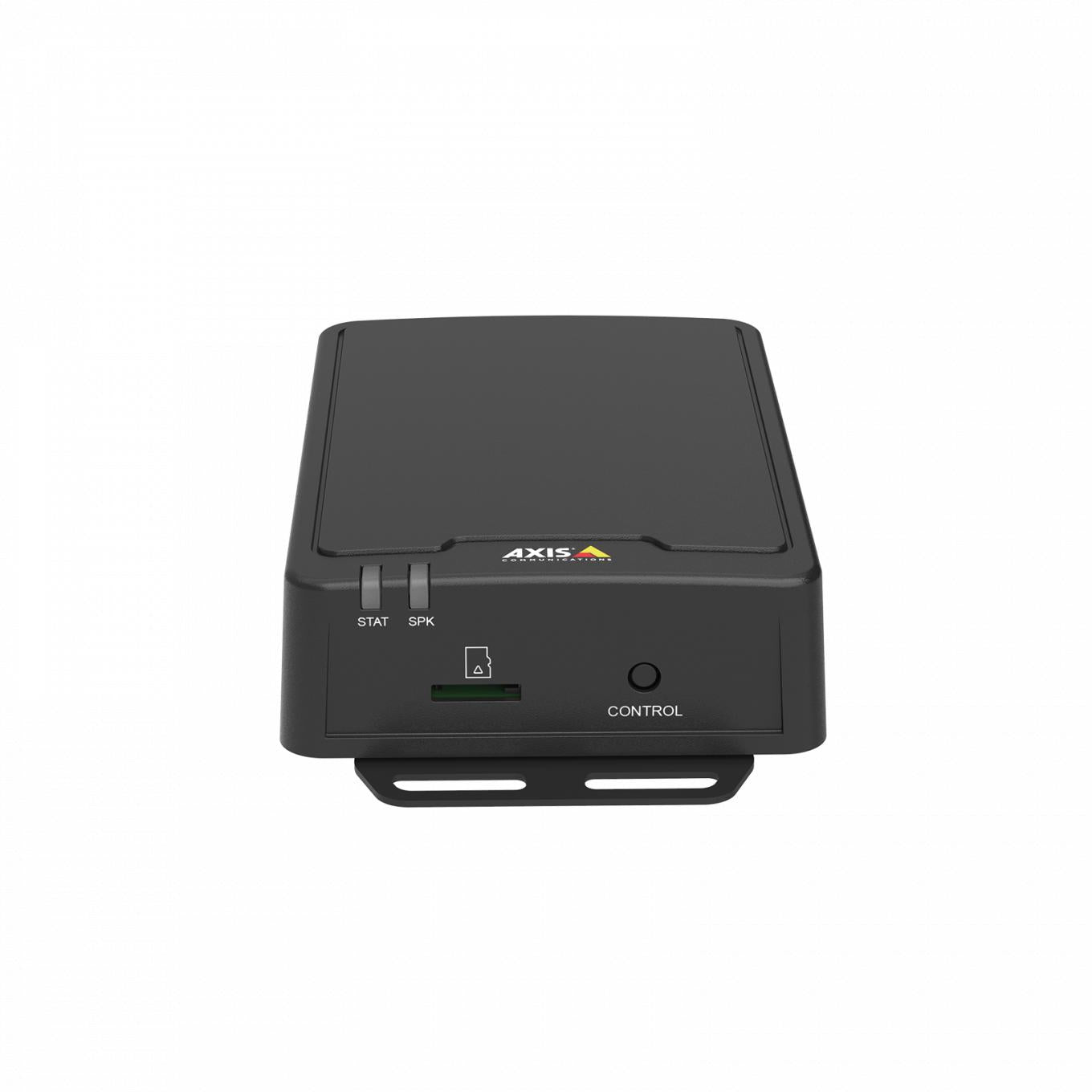

    AXIS C8210 Network Audio Amplifier is a compact and smart migration tool that transforms any passive speaker into a network speaker with all the benefits of network audio.  So all your speakers, regardless of brand or design, can feature the same functionality as Axis network audio speakers.

    Network audio with any speaker
    With AXIS C8210 you can keep your existing passive speakers or choose any speaker on the market. Either way, you can mix and match passive and network audio speakers in one installation and they will work together seamlessly. This makes AXIS C8210 the perfect solution for existing installations that you want to migrate into network audio, as well as new installations with specific speaker requirements.

    AXIS C8210 has a built-in amplifier and Digital Signal Processor (DSP) that delivers a total power output of 15W and can transmit high-quality digital audio to one or multiple speakers, depending on your needs. Since everything is built-in there’s no need for additional equipment, making the transition into network audio smart and easy.


    Enjoy flexibility and scalability

    Together with pre-installed AXIS Audio Manager Edge (audio management software) AXIS C8210 allows you to create flexible zoning for live, scheduled or triggered announcements or background music, and ensures that right content is played at the right time, at the right place. It has never been simpler and more flexible to control and manage all your audio devices from one location. If you need to coordinate audio across different sites, a standard version of our multisite management software, AXIS Audio Manager Center, is available free of charge.

    As all Axis network products, AXIS C8210 is based on an open platform which makes it easy to integrate it into other systems such as network cameras for security purposes or VoIP for call-outs in public address applications.

    An introduction to AXIS C8210
    Håkan Hansson, Global Product Manager Audio, gives an introduction to AXIS C8210 Network Audio Amplifier.

    System set up of AXIS C8210
    An animation describing the benefits and system set up of AXIS C8210 Network Audio Amplifier.

    Effortless installation

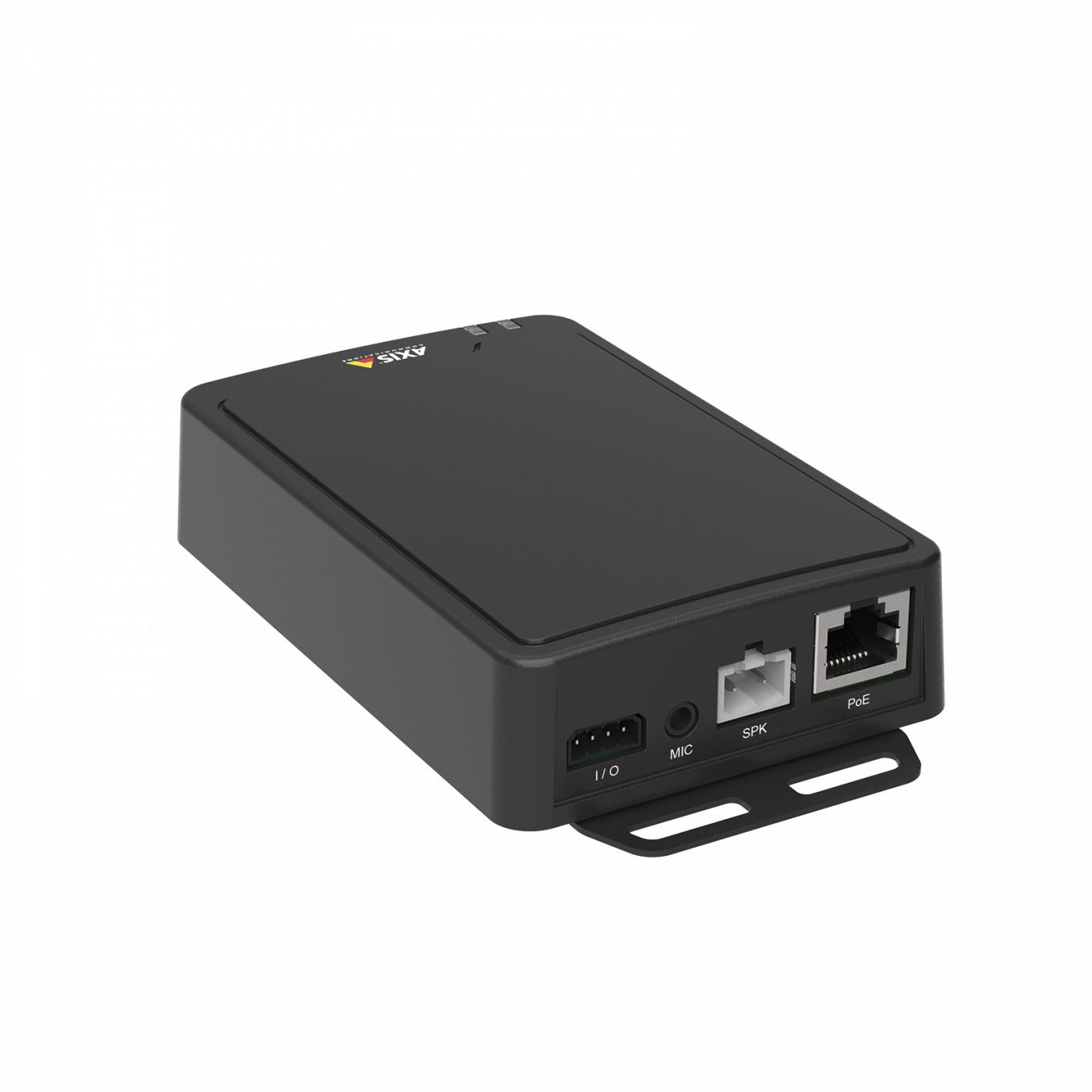

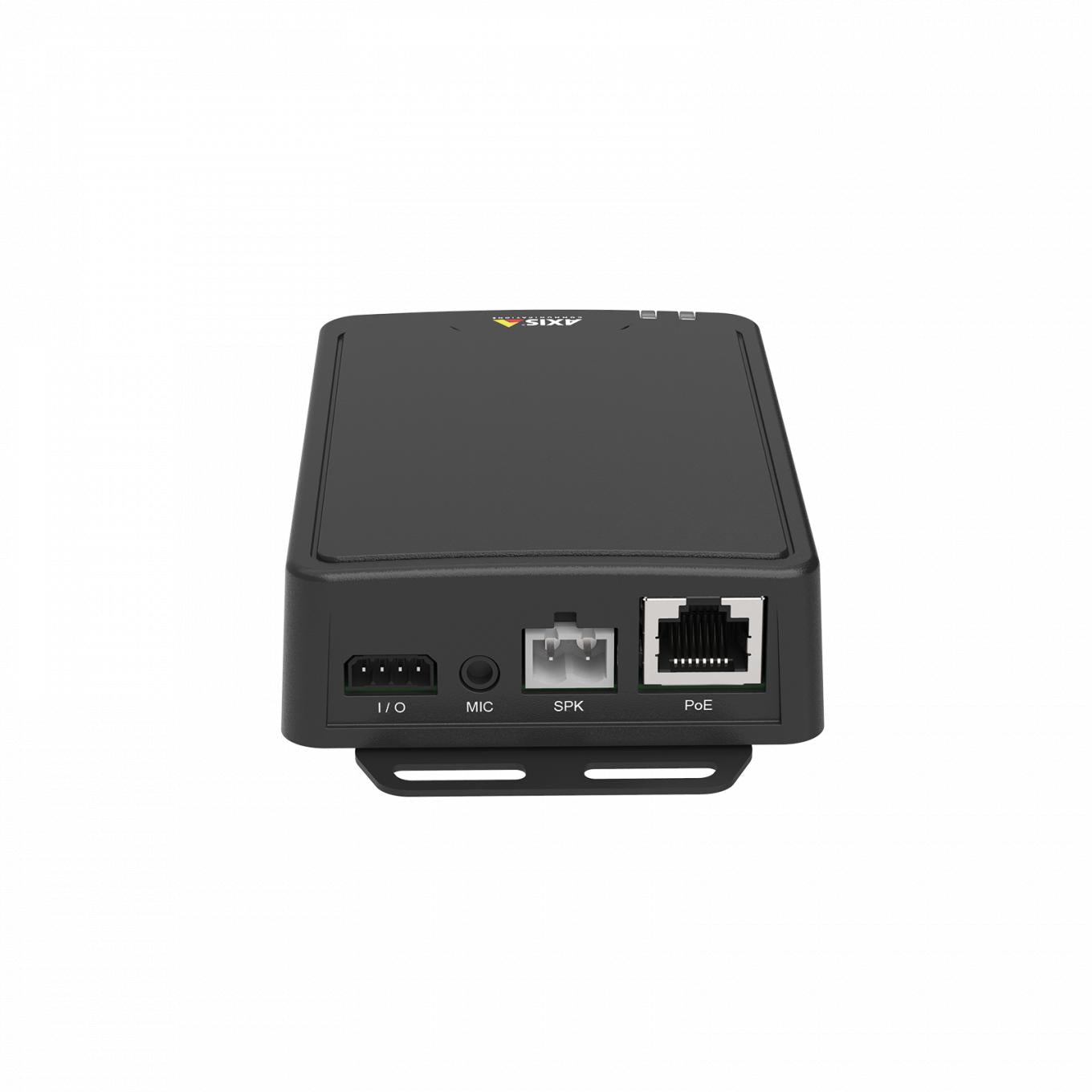

    AXIS C8210 is installed at the edge by the speaker, so there’s no need for extra space. And with just one cable for power and connectivity (PoE) you can connect it directly to your IP network, which simplifies complex installations and instantly gives you the benefits of network audio. Furthermore, with support for health monitoring, it brings you peace of mind and facilitates service and maintenance.

  • Feature VM-3360VA
    Power Source 230 V AC, 50 / 60 Hz
    Power / Current Consumption 850 W (at rated output), 380 W (EN 62368-1)
    Frequency Response 50 Hz - 20 kHz
    Rated Output 360 W total into 6 zones
    Control Input Control input 1 - 8: No-Voltage make contact input, open voltage: 24 V DC, short-circuit current: under 2 mA, removable terminal block (14 x 2 pins)
    Control Output Control output 1 - 8: Isolated open collector output, withstand voltage: 30 V DC, operating current: under 10 mA, removable terminal block (14 x 2 pins)
    Operating Temperature -5 °C to +45 °C
    Finish Aluminium, Steel plate, black
    Dimensions 482 x 132.6 x 431.2 mm (W x H x D)
    Weight 19 kg
    Distortion < 0.7 % (at 1 kHz, rated power)
    S/N Ratio 85 dB(A) (or more)
    Inputs Input 1 - 3: -50 dBV (MIC) / -10 dB (LINE) (changeable), 600 Ω, electronically balanced, combined XLR connector (female) / phone jack <br> Input 4: -50 dBV (MIC) / -10 dBV (LINE) (changeable), 600 Ω, electronically balanced, on removable terminal block (14 x 2 pins) <br> BGM 1 - 2: -10 dBV, 10 kΩ unbalanced, RCA pin jack (2 x 2) <br> External amplifier Input: 100 V Line, removable terminal block (14 pins)
    Outputs Speaker output 1 – 6: Total within rated output, removable terminal block (14 pins) <br> Direct output from internal or external amplifier, removable terminal block (16 pins) <br> Recording output BGM / Paging 0 dBV, 10 kΩ, unbalanced, RCA pin jack
    Indicator Power, 5-segment bargraph level meter, selected zone, emergency zone active, evacuation active, alert active, front panel microphone active, general fault, CPU fault, menu driven LCD for date, IP address, password etc.
  • Description Downloads
    Datasheet Downloads
