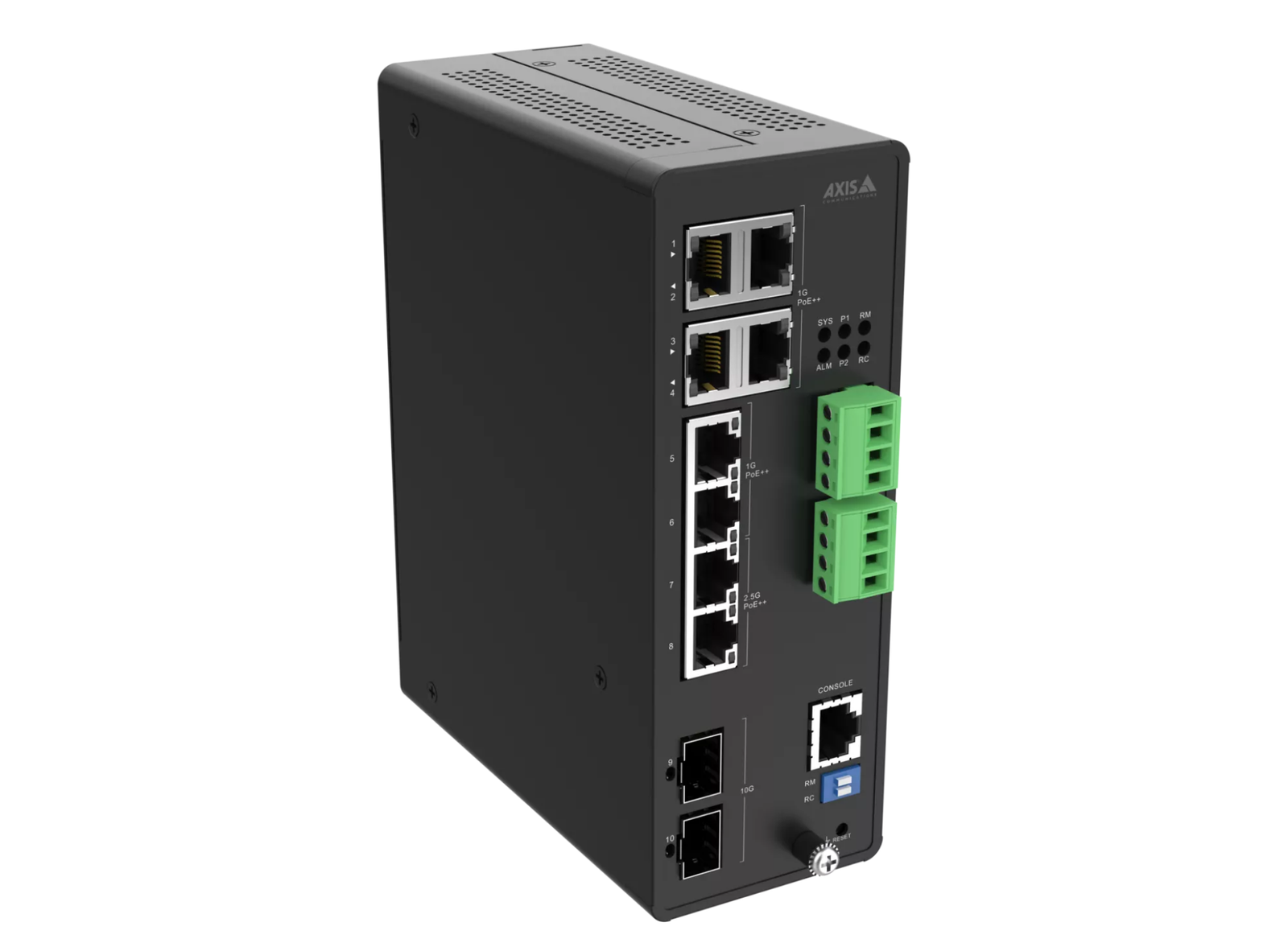

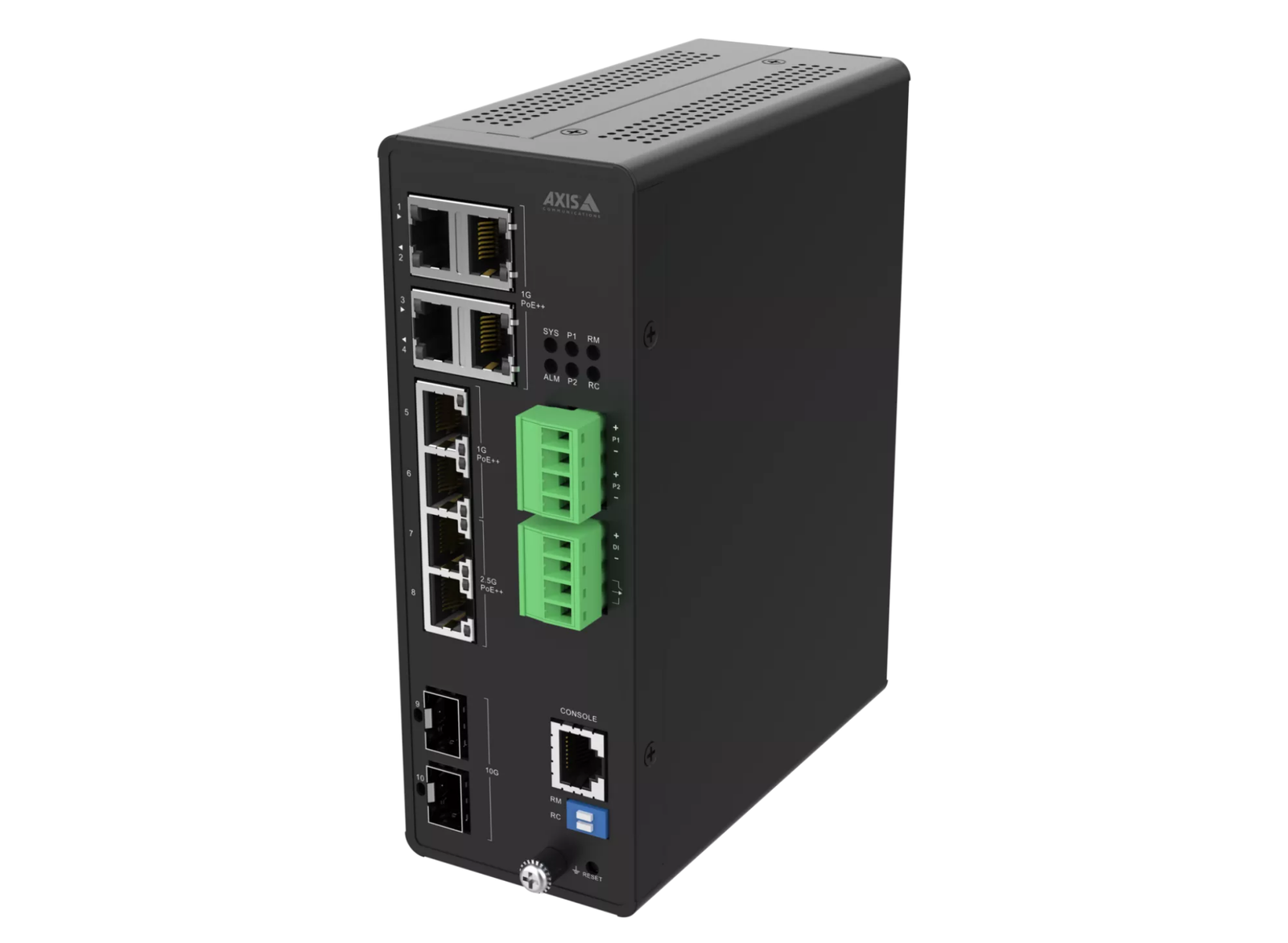

This 8-port managed industrial PoE++ Gigabit switch includes two SFP+ data ports allowing you to connect extra devices depending on your needs.
For demanding installations
This ruggedized industrial switch is developed for challenging environments when mounted inside a surveillance cabinet. Designed to withstand shock and vibrations, it can handle temperatures from -40 °C to 60 °C (-40 °F to 140 °F). This makes it ideal for demanding installations such as alongside highways and tunnels, and in industrial and outdoor environments like railways and harbors.
Flexible installations
This rugged 8-port switch can deliver up to 90 W PoE++ (IEEE 802.3bt) per port, with a total power budget of 480 W. In addition, two SFP+ ports with 10 Gbit SFP+ uplink allows for long-distance installations.
Easy to install and configure
AXIS D8208-R ensures easy configuration with Axis products. The unique web graphic user interface offers a graphic topology for easy overview of all devices in the system. Plus, it provides information, status, and notifications about connected devices. This allows you to manage all connected devices, reboot cameras in the system, monitor network traffic and cable diagnostics, and much more.
| Security | Access Control List, Port Security, IP Source Guard, Storm Control, Private VLAN, DHCP Snooping, ARP Inspection, HTTPS encryption, Password protection | Network protocols | IPv4, IPv6, HTTP, HTTPS, SMTP, Bonjour, UPnP®, SNMP v1/v2c/v3, DNS, NTP, RTSP, TCP, UDP, IGMP, ICMP, DHCP, ARP, SSH, RADIUS, TACACS+, Syslog, IEEE 802.1X, IEEE 802.3X, IEEE 802.1p, 802.1Q (VLAN), LLDP, LLDP-Med, STP, MSTP, RSTP, LACP, RRPP |
| Throughput | 46.130 Mpps | Switching capacity | 62 Gbps |
| MAC table | 16 K | Jumbo frames | 10240 Bytes |
| EMC | EN 55035, EN 55032 Class A, EN 50121-4, EN 61000-6-1, EN 61000-6-2, EN 61000-6-3, Australia/New Zealand: RCM AS/NZS CISPR 32 Class A, Canada: ICES(A)/NMB(A), Japan: VCCI Class A, USA: FCC Part 15 Subpart B Class A, Railway: IEC 62236-4 | Safety | IEC/EN/UL 62368-1 ed. 3 |
| Environment | IEC 60068-2-6, IEC 60068-2-27, NEMA TS 2 (2.2.7-2.2.9), 60068-2-31 (Free fall - Procedure 1), IEC/EN 60529 IP30 | Casing | Aluminum |
| Color | Black | Power | Required 44 ~ 57 V DC input for IEEE 802.3af, Type 1 Class 3, max 15.4 W output Required 50 ~ 57 V DC input for IEEE802.3at, Type 2 Class 4, max 30 W output Required 50 ~ 57 V DC input for IEEE802.3bt, Type 3 Class 6, max 60 W output Required 52 ~ 57 V DC input for IEEE802.3bt, Type 4 Class 8, max 90 W output Max 11.2 A at 480 W |
| Pin assignment | Power over pairs: 3/6, 4/5 (+ve) and 1/2, 7/8 (-ve) | PoE output | Up to 90 W per port |
| PoE Power budget | 480 W | PoE ports | RJ45 10BASE-T/100BASE-TX/1000BASE-T (6x) RJ45 100BASE-TX/1000BASE-T/2.5GBASE-T (2x) |
| Data ports/Uplink | 10GBASE-LR/SR SFP+ (2x) | Power connectors | Power connector port (2x for power redundancy) |
| Console | RJ45 (1x) | Surge protection | DC Power: 1 kV CM, 0.5 kV DM 6kV on all network ports |
| Operating conditions | -40 to 60 °C (-40 °F to 140 °F) Maximum temperature according to NEMA TS 2 (2.2.7): 74 °C (165 °F) Humidity 5–95% RH (non-condensing) |
Storage conditions | -40 °C to 85 °C (-40 °F to 185 °F) Humidity 5–95% RH (non-condensing) |
| Dimensions | Width: 62 mm (2.44 in) Height: 168 mm (6.61 in) Depth: 130 mm (5.11 in) |
Weight | 892 g (1.967 lb) |
| Included accessories | Installation guide, mounting bracket for din rail, DB-9 console cable, two mounting brackets for AXIS TQ1808-VE Surveillance Cabinet | Optional accessories | AXIS TQ1808-VE Surveillance Cabinet Power Supply DIN PS56 480 W AXIS TD8901 SFP+ Module LC.LR.X AXIS TD8902 SFP+ Module LC.SR.X For more accessories, see axis.com |
| Management software | AXIS Device Manager | Warranty | 5-year warranty |
| Description | Downloads |
|---|---|
| Datasheet | Download |
