This 48 port network switch is optimized for surveillance solutions. With a unique web graphic user interface, it offers a topology for easy overview and management of all devices in the system.
Perfect match for Axis surveillance solutions

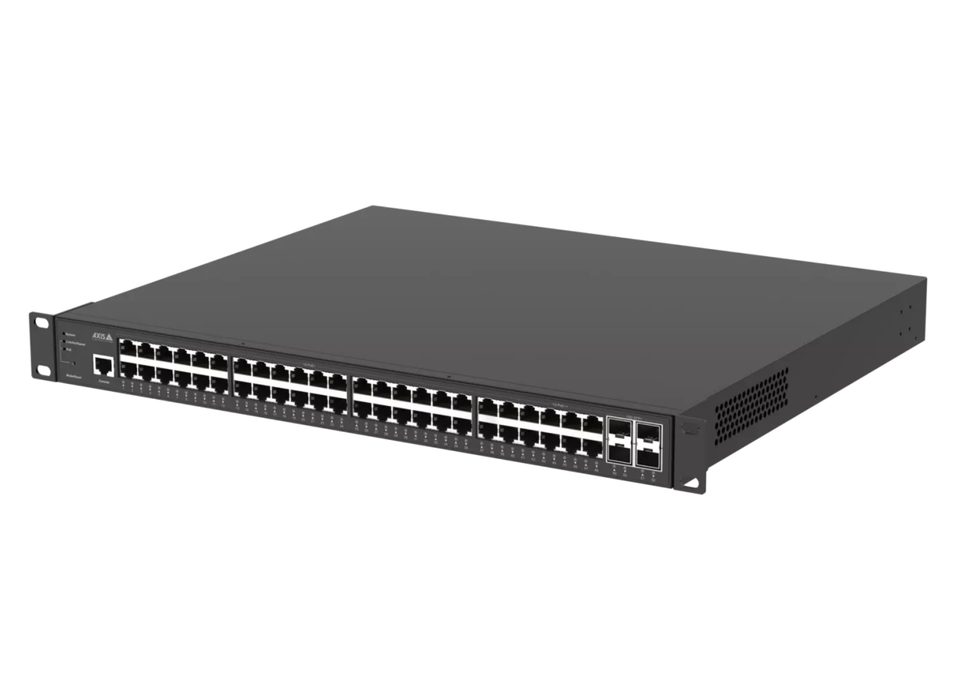

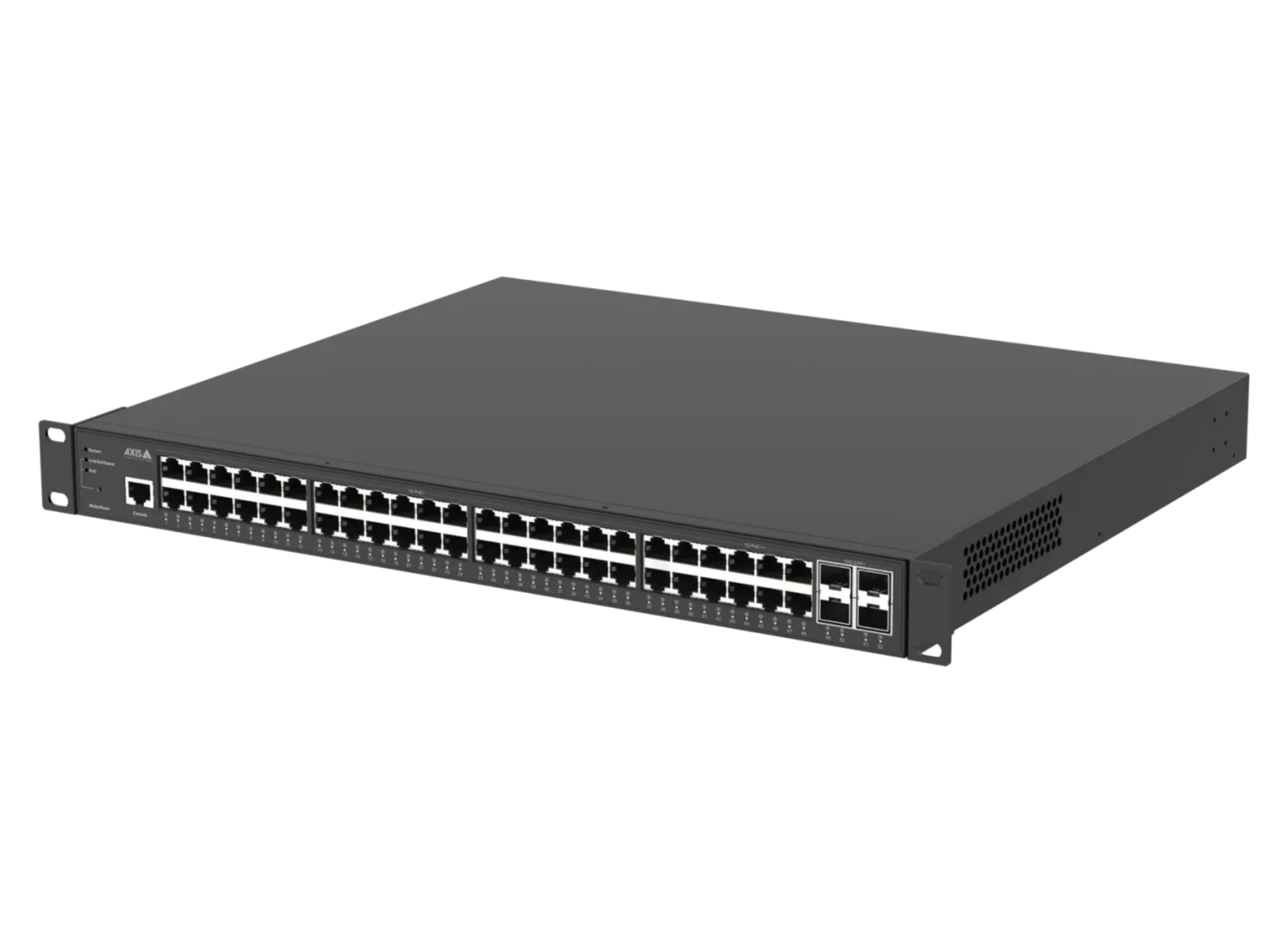

AXIS D8248 Managed PoE++ Switch is made for the surveillance industry and a perfect complement to Axis recorders such as AXIS Camera Station S12 Series. It has a total power budget of 740 W, and it is equipped with four additional SFP+ ports, allowing high speed data traffic over long distances. This 48-port switch supports PoE class 4, and eight of these ports offer up to 90 W per port. Additional power can also be added by connecting midspans.
Total overview of your devices
Featuring a unique web user interface, this switch offers a graphic topology for an overview of all devices in the system. With access to all information, statuses, and notifications about your connected devices, you can easily manage all devices, reboot cameras in the system, monitor network traffic, perform cable diagnostics, and much more.
| Network Function | Full L2 switching features including L3 features: IPv4/IPv6 static route, RIP, and OSPF | Network Protocols | IPv4, IPv6, HTTP, HTTPS, QoS Layer 3 DiffServ, SMTP, mDNS (Bonjour), UPnP®, SNMP v1/v2c/v3, DNS/DNSv6, NTP, TCP, UDP, IGMPv1/v2/v3, ICMP, DHCP, ARP, SSH, CDP, RADIUS, TACACS+, Syslog, IEEE 802.1X, 802.1Q (VLAN), LLDP, LLDP-MED, STP, MSTP, RSTP, LACP |
| Throughput | 130.944 Mpps | Switching Capacity | 176 Gbps |
| MAC Table | 32 K | Jumbo Frames | 10240 Bytes |
| Product Markings | CSA, UL/cUL, CE, VCCI, RCM, FCC, ICES, MIC Telecom, Cmark | Supply Chain | TAA compliant |
| EMC | EN 55035, EN 55032 Class A, EN 61000-6-1, EN 61000-6-2, Australia/New Zealand: RCM AS/NZS CISPR 32 Class A, Canada: ICES(A)/NMB(A), Japan: VCCI Class A, USA: FCC Part 15 Subpart B Class A | Safety | CAN/CSA C22.2 No. 62368-1 ed. 3, IEC/EN/UL 62368-1 ed. 3, AS/NZS 62368.1, J62368-1 |
| Environment | IEC/EN 60529 IP20 | Telecoms | MIC Telecom |
| Network Security | IEEE 802.1X, HTTPS encryption, TLS v1.2, X.509, Access Control List (ACL), port security, IP source guard, storm control, private VLAN, DHCP snooping, ARP inspection, password protection, loop protection | Documentation | AXIS Network Switches Hardening Guide, Axis Vulnerability Management Policy, Axis Security Development Model, Software Bill of Material (SBOM), To download documents, go to axis.com/support/cybersecurity/resources, To read more about Axis cybersecurity support, go to axis.com/cybersecurity |
| Casing | Steel | Color | Black |
| Power | 100–240 V AC, 50/60 Hz | Pin Assignment | Power over pairs: Port 1-40: 3/6 (+ve) and 1/2 (-ve); Port 41-48: 3/6, 4/5 (+ve) and 1/2, 7/8 (-ve) |
| PoE Output | Port 1-40: IEEE802.3at Type 2 Class 4, max 30 W output; Port 41-48: IEEE802.3bt Type 4 Class 8, max 90 W output | PoE Power Budget | 740 W |
| PoE Ports | RJ45 10BASE-T/100BASE-TX/1000BASE-T PoE (48x) | Data Ports / Uplink | 10GBASE-LR/SR SFP+ (4x) |
| Power Connector | Power connector port (1x) | Console | RJ45 (1x) |
| Surge Protection | Network ports: 1kV; AC lines: 2kV | Operating Conditions | 0 to 45 °C (32 °F to 113 °F), Humidity 0–95% RH (non-condensing) |
| Storage Conditions | -20 °C to 70 °C (-4 °F to 158 °F), Humidity 5–95% RH (non-condensing) | Dimensions | Minimum rack depth: 18″; For the overall product dimensions, see the dimension drawing in this datasheet. |
| Weight | 5620 g (12.4 lb) | Box Content | Switch, installation guide, 19″ ear rack kit, rubber feet (4x), power cord |
| Optional Accessories | AXIS TD8901 SFP+ Module LC.LR.X, AXIS TD8902 SFP+ Module LC.SR.X, For more accessories, go to axis.com/products/axisd8248-managed-poe-switch#accessories | System Tools | AXIS Site Designer, AXIS Device Manager, product selector, accessory selector, Available at axis.com |
| Languages | English | Warranty | 5-year warranty, see axis.com/warranty |
| Export Control | This product is subject to export control regulations, and you should always comply with all applicable national and international export or re-export control regulations. | Part Numbers | Available at axis.com/products/axis-d8248-mangedpoe-switch#part-numbers |
| Substance Control | PVC free, BFR/CFR free in accordance with JEDEC/ECA Standard JS709; RoHS in accordance with EU RoHS Directive 2011/65/EU and 2015/863, and standard EN IEC 63000:2018; REACH in accordance with (EC) No 1907/2006. For SCIP UUID, see echa.europa.eu |
| Description | Downloads |
|---|---|
| Datasheet | Download |
