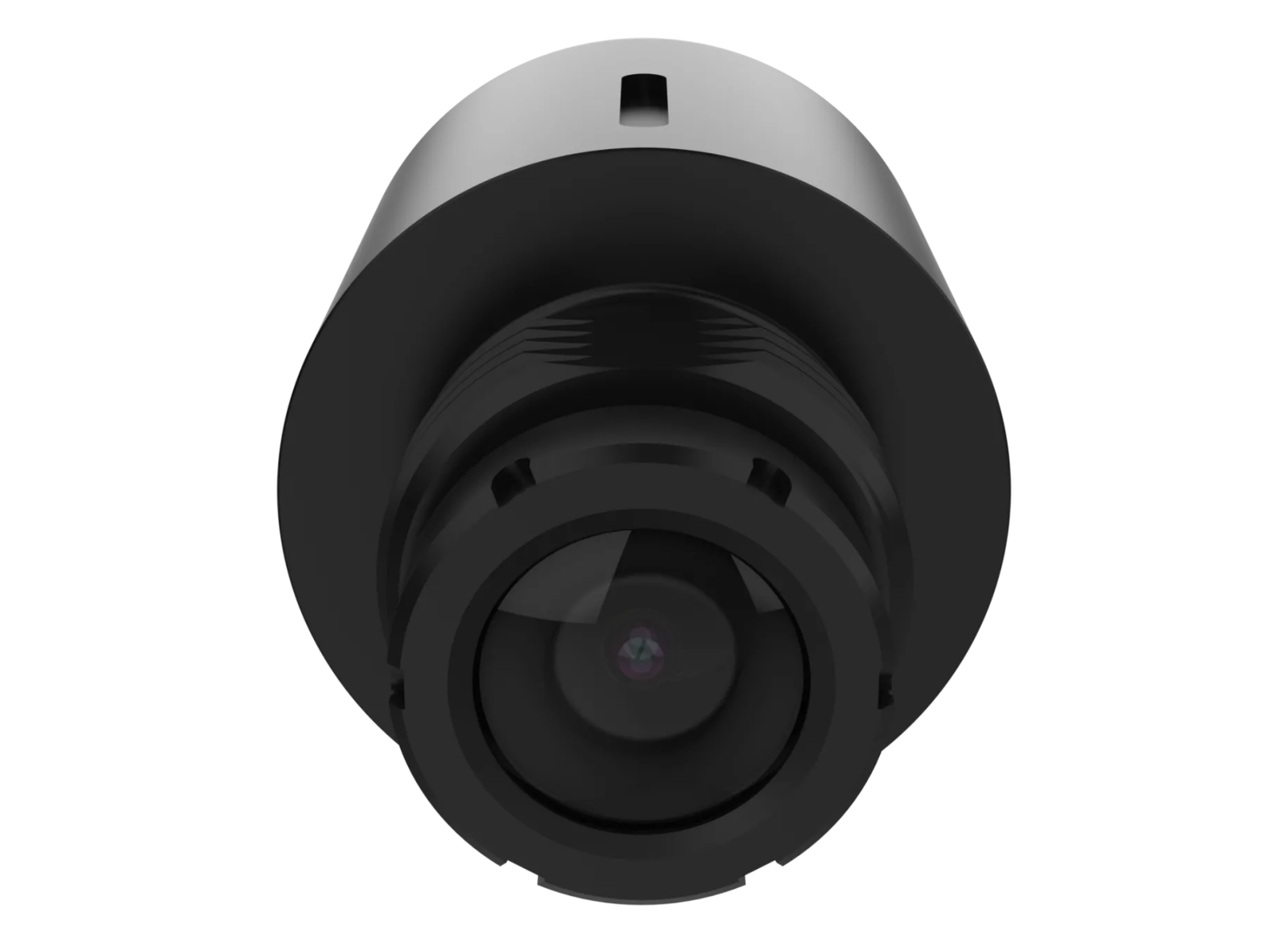

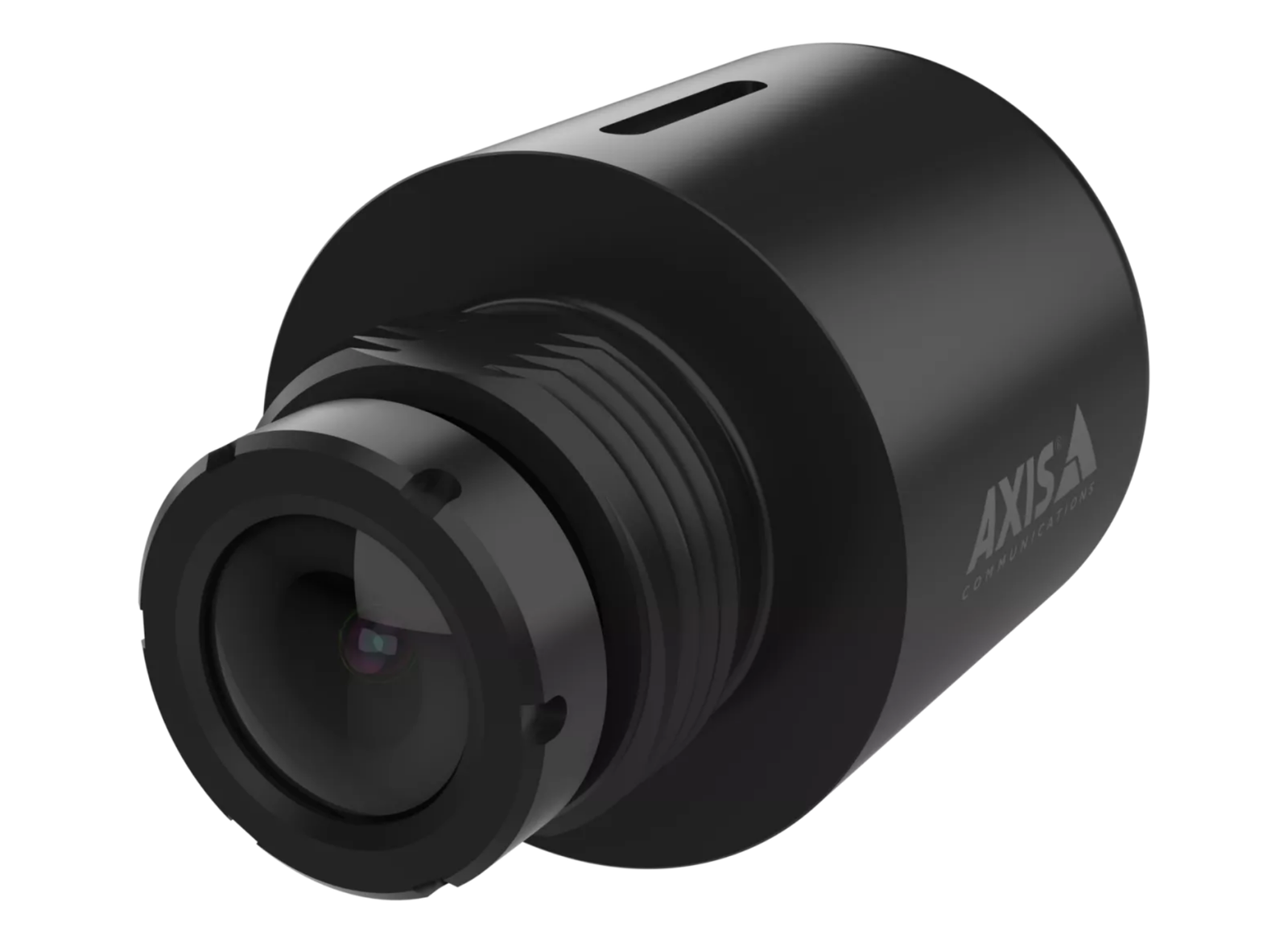

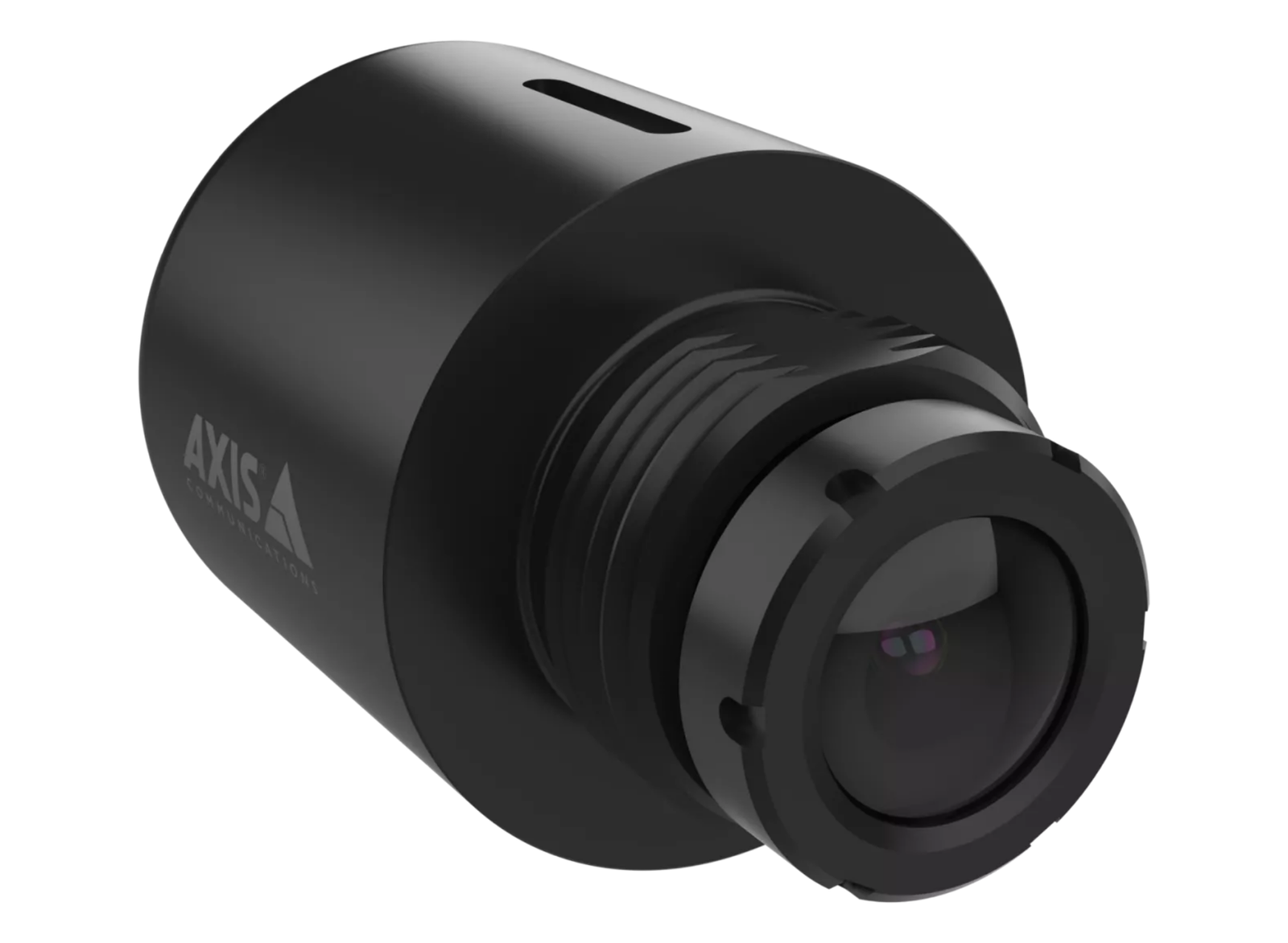

AXIS F2105-RE is designed for use with main units and cables from Axis F Modular Cameras Series. SMA-FAKRA connectors withstands vibrations and ensures a ruggedized installation. It offers up to 1080p at 60 fps, 108° horizontal field of view, and good low-light performance in color.
Multi-purpose
Ideal for installation indoors and outdoors, in machines, buses, and emergency vehicles, this sensor uses cables from Axis with SMA-FAKRA connectors to withstand vibrations and ensure a ruggedized installation. It can be installed practically anywhere - in tight spaces, behind glass, metal, or even plastic sheeting. Reliable under rough conditions, AXIS F2105-RE can withstand temperatures as low as -40 °C and as high as 70°C intermittently (-40 °F to 158 °F).
High-quality video usability
This sensor delivers high-quality video even in challenging and low light conditions. With a 108° field of view, it’s perfect when you need wide-area coverage with great details for identification purposes. Thanks to barrel distortion correction, you get a undistorted field of view to ensure precise visual data. It supports HDTV 1080p at 60 fps or 720p at 30 fps on 4-channels. It also supports 720p at 180 fps with AXIS F9111 Main Unit. Forensic WDR provides clarity when there’s both dark and light areas in the scene. Plus, Lightfinder captures sharp, color images in low light.
Flexible and discreet
AXIS F2105-RE offers discreet installation with only the small sensor visible externally. Based on a divided network camera concept, this sensor allows for maximum flexibility and connects to the main unit using a ruggedized SMA-FAKRA connector. Cable type and length (up to 30 m/ 98 ft) are chosen based on your specific needs. Furthermore, there’s a variety of accessories available for mounting options and for flexible installation.
| Image sensor | CMOS | Min illumination/ light sensitivity (Color) | 0.1 lux |
| Min illumination/ light sensitivity (B/W) | - | Thermal sensitivity (NETD) | - |
| Thermal sensor resolution | - | Lightfinder | - |
| Wide dynamic range | - | Max video resolution | 1920x1080 |
| Max frames per second | 180 | Day and Night functionality | – |
| Focal length | 3.1 mm | Varifocal lens | No |
| Horizontal field of view | 108 ° | Vertical field of view | 58 ° |
| Lens mount | M12 | Replaceable lens | Yes |
| Built-in IR | – | Operating temperature | -40 to 60 °C |
| Outdoor Ready | Yes | IP rating | IP66, IP67, IP6K9K, IP69 |
| Vandal rating | - | Cable entry | Back: SMA Connector |
| Designed for repaint | – | Casing material | Aluminum |
| Power (max) | 4.00 W | Power (average) | 1.00 W |
| Description | Downloads |
|---|---|
| Datasheet | Download |
