Official Partner

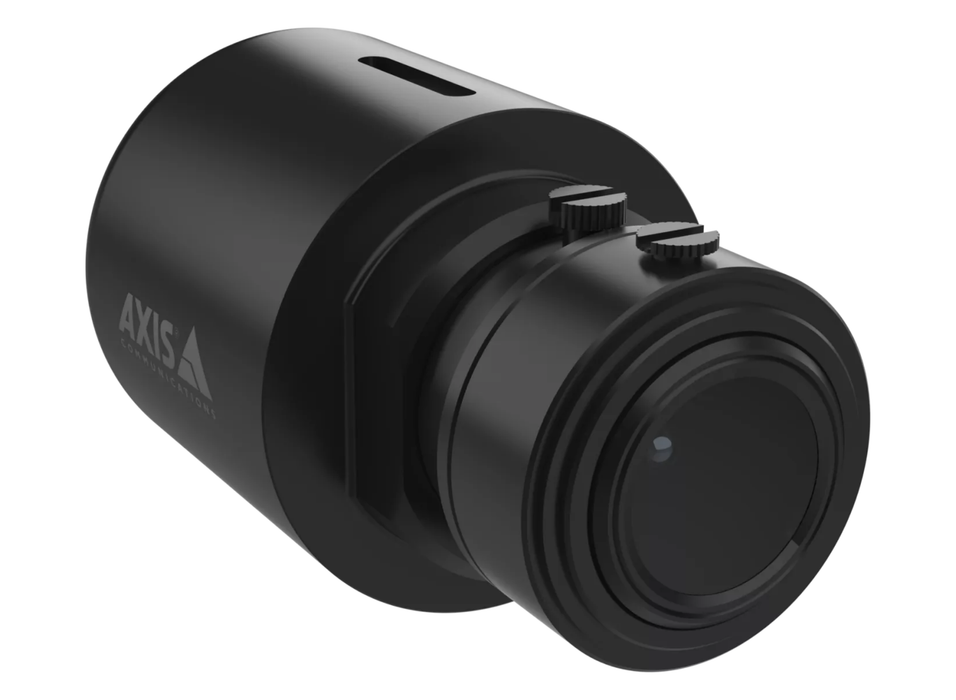

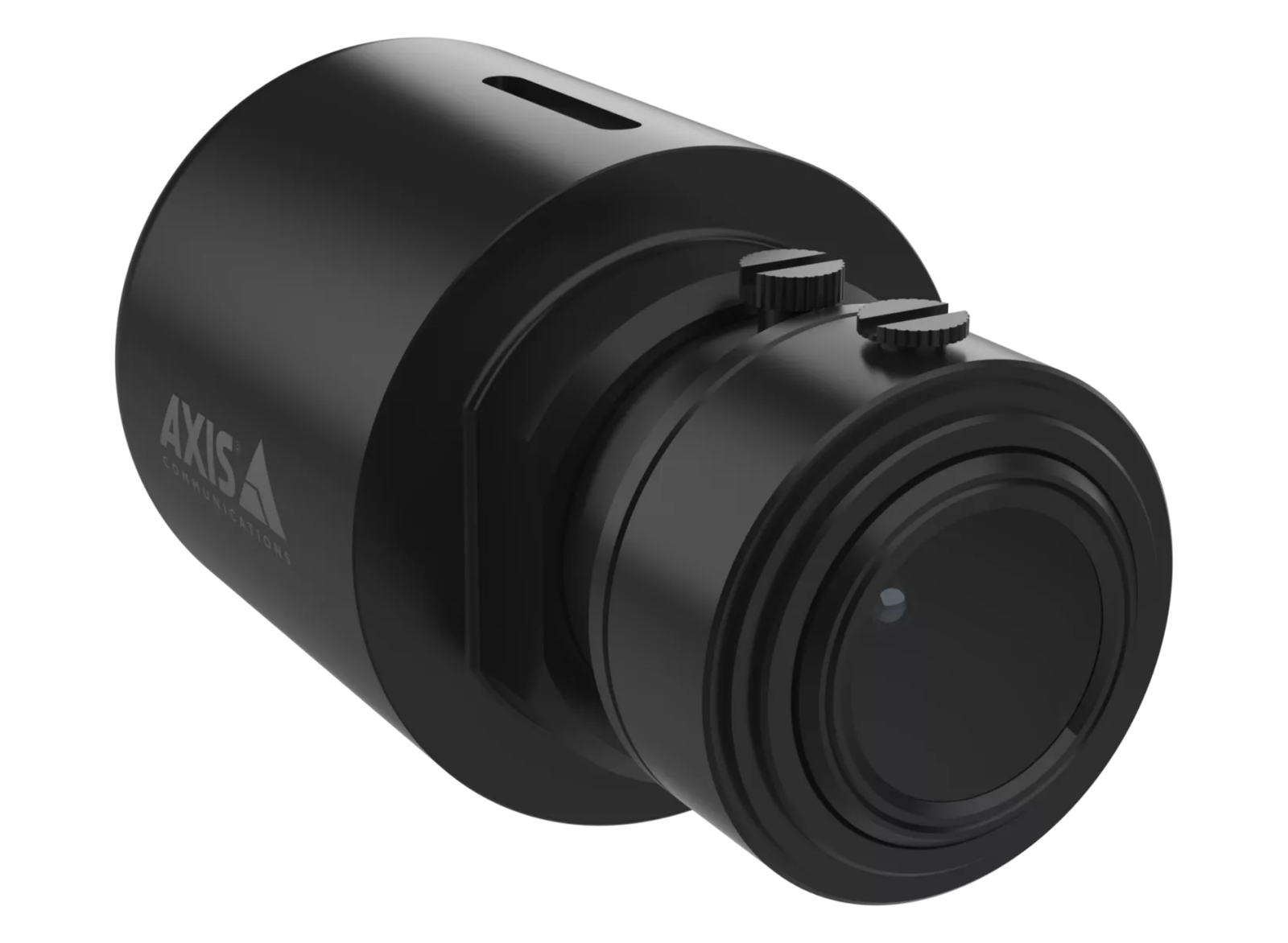

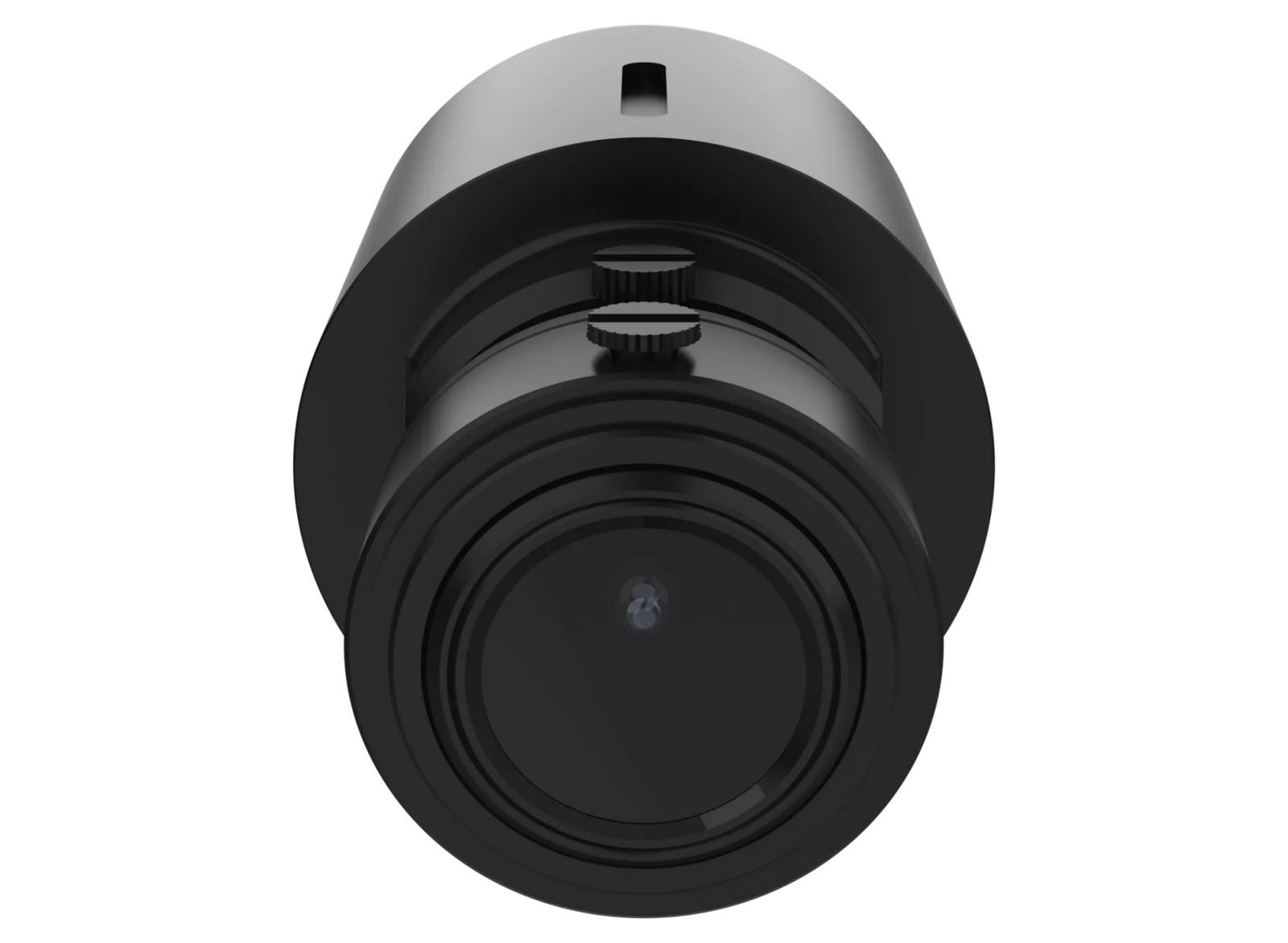

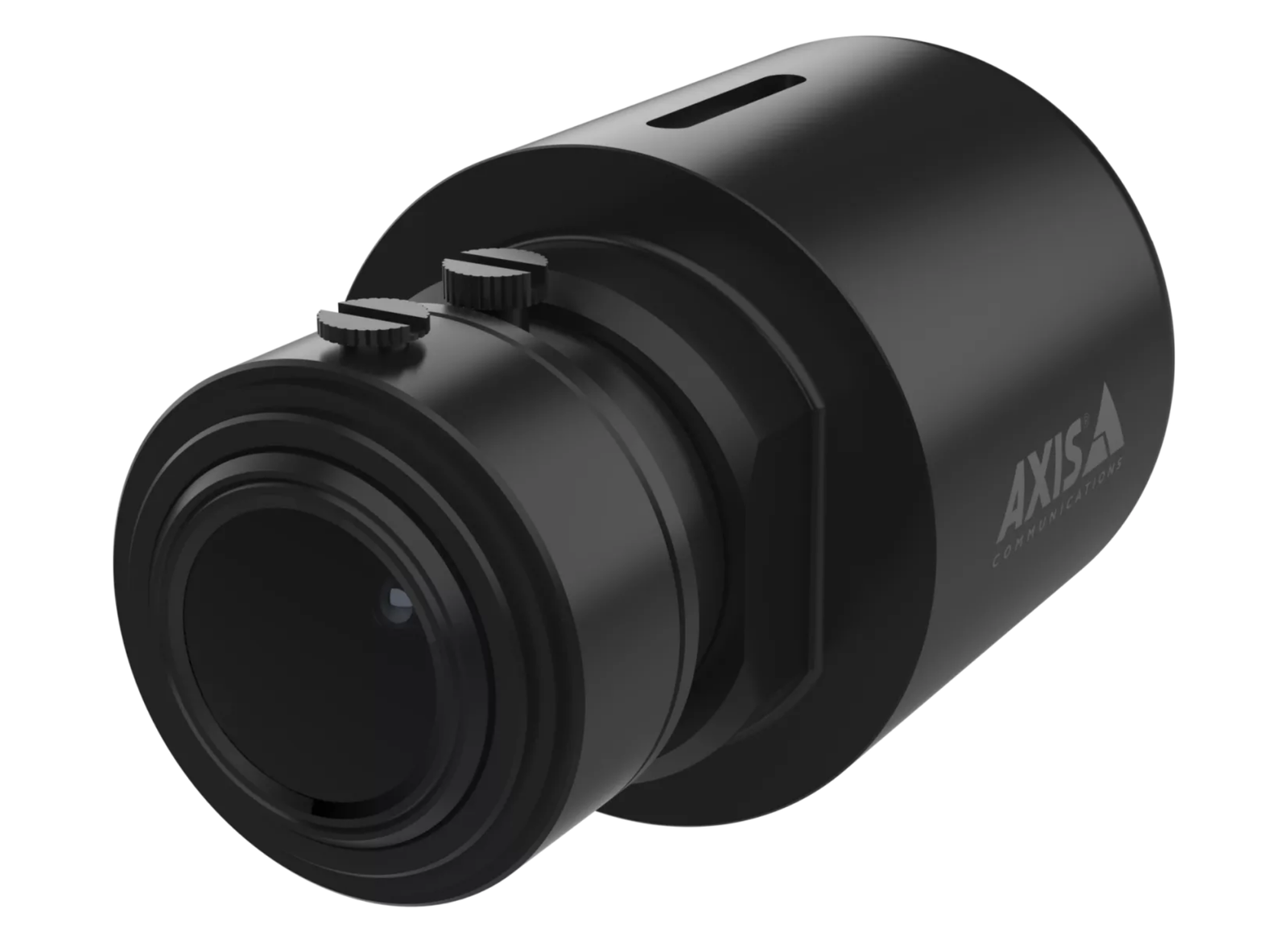

AXIS F2115-R is designed for use with main units and cables from Axis F modular Camera Series. This sensor unit offers up to 1080p at 60 fps, 107°-56° horizontal field of view, and good low-light performance in color.
Multi-purpose
Ideal for indoor installation, in ATMs, vending machines, buses, and emergency vehicles, this varifocal sensor uses cables from Axis with SMA-FAKRA connectors to withstand vibrations and ensure a ruggedized installation. It can be installed practically anywhere- in tight spaces, behind glass, metal, or even plastic sheeting.
High-quality video usability
This varifocal sensor delivers high-quality video even in challenging and low light conditions. With a 107°-56° horizontal field of view, it’s perfect when you need to monitor a specific area of interest with great details for identification purposes. Thanks to barrel distortion correction, you get a undistorted field of view to ensure precise visual data. It supports HDTV 1080p at 60 fps or 720p at 30 fps on 4-channels. It also supports 720p at 180 fps with AXIS F9111 Main Unit. Forensic WDR provides clarity when there’s both dark and light areas in the scene.
Flexible and discreet
AXIS F2115-R offers discreet installation with only the small sensor visible externally. Based on a divided network camera concept, this varifocal sensor connects to the main unit using a ruggedized SMA-FAKRA connector. Cable type and length (up to 30 m/ 98 ft) are chosen based on your specific needs. Furthermore, there’s a variety of accessories available for mounting options and for flexible installation.
| Image sensor | CMOS | Min illumination / light sensitivity (Color) | 0.1 lux |
| Min illumination / light sensitivity (B/W) | - | Thermal sensitivity (NETD) | - |
| Thermal sensor resolution | - | Lightfinder | - |
| Wide dynamic range | - | Max video resolution | 1920x1080 |
| Max frames per second | 180 | Day and Night functionality | – |
| Focal length | 3.2 - 5.7 mm | Varifocal lens | Yes |
| Horizontal field of view | 107.4 - 56.3 ° | Vertical field of view | 57.3 - 31.5 ° |
| Lens mount | M12 | Replaceable lens | – |
| Built-in IR | – | Operating temperature | -40 to 60 °C |
| Outdoor Ready | – | IP rating | IP5X |
| Vandal rating | - | Cable entry | Back: SMA connector |
| Designed for repaint | – | Casing material | Aluminum |
| Power (max) | 4.00 W | Power (average) | 1.00 W |
| Description | Downloads |
|---|---|
| Datasheet | Download |
