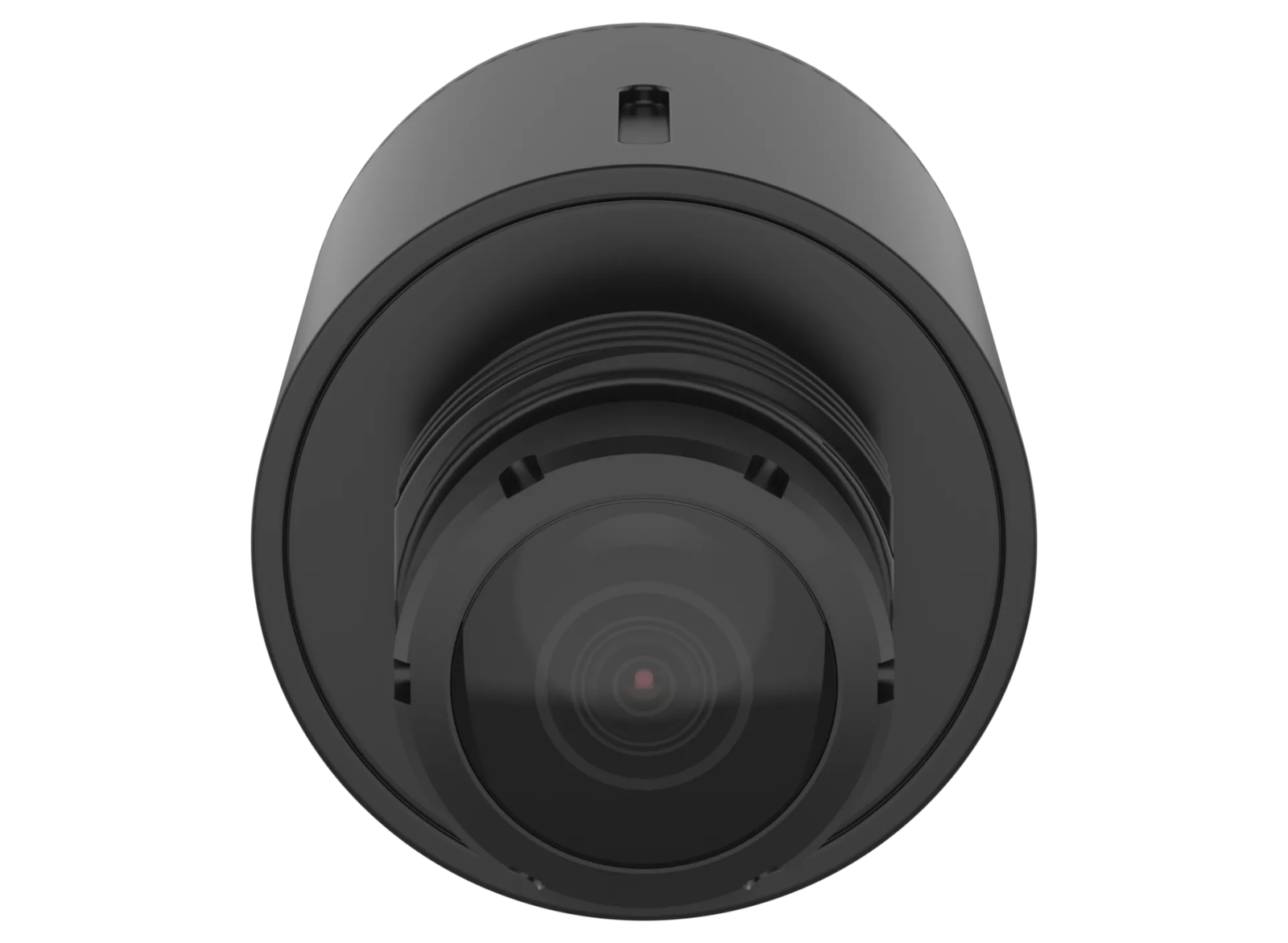

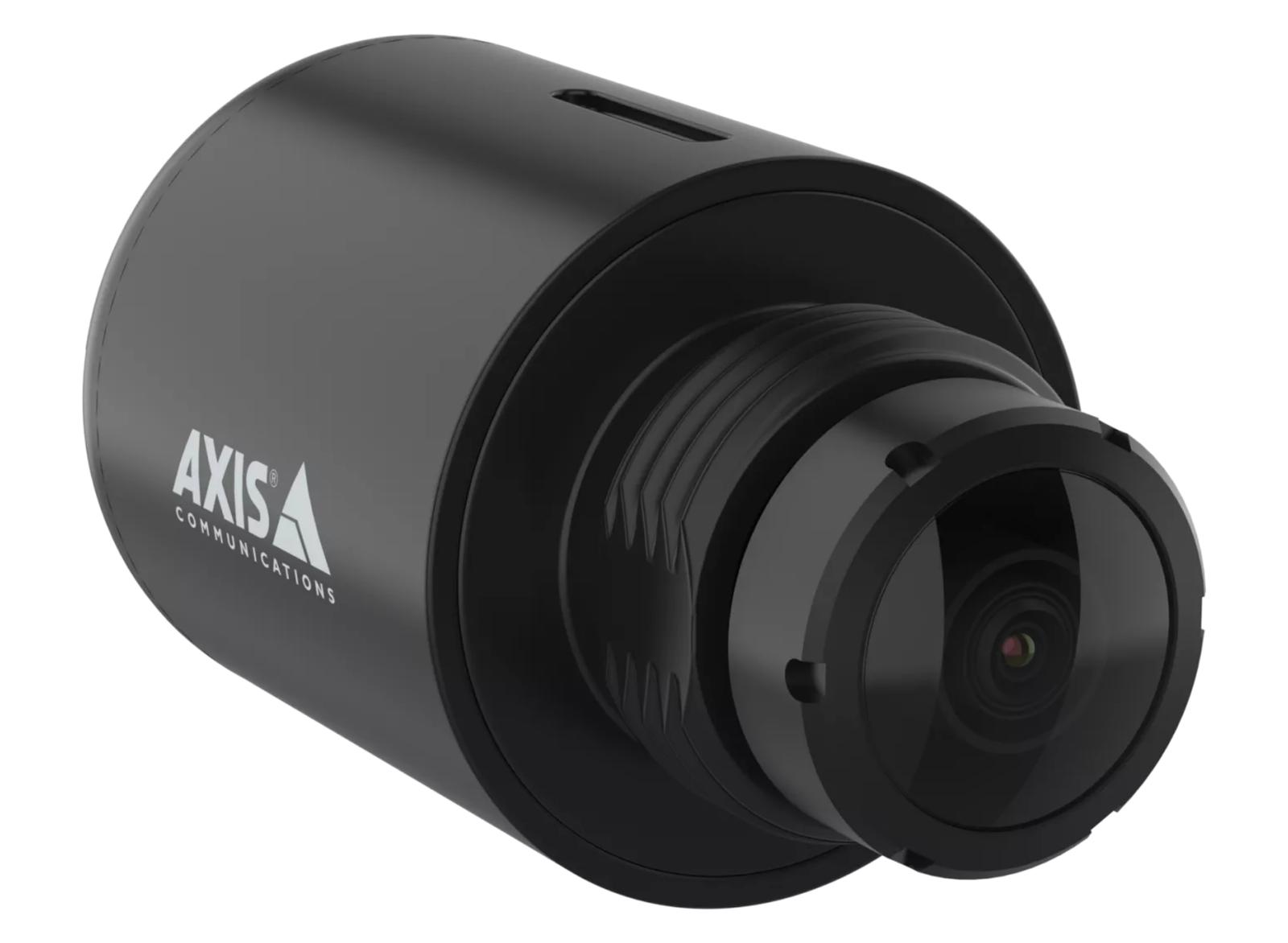

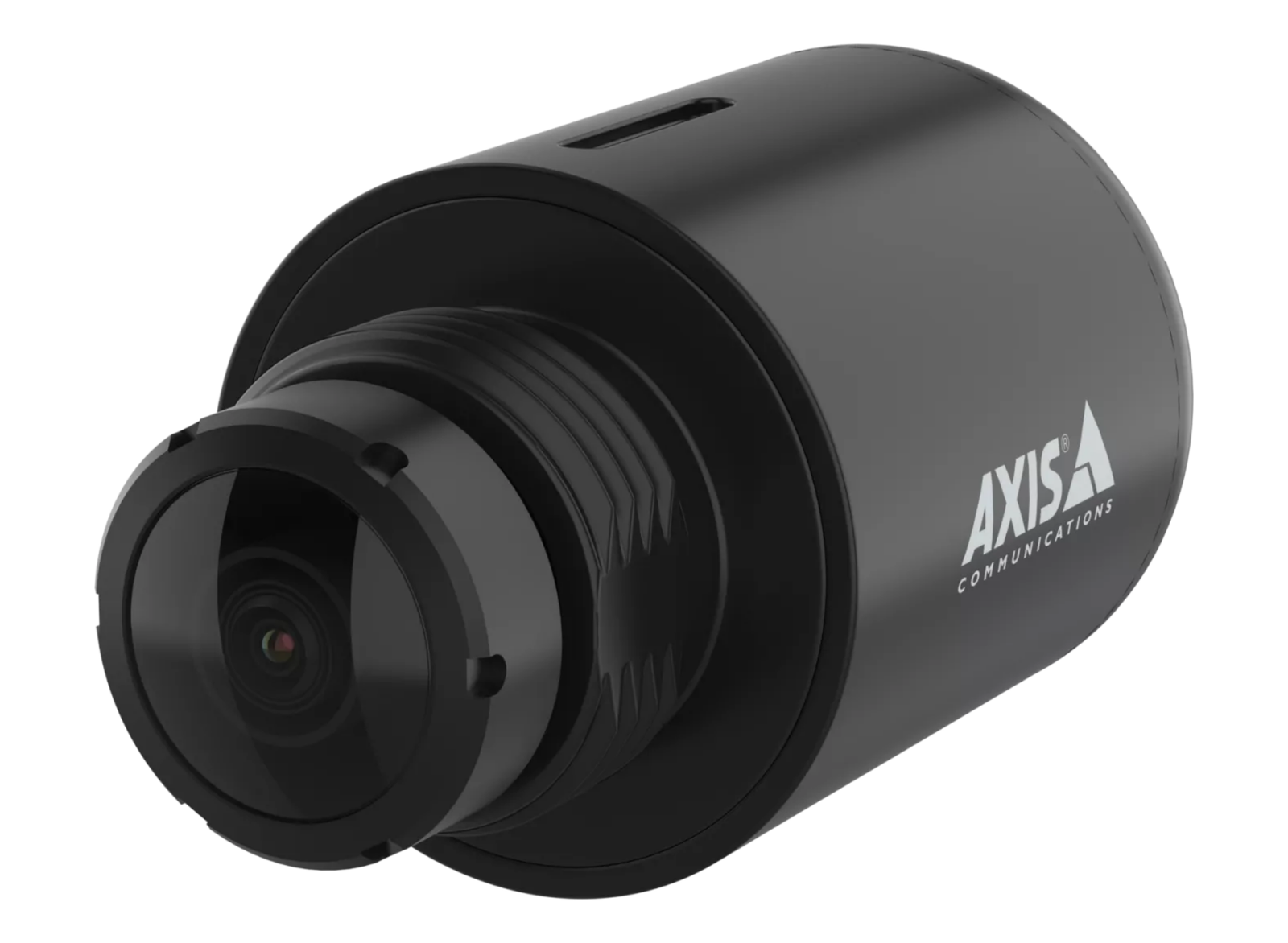

Ideal for both indoor and outdoor installations, this sensor unit offers high-quality 5 MP video, excellent 185° field of view, and good performance in low-light conditions. Rugged SMA connectors ensure a tight connection.
High image quality
This fisheye sensor delivers high-quality 5 MP video even in challenging and low-light conditions. With a 185° horizontal field of view, it’s perfect when you need wide-area coverage with great details in both indoor and outdoor environments. When used with AXIS F91 main units, it supports Forensic WDR to ensure clarity when there’s both dark and light areas in the scene. Plus, Lightfinder captures sharp, color images in low light.
Flexible and discreet
This sensor unit delivers 5 MP and a 185° horizontal field of panoramic view. With a small cylinder-shaped form factor, it offers discreet installation. Based on a divided network camera concept, it can be placed away from the main unit. And thanks to its small size, it’s ideal for installation in tight spaces, for instance, in ATMs and industrial machines. Designed to work with AXIS F91 main units, it can be combined with up to three other sensor units for maximum flexibility. It’s compatible with the same accessories as other AXIS F2135-RE Sensor to simplify procurement, installation, and upgrade. Furthermore, when maintenance or upgrade is needed, the cable can be left in place. So, you can quickly remove the sensor unit and update or replace it as needed.
Ruggedized fisheye sensor
This IP66-/IP67-/IP6K9K-rated device can withstand temperatures as low as -40 °C and as high as 60°C (-40 °F to 140 °F). And, thanks to its rugged design, this fisheye sensor unit can withstand shock and vibration making it ideal for installation, for instance, in vehicles and industrial machines. It features SMA connectors to ensure a tight connection between the sensor and the cable. Plus, the cable itself features a SMA-FAKRA connector to further ensure ruggedized installation.
| Image Sensor | CMOS | Min Illumination / Light Sensitivity (Color) | 0.25 lux |
| Min Illumination / Light Sensitivity (B/W) | - | Thermal Sensitivity (NETD) | - |
| Thermal Sensor Resolution | - | Lightfinder | - |
| Wide Dynamic Range | WDR | Max Video Resolution | 2592x1944 |
| Max Frames Per Second | 50/60 | Day and Night Functionality | – |
| Focal Length | 1.98 mm | Varifocal Lens | No |
| Horizontal Field of View | 185° | Vertical Field of View | 125° |
| Lens Mount | M12 | Replaceable Lens | – |
| Built-in IR | – | Operating Temperature | -40 to 60°C |
| Outdoor Ready | Yes | IP Rating | IP66, IP67, IP6K9K |
| Vandal Rating | - | Cable Entry | Back: SMA Connector |
| Designed for Repaint | – | Casing Material | Aluminum |
| Power (Max) | - | Power (Average) | - |
| Description | Downloads |
|---|---|
| Datasheet | Download |
