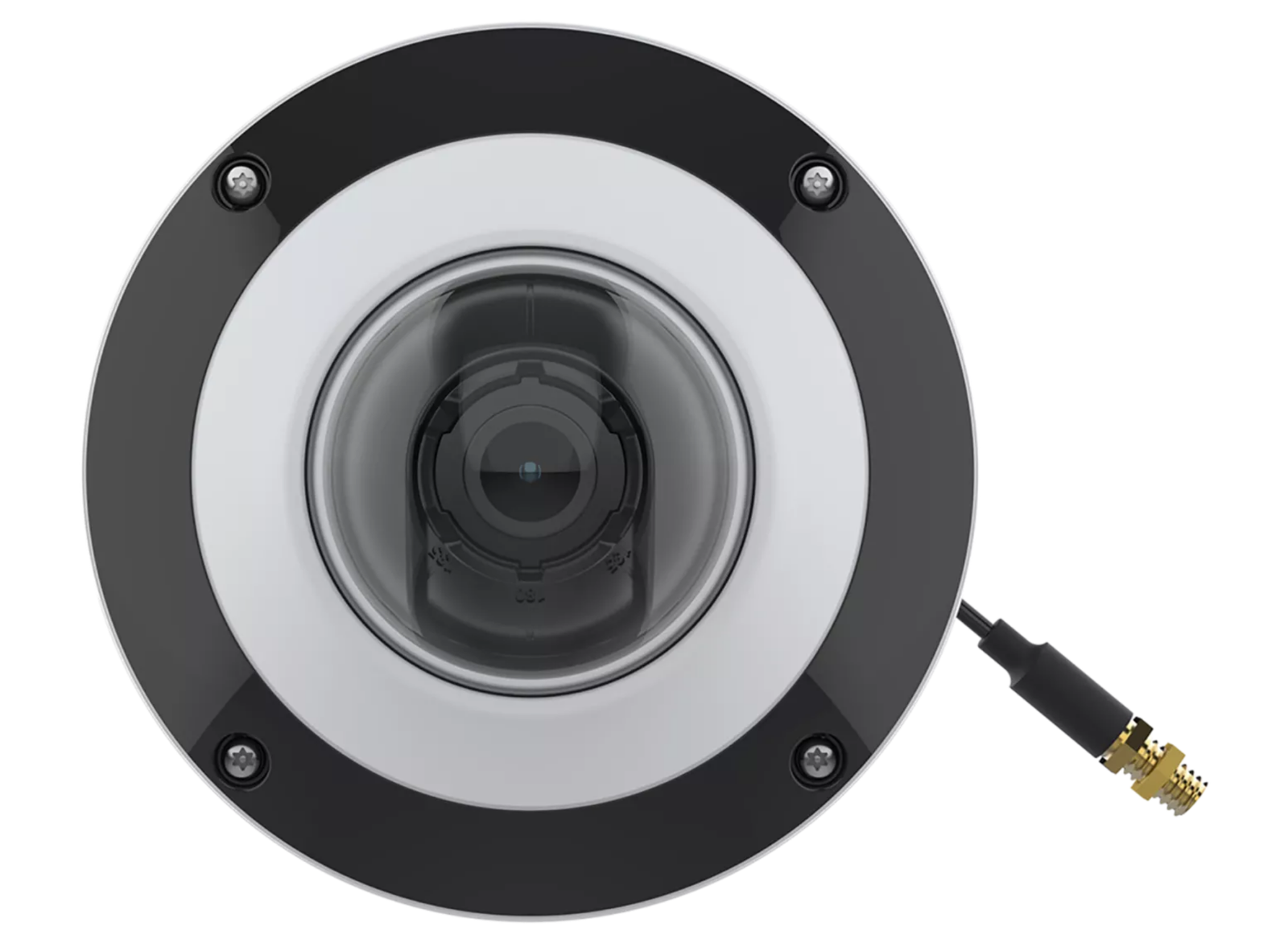

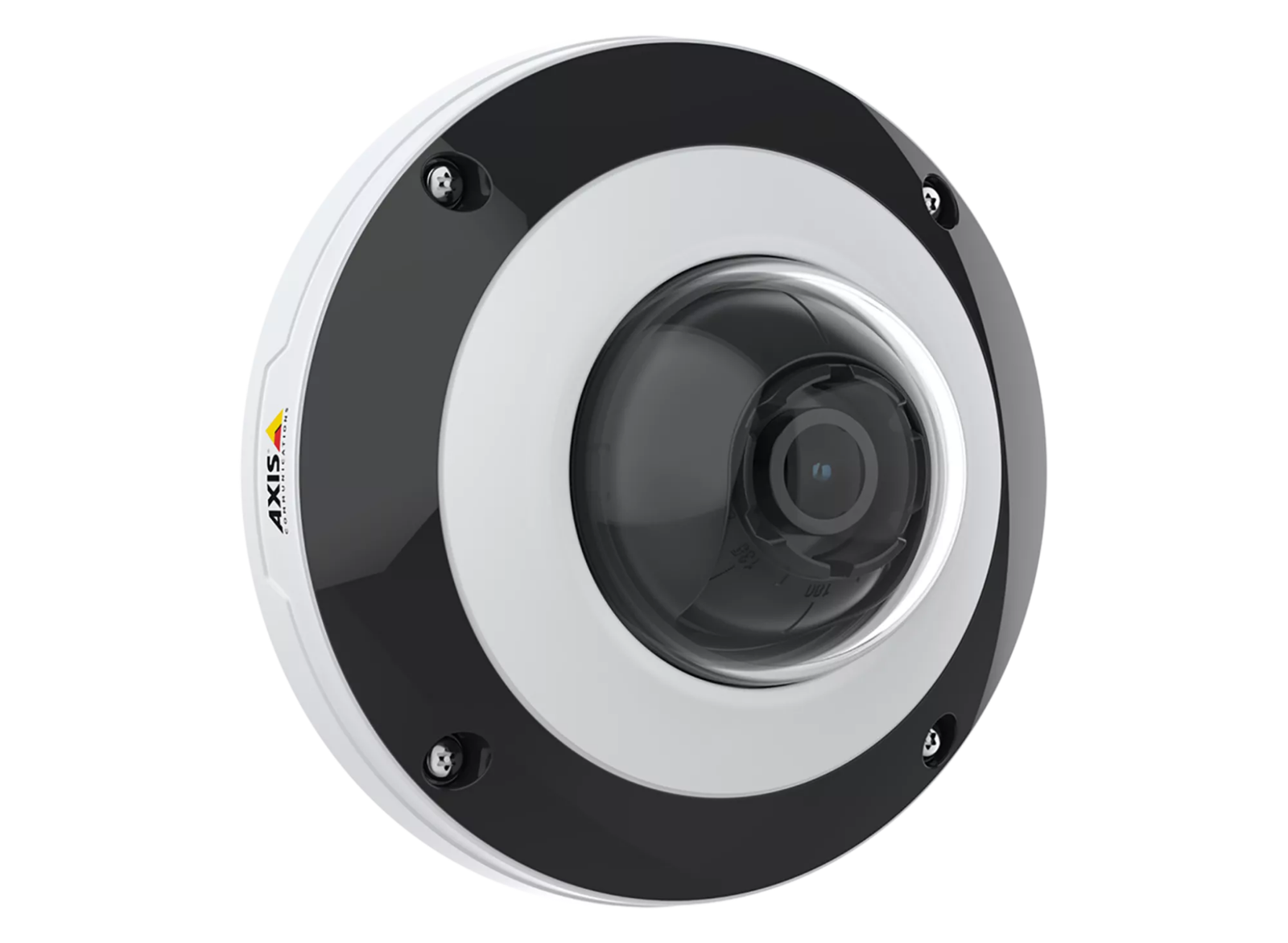

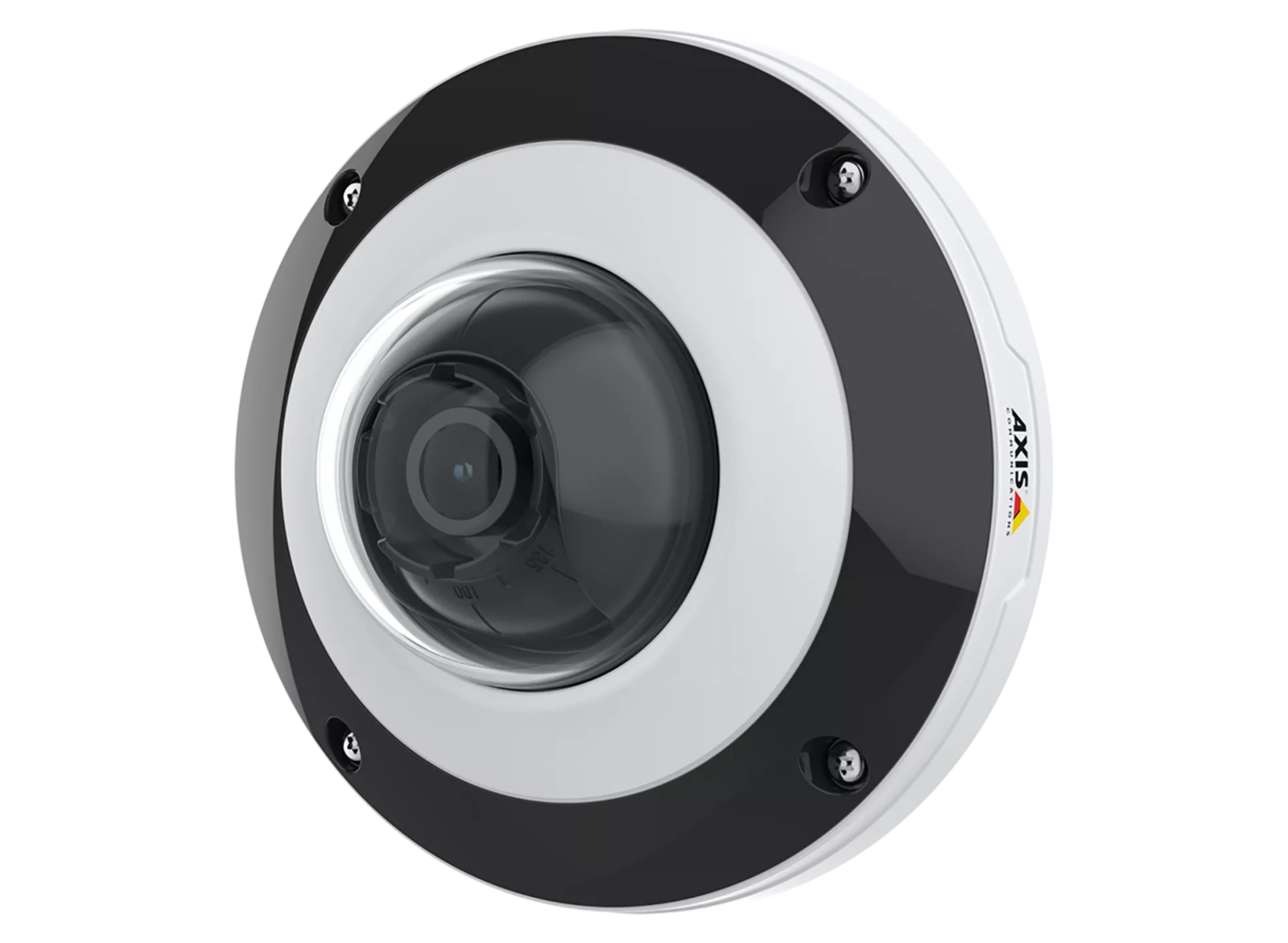

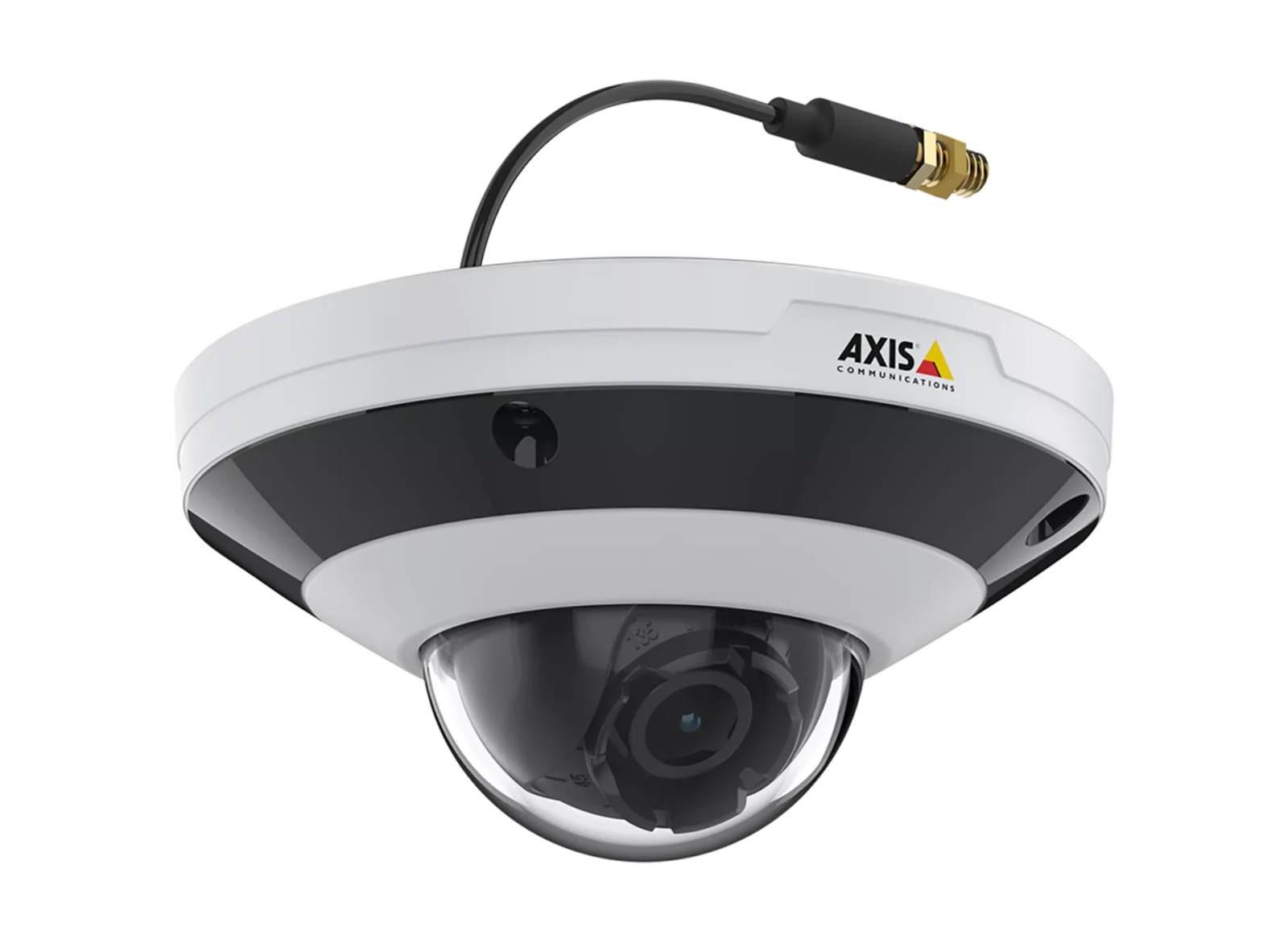

Axis F4105-LRE Rugged IR Dome Sensor for Surveillance

Discreet Wide-Angle IR Surveillance for Indoor and Outdoor Use

This ruggedized and discreet mini-dome sensor makes it an ideal solution for retail stores or offices. Designed to withstand shock and vibrations, it’s also a great fit for surveillance onboard buses.

Discreet and cost-effective
AXIS F4105-LRE allows for discreet surveillance. Based on a divided network camera concept, it’s designed for use with AXIS F91 main units to ensure maximum flexibility with lower installation and configuration costs compared to traditional dome cameras. It connects to the main unit using cables up to 30 m (98 ft). You can connect four sensors to the same main unit and thanks to the longer cable it’s possible to spread out the sensors to cover a large area. Designed to work with any AXIS F91 main unit, regardless of whether it’s singular or 4-channel model, this cost-effective solution requires just one VMS license and one switch port.

Multi-purpose
Designed for both indoor and outdoor use, AXIS F4105-LRE can operate in temperatures from -30 to 55 °C (-30 to 131 °F). It offers flexible installation and supports a wide range of exchangeable M12 lens options so you can adapt the field of view to the monitored scene and objects of interest. This robust camera is designed to withstand shock and vibrations making it suitable for environments with high vibrations. For instance, it includes SMA connectors to ensure ruggedized installations. Furthermore, this IP6K9K-rated camera is resistant to hot pressure water so it can be used in hospitals, and other similar environments.

High video usability
AXIS F4105-LRE delivers great image usability under any light conditions. It supports four HDTV 1080p video streams at 30 fps or 720p video streams at up to 60 fps. Thanks to barrel distortion correction, you get a undistorted field of view to ensure precise visual data. When used with AXIS F9111, it delivers HDTV 1080p video streams at 60 fps or 720p video streams at up to 180 fps. In addition, when connected to an AXIS F91 main unit, it supports Forensic WDR  to provide clarity when there’s both dark and light areas in the scene. It offers an excellent 111º field of view for wide area coverage. And thanks to IR illumination it allows for surveillance in complete darkness without the need for extra lighting.
