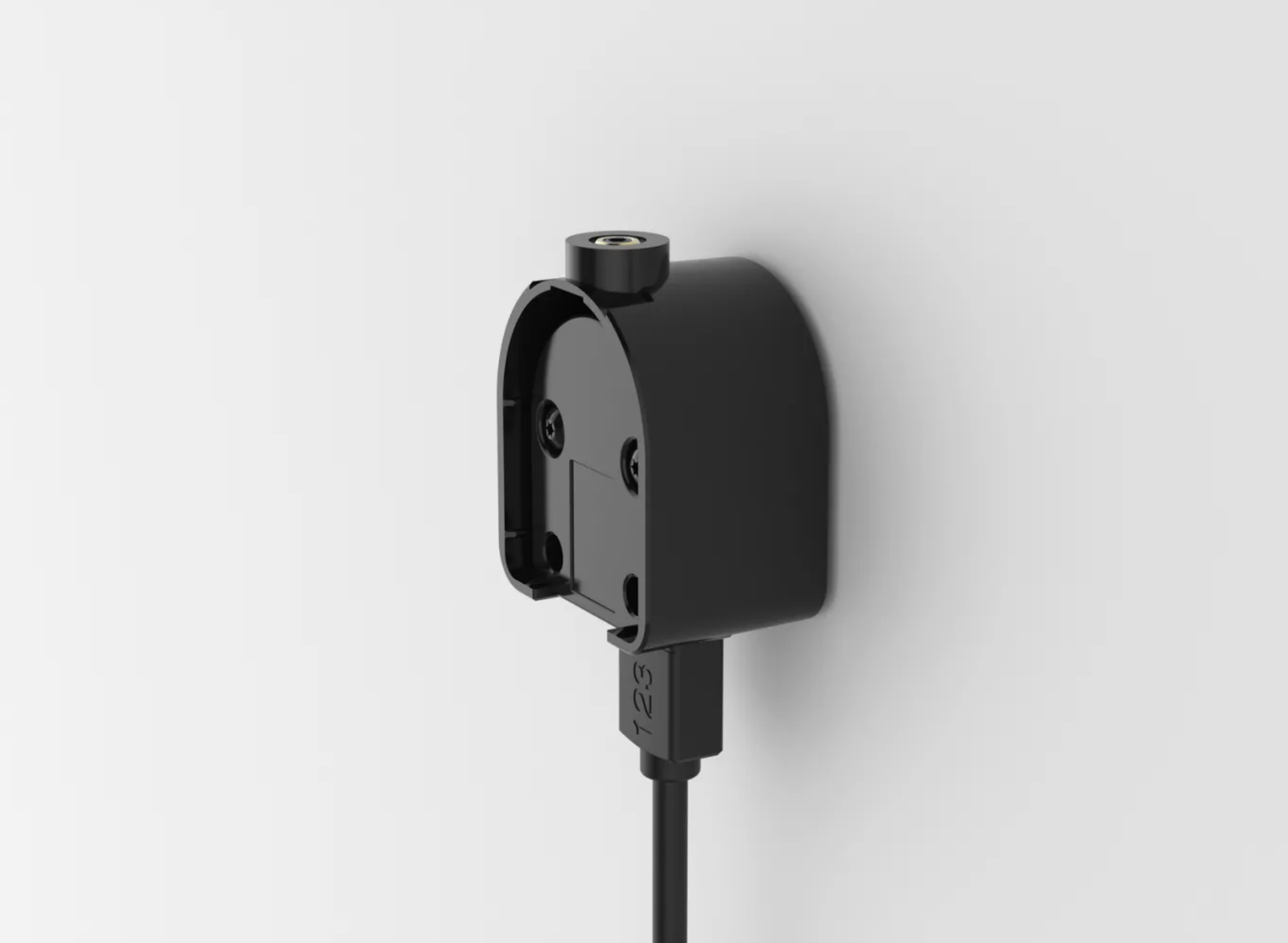

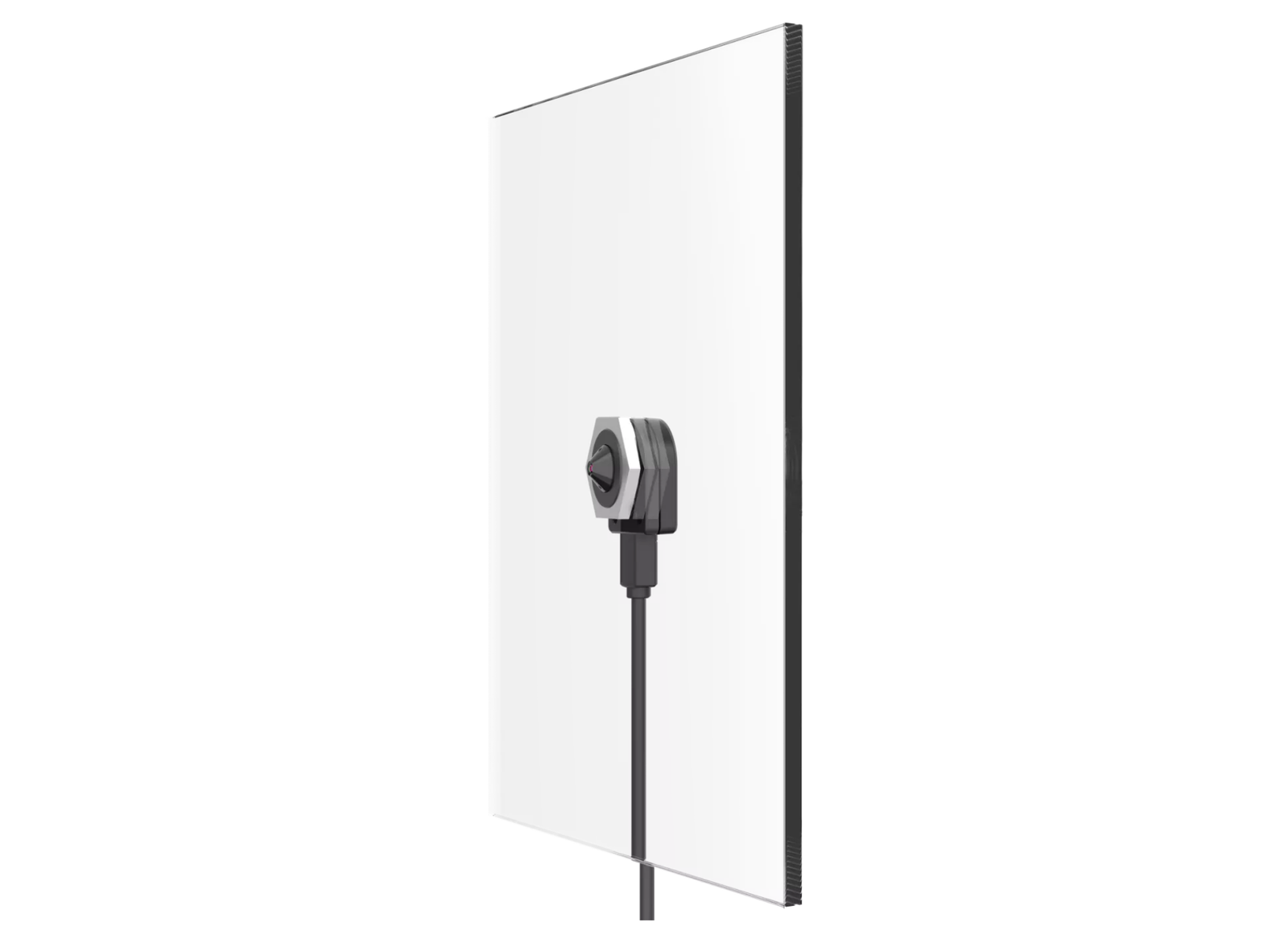

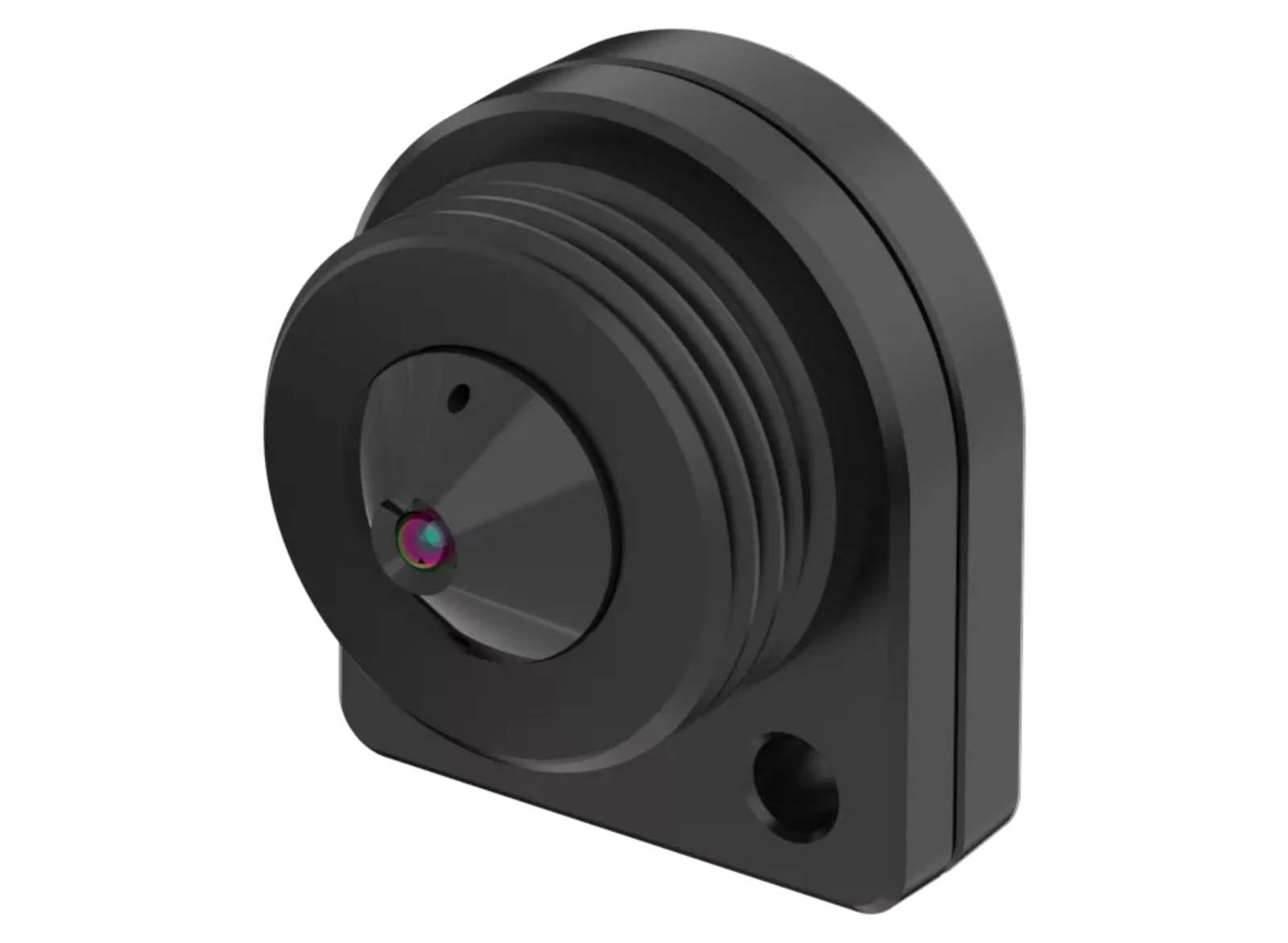

AXIS FA1125 Sensor Unit has a pinhole lens for extremely discreet surveillance. You can install it indoors—in a wall, doorway, ceiling, metal panel, or any tight places such as in a machine. It virtually disappears from view, with only a small pin hole visible externally.
Extremely discreet
Installed at eye level at entrances or exits of retail stores or banks, it’s ideal for capturing perfect face shots—even when a person is wearing a hat or hood. It’s also perfect for highly discreet installation in an ATM (automated teller machine) or vending machine. For use with the separately sold AXIS FA54 Main Unit, AXIS FA1125 provides a 1080p resolution and a 91º horizontal field of view.
Excellent details
AXIS FA1125 supports Forensic WDR at all times, enabling details to be visible even in high-contrast lighting conditions, such as in a backlight scenario where you have a person standing in front of a very bright background. The sensor unit, together with the main unit, prioritizes the darker areas of such a scene, enabling colors and details to be clearly visible. The WDR technology in AXIS FA Series is also optimized for motion, so there is no motion artifact when a fast-moving object passes by. In low light scenes, AXIS FA1125 delivers excellent color video with low noise.
Flexible modular concept

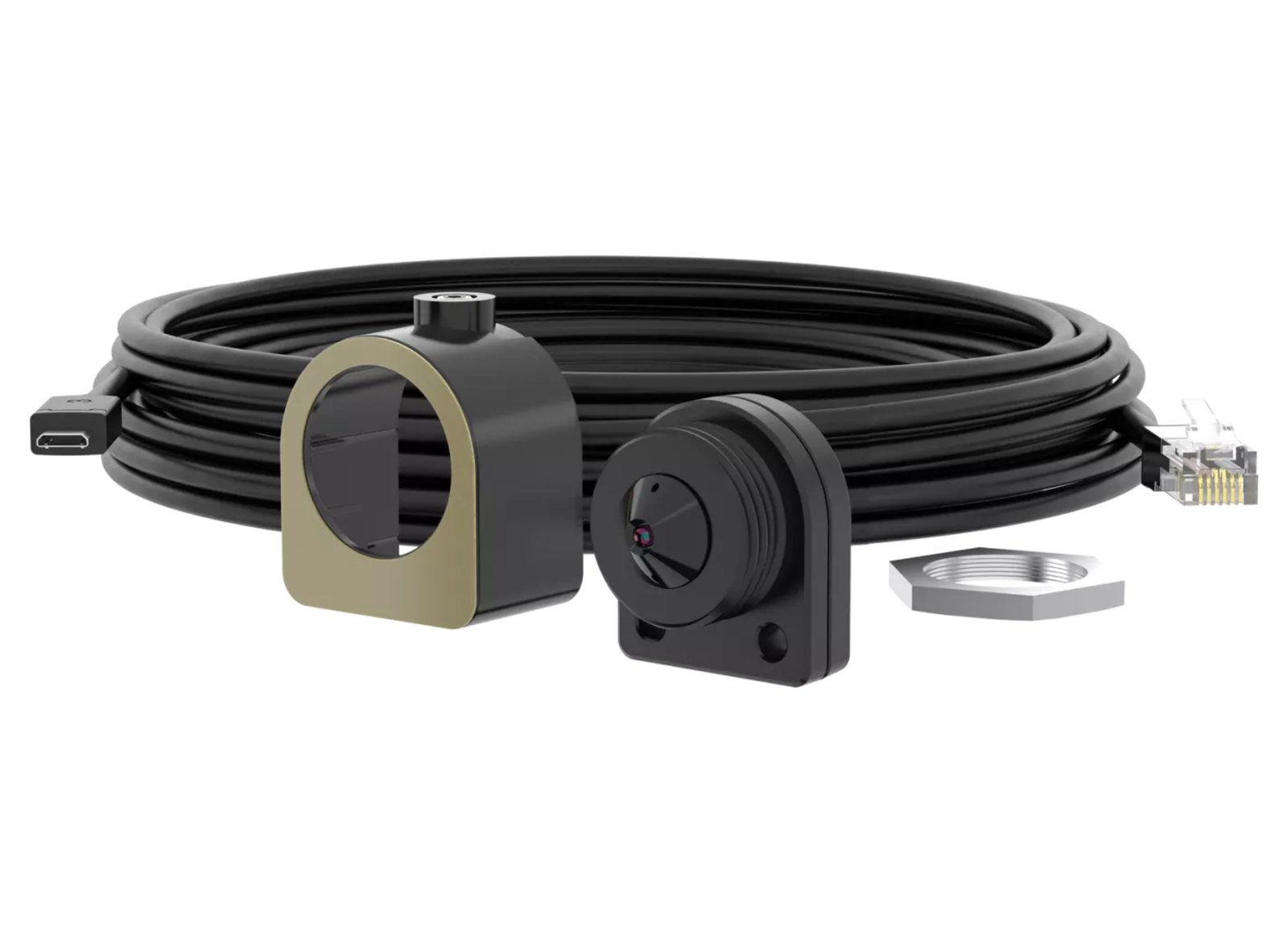

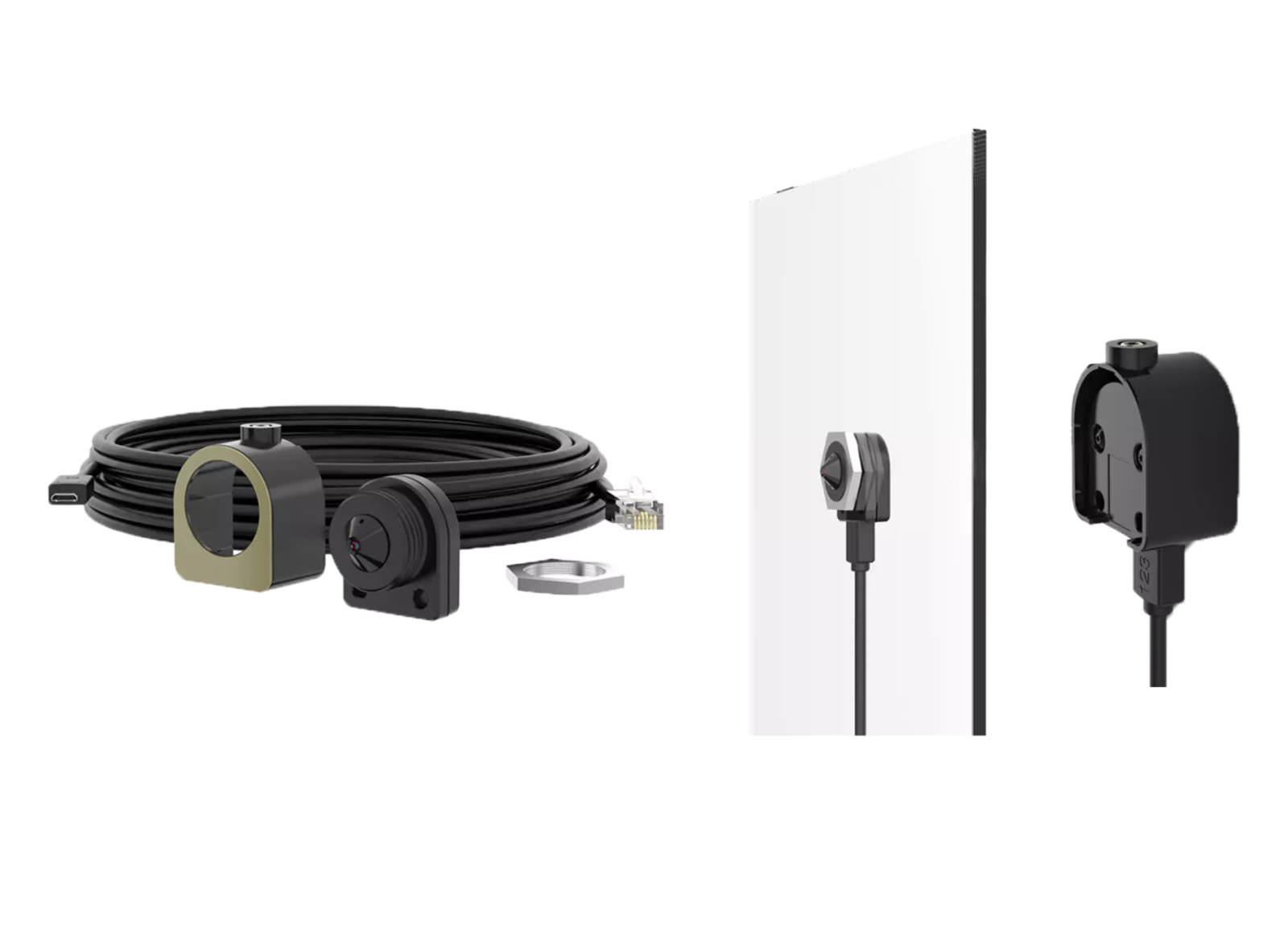

AXIS FA1125 is part of the AXIS FA Series, which is based on a divided network camera concept, where the camera is split into a sensor unit (made up of a lens and image sensor) and a main unit (the body of a camera), and are connected together by a cable. The flexible design allows the small sensor unit to be installed in tight places or wherever it is needed, and the main unit to be placed where there is space.
| Image Sensor | CMOS | Min Illumination / Light Sensitivity (Color) | 0.25 lux |
| Min Illumination / Light Sensitivity (B/W) | - | Thermal Sensitivity (NETD) | - |
| Thermal Sensor Resolution | - | Lightfinder | - |
| Wide Dynamic Range | Forensic WDR | Max Video Resolution | 1920x1080 |
| Max Frames Per Second | 25/30 | Day and Night Functionality | – |
| Focal Length | 3.7 mm | Varifocal Lens | No |
| Horizontal Field of View | 91° | Vertical Field of View | 45° |
| Lens Mount | M12 | Replaceable Lens | Yes |
| Built-in IR | – | Operating Temperature | -20 to 50 °C |
| Outdoor Ready | – | IP Rating | - |
| Vandal Rating | - | Cable Entry | - |
| Designed for Repaint | – | Casing Material | Aluminum, Plastic |
| Power (Max) | - | Power (Average) | - |
| Description | Downloads |
|---|---|
| Datasheet | Download |
