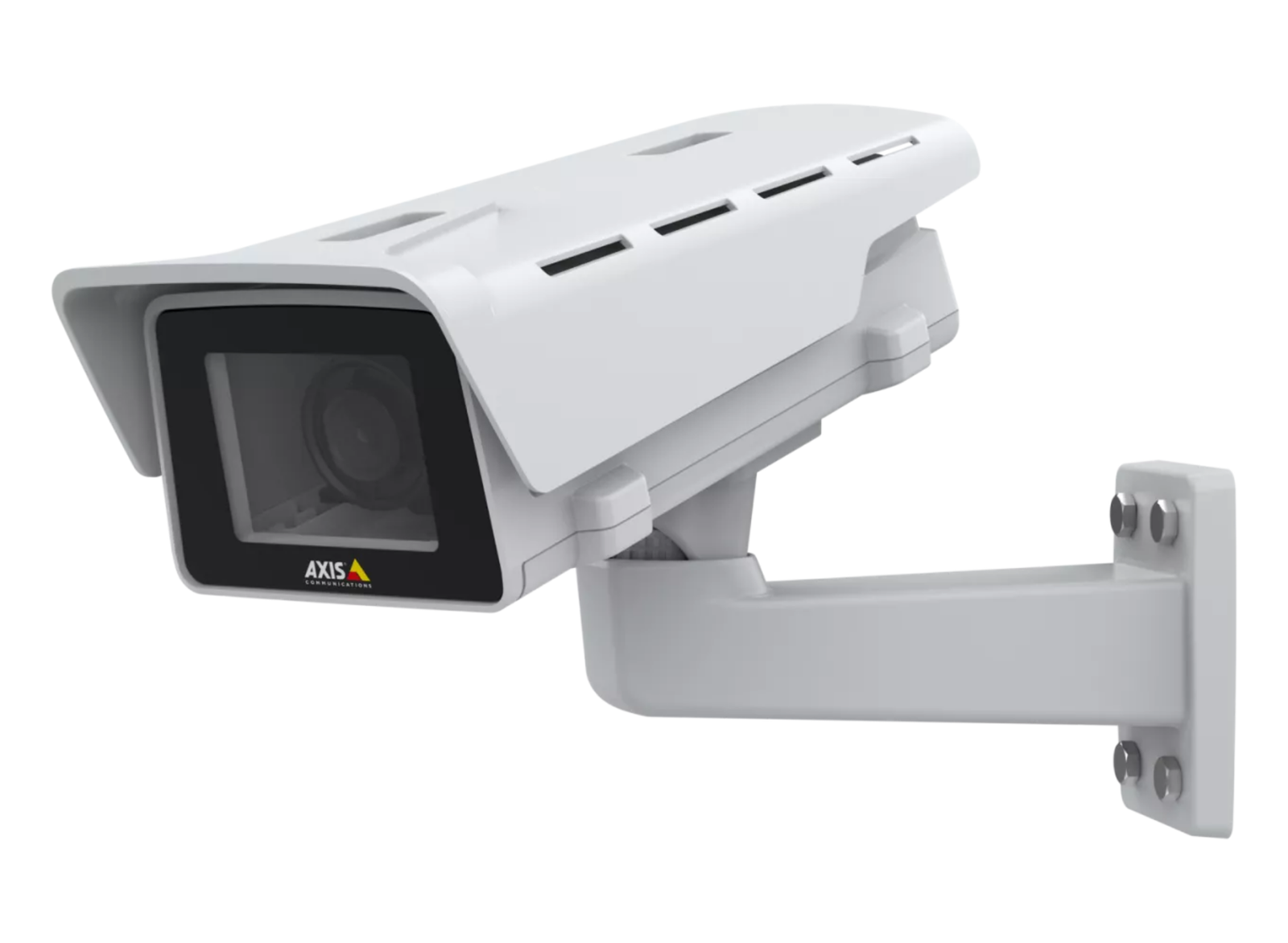

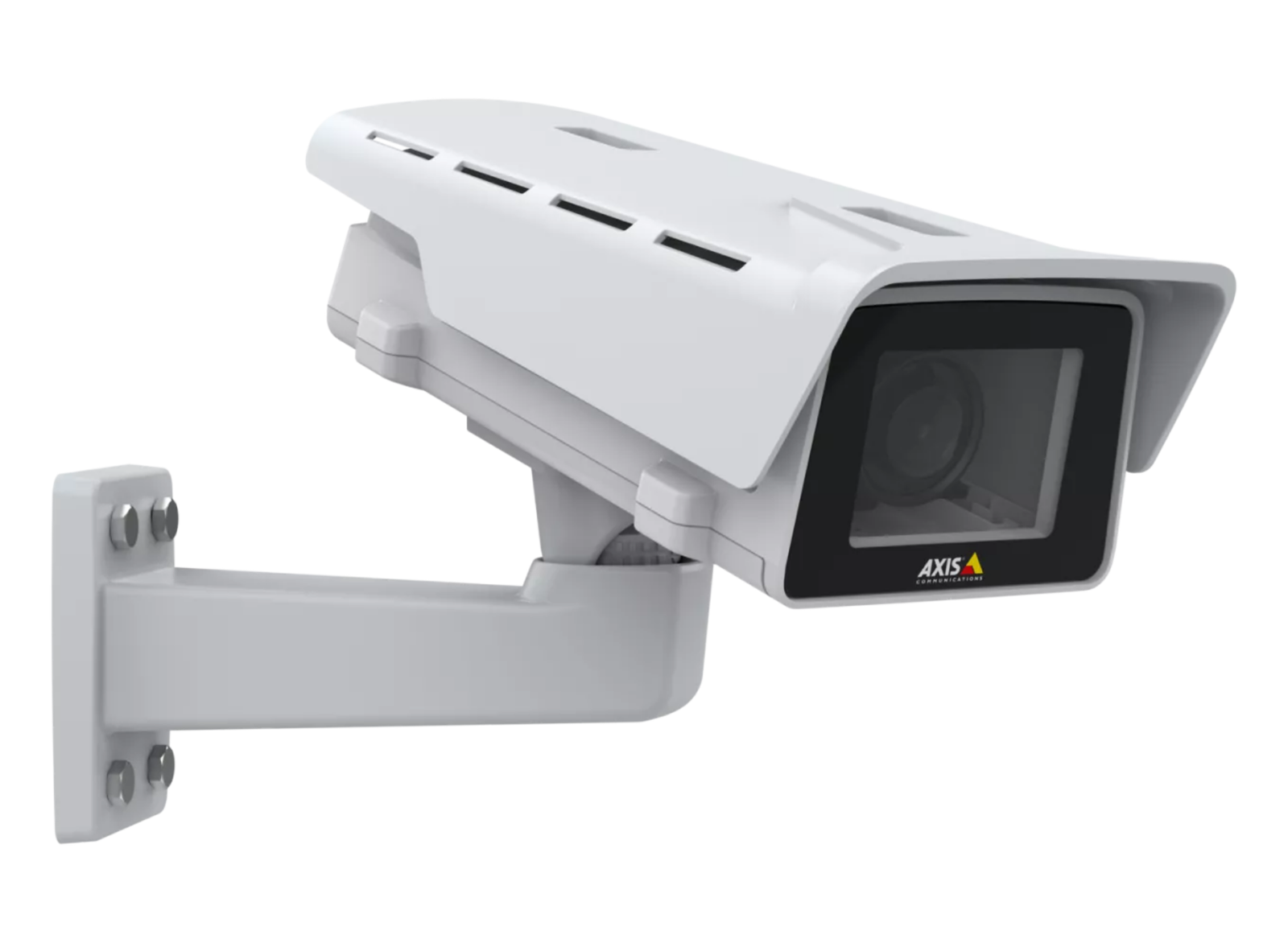

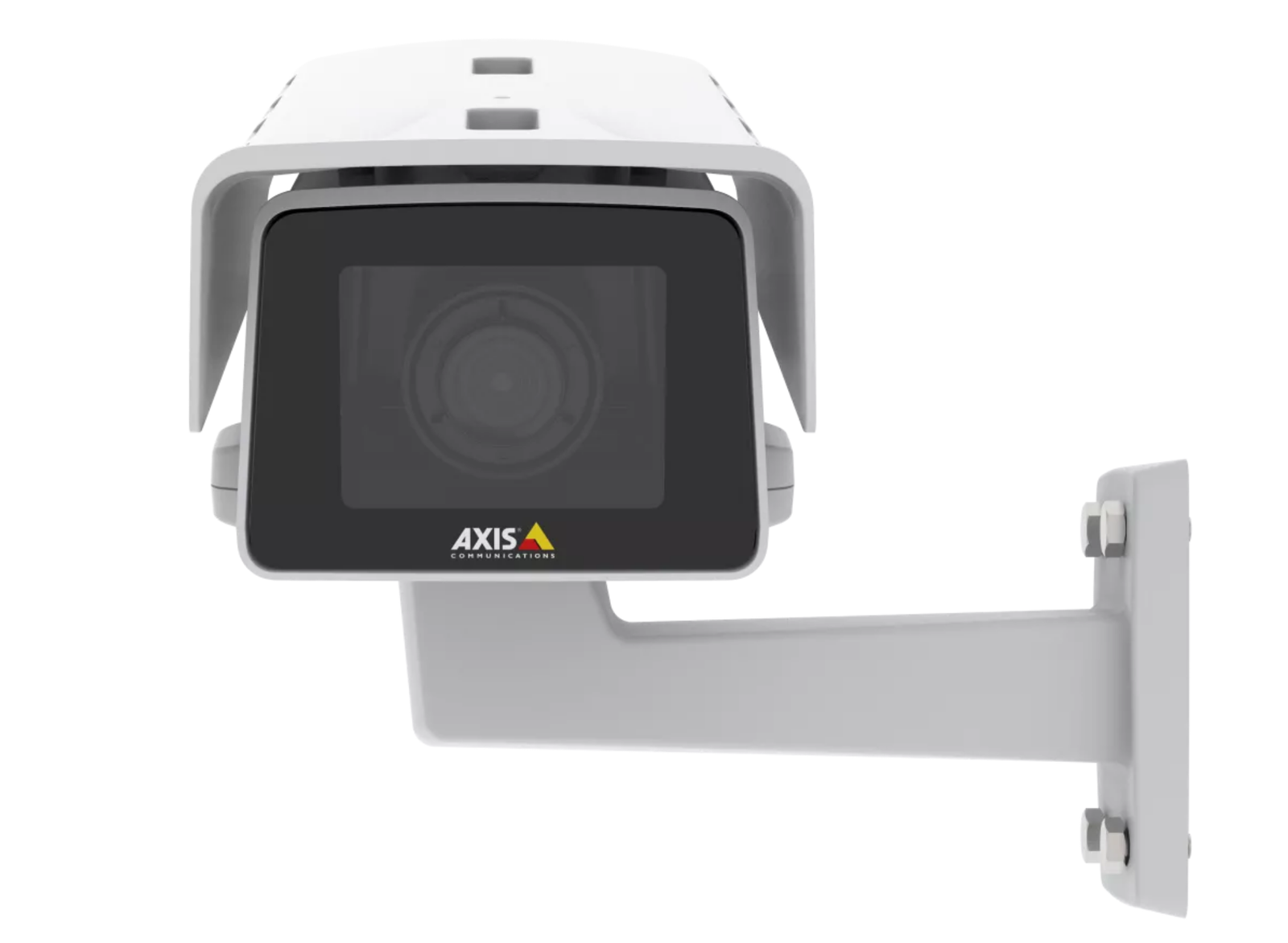

This compact, outdoor-ready box camera delivers 5 MP resolution with superb image quality even in low light conditions. Designed as a visible deterrent, it helps discourage trespassing and other unwanted activities.
More bang for your buck
This affordable Axis M-line camera offers audio input allowing you to record video with sound. Thanks to support for PoE and redundant DC power, you get flexible installation, and your data is safeguarded in the event of a power outage. It includes signed firmware and secure boot to ensure only authorized firmware is installed and that the firmware hasn’t been compromised. And, Axis Zipstream with support for H.264/H.265 significantly reduces bandwidth and storage requirements. Furthermore, it comes with AXIS Object Analytics preinstalled, so you can detect and classify humans and vehicles.
Great image quality even in low light
With 5 MP resolution at up to 30 fps, AXIS M1137-E Mk II delivers superb video quality even in low light conditions. Featuring Axis Lightfinder it offers images in true colors even in low light. And, with Axis Forensic WDR you get clarity even when there’s both dark and light areas in the scene. Ideal for various surveillance situations, it includes a CS-mount with support for motorized i-CS lenses, enabling remote zoom. Use our lens calculator to select a lens that meets your specific requirements.
Designed for deterrence
This outdoor-ready camera comes enclosed in an IP66-, IK10- and NEMA 4X-rated casing to protect against water, corrosion, dust, and impacts. Designed to act as a deterrent, it lets potential offenders know you’re watching and helps prevent unwanted activities. Furthermore, AXIS M1137-E Mk II provides a clearly visible, fixed angle of view, making it easy to see exactly where the camera’s pointing and allowing you to record both audio and video in a precisely defined area. And, thanks to edge-to-edge technology it can be connected to Axis speakers, such as an Axis horn speaker.
| Image sensor | CMOS | Image sensor size | 1/2.7" |
| Lightfinder | Lightfinder | Wide dynamic range | Forensic WDR |
| Min illumination / light sensitivity (Color) * | 0.17 / 0.19 lux | Min illumination / light sensitivity (B/W) * | 0.03 / 0.04 lux |
| Max video resolution | 2592x1944 | Max frames per second | 30 |
| Electronic image stabilization | – | Focal length * | 2.8 - 13 / 3.5 - 10 mm |
| Horizontal field of view * | 112-24 / 99-31 ° | Vertical field of view * | 82-19 / 71-24 ° |
| Lens mount | CS | Replaceable lens | Yes |
| Zipstream | Yes | H.264 | Baseline, High, Main |
| H.265 | Yes | AV1 | – |
| Audio Support | Yes | PoE Class | 3 |
| Wireless | – | Signed OS | Yes |
| Secure boot | Yes | Secure keystore | Secure Element (CC EAL6+) |
| Remote focus | – | Remote zoom | – |
| Built-in IR | – | Local storage (memory card slot) | Yes |
| Operating temperature | -20 to 50 °C | Outdoor Ready | Yes |
| Vandal rating | IK10 | IP rating | IP66 |
| Designed for repaint | Yes | Sustainability | PVC free |
| Power (max) | 6.6 W | Power (average) | 4.4 W |
| DC input voltage | 10-28 V |
| Description | Downloads |
|---|---|
| Datasheet | Download |
