This cost-effective fixed focal dome delivers excellent image quality under any light conditions. Built on ARTPEC-8, it offers support for advanced analytics based on deep learning on the edge.
High-quality images—every time
Do you need great image quality in any light – or no light at all? AXIS M3216-LVE offers excellent 4 MP resolution and ensures high quality images around the clock and in any light conditions. It features Axis Lightfinder for sharp color images in low light and with Axis Forensic WDR you get clarity even when there’s both dark and light areas in the scene. Plus, Axis OptimizedIR enables surveillance in total darkness up to 30 m (98 ft) or more depending on the scene. Furthermore, Axis Zipstream with support for H.264 and H.265 significantly reduces bandwidth and storage requirements without compromising image quality.
Advanced edge analytics
Built on ARTPEC-8, this high-performance camera includes a deep learning processing unit (DLPU). This enables improved processing and storage capabilities allowing you to collect and analyze even more data than before—on the edge. Plus, it delivers valuable metadata facilitating fast, easy, and efficient forensic search capabilities in live or recorded video. Thanks to AXIS Object Analytics, AXIS M3216-LVE can detect and classify humans, vehicles, and types of vehicles—all tailored to your specific needs. Furthermore, with support for ACAP version 4, you can add value to your system with tailor-made applications based on deep learning on the edge.
Great performance and built-in cybersecurity

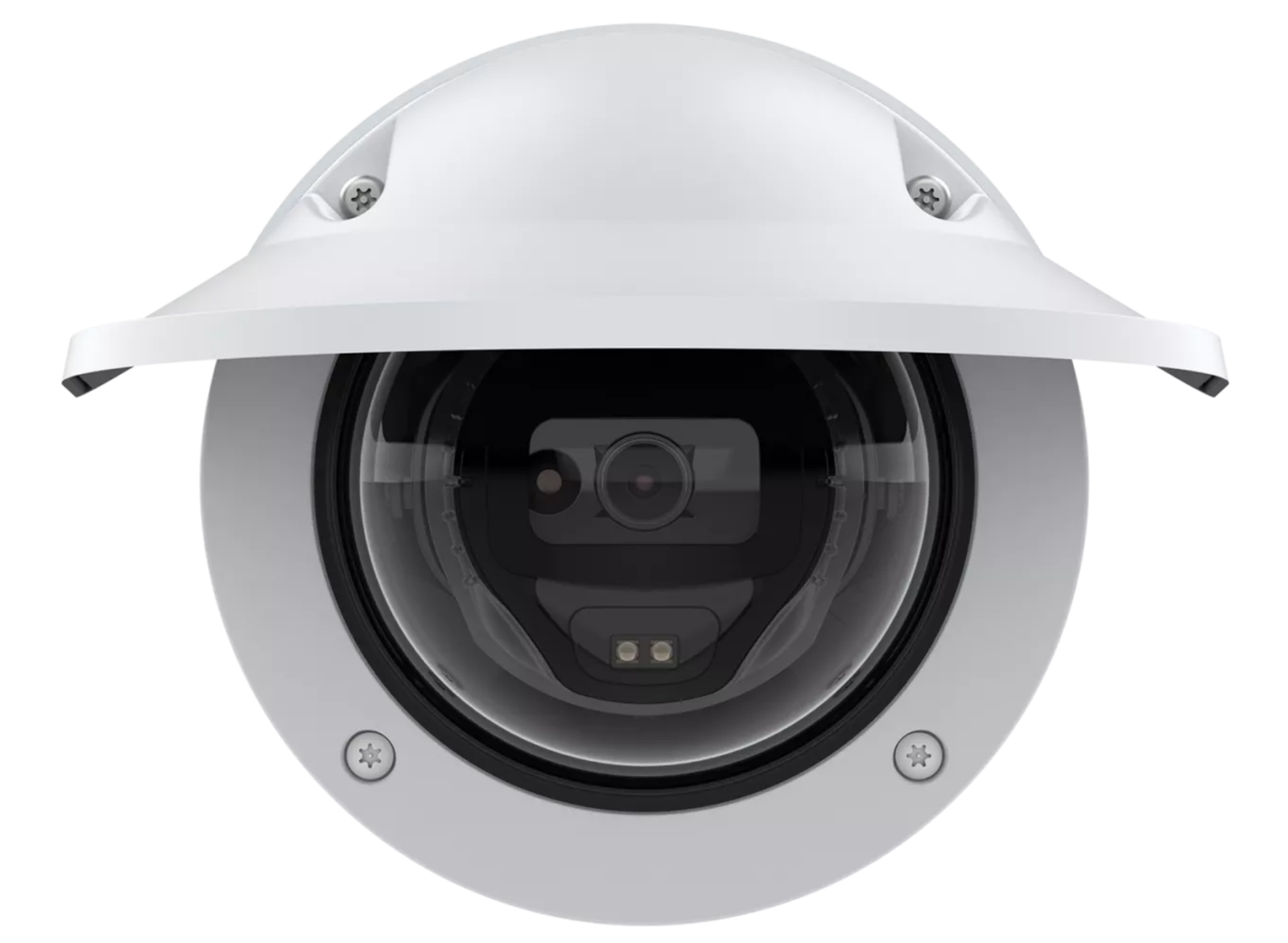

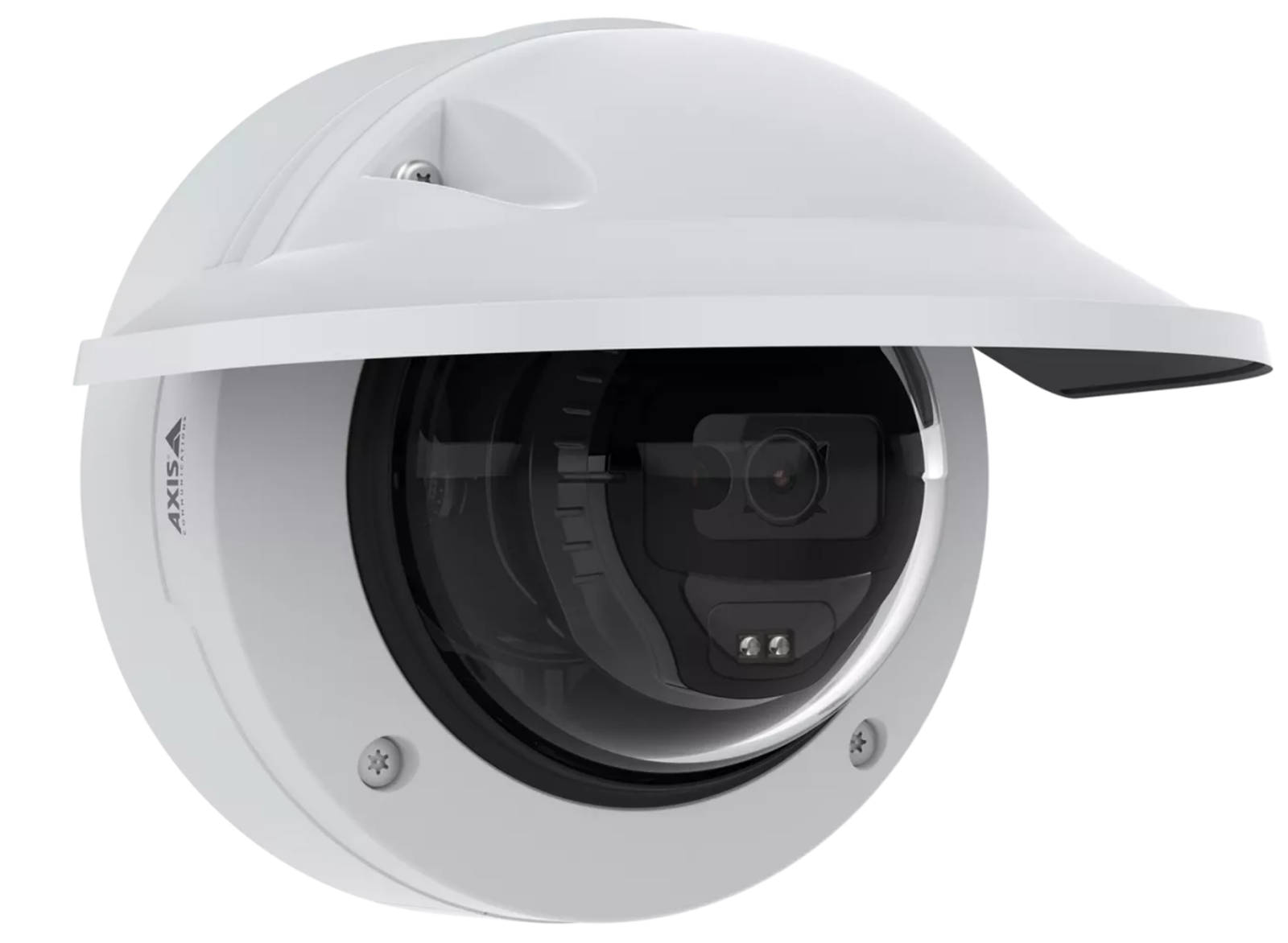

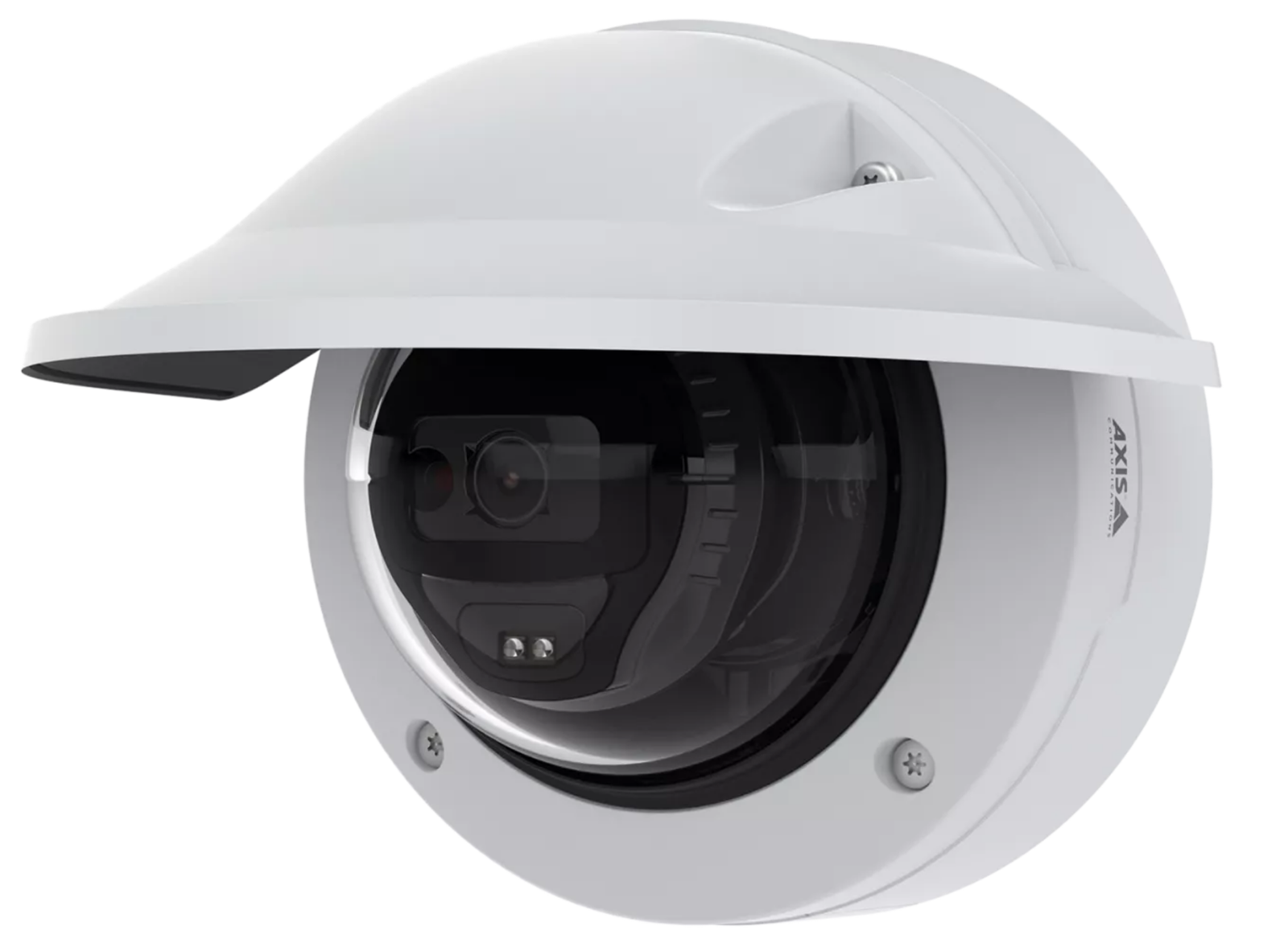

Including a weathershield, this IK10-rated camera offers protection from rain, snow, and sun. It’s easy to install with PoE and comes with a bracket for mounting on walls, ceilings, or junction boxes. With support for audio, you can listen in on what’s happening in the scene and benefit from audio analytics – for example, for detecting aggressive behavior. Furthermore, this high-performance camera is packed with built-in cybersecurity features to prevent unauthorized access and safeguard your system. For instance, Axis Edge Vault protects your Axis device ID and simplifies authorization of Axis devices on your network.
| Image sensor | CMOS | Image sensor size | 1/2.7" |
| Lightfinder | Lightfinder | Wide dynamic range | Forensic WDR |
| Min illumination / light sensitivity (Color) | 0.16 lux | Min illumination / light sensitivity (B/W) | 0 lux |
| Max video resolution | 2688x1512 | Max frames per second | 25/30 |
| Day and Night functionality | Yes | Electronic image stabilization | – |
| Focal length | 2.9 mm | Horizontal field of view | 102 ° |
| Vertical field of view | 73 ° | Remote PTRZ | – |
| Zipstream | Yes | H.264 | Baseline, High, Main |
| H.265 | Yes | AV1 | – |
| Audio Support | Yes | Built-in microphone | – |
| PoE Class | 3 | Signed OS | Yes |
| Secure boot | Yes | Secure keystore | Secure Element (CC EAL6+) |
| Axis Edge Vault | Yes | Remote focus | – |
| Remote zoom | – | Built-in IR | Yes |
| Local storage (memory card slot) | Yes | Operating temperature | -40 to 50 °C |
| Outdoor Ready | Yes | Vandal rating | IK10 |
| IP rating | IP66 | Designed for repaint | Yes |
| Sustainability | BFR/CFR free, PVC free |
| Description | Downloads |
|---|---|
| Datasheet | Download |
