With AXIS M7104 you can migrate to IP surveillance at your own pace. Including the latest generation of Axis chip, it provides a high level of defence to protect your system. Plus, Zipstream and support for H.264/H.265 reduces bandwidth and storage requirements, while preserving high image quality.
Great value for money

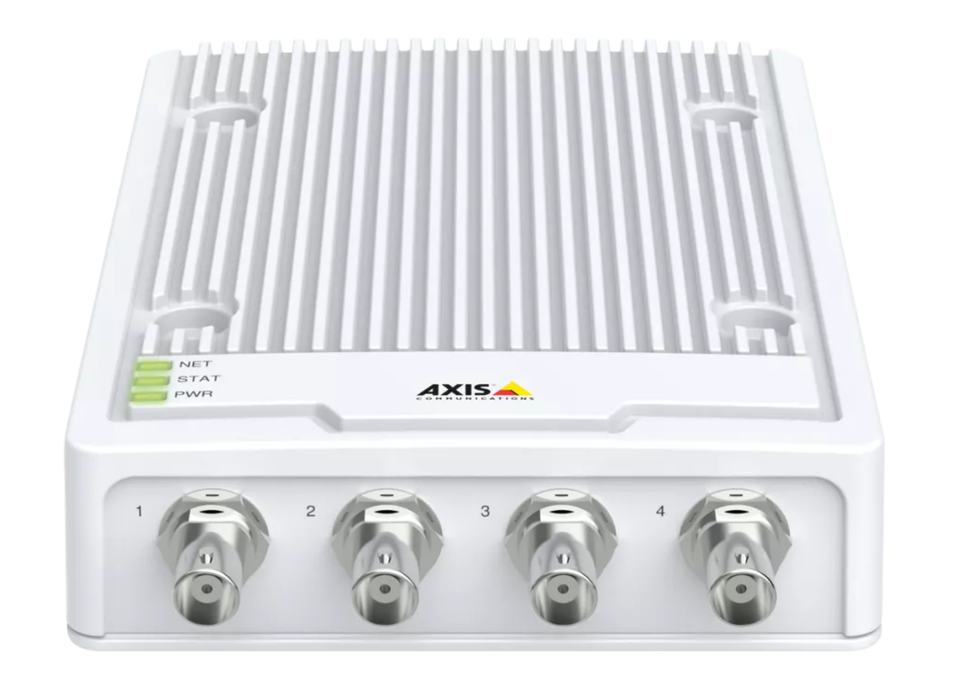

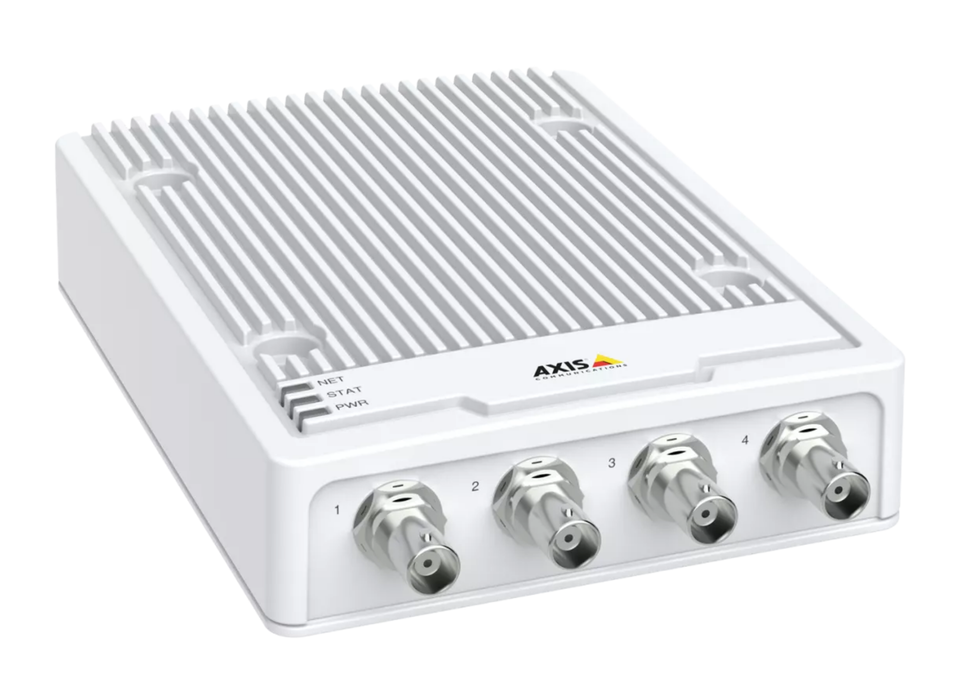

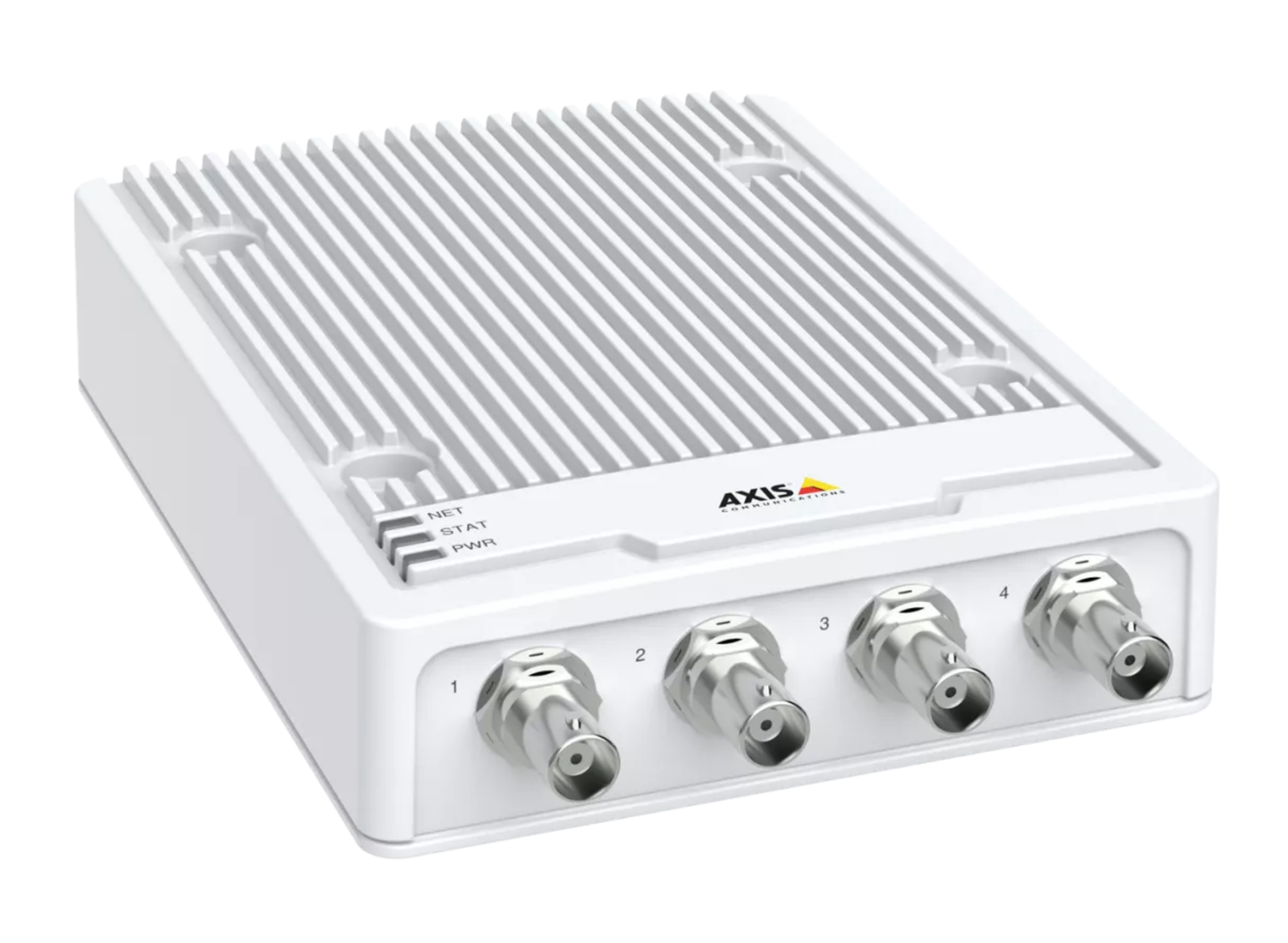

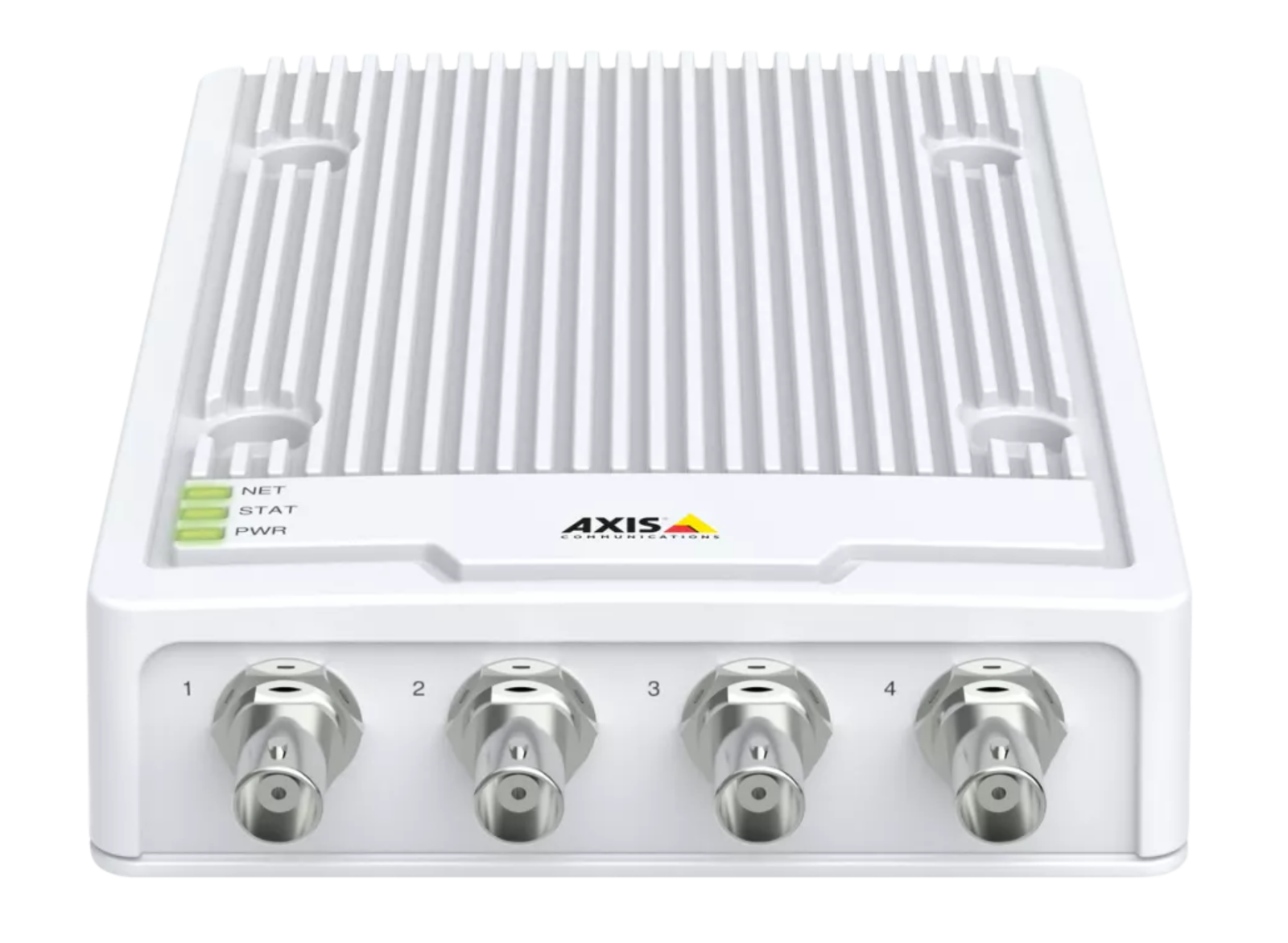

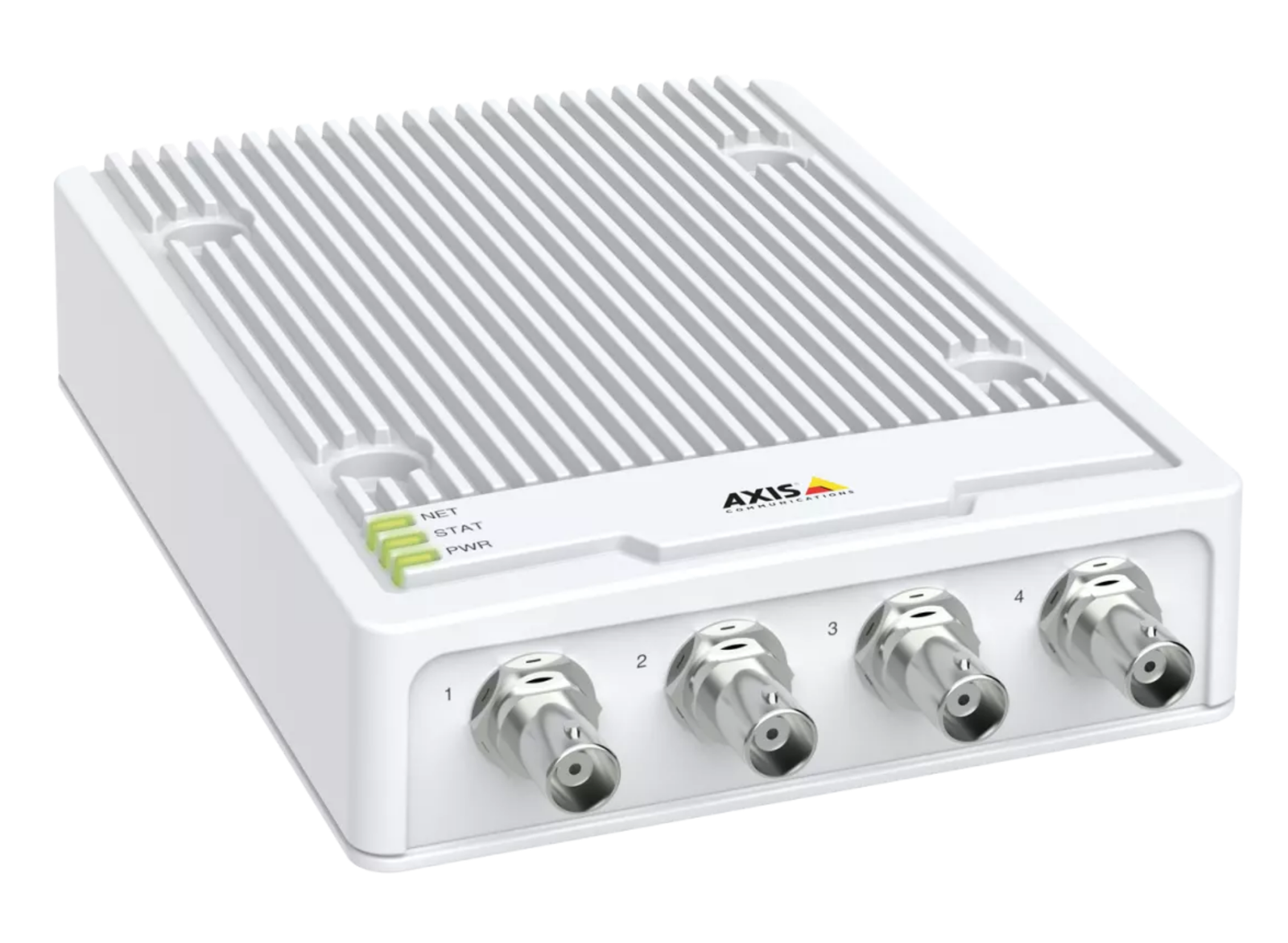

AXIS M7104 is a cost-effective, 4 channel video encoder that supports all types of standard resolution analog cameras including PTZ (pan/tilt/zoom) cameras. It offers support for intelligent analytics such as motion detection and active tampering alarm. It features RS-485/422 for controlling analog PTZ (pan/tilt/zoom) cameras. Additionally, it provides edge storage through a microSD card slot.
Seamless migration to IP surveillance
Axis video encoders allow you to migrate to the world of IP surveillance while protecting your investment in analog equipment, so you get to keep all your existing cameras and cabling. And, thanks to support for Power over Ethernet (PoE) you can connect directly to your IP network with just one network cable for connectivity and power. Furthermore, this flexible solution lets you choose between saving the recordings on a server, on the edge or in the cloud. And if you use it with the AXIS Camera Station video management software, you only need one license for all 4 channels.
First class Axis Quality
Like all Axis products, AXIS M7104 is built on an open platform, so you’re free to use open-standard IT hardware or video management software from the supplier of your choice. Signed firmware and secure boot guarantee that the firmware hasn’t been altered and only authorized firmware is installed. And thanks to continuous firmware updates, you can depend on first-class Axis quality and support all the way. Plus, Zipstream with support for H.264/H.265 video compression drastically reduces bandwidth and storage requirements without compromising image quality.
| SoC Model | ARTPEC-7 | Memory | 1024 MB RAM, 512 MB Flash |
| Real-Time Clock | Battery backed-up | Video Compression | H.264, H.265, Motion JPEG |
| H.264 Profiles | Baseline, Main and High | H.265 Profile | Main Profile |
| Resolution | 176x144/176x120 to 720x576/720x480 | Frame Rate | 25/30 fps in all resolutions |
| Quad View Frame Rate | Up to 30 fps in full resolution | Video Streaming | Multiple configurable streams |
| Zipstream | Axis Zipstream in H.264 and H.265 | Bandwidth Control | Controllable frame rate and bandwidth |
| Bitrate Control | VBR/MBR H.264/H.265 | Quad View | Supported |
| Image Settings | Compression, color, brightness, contrast, rotation, aspect ratio correction, mirroring, overlays, privacy mask, deinterlace, anti-aliasing, sharpness, noise reduction, local enhancement | PTZ Support | Wide range of analog PTZ cameras |
| PTZ Drivers | Included in firmware | PTZ Presets | Up to 100 preset positions per camera |
| PTZ Functions | Guard tour, PTZ control queue | Joystick Support | Windows compatible joysticks |
| IP Address | One IP address for four channels | Network Security | IP filtering, HTTPS, IEEE 802.1X, access log, certificate management |
| Network Protocols | IPv4, IPv6, HTTP, HTTPS, TLS, QoS, FTP, SFTP, CIFS/SMB, SMTP, mDNS, UPnP, SNMP, DNS, DDNS, NTP, PTP, NTS, RTSP, RTP, SRTP/RTSPS, TCP, UDP, IGMP, RTCP, ICMP, DHCP, ARP, SSH | API | Open API with VAPIX and AXIS Camera Application Platform |
| Cloud Connection | AVHS with One-Click Camera Connection | ONVIF Profiles | Profile G, Profile M, Profile S, Profile T |
| VMS Compatibility | AXIS Camera Station Edge, Pro, 5 and partner VMS | Event Triggers | Analytics, video loss, edge storage events, MQTT subscribe |
| Event Actions | FTP, SFTP, HTTP, HTTPS, network share, email, TCP notifications, external output activation, MQTT publish, pre/post-alarm buffering, PTZ preset, status LED | Data Streaming | Event data |
| Included Analytics | AXIS Motion Guard, Fence Guard, Loitering Guard, Video Motion Detection, active tampering alarm | Supported Apps | AXIS Camera Application Platform third-party apps |
| Edge Security | Signed OS, brute force delay protection, digest authentication, OAuth 2.0, OpenID, password protection, AES-XTS-Plain64 256bit SD card encryption, secure boot | Network Security | IEEE 802.1X, IEEE 802.1AE, IEEE 802.1AR, HTTPS/HSTS, TLS v1.2/v1.3, NTS, X.509 PKI, host-based firewall |
| Cybersecurity Docs | AXIS OS Hardening Guide, Vulnerability Management Policy, Security Development Model, OS SBOM | Casing | Stand-alone metal casing, wall mount |
| Sustainability | PVC free | Power | 8-28 V DC, max 4.7 W, PoE IEEE 802.3af/802.3at Type 1 Class 3 |
| Video Inputs | Four analog composite video BNC inputs | Network Connector | RJ45 10BASE-T/100BASE-T/1000BASE-T PoE |
| Serial Connector | RS485/RS422, 2 pcs, 2 pos, full duplex terminal block | Memory Card Storage | microSD, microSDHC, microSDXC |
| Storage Encryption | AES-XTS-Plain64 256bit SD card encryption | NAS Recording | Supported |
| Operating Temperature | 0 °C to 50 °C | Operating Humidity | 10-85% RH, non-condensing |
| Storage Temperature | -40 °C to 65 °C | Storage Humidity | 5-95% RH, non-condensing |
| EMC Approvals | EN 55032 Class A, EN 61000-3-2, EN 61000-3-3, EN 55024, EN 61000-6-1, EN 61000-6-2, FCC Part 15 Subpart B Class A, ICES-003 Class A, VCCI Class A, RCM AS/NZS CISPR 32 Class A, KC KN32 Class A, KC KN35 | Safety Approval | IEC/EN/UL 62368-1 |
| Environmental Approval | IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-6, IEC 60068-2-14, IEC 60068-2-27, IEC 60068-2-78 | Network Approval | NIST SP500-267 |
| Dimensions | 187 x 37 mm | Weight | 650 g |
| Description | Downloads |
|---|---|
| Datasheet | Download |
