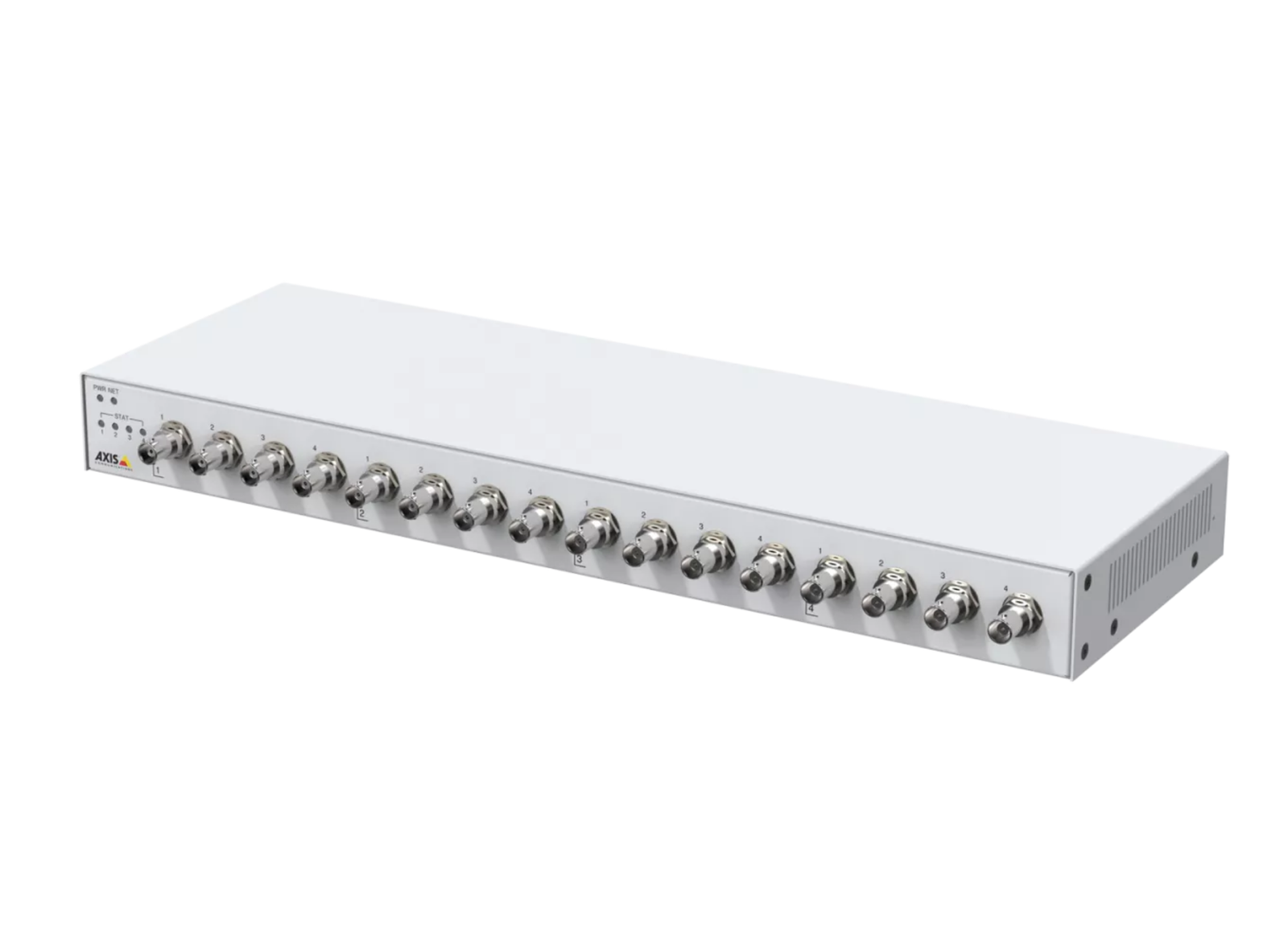

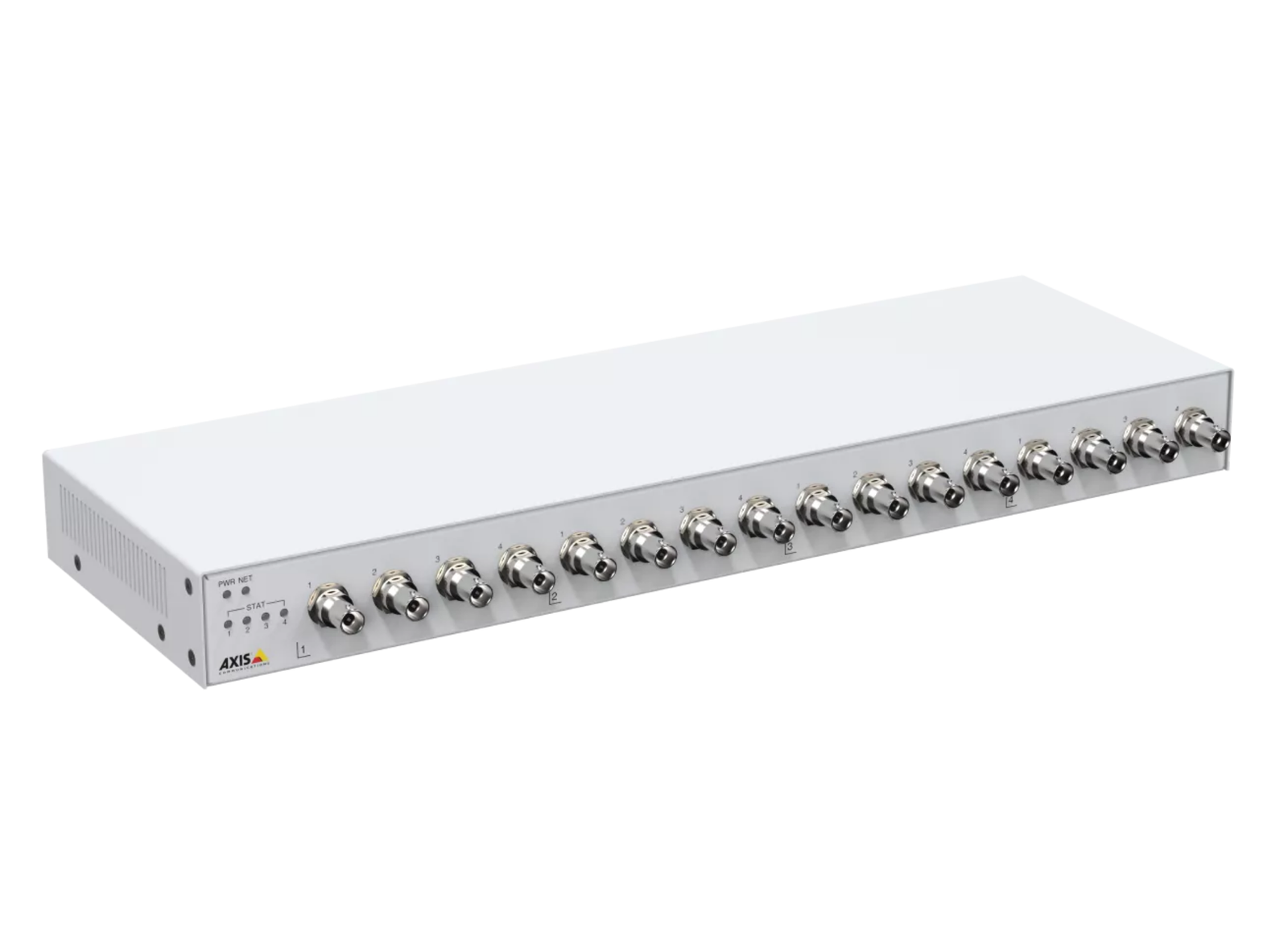

With AXIS M7116 you can migrate to IP surveillance at your own pace. This cost-effective, 16-channel video encoder supports all types of standard resolution analog cameras including PTZ (pan/tilt/zoom) cameras. It offers support for intelligent analytics as well as built-in cybersecurity features.
Great value for money
This 16-channel video encoder digitizes NTSC/PAL video and delivers high-quality video at 30 frames per second on all channels. It offers remote access allowing you to view video streams on any browser or computer. Additionally, the RS-485 port lets you control analog PTZ (pan/tilt/zoom) cameras. The built-in SD memory card slots allow for edge storage. Featuring Zipstream with support for H.264/H.265, AXIS M7116 drastically reduces bandwidth and storage requirements. Furthermore, this compact encoder is rack-mounted, enabling large numbers of analog cameras and audio channels to be integrated into an IP-based, high-density video surveillance system.
Seamless migration to IP surveillance
AXIS M7116 allows you to shift to the world of IP surveillance at your own pace while protecting your investment in analog equipment. Built on an open platform, the encoder makes it possible to use open-standard IT hardware or video management software from the supplier of your choice. It includes intelligent analytics such as motion detection. And, if you use it with the AXIS Camera Station video management software, you only need one license for all 16 channels.
First-class Axis quality
Packed with built-in cybersecurity features, this reliable encoder helps prevent unauthorized access and safeguards your system. It is more secure than DVRs, which typically lack these types of cybersecurity features. Axis Edge Vault protects your Axis device ID and simplifies authorization of Axis products on your network. Additionally, signed firmware and secure boot guarantee that the firmware hasn’t been compromised and ensure only authorized firmware is installed. And if needed, secure boot guarantees the device is completely free of malware even after a factory default. Plus, thanks to continuous firmware updates, you can always depend on Axis for first-class quality and support.
| SoC Model | ARTPEC-7 | Memory | 1024 MB RAM, 512 MB Flash |
| Real-Time Clock | Battery backed-up real-time clock | Video Compression | H.264 Baseline, Main and High profiles; H.265 Main profile; Motion JPEG |
| Resolution | 176x144/176x120 (PAL/NTSC) to 720x576/720x480 (PAL/NTSC) | Frame Rate | 25/30 fps in all resolutions; up to 30 fps in quad view in full resolution |
| Video Streaming | Multiple configurable streams in H.264, H.265 and Motion JPEG; Axis Zipstream; controllable frame rate and bandwidth; VBR/ABR/MBR; quad view | Image Settings | Rotation 0°, 90°, 180°, 270°, de-interlace, compression, color, brightness, contrast, aspect ratio correction, mirroring, overlays, privacy mask, video termination, sharpness, noise reduction |
| Pan/Tilt/Zoom | Wide range of analog PTZ cameras supported, drivers included in firmware | PTZ Functions | Up to 100 preset positions/camera, guard tour, PTZ control queue, Windows joystick support |
| IP Address | Four IP address, one per four channels | Security | IP address filtering, HTTPS encryption, IEEE 802.1x, network access control, user access log, multi-level user |
| Network Protocols | IPv4, IPv6 USGv6, ICMPv4/ICMPv6, HTTP, HTTP/2, HTTPS, TLS, QoS, FTP, SFTP, CIFS/SMB, SMTP, mDNS, UPnP®, SNMP v1/v2c/v3, DNS/DNSv6, DDNS, NTP, PTP, NTS, RTSP, RTP, SRTP/RTSPS, TCP, UDP, IGMP, RTCP, ICMP, DHCP, ARP, SSH, LLDP, CDP, MQTT, secure syslog, ZeroConf | API | Open API for software integration, including VAPIX® and AXIS Camera Application Platform |
| Cloud Connection | One-click cloud connection | ONVIF | ONVIF® Profile G, Profile M, Profile S, and Profile T |
| VMS Compatibility | AXIS Camera Station Edge, AXIS Camera Station Pro, AXIS Camera Station 5, and Axis partner VMS | Event Conditions | Device status, edge storage, I/O, MQTT subscribe, PTZ, scheduled events, video, video encoder connected |
| Event Actions | Guard tours, image/video uploads, notifications, overlay text, preset positions, recordings, SNMP traps, status LED, video clips, MQTT publish | Data Streaming | Event data |
| Included Analytics | AXIS Video Motion Detection, active tampering alarm | Analytics Support | AXIS Camera Application Platform with support for third-party applications |
| EMC Approvals | EN 55032 Class A, EN 61000-3-2, EN 61000-3-3, EN 55035, EN 61000-6-1, EN 61000-6-2, FCC Class A, ICES-3(A), RCM, VCCI Class A, KC KN32 Class A, KC KN35 | Safety | IEC/EN/UL 62368-1 |
| Environment | IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-6, IEC 60068-2-14, IEC 60068-2-27, IEC 60068-2-78 | Network Approval | NIST SP500-267 |
| Cybersecurity Approval | ETSI EN 303 645, BSI IT Security Label | Edge Security Software | Signed OS, brute force delay protection, digest authentication, OAuth 2.0, password protection, AES-XTS-Plain64 256bit SD card encryption |
| Edge Security Hardware | Secure boot | Network Security | IEEE 802.1X, IEEE 802.1AE, HTTPS/HSTS, TLS v1.2/v1.3, NTS, X.509 Certificate PKI, host-based firewall |
| Cybersecurity Docs | AXIS OS Hardening Guide, Vulnerability Management Policy, Security Development Model, AXIS OS Software Bill of Material | Casing | Metal casing 1U stand alone, rackmount or wallmount |
| Color | White NCS S 1002-B | Sustainability | PVC free |

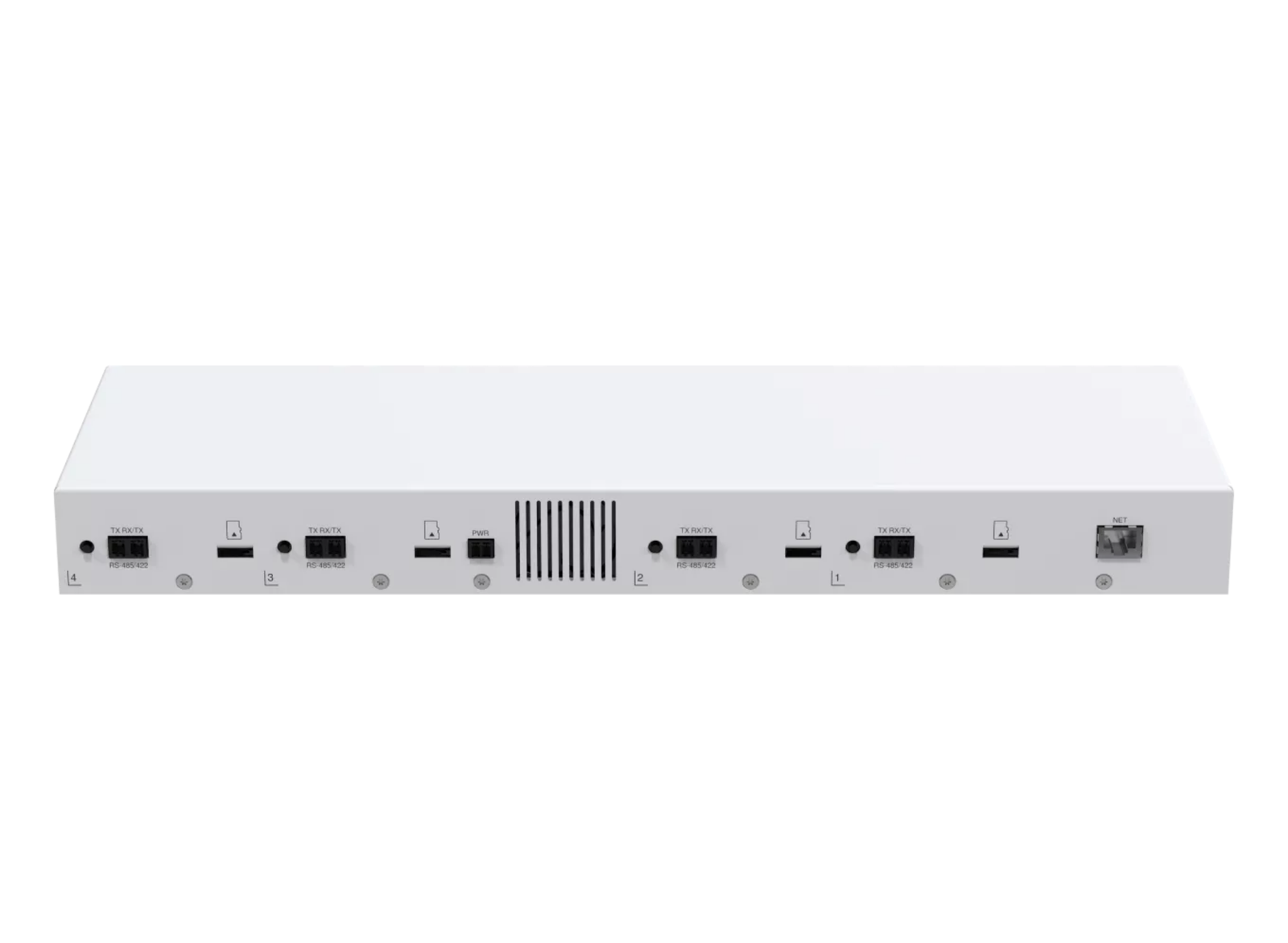

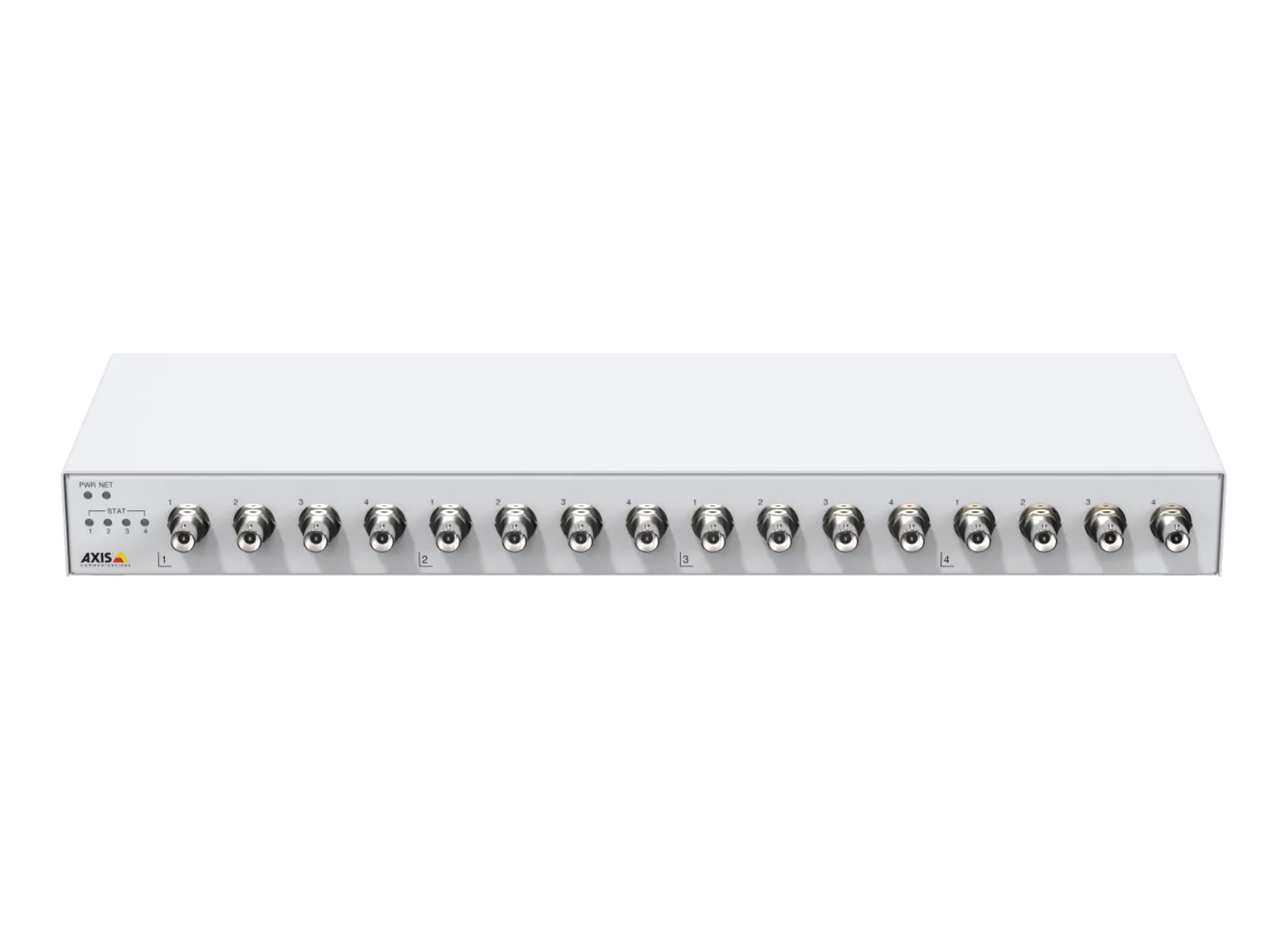

| Power | Max 26 W | Connectors | 16 analog video BNC inputs, 1x 1000 BASE-TX Ethernet (RJ45), 4x terminal block for RS485/RS422 serial communication |
| Storage | microSD/microSDHC/microSDXC card and encryption; recording to NAS | Operating Conditions | 0 °C to 50 °C (32 °F to 122 °F), 10–85% RH non-condensing |
| Storage Conditions | -40 °C to 65 °C (-40 °F to 149 °F), 5–95% RH non-condensing | Dimensions | 44 x 145 x 440 mm (1.7 x 5.7 x 17.3 in) |
| Weight | 2050 g (4.5 lb) | Included Accessories | Installation guide, Windows® decoder 1-user license, DC input plug, 8x 2-pin RS485/RS422 plugs, mains power supply, mounting and connector kit |
| Optional Accessories | For accessories, see axis.com | Languages | English, German, French, Spanish, Italian, Russian, Simplified Chinese, Japanese, Korean, Portuguese, Polish, Traditional Chinese, Dutch, Czech, Swedish, Finnish, Turkish, Thai, Vietnamese |
| Warranty | 5-year warranty |
