Ideal for mounting in tight spaces, this indoor modular camera includes a tiny, pinhole-sized sensor unit for extremely discreet installation. Featuring a deep learning processing unit, it enables the use of advanced analytics.
Highly discreet

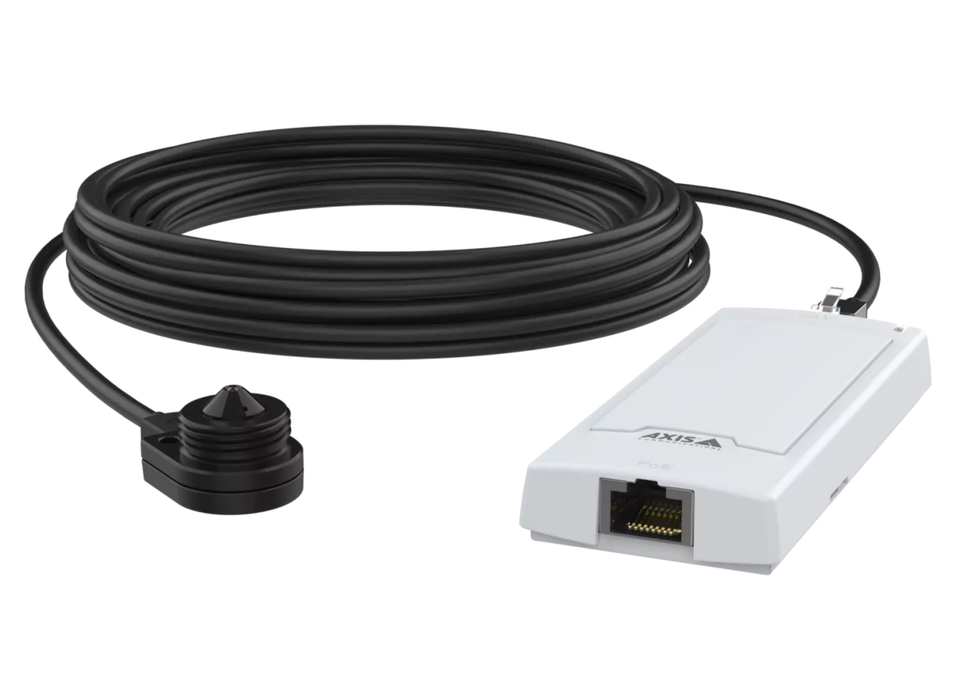

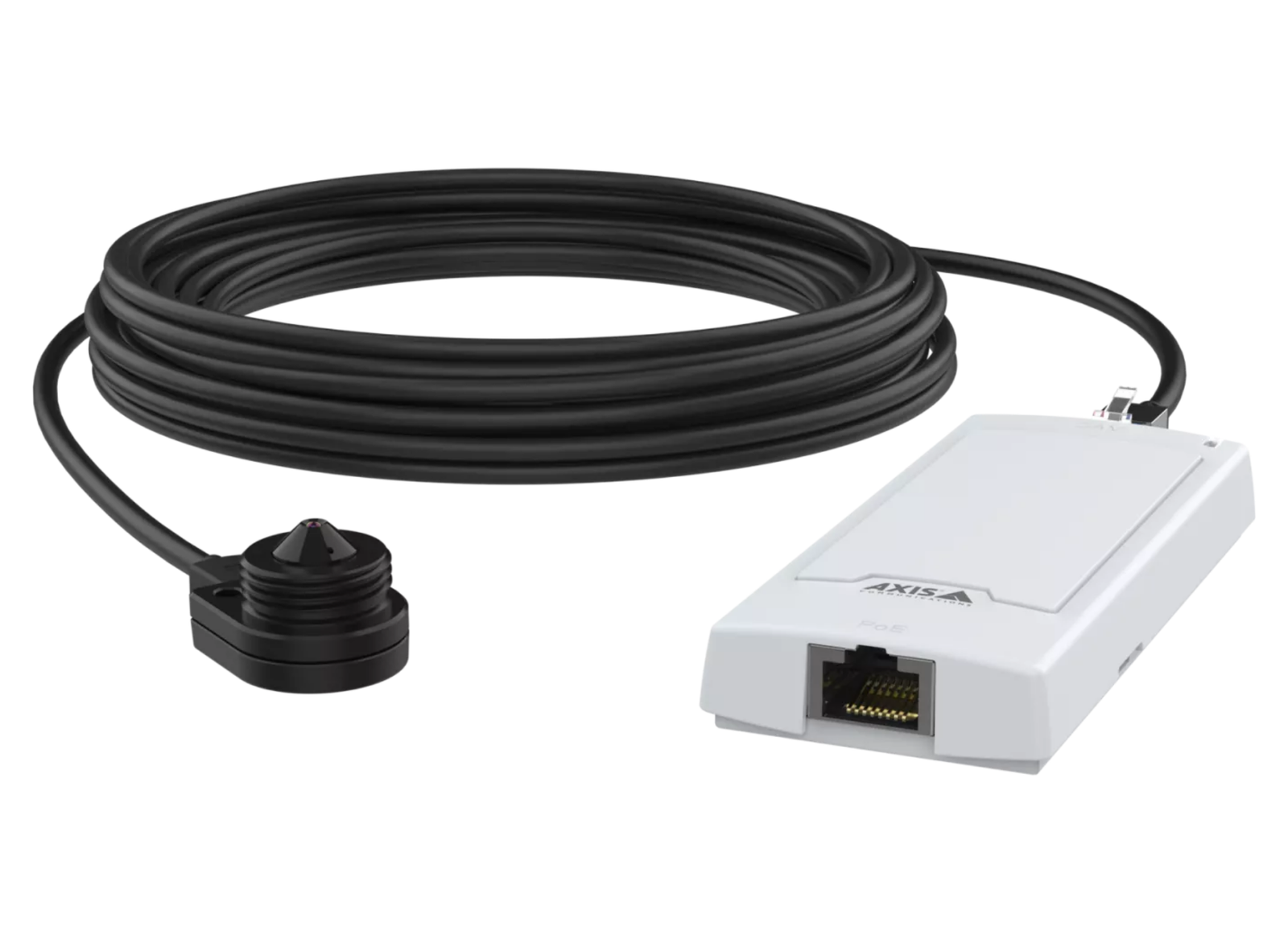

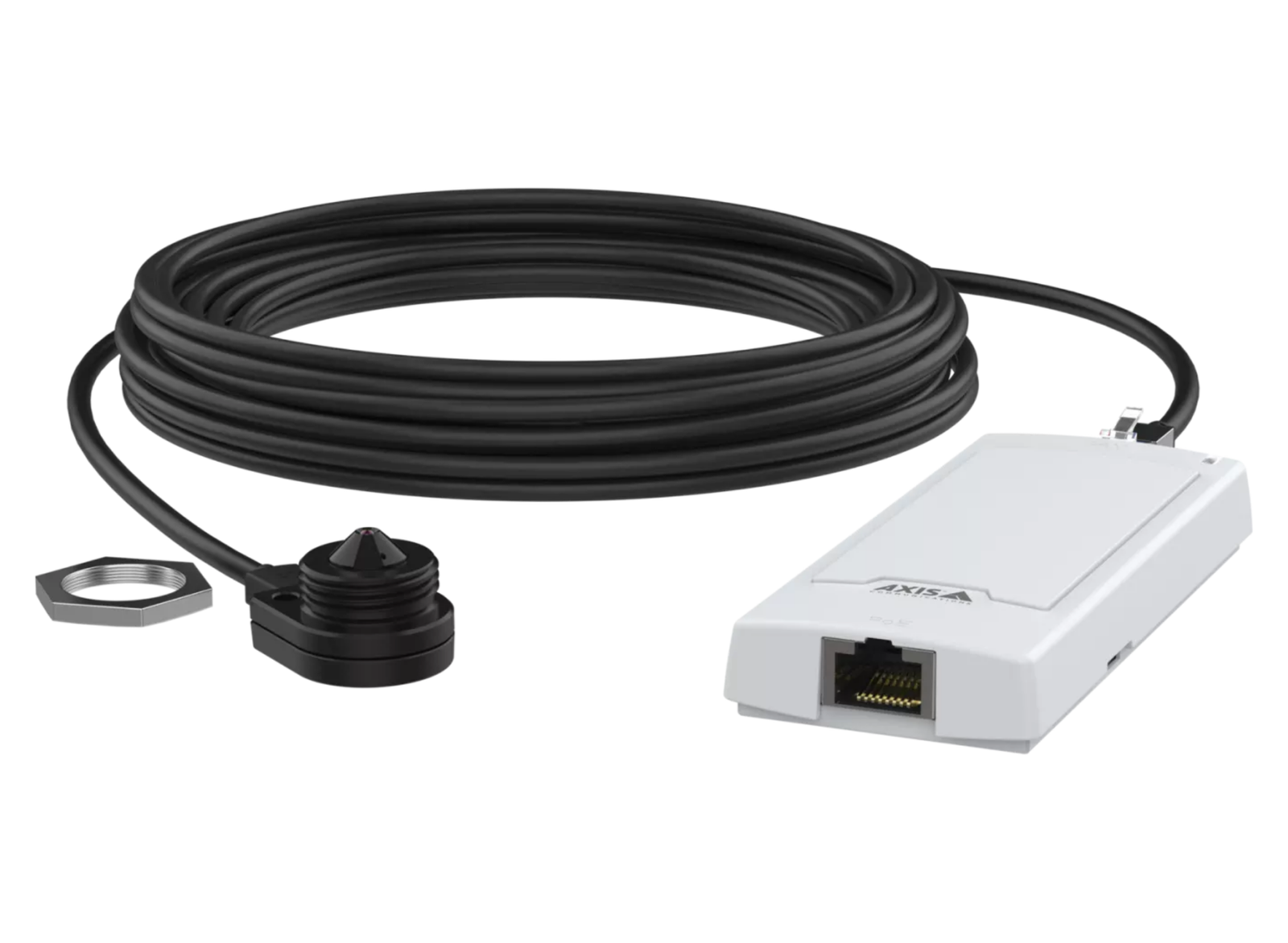

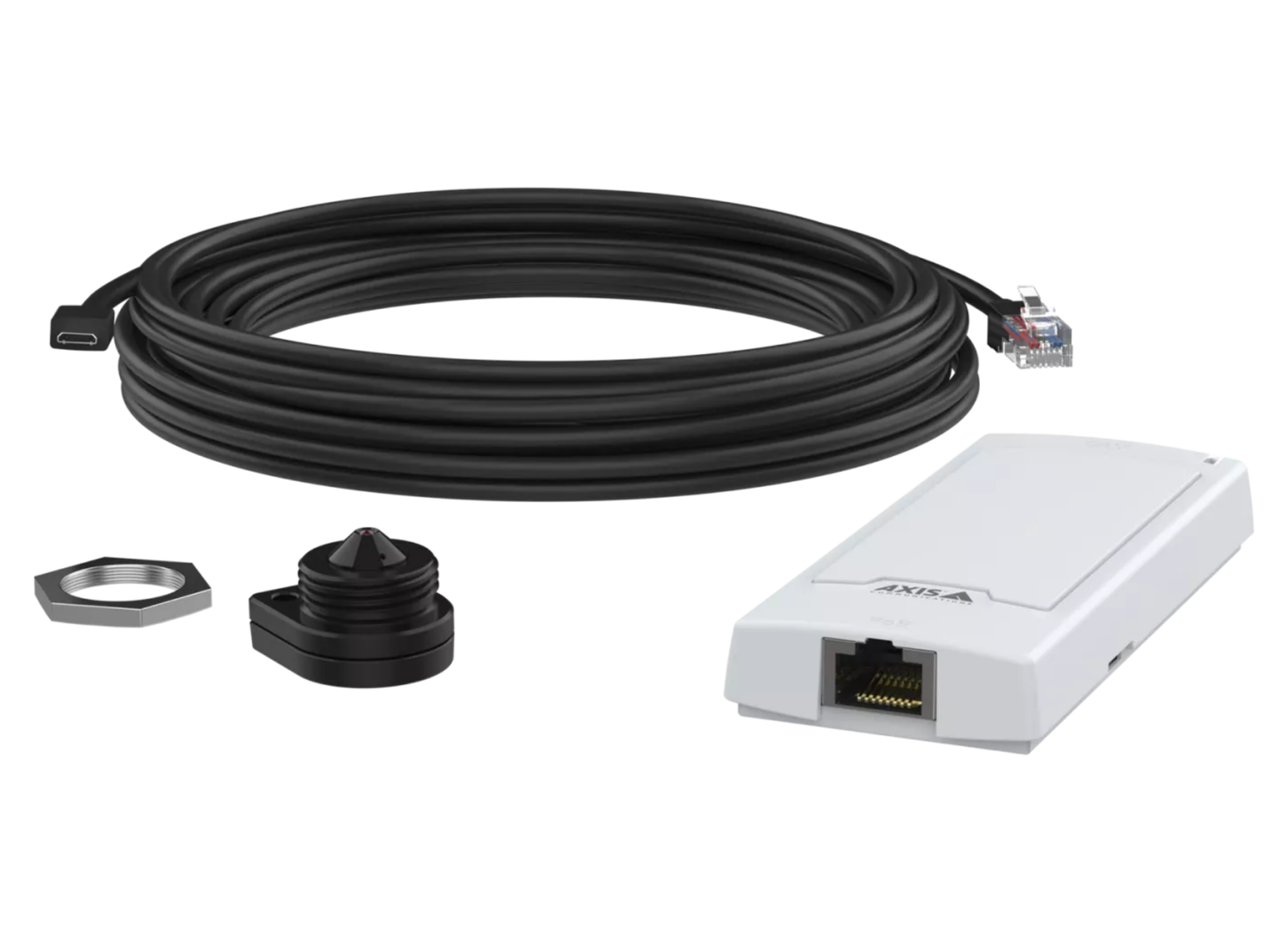

AXIS P1265 Mk II Modular Pinhole Camera includes a tiny sensor unit that’s easy to install and hard to notice. In fact, only a tiny pinhole is visible externally. This sensor unit connects via cable to the main unit, so the two parts can be placed separately from each other for even more discreet installation.
Highly flexible
Based on the divided modular camera concept, AXIS P1265 Mk II can be installed in tight spaces, such as behind metal or glass. It´s ideal for installation in areas where larger surveillance cameras won’t fit. Plus, it’s easy to integrate with other devices. This indoor modular camera system includes a tiny pinhole sensor unit that suits a wide range of applications such as video surveillance at ATMs, ticketing machines, self-checkouts, automated parcel lockers, and medical machines. The sensor unit can be mounted up to 15 m from the main unit. Plus, a detachable cable ensures flexible installation, maintenance, and upgrade
Great image quality and support for advanced analytics
AXIS P1265 Mk II offers HDTV 1080p with a 91° horizontal field of view. Axis Zipstream significantly reduces bandwidth and storage requirements. Plus, a deep learning processing unit enables the use of advanced analytics. For instance, AXIS Object Analytics can detect and classify different types of objects. With support for ACAP version 4, you can add value to your system with tailor-made applications based on deep learning on the edge. Furthermore, AXIS Live Privacy Shield makes it easy to monitor activities while safeguarding privacy.
| Image sensor | CMOS | Wide dynamic range | - |
| Min illumination / light sensitivity (Color) | 0.2 lux | Min illumination / light sensitivity (B/W) | - |
| Thermal sensitivity (NETD) | - | Thermal sensor resolution | - |
| Max video resolution | 1920x1080 | Max frames per second | 25/30 |
| Day and Night functionality | – | Electronic image stabilization | – |
| Thermal palettes | – | Focal length | 3.7 mm |
| Varifocal lens | No | Aperture | 2.5 |
| Horizontal field of view | 91 ° | Vertical field of view | 45 ° |
| Lens mount | M12 | Replaceable lens | Yes |
| Zipstream | Yes | H.264 | High, Main |
| H.265 | Yes | Audio Support | – |
| Two-way audio | – | Audio detection | – |
| Active tampering | Yes | Alarm inputs/outputs | - |
| Serial connectors | – | AXIS Camera Application Platform | Yes |
| Digital I/O | – | Power over Ethernet | Yes |
| PoE Class | 2 | HTTPS encryption | Yes |
| IEEE 802.1X | Yes | Built-in IR | – |
| Local storage (memory card slot) | Yes | Operating temperature | -20 to 45 °C |
| Outdoor Ready | – | Vandal rating | - |
| IP rating | IP3X | Power (max) | - |
| Power (average) | - | DC input voltage | - |
| Description | Downloads |
|---|---|
| Datasheet | Download |
