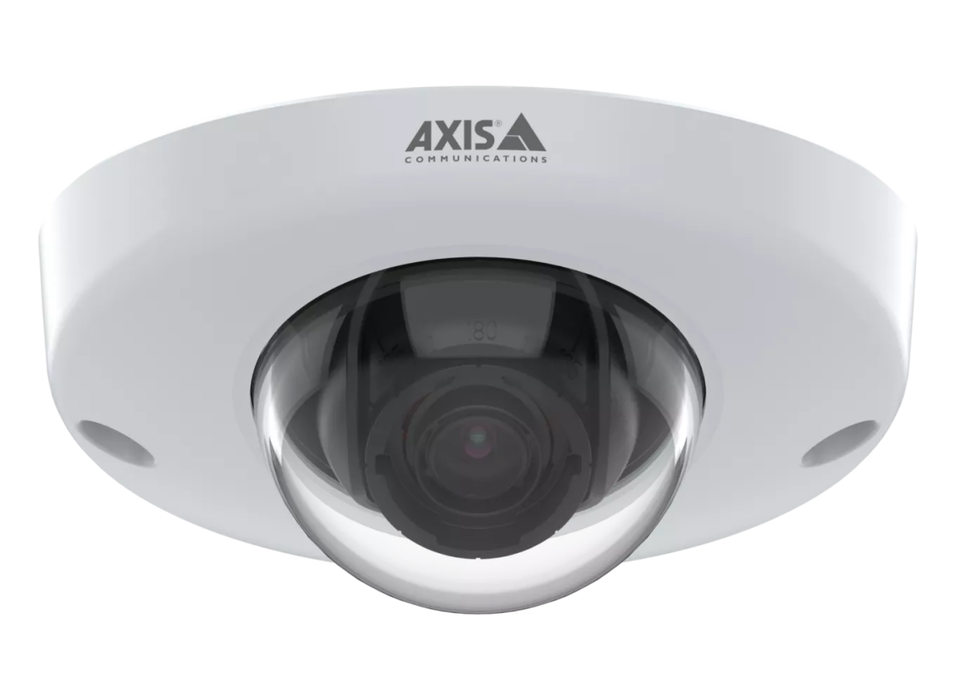

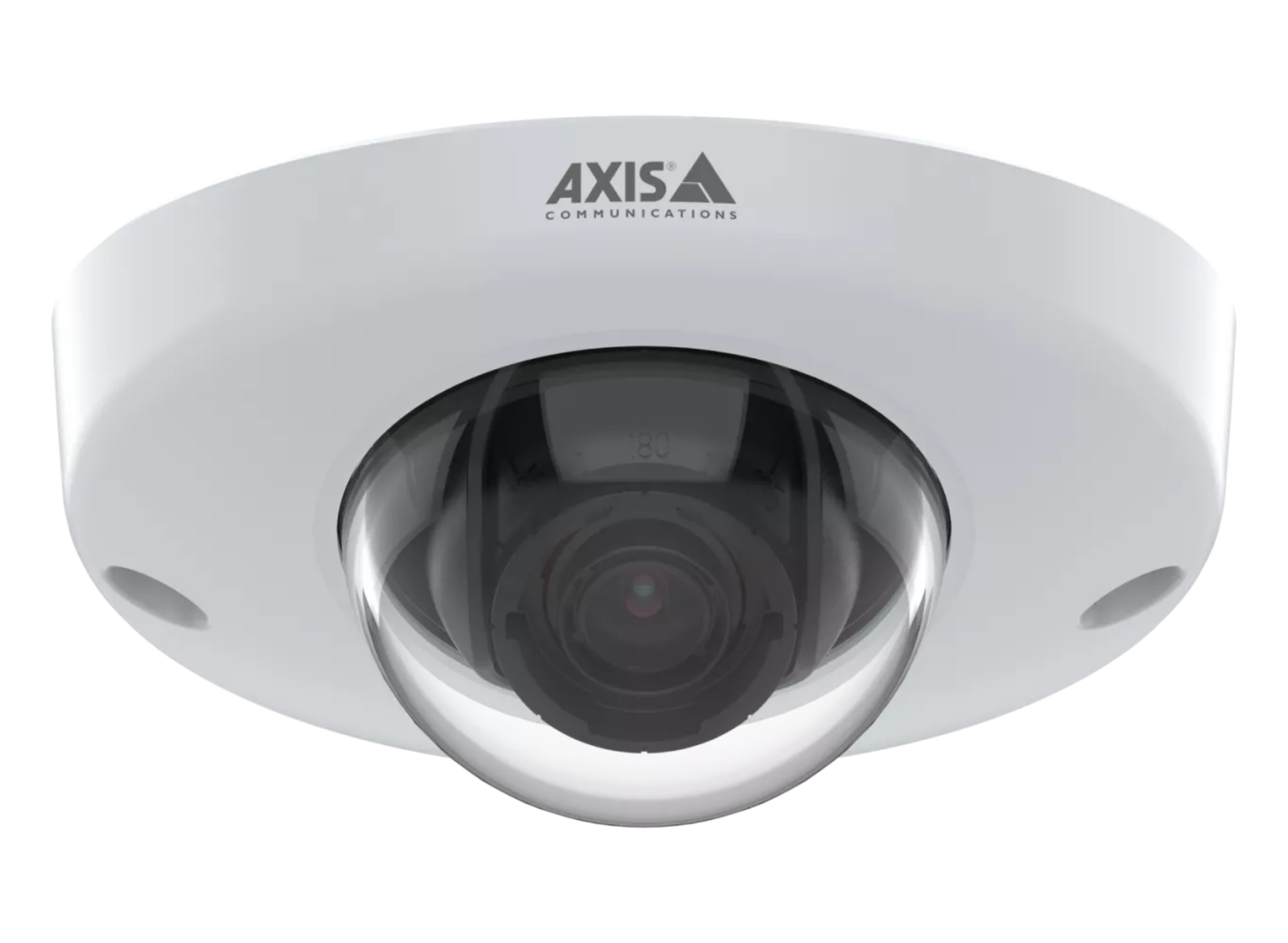

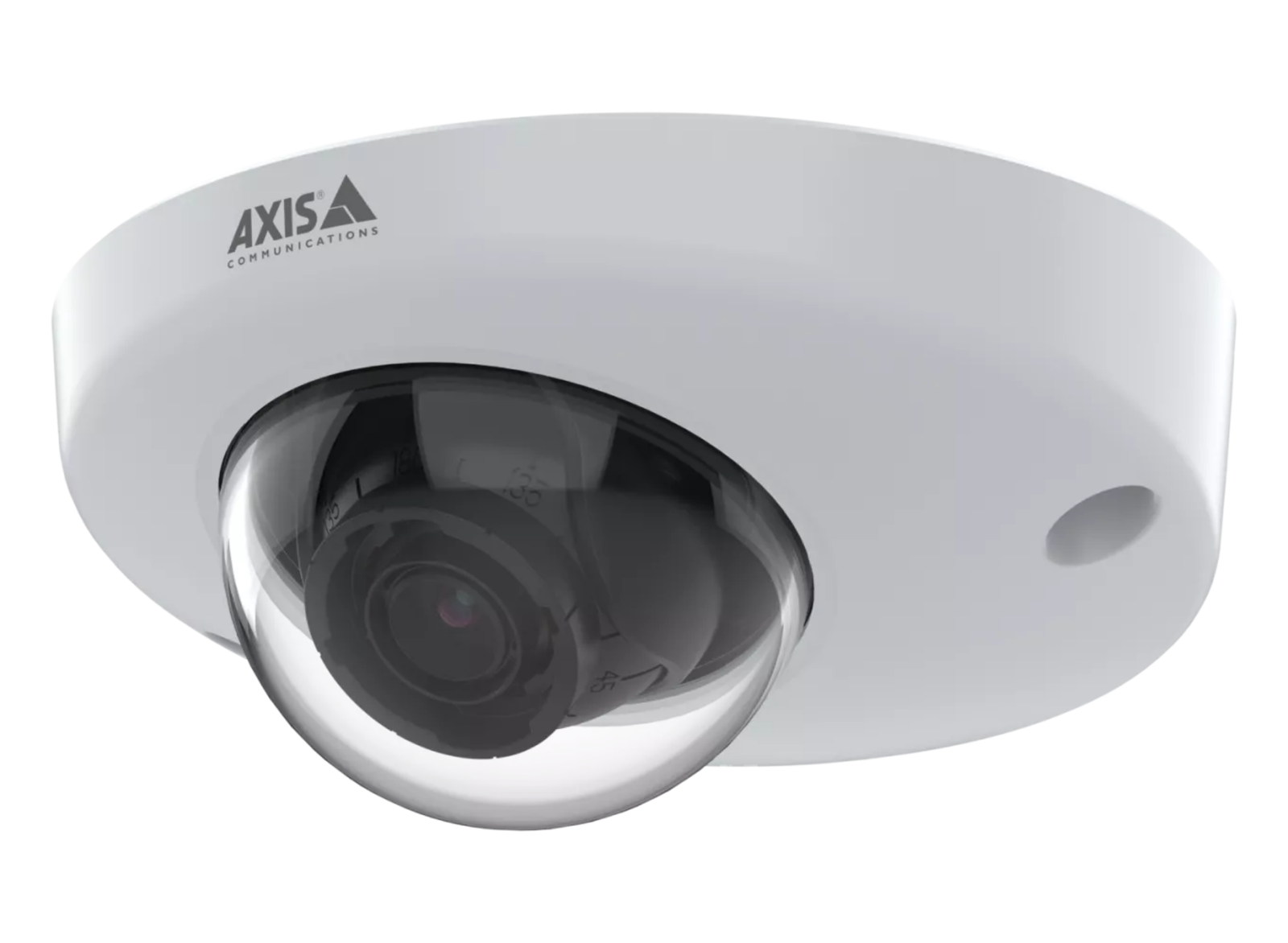

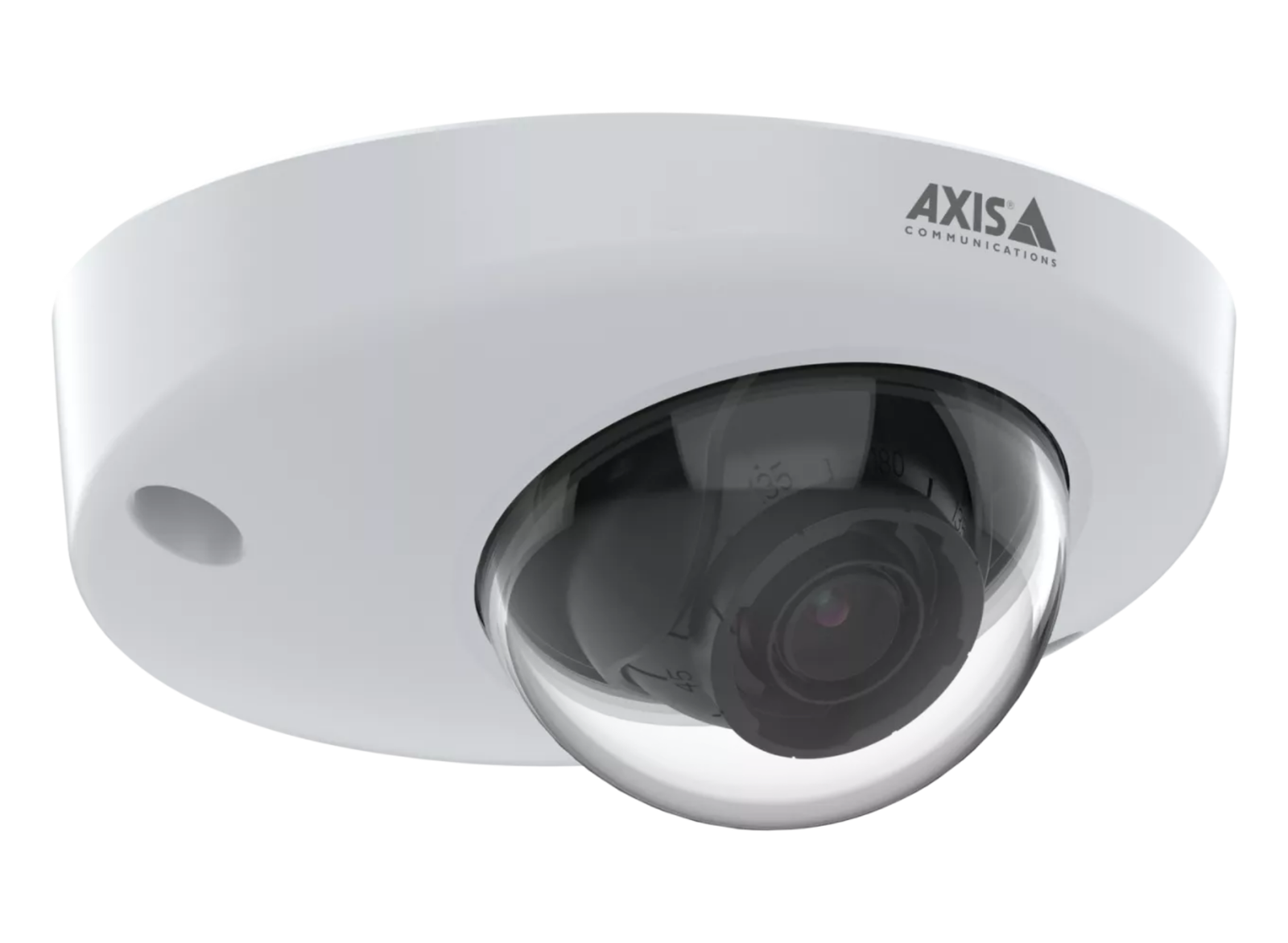

Specifically designed for indoor onboard monitoring on railway vehicles such as trains and trams , this rugged dome camera can withstand shock and vibrations and ensures high-performance in various light conditions.
Optimized for onboard surveillance
This 2 MP onboard camera ensures high-performance even in changing light conditions. With Forensic WDR you get clarity even when there are both dark and light areas in the scene. And, Lightfinder captures full-color images in extremely low light. Thanks to traffic light mode, AXIS P3905-R Mk III can distinguish the color of traffic lights in dark scenes. Furthermore, there are two product variations available with different lens options, and additional lenses available as accessories - everything you need to adjust field of view for customized monitoring purposes.
For tough onboard conditions
AXIS P3905-R Mk III complies with transportation industry standards including EN50155 and EN45545. This rugged camera is IK10, IP66-, IP67-rated and comes with either M12 or RJ45 connector for flexible installations. Additionally, when used together with AXIS TP3826-E housing it can be mounted on the outside of a vehicle to withstand tough weather.
Secure and cost-effective
This onboard camera offers built-in cybersecurity features to help prevent unauthorized access and safeguard your system. For instance, Axis Edge Vault protects your Axis device ID and simplifies authorization of Axis devices on your network. Thanks to Axis Zipstream technology, it significantly reduces storage and bandwidth requirements without compromising image quality. The result is high-forensic usability, significant savings, and a camera that’s perfect for onboard conditions.
| Camera - Lightfinder | Lightfinder | Camera - Wide dynamic range | Forensic WDR |
| Camera - Min illumination/ light sensitivity (Color) | 0.07 lux | Camera - Min illumination/ light sensitivity (B/W) | - |
| Video - Max video resolution | 1920x1080 | Video - Max frames per second | 45 |
| Video - Day and Night functionality | – | Video - Electronic image stabilization | – |
| Power - Power (max) | - | Power - Power (average) | - |
| Lens - Focal length * | 3.6 / 3.6 / 2.8 mm | Lens - Aperture * | 2.0 / 2.0 / 1.5 |
| Lens - Horizontal field of view * | 87.6 / 87.6 / 106.6 ° | Lens - Vertical field of view * | 46.7 / 46.7 / 56 ° |
| Lens - Lens mount | M12 | Lens - Replaceable lens | Yes |
| Pan, Tilt, Zoom - Digital Pan/Tilt | Yes | Pan, Tilt, Zoom - Digital zoom | Yes |
| Compression - Zipstream | Yes | Compression - H.264 | High, Main |
| Compression - H.265 | Yes | Audio - Audio Support | - |
| Audio - Two-way audio | – | Audio - Built-in microphone | - |
| System integration - Audio detection | – | System integration - Active tampering | Yes |
| System integration - Alarm inputs/outputs | - | System integration - AXIS Camera Application Platform | Yes |
| System integration - Digital I/O | – | Network - PoE Class | 1 |
| Security - HTTPS encryption | Yes | Security - IEEE 802.1X | Yes |
| Security - Signed OS | Yes | General - Built-in IR | – |
| General - Local storage (memory card slot) | Yes | General - Operating temperature | -30 to 55 °C |
| General - Outdoor Ready | – | General - Vandal rating | IK10 |
| General - IP rating | IP66, IP67 |
| Description | Downloads |
|---|---|
| Datasheet | Download |
