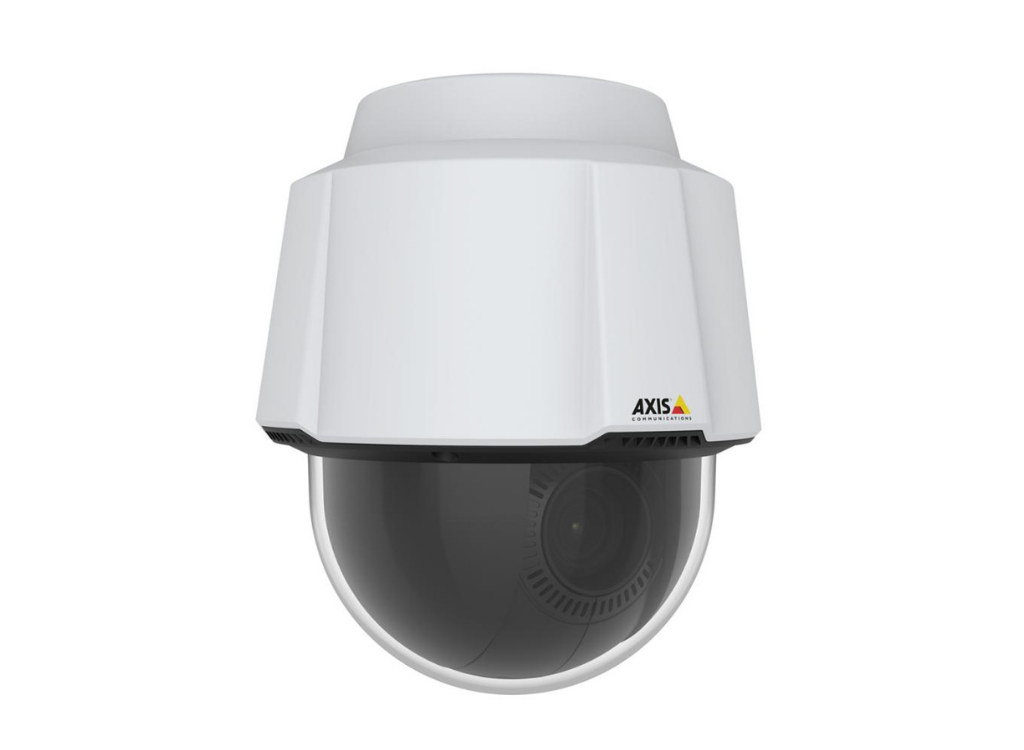

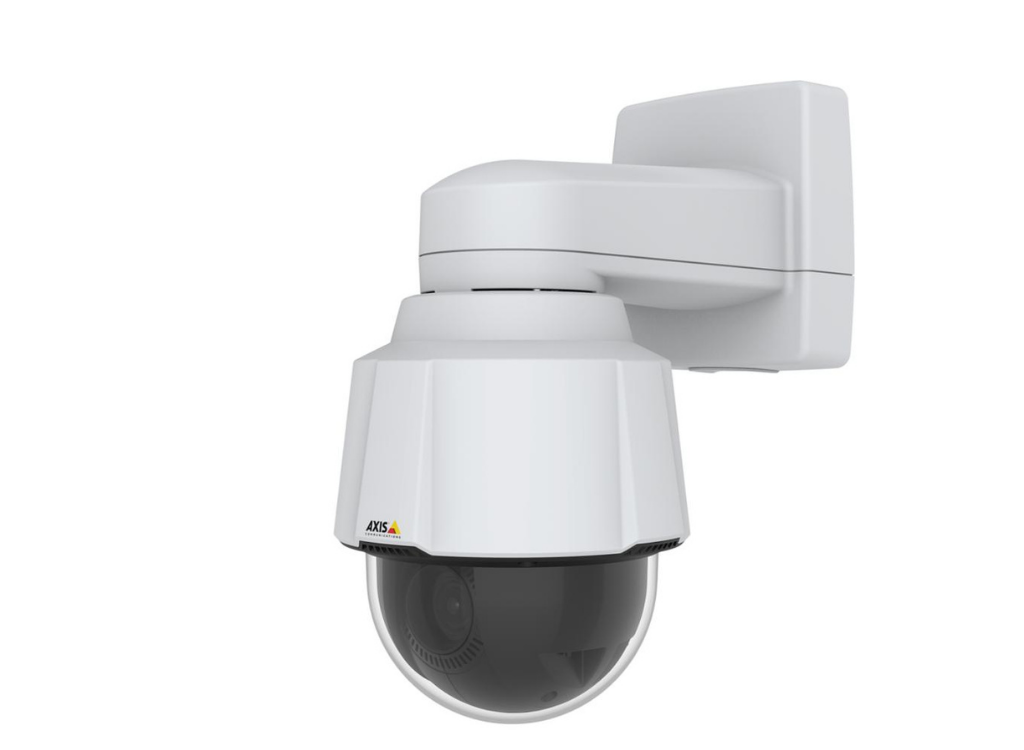

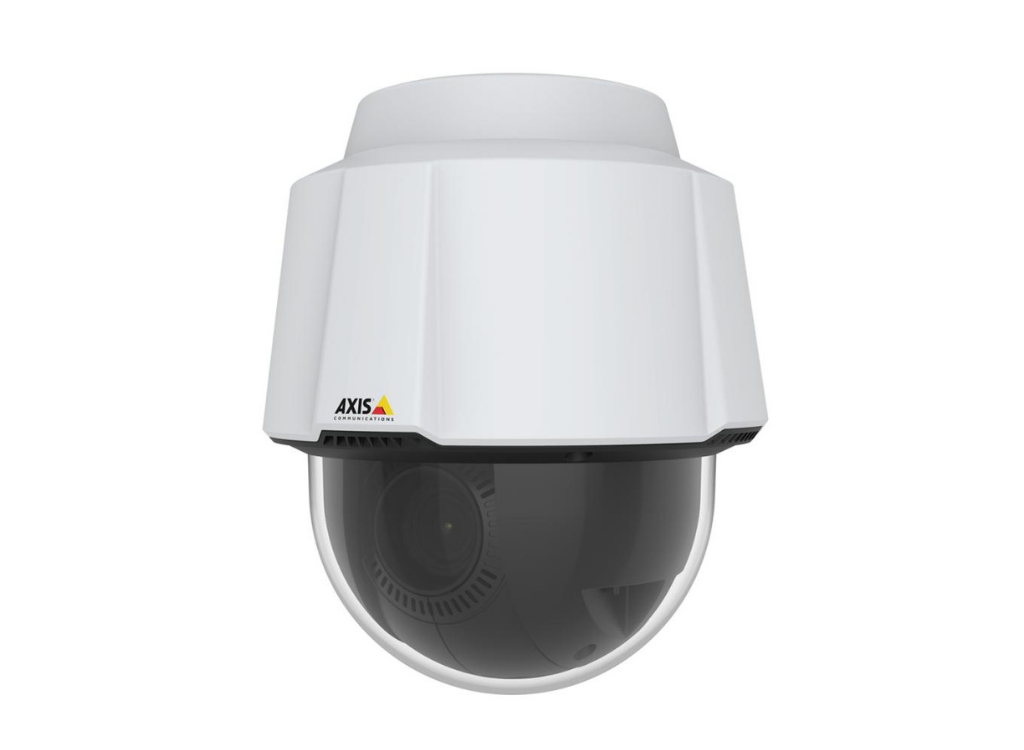

Axis P5654-E Mk II 50 Hz PTZ Camera
This cost-effective PTZ camera offers great image quality in HDTV 1080p and wide area coverage with 77° field of view. Plus, Axis Edge Vault safeguards your device and protects sensitive information from unauthorized access.
Great images – anytime
AXIS P5654-E MK II delivers great image quality in HDTV 1080p with 21x optical zoom. It offers wide area coverage with a 77° field of view. So, you’ll benefit from a sharp overview and great detail even in mixed and low light conditions. Thanks to Lightfinder 2.0 and Forensic WDR, it provides true colors and great detail in challenging light or near darkness. And electronic image stabilization (EIS) ensures stable images despite vibration. Including four scene profiles with different image settings, it’s optimized to suit specific scenarios. Furthermore, focus recall gives you instant focus even in challenging light conditions.
Keeping you secure
Built on the ARTPEC 7 system-on-chip, this PTZ camera includes Axis Edge Vault, a hardware-based cybersecurity platform that safeguards the device and protects sensitive information from unauthorized access. For instance, signed firmware and secure boot guarantee that the firmware hasn’t been altered and ensures only authorized firmware is installed. And if needed, secure boot guarantees that the camera is completely free of malware after a factory default.
And there’s more…
This versatile camera offers support for advanced analytics. Thanks to Axis Object Analytics it can detect and classify people and vehicles- all tailored to specific needs. Featuring shock detection, the camera will send an alarm when it has been hit. And Advanced Gatekeeper will automatically zoom in on objects detected in pre-defined areas. Axis Zipstream technology with H.264 and H.265 significantly lowers bandwidth and storage requirements without compromising image quality. Furthermore, with IP66, NEMA 4X, and IK10 ratings, this robust and resistant camera can also handle temperatures ranging from -30°C to 50°C (-22°F to 122°F).
-
| Category |
Property description |
Property value |
| Camera |
|
|
|
Lightfinder |
Lightfinder 2.0 |
|
Min illumination/ light sensitivity (Color) |
0.1 lux |
|
Min illumination/ light sensitivity (B/W) |
0.01 lux |
|
Image sensor |
CMOS |
|
Image sensor size |
1/2.8" |
|
Wide dynamic range |
Forensic WDR |
| General |
|
|
|
Built-in IR |
– |
|
OptimizedIR |
– |
|
Local storage (memory card slot) |
Yes |
|
Operating temperature |
-30 to 50 °C |
|
Outdoor Ready |
Yes |
|
Vandal rating |
IK10 |
|
IP rating |
IP66 |
|
Designed for repaint |
Yes |
| Analytics |
|
|
|
Autotracking version |
Autotracking 2 |
|
Orientation aid |
– |
| Video |
|
|
|
Max video resolution |
1920x1080 |
|
Max frames per second |
50/60 |
|
Day and Night functionality |
Yes |
|
Electronic image stabilization |
Yes |
| Lens |
|
|
|
Focal length |
4.0 - 84.6 mm |
|
Horizontal field of view |
77.0-3.6 ° |
|
Vertical field of view |
43.1-2.0 ° |
| Pan, Tilt, Zoom |
|
|
|
Optical zoom |
21 |
|
Pan range |
360 endless |
|
Tilt range |
+/- 90 |
|
Guard tour |
limited guard tour |
|
Digital zoom |
12 |
| Compression |
|
|
|
Zipstream |
Yes |
|
H.264 |
Baseline, High, Main |
|
H.265 |
Yes |
|
Motion JPEG |
Yes |
| Audio |
|
|
|
Audio Support |
– |
|
Built-in microphone |
– |
| System Integration |
|
|
|
Audio detection |
– |
|
Active tampering |
– |
|
Alarm inputs/outputs |
– |
| Network |
|
|
|
PoE Class |
4 |
| Security |
|
|
|
Signed OS |
Yes |
|
Secure boot |
Yes |
|
TPM |
– |
-
