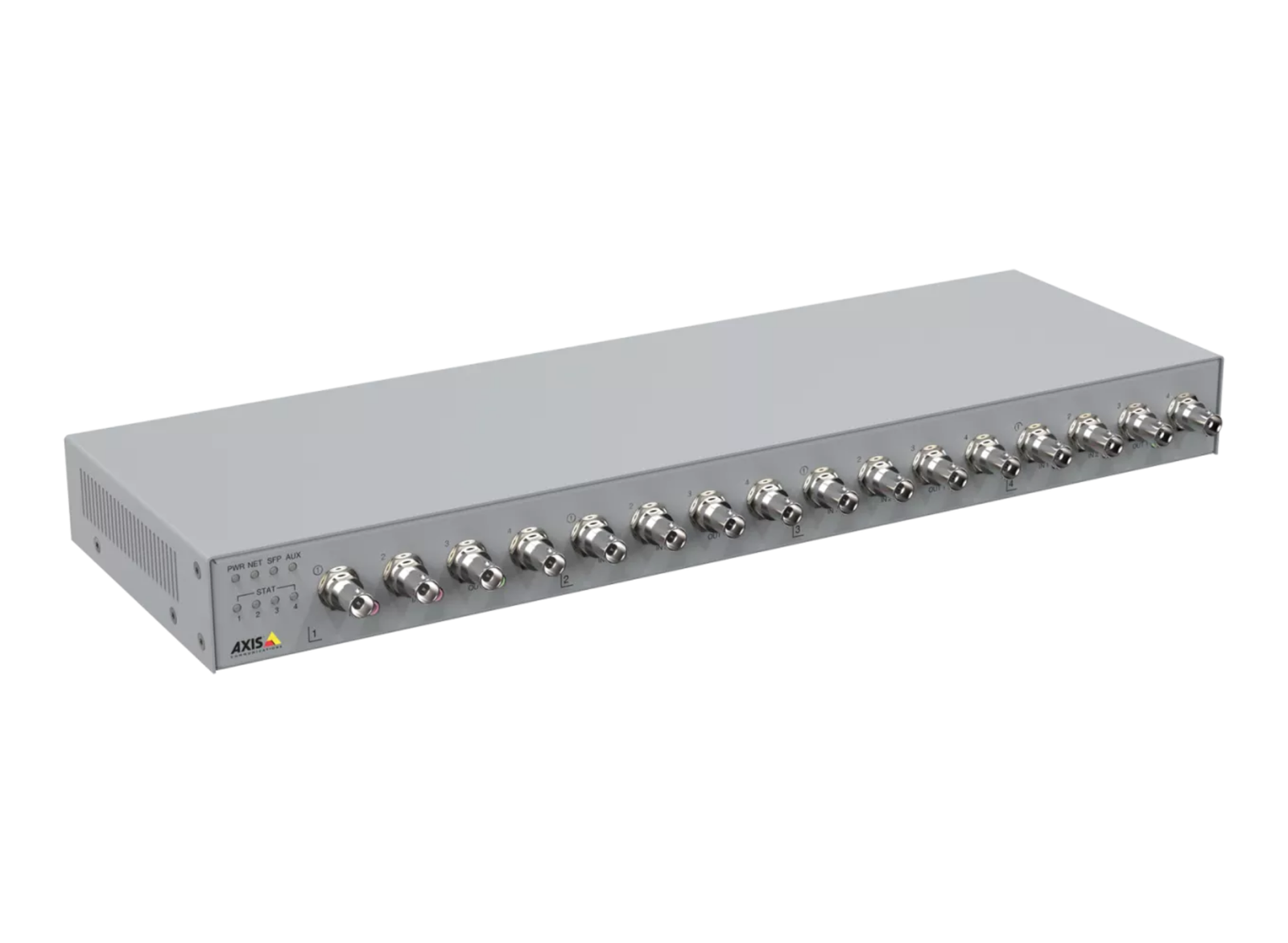

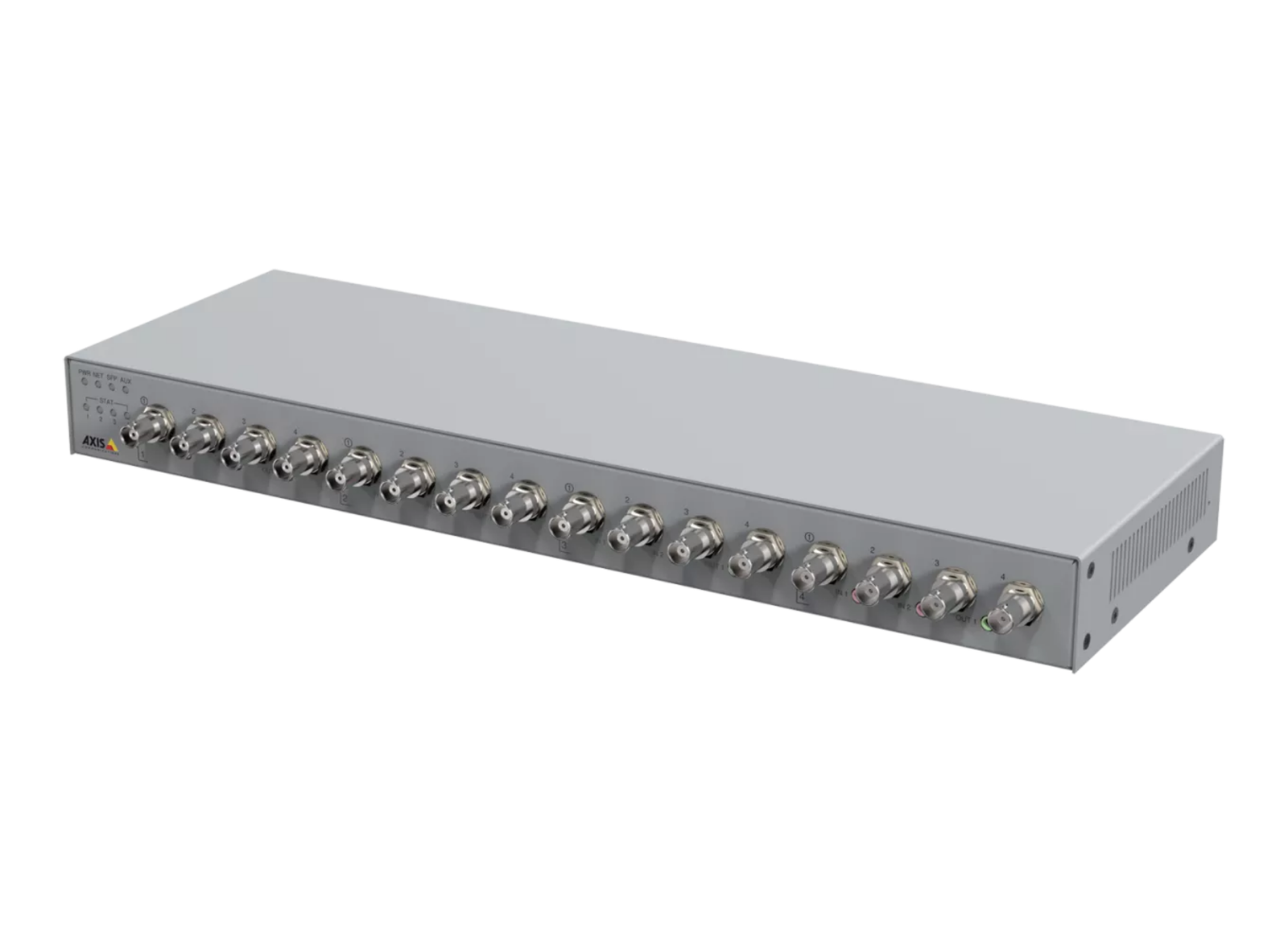

With AXIS P7316 you can migrate to IP surveillance at your own pace. This full-featured, 16-channel video encoder supports standard and analog cameras up to 4K resolution*. It offers support for PTZ (pan/tilt/zoom) cameras as well as two-way audio and analytics.
Everything you need and more
AXIS P7316 delivers video at 30 fps from NTSC/PAL or HD analog video in 1080p resolution. It supports HD analog up to 4K resolution*. Featuring Zipstream with H.264/H.265, it drastically cuts bandwidth and storage requirements. With remote access, you can view video streams on any browser or computer and change camera settings. Configurable inputs/outputs can be connected to external relays and sensors, for example, to activate lights and lock/unlock doors. AXIS P7316 supports two-way audio and intelligent analytics, as well as audio detection with analog and digital AXIS T83 microphones. The RS485 port lets you control analog PTZ cameras and an SFP slot enables optical fiber connection and network redundancy.
Seamless migration to IP surveillance
AXIS P7316 helps you migrate to the world of IP surveillance at your own pace while protecting your investment in analog equipment. Built on an open platform, AXIS P7316 allows you to use open-standard IT hardware or video management software from the supplier of your choice. This compact encoder is rack-mounted, enabling large numbers of analog cameras and audio channels to be integrated into an IP-based, high-density video surveillance system. Furthermore, if you use it with the AXIS Camera Station video management software, you only need one license for all 16 channels.
First-class Axis quality
Packed with built-in cybersecurity features, this reliable encoder helps prevent unauthorized access and safeguards your system. It is more secure than DVRs, which typically lack these types of cybersecurity features. Axis Edge Vault protects your Axis device ID and simplifies authorization of Axis products on your network. Additionally, signed firmware and secure boot guarantee that the firmware hasn’t been compromised and ensure only authorized firmware is installed. And if needed, secure boot guarantees the device is completely free of malware even after a factory default. Plus, thanks to continuous firmware updates, you can always depend on Axis for first-class quality and support.
*This 16-channel encoder can handle a maximum of four 4K or QHD resolution cameras and eight 1080p/720p/PAL/NTSC cameras simultaneously. Four channels will be disabled when optimizing for 4K or QHD.
| SoC Model | 4x ARTPEC-7 | Memory | 4x 1024 MB RAM, 512 MB Flash |
| Real-Time Clock | Battery backed-up real-time clock | Video Compression | H.264 Baseline, Main and High profiles; H.265 Main profile; Motion JPEG |
| Resolution | 176x144/176x120 to 720x576/720x480 PAL/NTSC; HD TVI, HD CVI and analog HD 1280x720 and 1920x1080; 4x one channel for resolutions above 1080p | Frame Rate | 25/30 fps up to 1080p; up to 30 fps quad view 1080p; 4x Quad HD up to 25/30 fps; 4x 4K up to 15 fps |
| Video Streaming | Multiple configurable H.264, H.265 and Motion JPEG streams; Axis Zipstream; controllable frame rate and bandwidth; VBR/ABR/MBR; quad view | Image Settings | Rotation 0°, 90°, 180°, 270°, de-interlace, compression, color, brightness, contrast, aspect ratio correction, mirroring, overlays, privacy mask, video termination, sharpness, noise reduction |
| Pan/Tilt/Zoom | Wide range of analog PTZ cameras supported, drivers included in firmware | PTZ Functions | Up to 100 preset positions/camera, guard tour, PTZ control queue, Windows joystick support, Coaxitron® by Pelco compatible |
| Audio Streaming | Two-way, full duplex | Audio Encoding | 24bit LPCM, AAC-LC 8/16/32/48 kHz, G.711 PCM 8 kHz, G.726 ADPCM 8 kHz, Opus 8/16/48 kHz, configurable bit rate |
| Audio Input/Output | 8 analog or digital external microphone input or line input, and 4 line output | IP Address | Four IP address, one per four channels |
| Security | IP address filtering, HTTPS encryption, IEEE 802.1x, network access control, user access log, multi-level user, Axis Edge Vault with Axis device ID | Network Protocols | IPv4, IPv6 USGv6, ICMPv4/ICMPv6, HTTP, HTTP/2, HTTPS, TLS, QoS, FTP, SFTP, CIFS/SMB, SMTP, mDNS, UPnP®, SNMP, DNS, DDNS, NTP, PTP, NTS, RTSP, RTP, SRTP/RTSPS, TCP, UDP, IGMP, RTCP, DHCP, ARP, SSH, LLDP, CDP, MQTT, Secure syslog, ZeroConf |
| API | Open API for software integration, including VAPIX® and AXIS Camera Application Platform | Cloud Connection | One-click cloud connection |
| ONVIF | ONVIF® Profile G, Profile M, Profile S, and Profile T | VMS Compatibility | AXIS Camera Station Edge, AXIS Camera Station Pro, AXIS Camera Station 5, and partner VMS |
| Event Conditions | Device status, edge storage, I/O, MQTT subscribe, PTZ, scheduled and recurring events, video, video encoder connected | Event Actions | Guard tours, upload images or video clips, notifications, overlay text, preset positions, recordings, SNMP trap messages, status LED, video clips, MQTT publish |
| Data Streaming | Event data | Included Analytics | AXIS Video Motion Detection, active tampering alarm |
| Analytics Support | AXIS Camera Application Platform with support for third-party applications | EMC Approvals | EN 55032 Class A, EN 61000-3-2, EN 61000-3-3, EN 55035, EN 61000-6-1, EN 61000-6-2, RCM, ICES-3(A), VCCI Class A, KS C, FCC Class A |
| Safety | IEC/EN/UL 62368-1 | Environment | IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-6, IEC 60068-2-14, IEC 60068-2-27, IEC 60068-2-78 |
| Network Approval | NIST SP500-267 | Cybersecurity Approval | ETSI EN 303 645, BSI IT Security Label |
| Edge Security Software | Signed OS, brute force delay protection, digest authentication, OAuth 2.0, password protection, AES-XTS-Plain64 256bit SD card encryption | Edge Security Hardware | Secure boot |
| Network Security | IEEE 802.1X, IEEE 802.1AE, IEEE 802.1AR, HTTPS/HSTS, TLS v1.2/v1.3, NTS, X.509 Certificate PKI, host-based firewall | Cybersecurity Docs | AXIS OS Hardening Guide, Axis Vulnerability Management Policy, Axis Security Development Model, AXIS OS Software Bill of Material |
| Casing | Metal casing 1U stand alone, rackmount or wallmount | Color | NCS S 5502-B |
| Sustainability | PVC free | Power | Max 32 W |

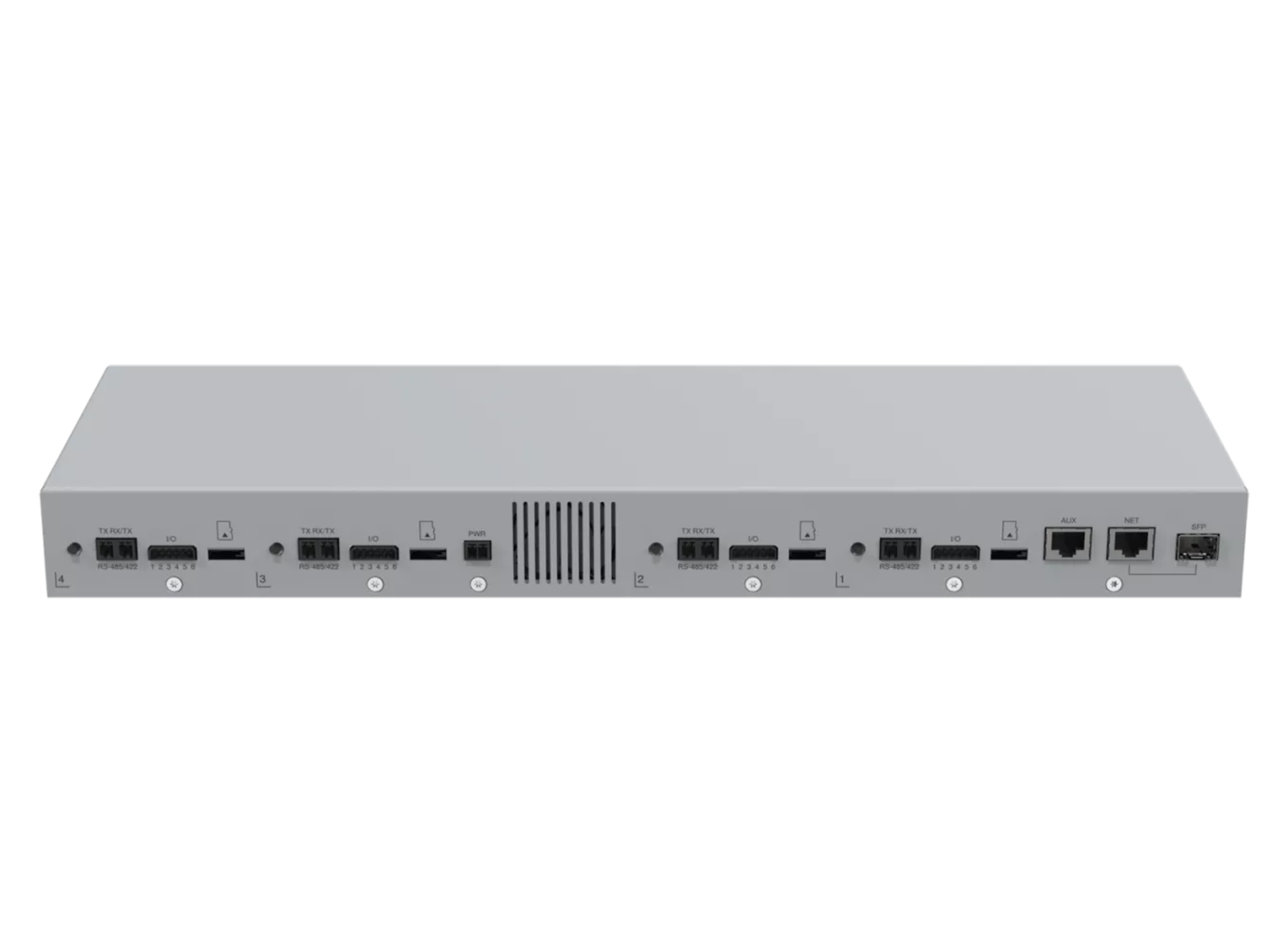

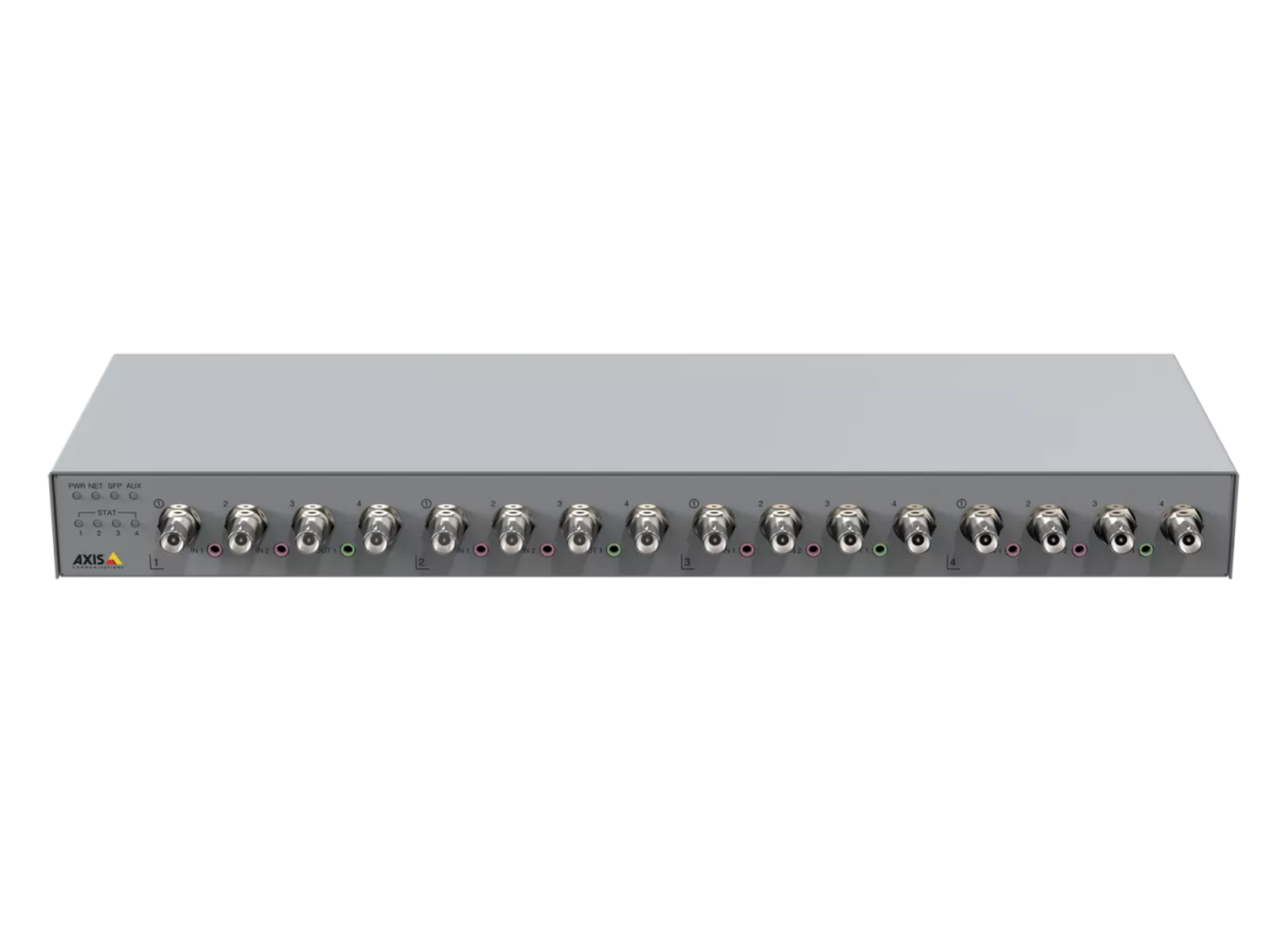

| Connectors | 16 analog video BNC inputs, 8 mic/line inputs, 4 audio line outputs, 1000 BASE-TX Ethernet, auxiliary Ethernet, Gbps SFP slot, terminal blocks for I/O and RS485/RS422 | Storage | microSD/microSDHC/microSDXC with encryption; recording to network-attached storage |
| Operating Conditions | 0 °C to 50 °C (32 °F to 122 °F), humidity 10–85% RH non-condensing | Storage Conditions | -40 °C to 65 °C (-40 °F to 149 °F), humidity 5–95% RH non-condensing |
| Dimensions | 44 x 145 x 440 mm (1.7 x 5.7 x 17.3 in) | Weight | 2100 g (4.6 lb) |
| Included Accessories | Installation guide, Windows® decoder 1-user license, mains power supply, mounting kit, connector kit with RS485/RS422 plugs and I/O plugs | Optional Accessories | For accessories, see axis.com |
| Languages | English, German, French, Spanish, Italian, Russian, Simplified Chinese, Japanese, Korean, Portuguese, Polish, Traditional Chinese, Dutch, Czech, Swedish, Finnish, Turkish, Thai, Vietnamese | Warranty | 5-year warranty |
| Description | Downloads |
|---|---|
| Datasheet | Download |
