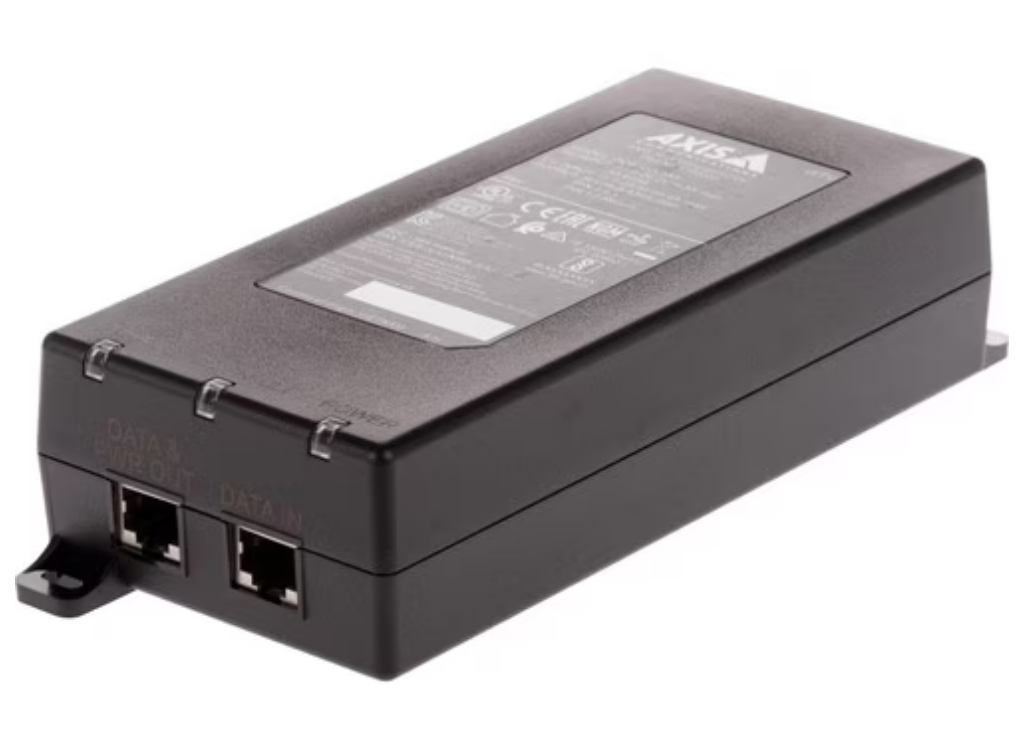

AXIS 90 W Midspan AC/DC is perfect for installations where mains power is not an option. With a power input of either 24 V AC or 20-26.4 V DC, it can deliver up to IEEE 802.3bt (90 W) to your network device. AXIS 90 W Midspan AC/DC is plug-and-play and compatible with all Axis PoE devices which require up to 90 W power.
24 V AC can be needed in harsh environments where new cabling or installations are not an option and you need to retrofit box, dome or PTZ cameras.
20-26.4 V DC can be used where battery back-up is needed or for solar-powered installations. Or when the network device is built in another equipment and is powered directly from it, for example, in an ATM.
| Category | Feature | Specification |
|---|---|---|
| Compatibility | Supported Devices | P8815-2 3D People Counter, D4100-E Network Strobe Siren, Fixed Box, Bullet, and Dome Cameras (Multiple Models) |
| Input Ports | Port 1 | 1 x Gigabit Ethernet |
| Port 2 | 1 x Gigabit Ethernet | |
| Output Ports | Type | 1 x Gigabit PoE |
| Product Details | Type | PoE Injector |
| Manufacturer Part Number | 02209001 | |
| Manufacturer | Axis Communications | |
| Product Name | 90 W Midspan AC/DC | |
| Brand Name | AXIS | |
| Physical | Weight (Approximate) | 500 g |
| Form Factor | Wall/Shelf/DIN Rail Mountable | |
| Height | 43.2 mm | |
| Width | 78.7 mm | |
| Depth | 188 mm | |
| Color | Black | |
| Power | Input Voltage | 24 V AC, 20 V DC, 26.4 V DC |
| Maximum Output Power | 90 W | |
| Maximum Output Voltage | 56 V DC |
